Fanless Mini Computer J1800 J1900 J4125

Fanless Mini Computer J1800 J1900 J4125

Model: Partaker B3

  • All-aluminum chassis in black.
  • Supports VESA & desktop installation.
  • Intel Celeron processors.
  • HDMI & VGA ports for dual monitors.
  • Dual Gigabit LAN.
  • Up to 8GB expandable memory.
  • High-speed SSD & SATA3.0 support.
  • Realtek ALC662 audio codec.
  • USB 2.0/3.0 & COM ports.
  • Compact 137x126x48mm design.

Share to:

Overview



Experience high performance and complete silence with our fanless mini PC, featuring a Celeron J4125 processor and UHD Graphics 600. Boasting 4 cores, 4 threads, and a base frequency of 2.0GHz (max 2.7GHz), this mini PC operates at a mere 15W, saving over 80% in energy consumption. Pre-installed with Windows 10 Pro (64bit) OS, it also accommodates Linux OS upon request.



Mechanical

Material High-quality all aluminum
Colour Black
Size 137 * 126 * 48 mm
Weight 1.5Kgs
Insallation Method With VESA, desktop



Motherboard



CPU

Celeron J4125 processor, 4 Cores 4 Threads, base frequency: 2.0GHz, max 2.7GHz, 4MB Cache

Celeron J1900, 4 Cores 4 Threads, Processor Base Frequency 2GHz(MAX 2.42GHz), 2 MB L2 Cache

Celeron J1800, 2 Cores 2 Threads, Processor Base Frequency 2.41Ghz, Max 2.58Ghz, 1MB Cache

Display Ports 1 x HDMI port, 1 x VGA port, supports Connections dual monitors
Network Card 2 x 10/100/1000Mbps LAN
Memory 1 x DDR3-1600, Max 8GB (J1800/J1900)

1 x SO-DIMM DDR4 slot, max support 8GB(J4125)

Storage 1 x MSATA high speed SSD. Support install 1 x 2.5 inch sata3.0 SSD/HDD, up to 2 TB
Audio Card Realtek ALC662, 3.5mm Audio Jack, MIC, SPK

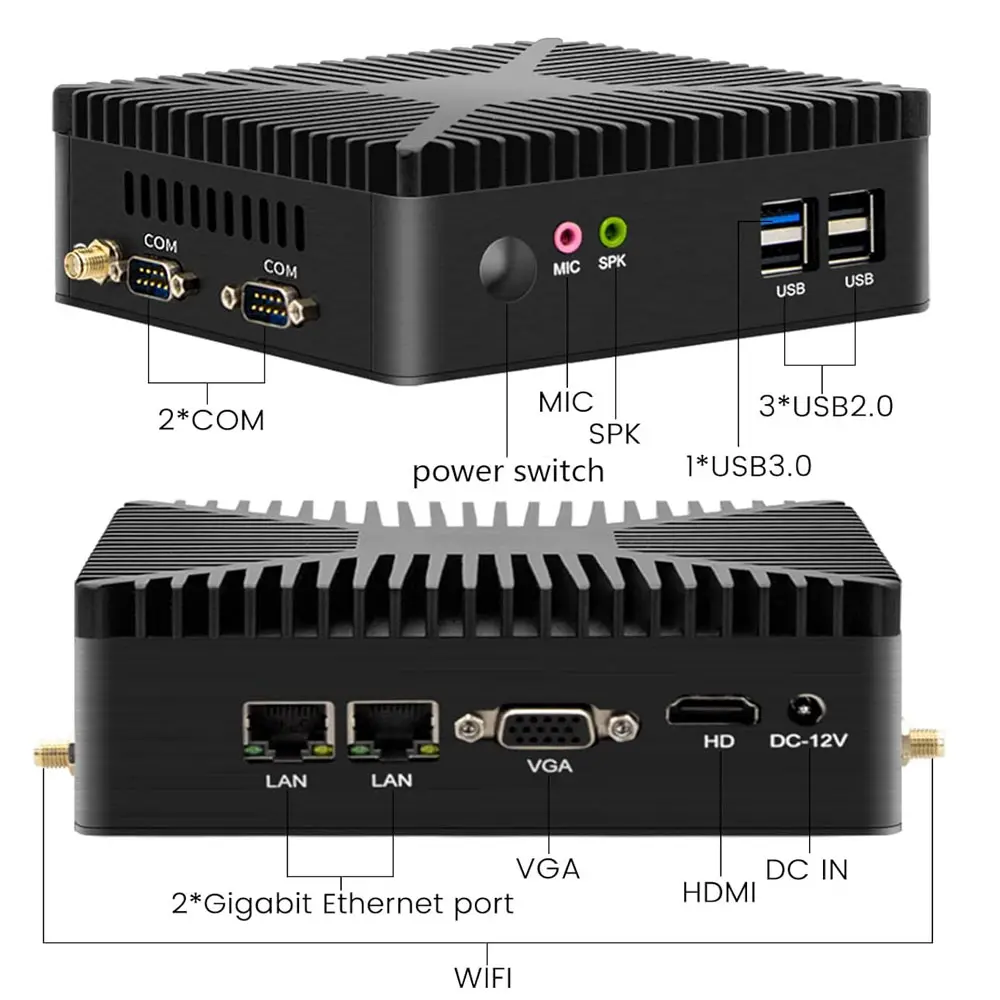

I/O Interfaces













J1800/J1800

2 x Lan
1 x VGA
1 x HDMI
1 x DC IN
1 x USB3.0
3 x USB2.0
1 x SPK
1 x MIC
1 x Power Switch
2 x WiFi Holes
2 x COM(Optional)

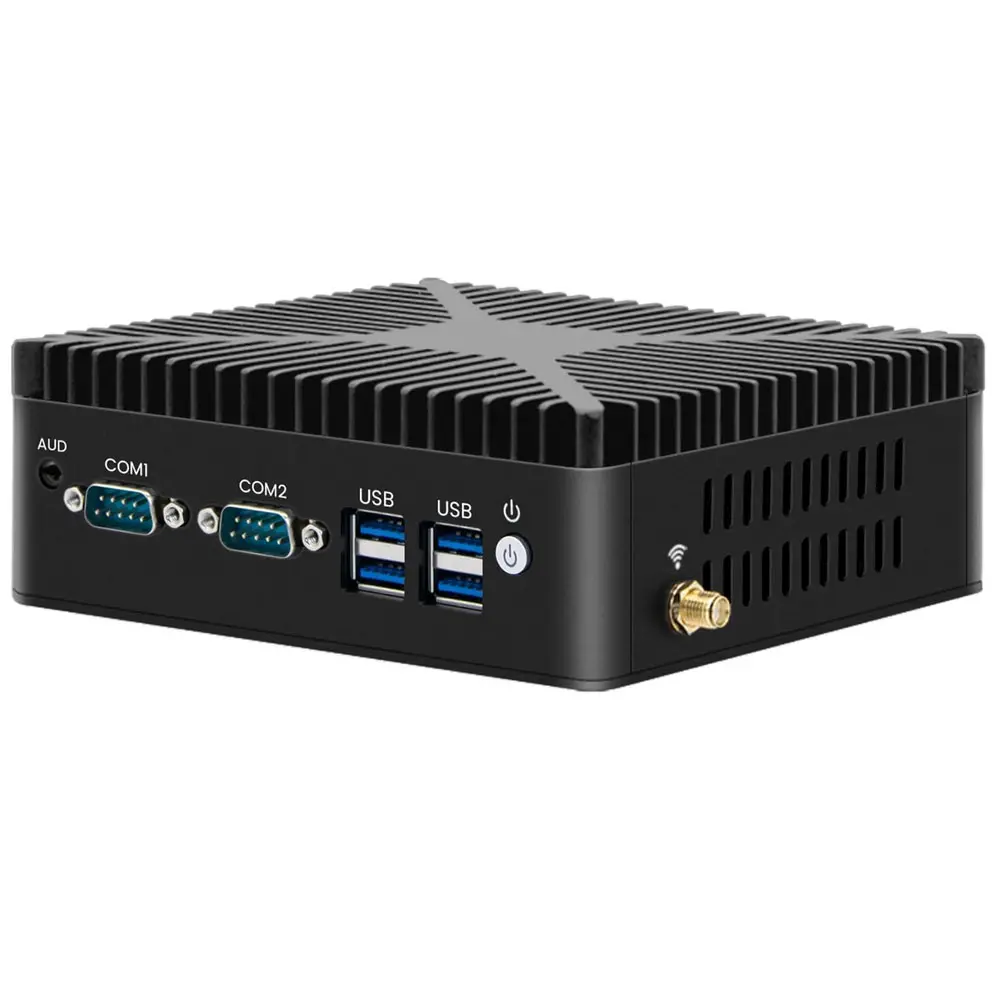

J4125

2 x USB2.0
2 x LAN
1 x VGA
1 x HDMI
1 x DC IN
1 x Audio
2 x COM
4 x USB3.0
1 x Power Switch



Software Support

Bios AMI EFI BIOS
System Support Pre-installed Windows 10 pro(64 Bit). Support Linux.(Does not support XP)



General

Cooling Mode Fanless
Power Supply Input AC 100V~240V,output DC 12V/3A
Packing List Mini pc, power supply, power cord, vesa mount, WiFi antennas, warranty card



Environment

Operating Temperature -10°C~60°C
Storage Temperature -20°C~80°C
Relative Humidity 10%~90% non-condensing
Certification CE FCC ROHS
Model Processor Graphic Frequency Display Memory Storage LAN USB Power
B3 J1800 Intel® HD Graphics 2.41~2.58GHz HDMI/VGA 1 x DDR3, Max 8G 1 x mSATA, 1 x 2.5 inch SSD/HDD 2 4 DC 12V
B3 J1900 Intel® HD Graphics 2.0~2.42GHz HDMI/VGA 1 x DDR3, Max 8G 1 x mSATA, 1 x 2.5 inch SSD/HDD 2 4 DC 12V
B3 J4125 Intel® UHD Graphics 600 2.0~2.70GHz HDMI/VGA 1 x DDR4, Max 8G 1 x mSATA, 1 x 2.5 inch SSD/HDD 2 6 DC 12V
