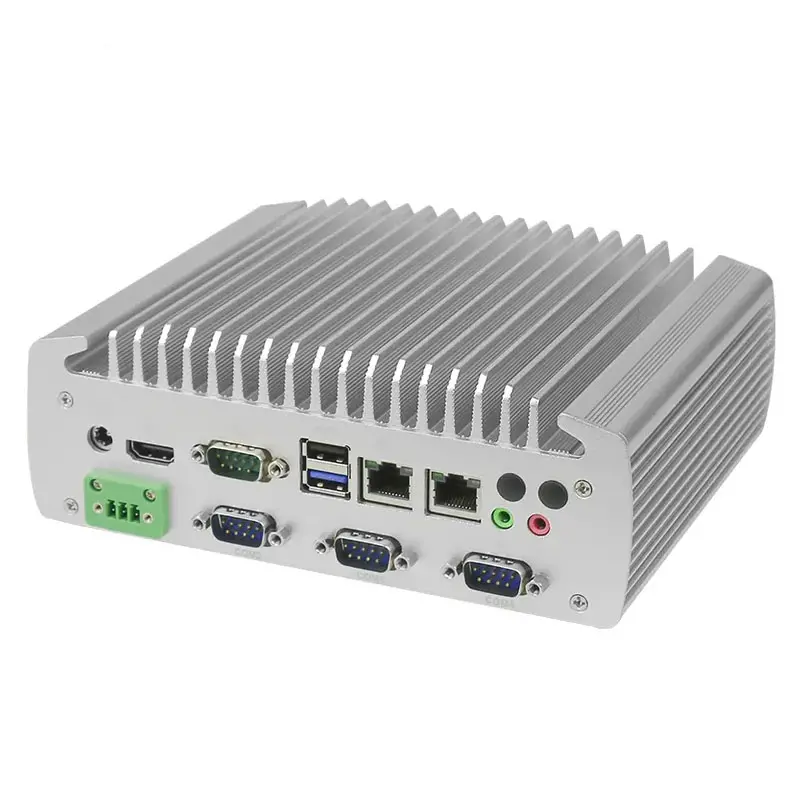

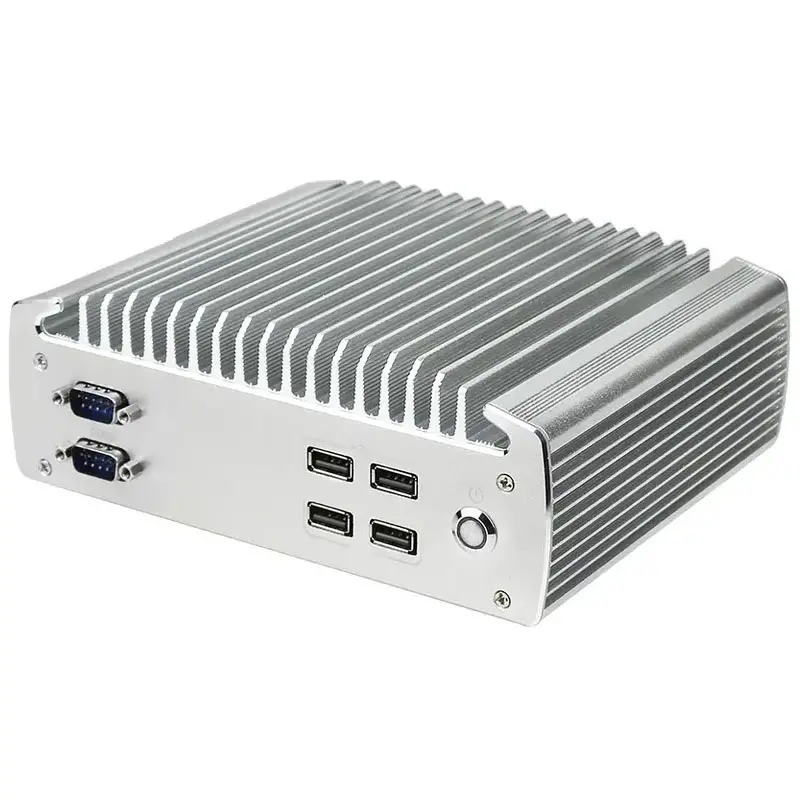

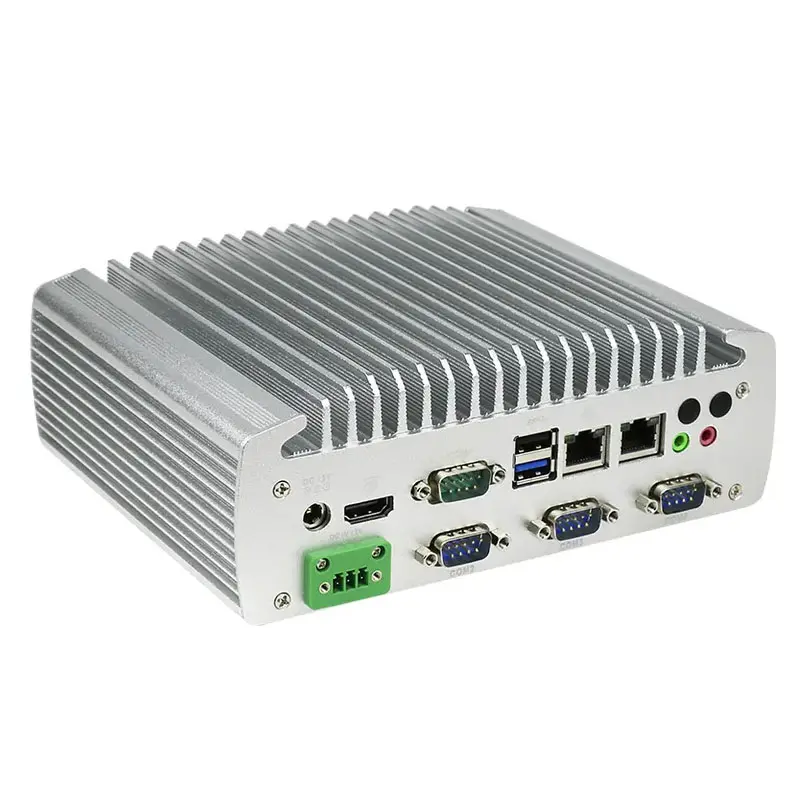

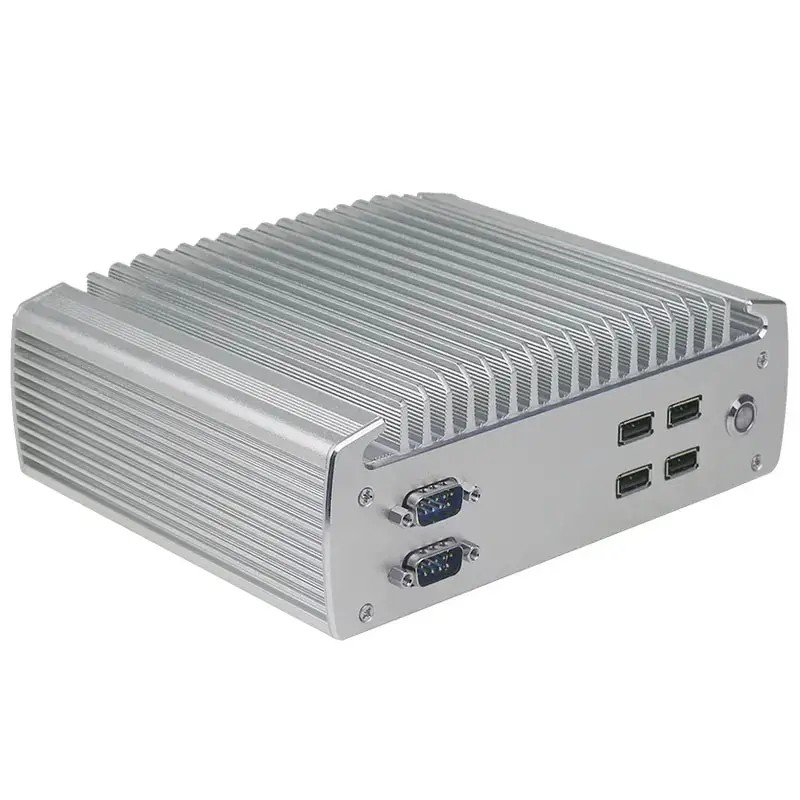

Fanless Industrial Mini PC Celeron J1900

Fanless Industrial Mini PC Celeron J1900

Model: Partaker I31

  • Intel Celeron J1900 quad core 2.0Ghz
  • 1 x DDR3L 31333/1600MHz SODIMM ram slot, support max 8G
  • Support 1 x MSATA, 1 x SATA3.0
  • Support 1 x HD, 1 x LVDS (Support synchronous and asynchronous dual display)
  • 2 x Intel i211-AT 10/100/1000M lan
  • Windows 7/8/10, Linux OS

Share to:



Mechanical

Material Aluminum alloy
Colour Silver (any color can be customized)

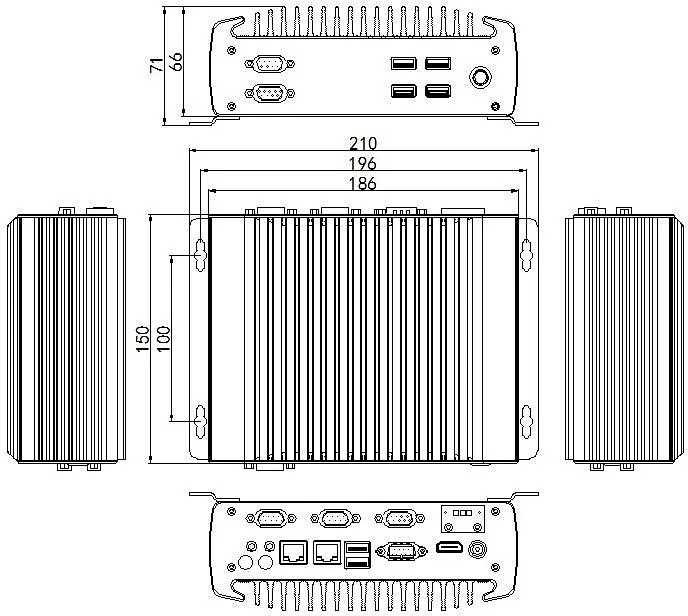

Size 186 x 150 x 66 mm (L*W*H)
Weight 2Kgs
Insallation Method Desktop type



Motherboard

CPU Intel Celeron J1900 quad core 2.0Ghz
Network Card 4 x Intel i211-AT 10/100/1000M lan
Graphic Integrated Intel HD Graphics Card
Memory 1 x DDR3L 31333/1600MHz SODIMM ram slot, support max 8G
Storage 1 x mSATA SSD,1 x 2.5 inch HDD/SSD
Display Support 1*HDMI, 1*LVDS (Support synchronous and asynchronous dual display)
Expand Support 1*Mini-PCIE (support MSATA)

Support 1*Mini-PCIE (support WiFi/3G/4G), Embedded SIM Slot



I/O Interfaces

Front Panel 1 x DC-IN 12V
1 x Audio & MIC
1 x HDMI
4 x COM (COM1,COM2 support RS232/485 optional)
2 x LAN
1 x USB3.0
Dual wifi holes
2 x USB2.0
Rear Panel 2 x COM
4 x USB2.0
1 x Power Switch



Software Support

Bios AMI UEFI BIOS
System Support Windows 7/8/10, Linux OS



General

Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter
Packing List I31 mini pc, power supply, power cord, warranty card



Environment

Working Temperature 0℃ ~ +50℃ (HDD), -10℃ ~ +60℃ (SSD)
Working Humidity 0% – 95% relative humidity, Non-condensing
Watch Dog Timer Support
Certification CE FCC ROHS



J1900 Industrial Fanless System

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
I31 J1900 Intel® HD Graphics 2.0~2.42 GHz 1 x HDMI 1 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD/HDD 2 6 12V/4A5A
