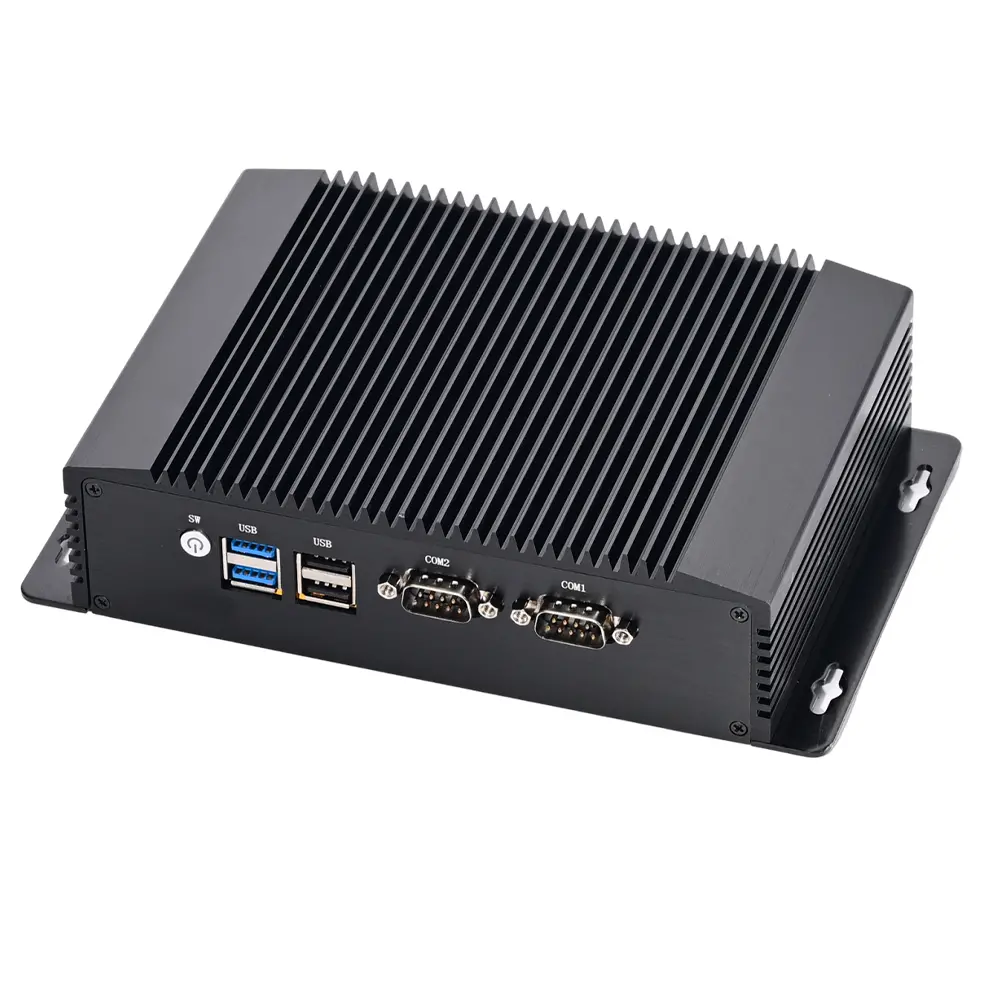

Fanless Industrial Computer N100

Fanless Industrial Computer N100

Model: Partaker I1

  • Type: IPC type with mounting ears
  • CPU: Intel Processor N100 (up to 3.40 GHz, 6M Cache)
  • Memory: Supports up to 16GB DDR4 RAM (1 x SO-DIMM slot, 3200 MT/s)
  • Storage: Accommodates 1 x mSATA SSD, 1 x M.2 2280 NVME SSD, and 1 x 2.5 Inch SATA SSD/HDD
  • Network: Equipped with 2 x Realtek 10/100/1000 BaseT LAN ports
  • I/O Ports: Features SW, 2 x USB 3.0, 2 x USB 2.0, 2 x COM, SPK, MIC, 2 x LAN, DP, 2 x HDMI, and DC_IN

Share to:

Overview



The Fanless N100 Mini PC, designed for IPC applications, features a robust Intel Processor N100 (up to 3.40 GHz) for dependable performance. With support for up to 16GB of DDR4 RAM and a flexible storage configuration, it suits a variety of needs. This compact unit offers dual Realtek 10/100/1000 BaseT LAN ports and a rich set of I/O options, making it ideal for industrial scenarios. Silent and reliable, this mini PC excels in delivering efficient computing power.





Mechanical

Material High-quality all aluminum
Colour Black
Size 170 * 125 * 50 mm
Weight 1.5Kgs
Insallation Method With mounting ears, Wall-mounted, embedded, desktop

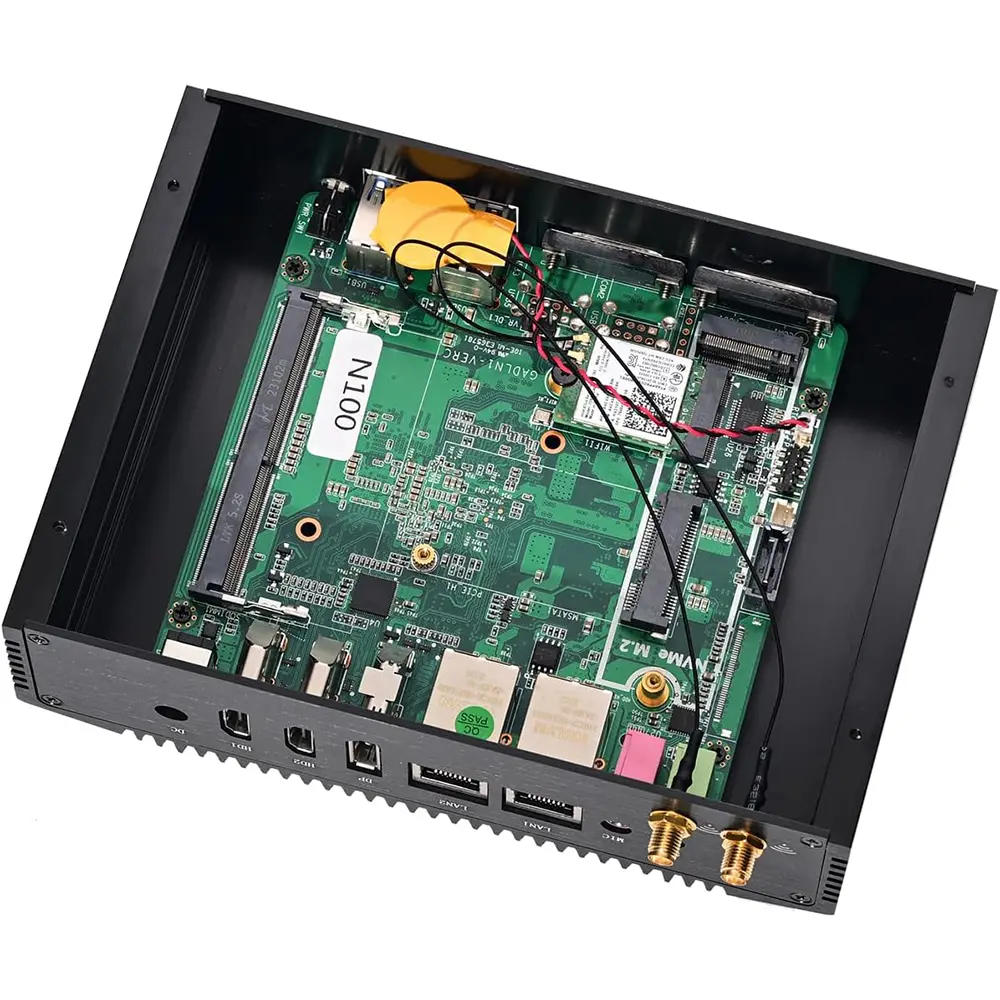

Motherboard

CPU Intel Processor N100 6M Cache, up to 3.40 GHz
Display Ports 2 x HDMI, 1 x DP
Network Card 2 x Realtek 10/100/1000 BaseT LAN
Memory 1 x SO-DIMM DDR4 3200 MT/s, max. 16GB RAM
Storage 1 x mSATA SSD, 1 x M.2 2280 NVME SSD, 1 x 2.5 Inch SATA SSD/HDD
Audio Card ALC892
Other Function First-class temperature control ensures 24h/7 days without shutting down

12V green and environmentally friendly, only 10W power for daily use

Support restore AC power loss/WOL/LAN PXE boot

Support dual screen for simultaneous display or synchronous different display



I/O Interfaces

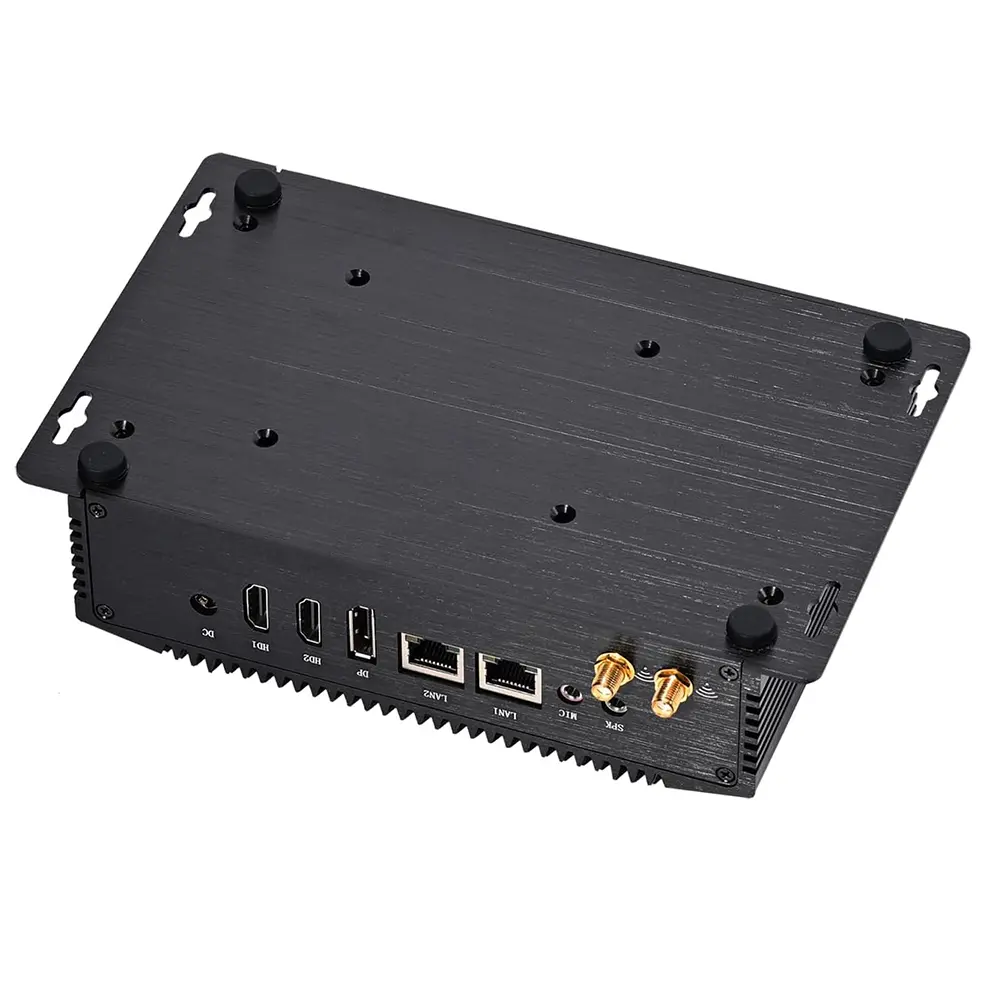

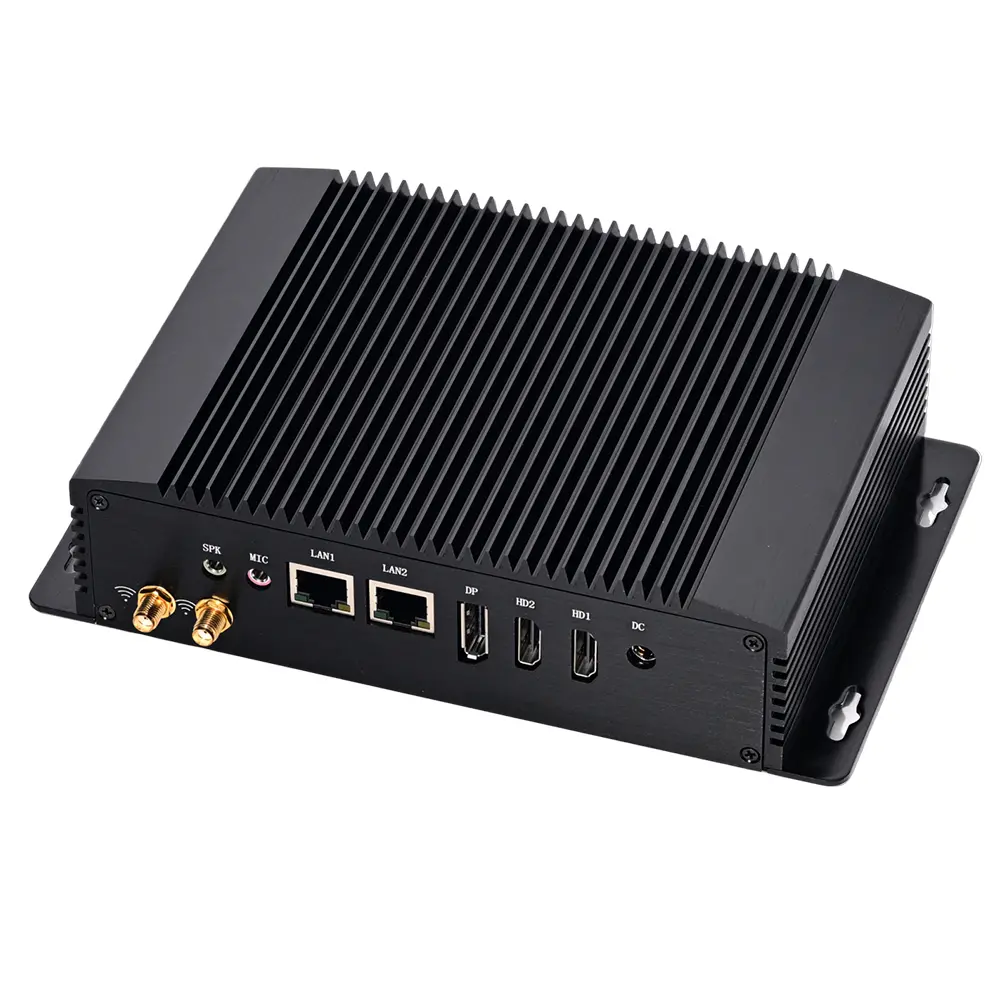

Front Panel 2 x WiFi Holes
1 x SPK
1 x MIC
2 x LAN
1 x DP
2 x HDMI
1 x DC IN

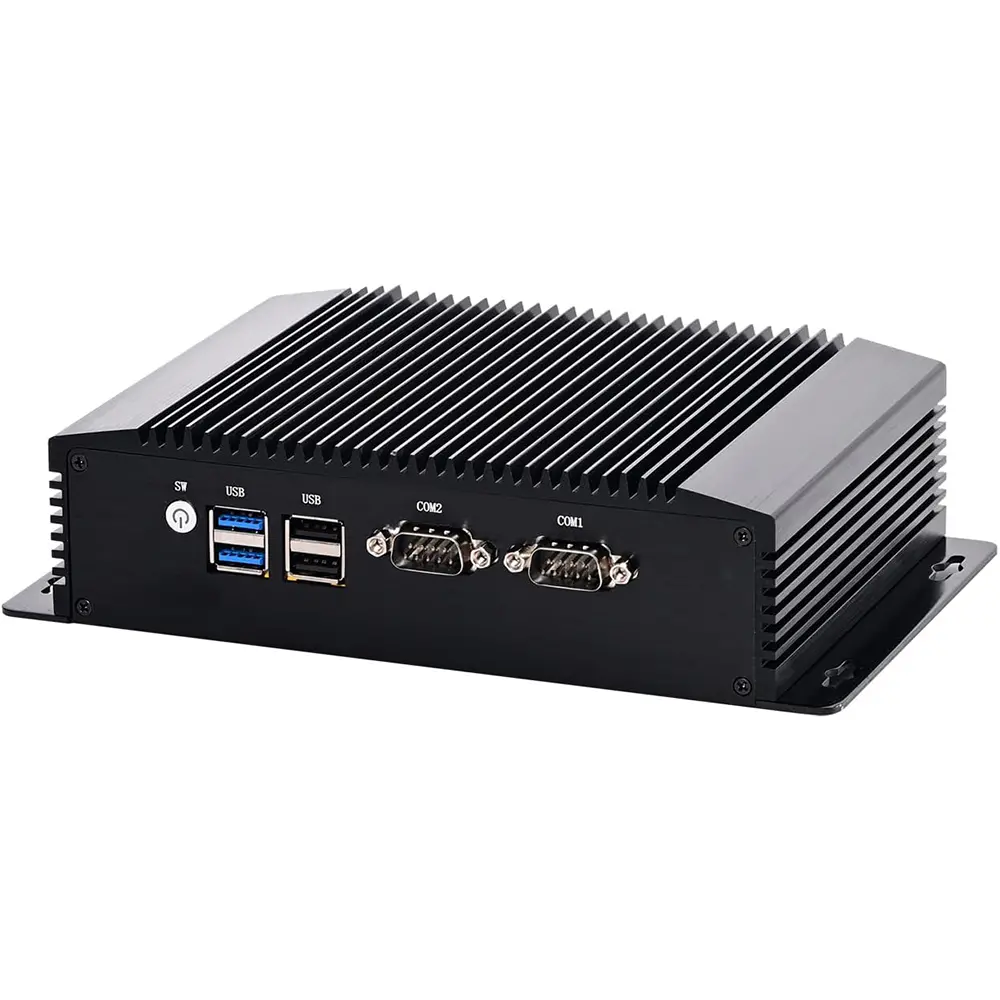

Rear Panel 1 x SW
2 x USB3.0
2 x USB2.0
2 x COM



Software Support

Bios AMI EFI BIOS
System Support Windows 10/11, Linux



General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A
Packing List  Industrial pc, power supply, power cord, WiFi antennas, warranty card



Environment

Operating Temperature -10°C~60°C
Storage Temperature -20°C~80°C
Relative Humidity 10%~90% non-condensing
Certification CE FCC ROHS
Model Processor Graphic Frequency Display Memory Storage COM LAN USB Power
I1 N100 Intel® UHD Graphics 3.40GHz 2 x HDMI/1 x DP 1 x DDR4, Max 16G 1 x M.2 2280 NVME, 1 x mSATA, 1 x 2.5 inch SSD/HDD 2 2 4 DC 12V
