Fanless Industrial 6th/7th Gen PC

Fanless Industrial 6th/7th Gen PC

Model: Partaker I18

  • Intel 6-7th Gen I3 7100U I5 6200U Processor
  • 1 x DDR4 1866/2133 SODIMM, Max 16GB
  • 1 x M.2, 1 x 2.5 Inch SATA, Support RAID 0/1
  • 10 x COM Optional (2 x RS232/422/485 Optional)
  • VGA+HDMI Dual Display, Fanless Pure Aluminum
  • 2 x Intel i211-AT 1000M LAN, Support Dual 4G LTE
  • Support DC 9~36V wide voltage
  • Power positive and negative reverse protection

Share to:

Overview



Introducing our Fanless Industrial Desktop PC, powered by the latest Intel Core i3, i5, and i7 processors. This robust machine features a DDR4 1866/2133 RAM slot, supporting up to 16GB of RAM for seamless multitasking. Storage options include an M.2 2280 slot and an onboard 2.5” HDD, with the added flexibility of two additional 2.5” HDDs. Connectivity is enhanced with WIFI, Bluetooth, 3G, and 4G options, all with an embedded SIM slot for easy network integration. Operating systems supported include Windows 7/8/10 and Linux. This desktop PC is ideal for self-service kiosks, subway stations, smart medical displays, advertising machines, and other industrial applications, thanks to its robust design, expandability, and wide voltage input range of 9-36V.





Mechanical

Material Titanium gray, all aluminum
Colour Titanium gray (any color can be customized)

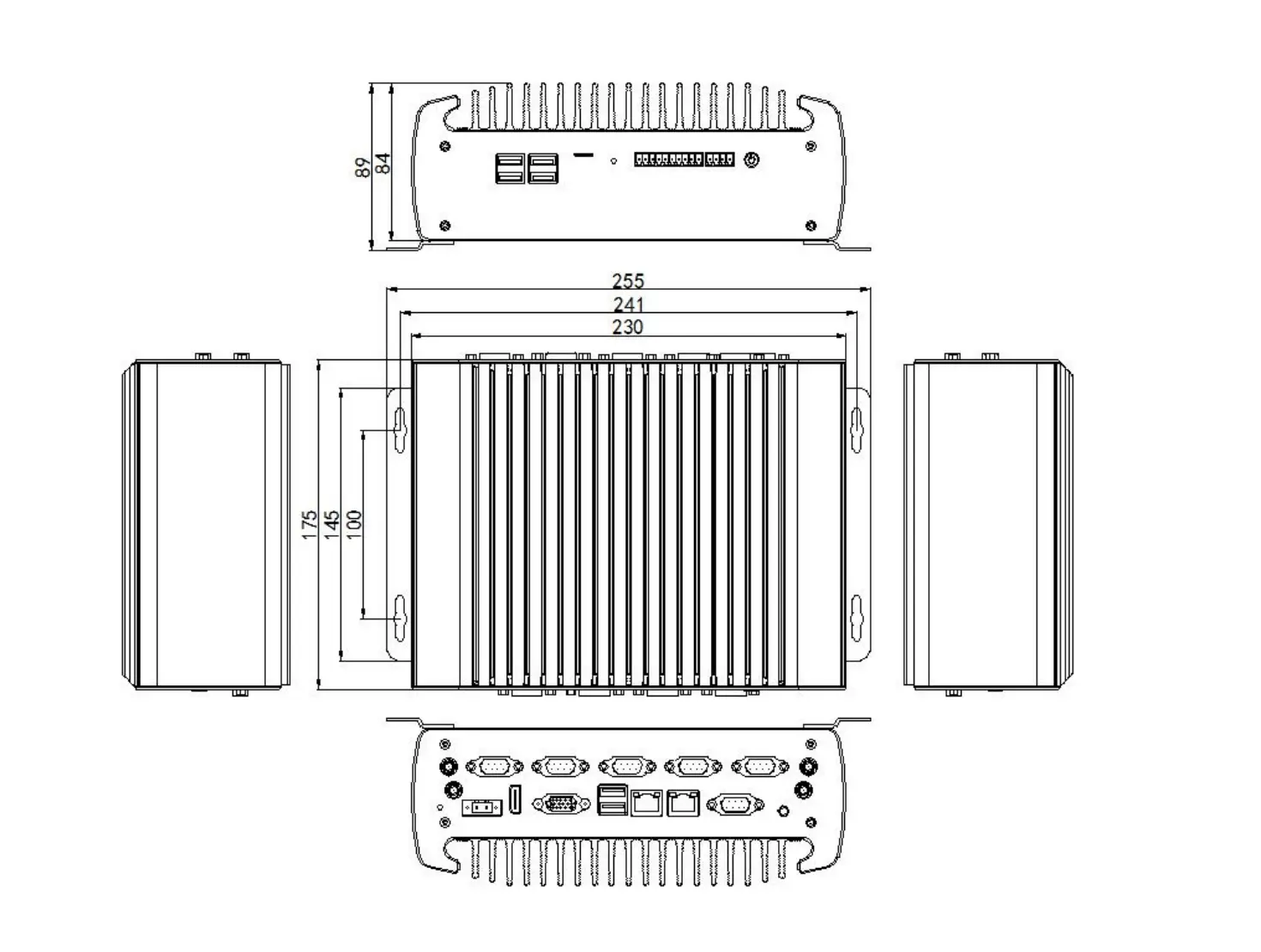

Size 230*175*84 mm (L*W*H)
Weight 2.8 kg【without brackets】



Motherboard

CPU Intel Core i5 6200u dual core 2.3GHz

Intel Core i3 7100u dual core 2.4GHz

CPU Structure Skylake-U / KabyLake-U
Display Ports 1 x VGA, 1 x HDMI, (Support synchronous and asynchronous dual display)
Network Card 2 x Intel i211-AT 10/100/1000M lan
Memory Support 2 x DDR4 1866/2133 SODIMM RAM Slot, Max. Support 32G
Storage Support 1 x DDR4 1866/2133MHz SODIMM ram slot, support max 16G
Watch Dog Timer Support
Expansion

Support 1 x M.2 2280 Slot (support SATA or PCIE X4 signal)

Support 1 x M.2 (support 3G/4G), External SIM card slot

Support 1 x Mini-PCIE (support Wifi/BT/3G/4G), Embedded SIM Slot

Optional port: 10 x COM, LPT port, 1 x PCIE X1 Slot

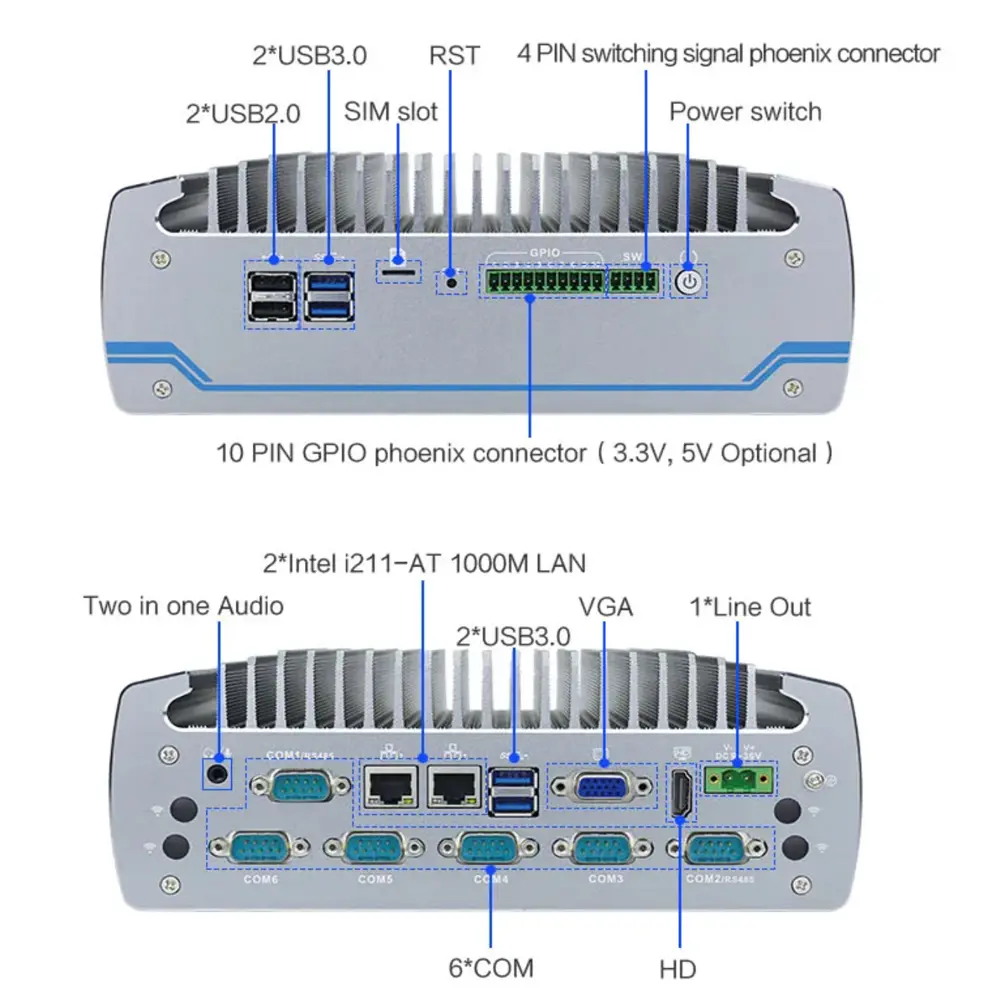

I/O Interfaces

I/O Ports

4 x USB3.0, 2 x USB2.0

1 x HD, 1 x VGA, 1 x SIM Card Slot

2 x 1000M Lan

1 x 10Pin GPIO Phoenix terminal (3.3V or 5V optional)

1 x 4Pin Power Signal Phoenix terminal

6 x COM (COM1, COM2 support RS232/422/485 optional)

1 x Audio (support audio and mic input)

1 x Power Switch

1 x DC-IN 12V



Software Support

Bios AMI EFI BIOS
System Support Windows 7/8/10 & Linux & pfSense



General

Cooling Mode Fanless
Power Supply Support DC 9~36V Wide voltage,  support positive and negative reverse protection

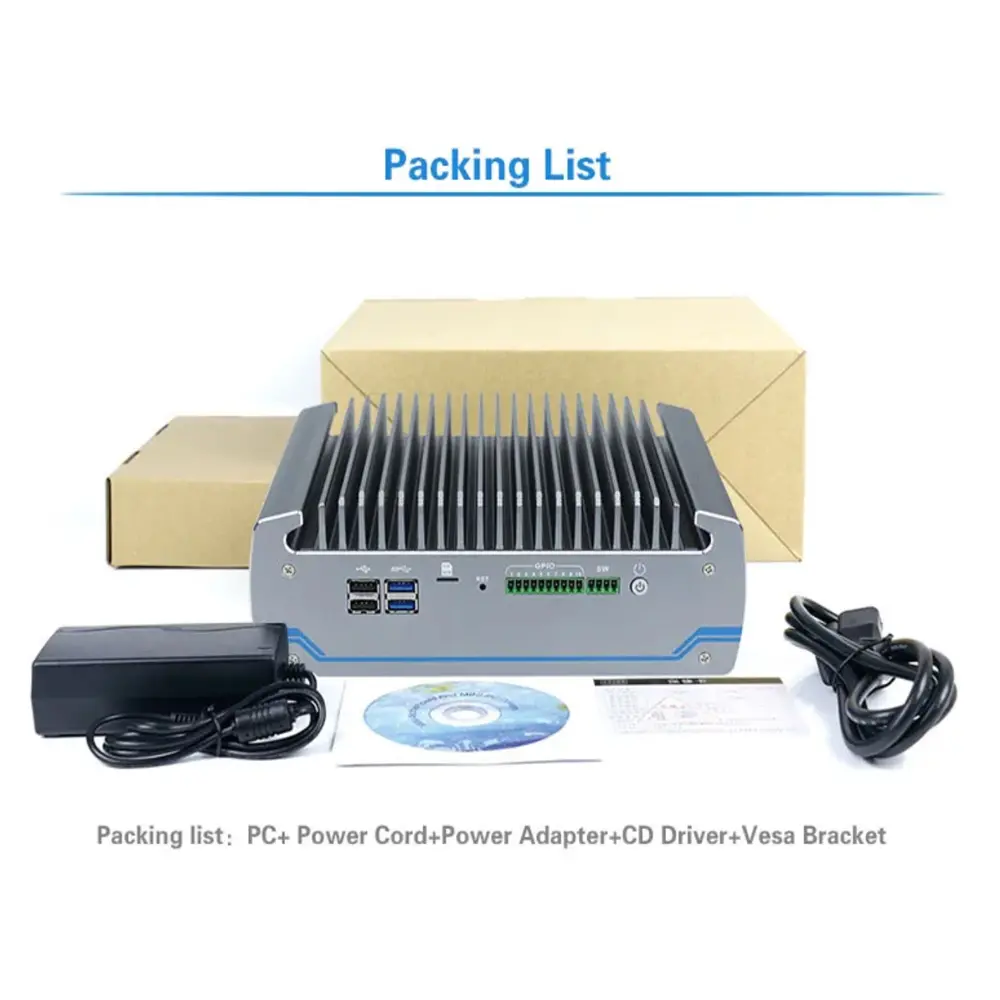

Packing List Industrial pc, bracket, power supply, power cord, WiFi antennas, warranty card
Application Applied in KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, Networking, etc.



Environment

Work Temperature 0°C ~ +50°C (commercial HDD), -20°C ~ +60°C (industrial SSD), surface air flow
Work Humidity 5% ~ 95% non-condensing state
Certification CE FCC ROHS
fanless industrial computer
Model Processor Graphic Frequency Display Memory Storage COM LAN USB Power
I18 i3 7100U Intel® HD Graphics 620 2.40 GHz HDMI/VGA 1 x DDR4, Max 16G 1 x M.2 2280/1 x 2.5 SATA SSD/HDD 6 2 6 DC 9~36V
I18 i5 6200U Intel® HD Graphics 520 2.30~2.80GHz HDMI/VGA 1 x DDR4, Max 16G 1 x M.2 2280/1 x 2.5 SATA SSD/HDD 6 2 6 DC 9~36V
