Fanless Desktop Mini Firewall Appliance

Fanless Desktop Mini Firewall Appliance

Model: Partaker F1

  • Intel®Celeron J4125 2.0GHz quad core 4-thread processor
  • 1* DDR4 SODIMM slot,support single channel ,2400MHz, max up to 8GB
  • 1*VGA
  • 4* Intel I211 I225 82583V, support Wake On LAN / PXE
  • 1* RS232 COM port
  • 2*USB2.0 port
  • DC 12V power input
  • Fanless cooling, high quality galvanized steel

Share to:

Overview



Partaker F1 multi-port firewall pc with intel celeron J4125/J1900 processor, support 4 x I211 I255 82583V gigabit lan, support wake-on-lan, pxe function. Its comes with ultra thin fanless cooling structure, x86 architecture which compatible with linux and windows systems. Support firewall pc system like pfSense, ikuai, openwrt, ROS, OPNsense etc.



Mechanical

Chassis Fanless cooling, high quality galvanized steel
Colour Light silver black
Size 197mm*175mm*35mm
Weight 2.5Kgs
Insallation Method Desktop type



Motherboard

CPU Integrated Intel®Celeron J4125 2.0GHz quad core 4-thread processor ,TDP 10W

Compatible with Intel® Gemini Lake full series CPU

Network Card 2 x Intel I211 Gigabit Ethernet, support Wake On LAN/PXE
Graphic

Intel® UHD Graphics 600
Memory 1 x DDR4 SODIMM slot ,support single channel , 2400MHz , max up to 8GB
Storage 1 x MSATA SSD expansion,transfer rate up to 3Gbps
1 x 2.5”HDD expansion
Display 1 x VGA
Expand 1 x Mini-PCIE slot, support WIFI / 4G module, default : USB signal
Note: Mini-PCIE slot and the LAN4 share PCIE channel (optional)



I/O Interfaces

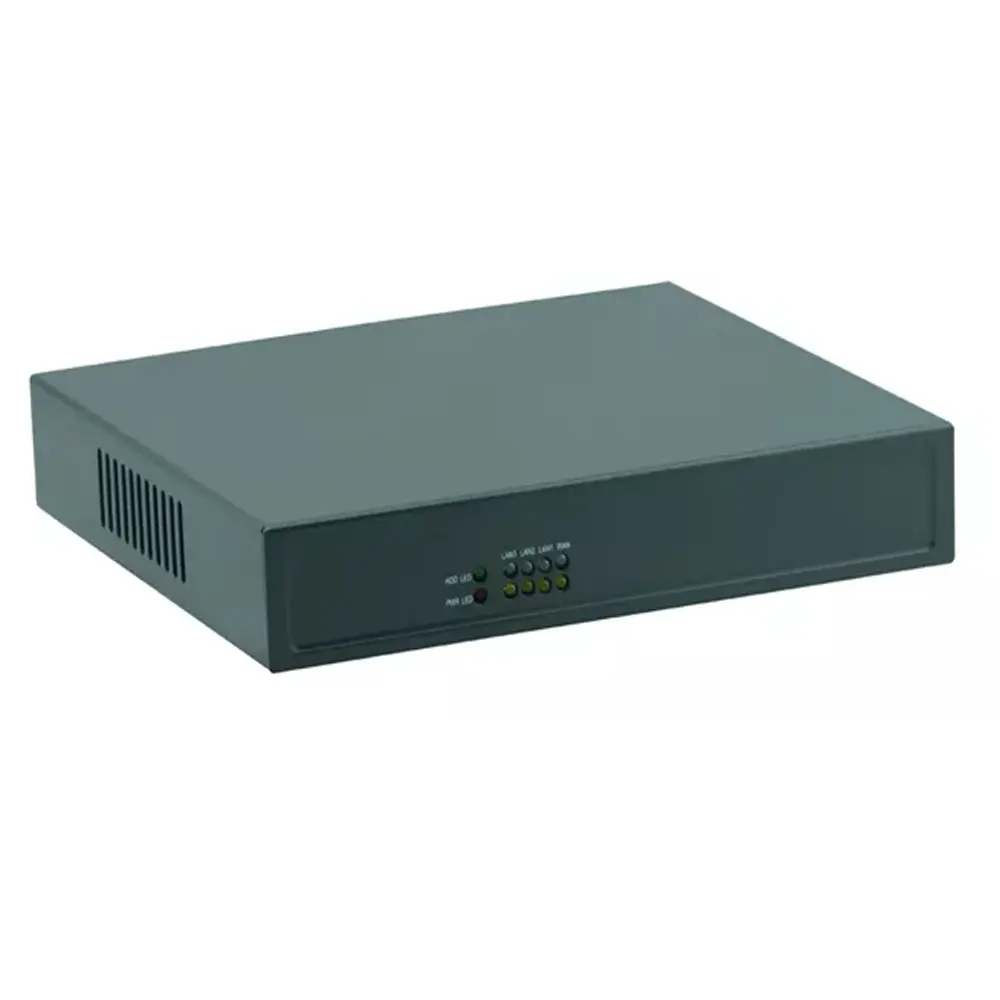

Front Panel 1 x Power LED, 1 x HDD LED
1 x Network LED
2 x Network data transmission LED

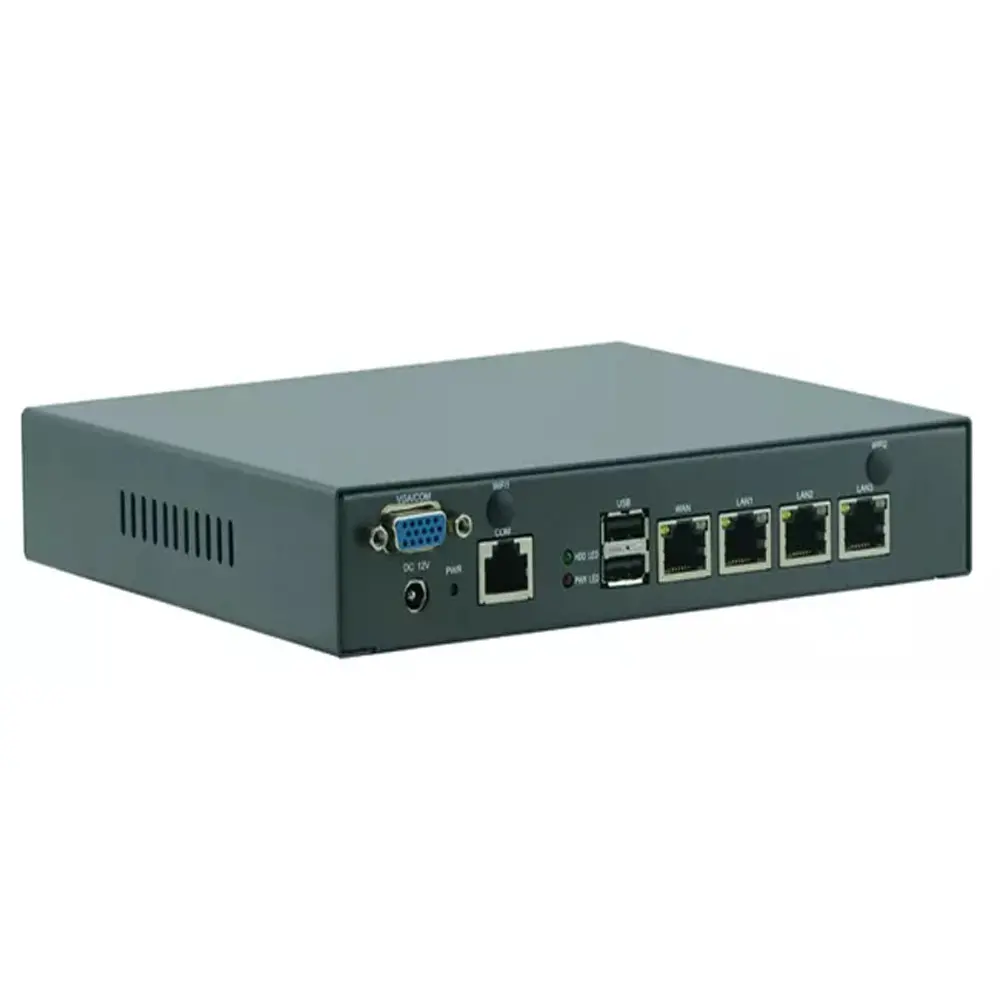

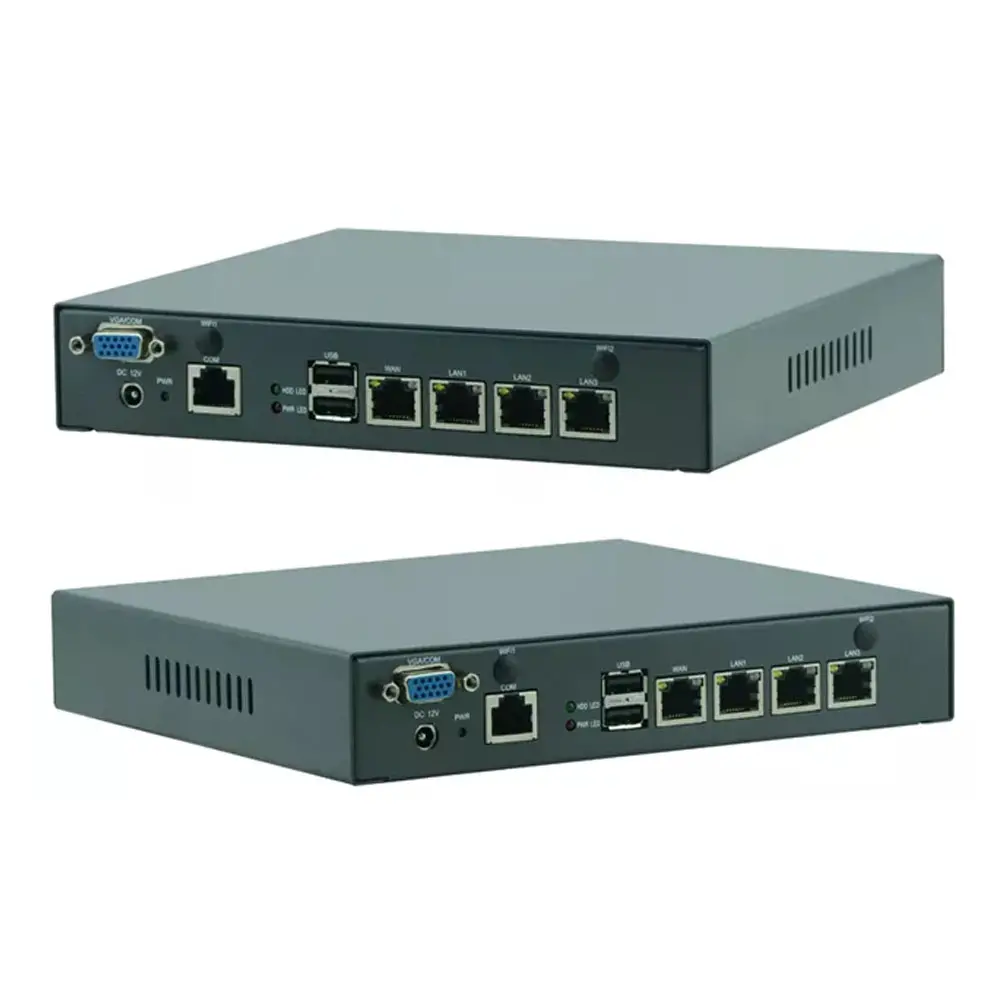

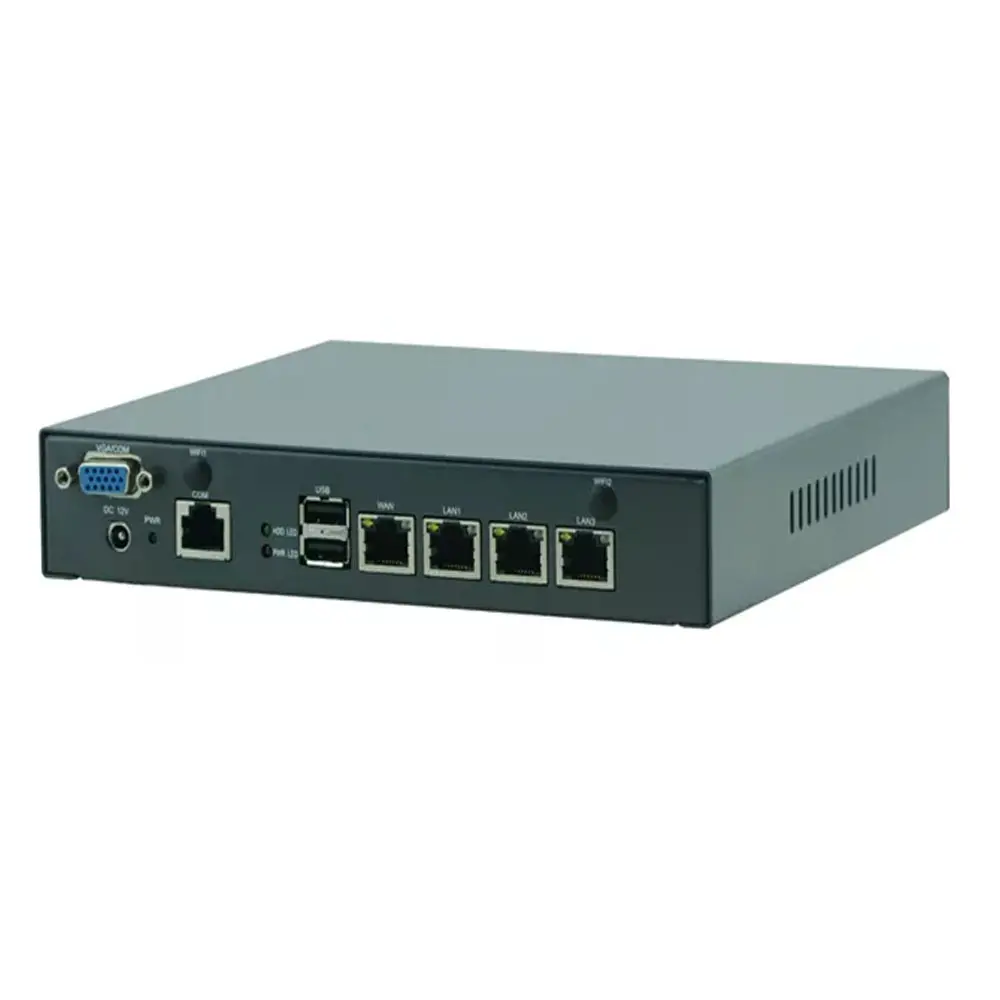

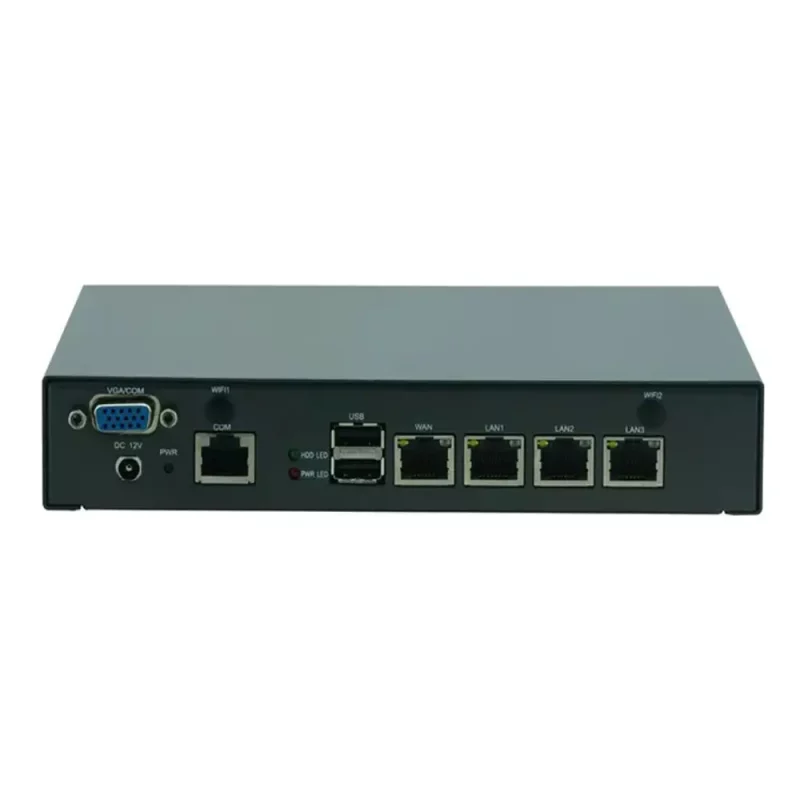

Rear Panel 1 x Power Switch
1 x Intel I211 LAN
1 x RS232 COM port
1 x VGA
1 x USB2.0
1 x 12V DC power input
1 x Power LED, 1 x HDD LED



Software Support

System Support Windows 7/10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx
Watch Dog Support hardware reset function (L256,0~255 seconds)



General

Cooling Mode Fanless Cooling
Power Supply DC power supply, 12V/5A, AC TO DC, 36W / 60W(optional)
Packing List F1 Firewall Appliance, Power adapter, Power cord, Warranty card



Enviroment

Operating temperature -10℃~60℃
Storage temperature -20℃~70℃
Relative humidity 5%-95% relative humidity, non-condensing
Work vibration 0.5g rms/5-500HZ/random/operating
Model Processor Memory MB LAN COM HDMI VGA USB2.0 SIM HDD GPIO USB3.0 Power
F1 J1900/2.0GHz 1*DDR3L M9F 4* 82583V 1 N/A 1 2 N/A N/A N/A N/A DC 12V
F1 J1900/2.0GHz 1*DDR3L M9E 4*I211 1 N/A 1 2 N/A N/A N/A N/A DC 12V
F1 J4125/2.0GHz 1*DDR4 M41E 4*I211 1 N/A 1 2 N/A N/A N/A N/A DC 12V
F1 J4125/2.0GHz 1*DDR4 M41V 4*I225V 1 N/A 1 2 N/A N/A N/A N/A DC 12V
