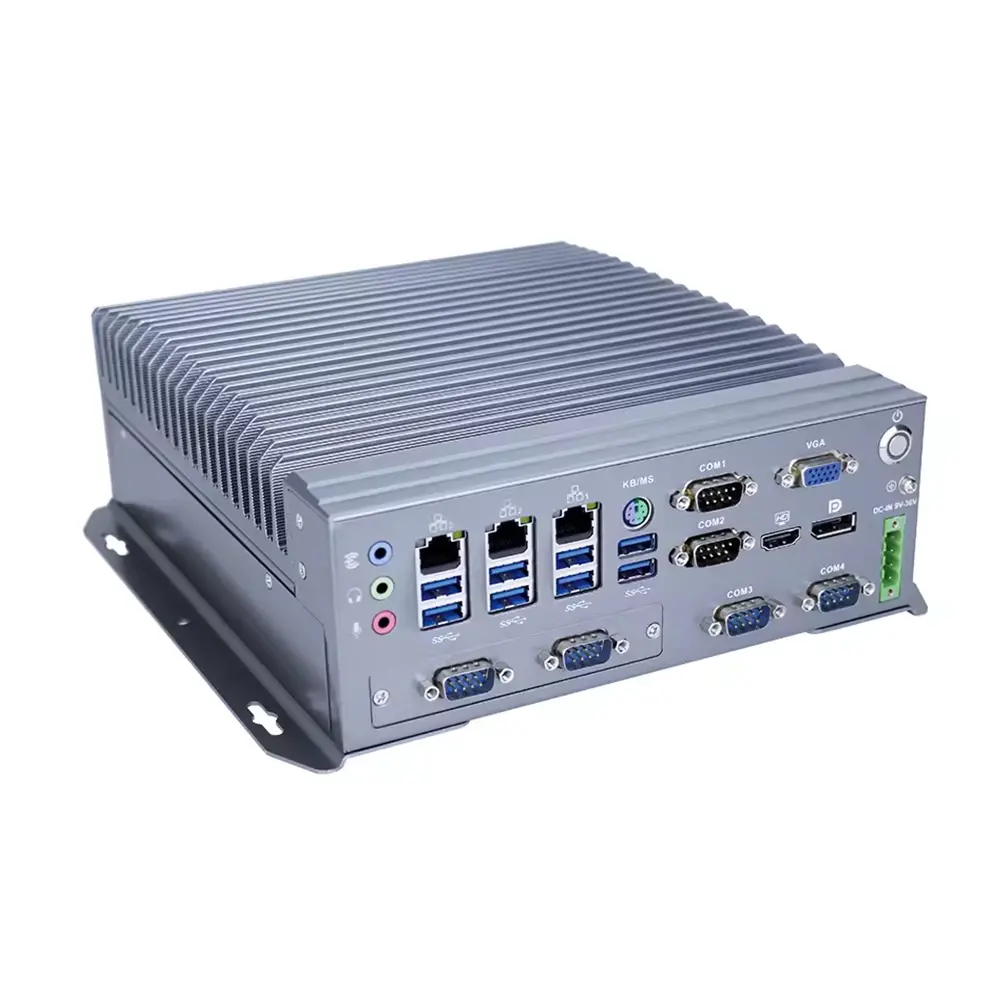

Fanless 6th Gen Intel Industrial Computer

Fanless 6th Gen Intel Industrial Computer

Model: Partaker I16

  • Fanless Design for Durability: Quiet and reliable for industrial use.
  • Flexible RAM Up to 32GB: Supports 2 x DDR4 RAM
  • Robust Intel Q170 Chipset: Ensures stability and compatibility.
  • Wide Voltage Compatibility: Accommodates a range of DC voltages.
  • Multiple COM Ports for Connectivity: Versatile interfaces.
  • MINI PCIE Slot for Expansion: Adds functionality with MSATA/3G/4G.
  • Versatile Mounting Options: Various configurations for flexibility.

Share to:

Overview



This Industrial Grade PC boasts a fanless design, ensuring silent and reliable operation in demanding industrial environments. It features two DDR4 RAM slots that support speeds of 1866/2133 MHz, allowing for a maximum of 32GB of RAM for optimal performance. Powered by the Intel Q170 chipset, this PC offers stability and compatibility for a wide range of industrial applications. The unit accepts a wide voltage input range of DC 9-36V, adapting to various power sources. Connectivity options include six COM ports (with RS232/422/485 options) for versatile communication interfaces. Additionally, it supports a MINI PCIE slot (with MSATA/3G/4G options) and an embedded SIM slot for expanded functionality. The PC is designed for flexibility, supporting desktop, embedded, and wall-mounted configurations, making it suitable for a variety of industrial applications.

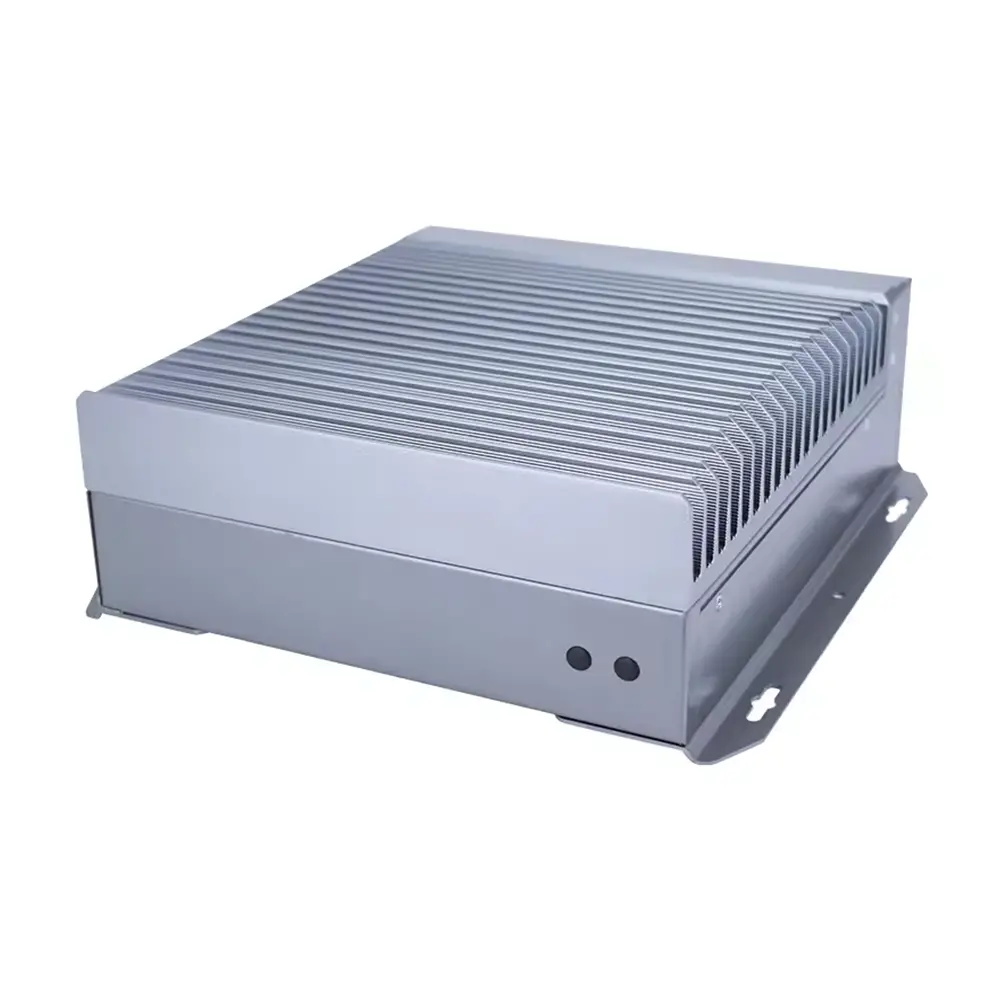

Mechanical

Material High-quality all aluminum,surface anodic oxidation
Colour Titanium gray (Color can be customized)

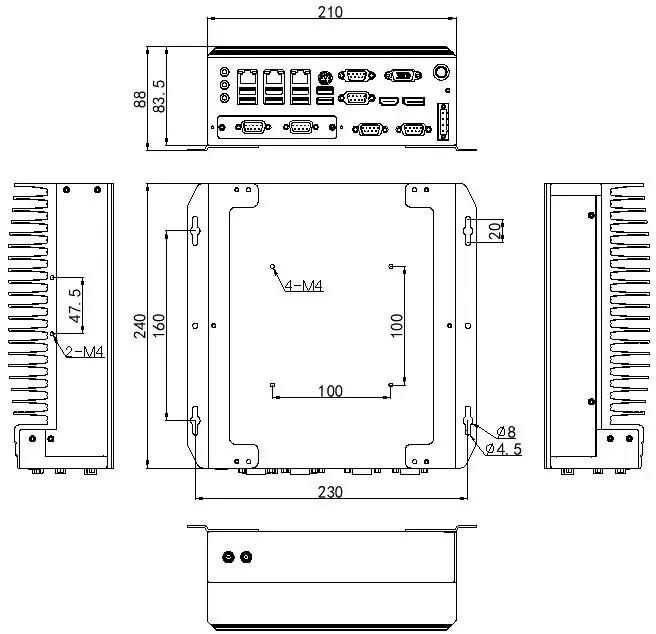

Size 210 * 240 * 83.5 mm【not include wall bracket】
Weight 4 kgs【not include wall bracket】



Motherboard

CPU Intel Core i3 6100T (Dual core four threads,3.2GHz)

Intel Core i5 6500T (Quad core four threads,2.5GHz,Max turbo 3.1GHz)

Intel Core i7 6700T (Quad core eighr threads,2.8GHz,Max turbo 3.6GHz)

CPU Structure Skylake-U / KabyLake-U
Display Ports 1 x VGA,1 x HDMI, 1 x DP
Network Card 2 x Intel i211-AT, 1 x Intel i219-LM 1000M LAN(Support Vpro Technology)

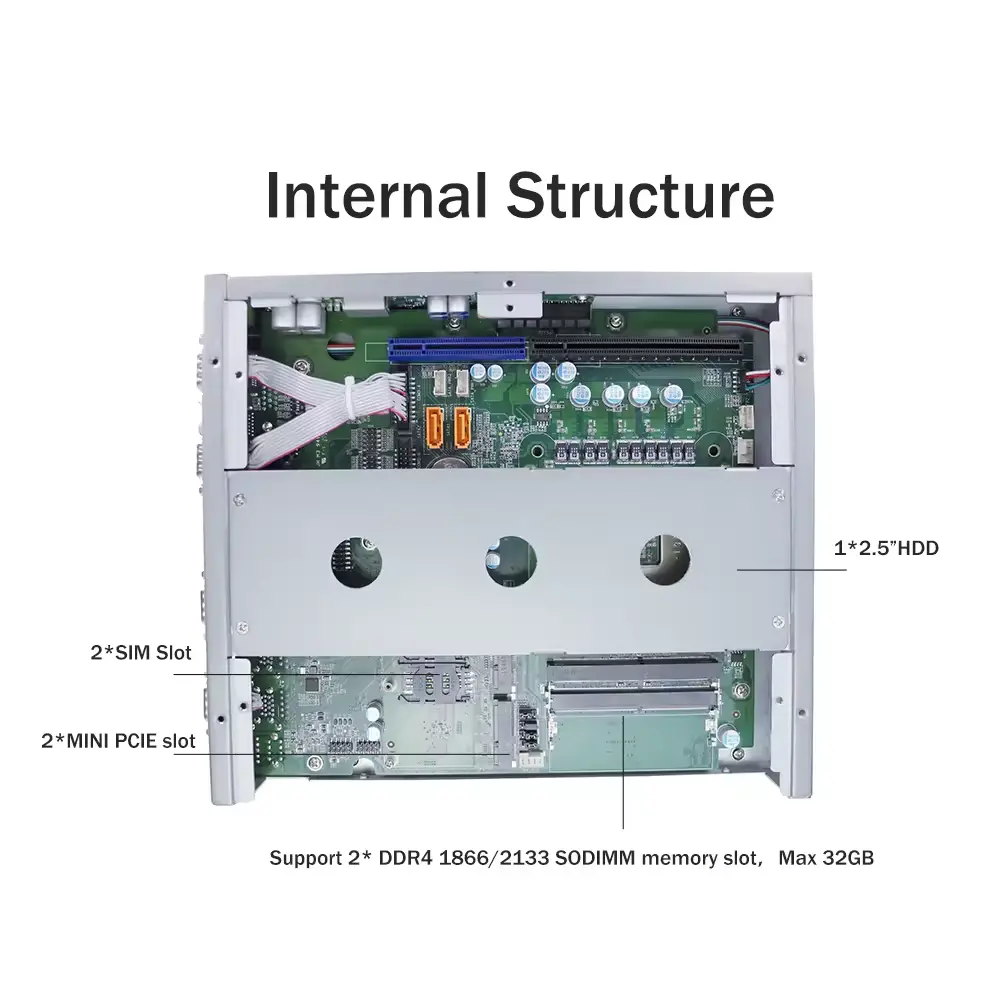

Memory Support 2 x DDR4 1866/2133 SODIMM RAM Slot, Max. Support 32G
Storage Support 1 x MSATA slot,2 x 2.5 Inch SATA HDD(Support RAID0/1)
Other Function Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0~255 level)
Expansion Support 1 x MINI PCIE Slot(WIFI/3G/4G Optional), Embedded SIM slot

Support 1 x MINI PCIE Slot(MSATA/3G/4G Optional), Embedded SIM slot

Optional Ports:16Bit GPIO, 4 x USB2.0(Standard version doesn’t include these ports)

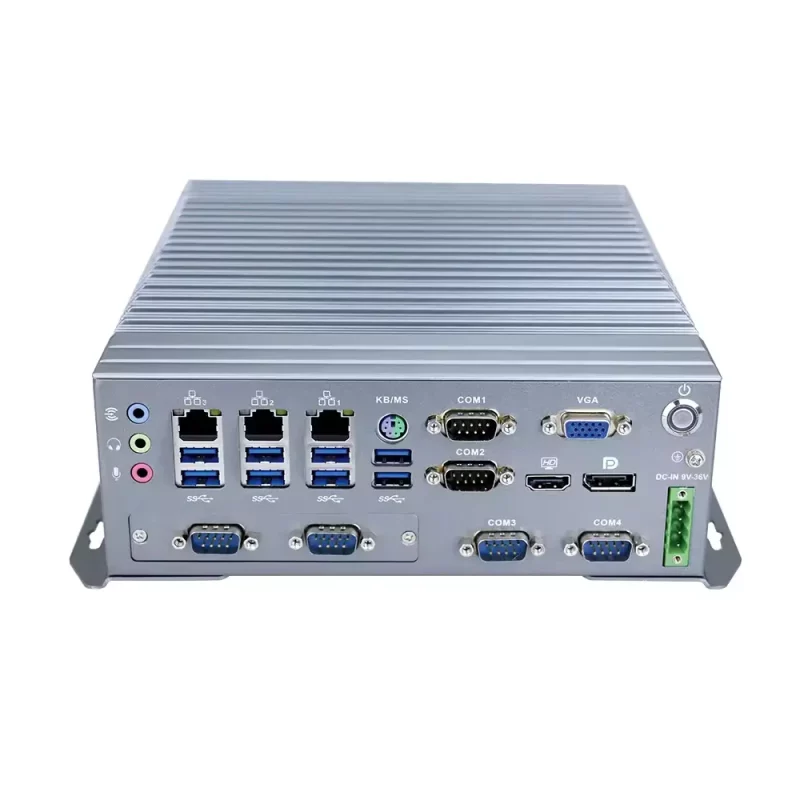

I/O Interfaces

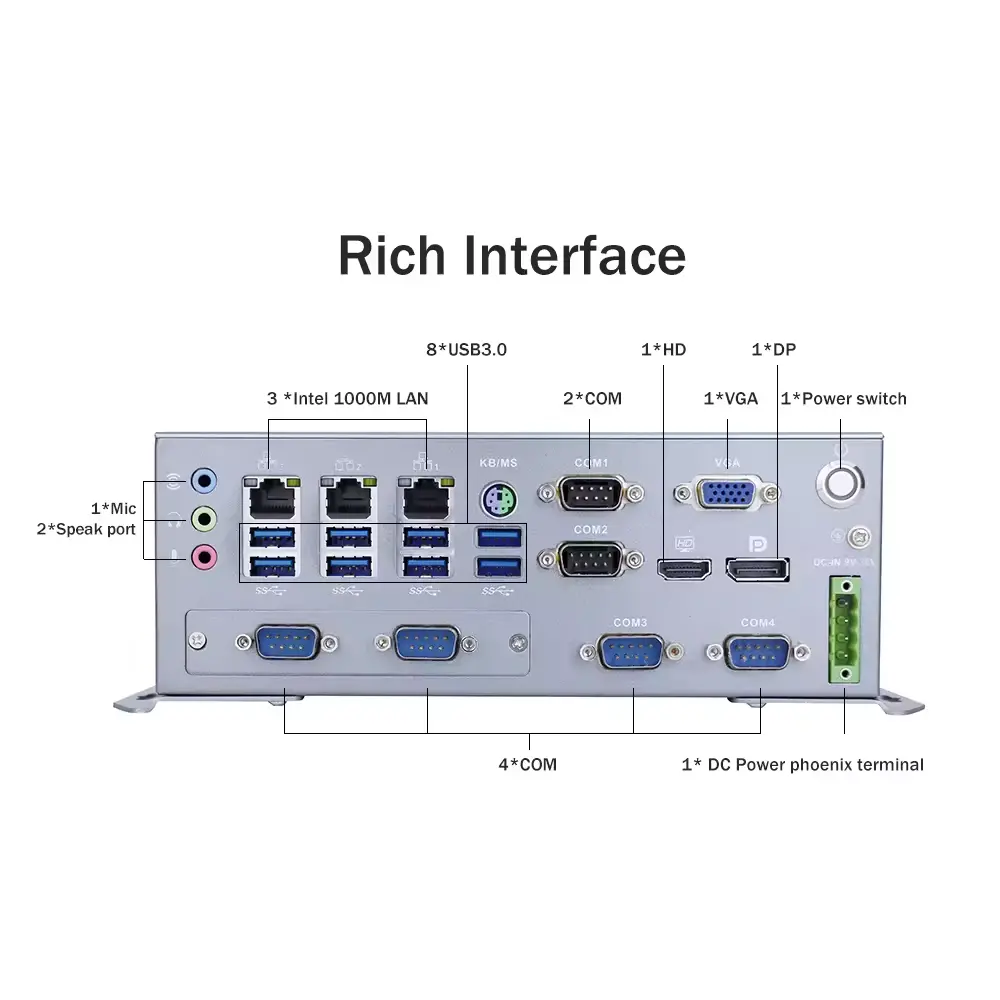

I/O Ports 8 x USB3.0

3 x Intel 1000M LAN

1 x Power Switch

1 x MIC

2 x Speaker

1 x VGA

1 x HDMI

1 x DP

1 x Keyboard or Mouse port

6 x COM(COM1, COM2 RS232/422/485 Optional)

1 x DC power supply phoenix connector



Software Support

Bios AMI EFI BIOS
System Support Windows 7/8/10 & Linux & pfSense



General

Cooling Mode Fanless
Power Supply DC 9~36V wide voltage Input, Support positive pole and negative electrode connect reversely protection

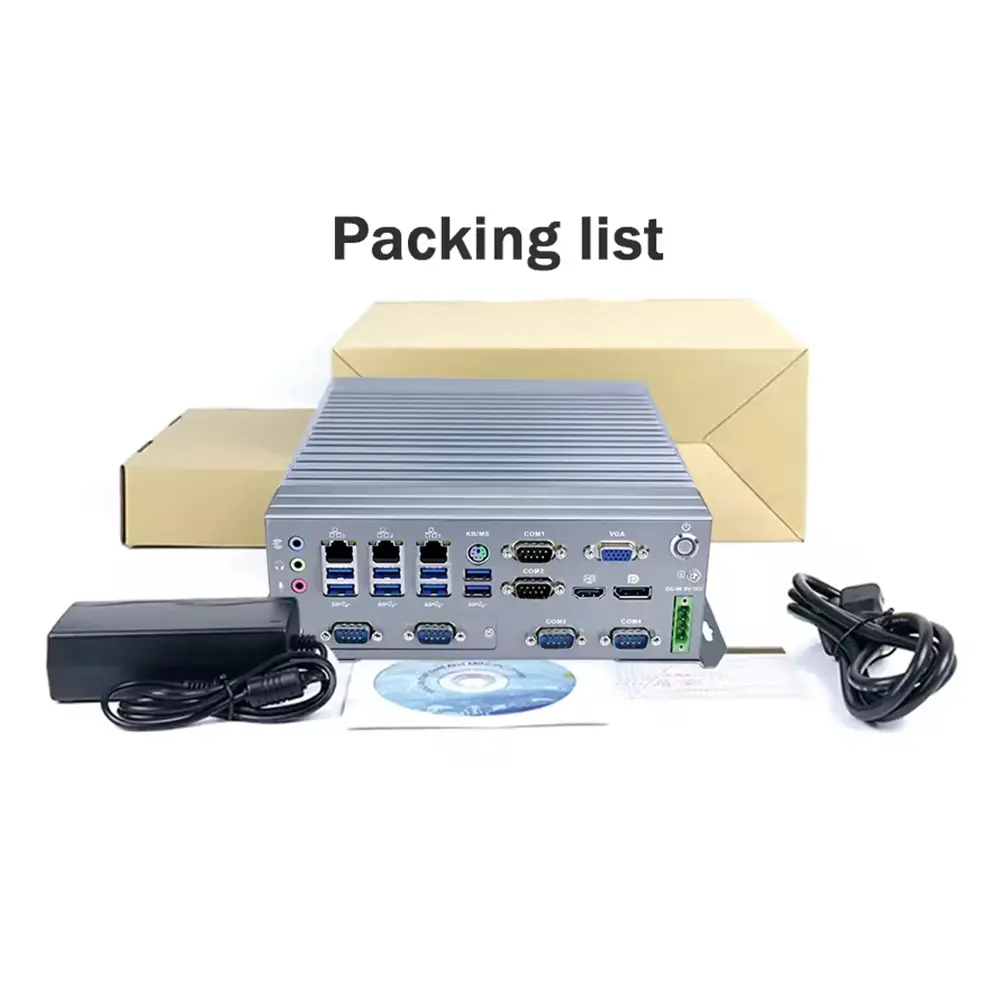

Packing List Industrial pc, bracket, power supply, power cord, WiFi antennas, warranty card
Application Industrial Automation, Medical, Logistics Transportation, Warehouse, Machine Vision, etc.



Environment

Work Temperature 0°C ~ +50°C (commercial HDD), -20°C ~ +60°C (industrial SSD), surface air flow
Work Humidity 5% ~ 95% non-condensing state
Certification CE FCC ROHS
Model Processor Graphic Frequency Display Memory Storage COM LAN USB Power
I16 i3 6100T Intel® HD Graphics 530 3.20GHz HDMI/VGA/DP 2 x DDR4, Max 32G 1 x mSATA/2 x 2.5 SATA SSD/HDD 6 3 8 DC 9~36V
I16 i5 6500T Intel® HD Graphics 530 2.50~3.10GHz HDMI/VGA/DP 2 x DDR4, Max 32G 1 x mSATA/2 x 2.5 SATA SSD/HDD 6 3 8 DC 9~36V
I16 i7 6700T Intel® HD Graphics 530 2.80~3.60GHz HDMI/VGA/DP 2 x DDR4, Max 32G 1 x mSATA/2 x 2.5 SATA SSD/HDD 6 3 8 DC 9~36V
