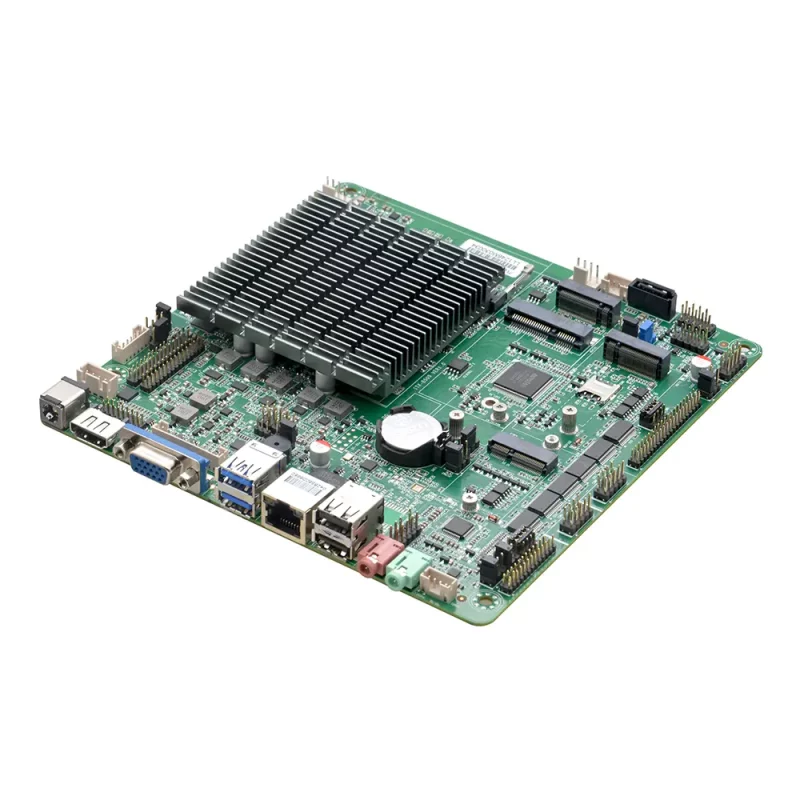

Model: ITX-B509_J116L

  • N5095 2.0GHz quad-core quad-thread processor,TDP 15W
  • 1 x SODIMM slot for supporting 2933MHz DDR4 memory (up to 16GB)
  • 1 x VGA,1*HD OUTPUT,1* LVDS,1* EDP, Note:LVDS and EDP interfaces are optional
  • 1 x RTL8111H Gigabit NIC, supports network wake up and PXE functions
  • 1 x M.2 slot, supporting the M.2 Key M 2260/2280 PCIE X2 SSD
  • 1 x MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps

Share to:

Overview



N5095 motherboard is a mini itx mainboard that features Intel Celeron N5095 processor, 1*8111H Gigabit Ethernet controller, DC/12V power input, 6 serial ports, and 8 USB ports. It supports dual display output via HDMI and VGA, and has one M.2 slot for SSD or WiFi module. It is suitable for various embedded and industrial applications that require high performance, low power consumption, and rich connectivity.



Product model ITX-B509_J116L VER:1.0(N5095)
processor Integrated Intel®Celeron N5095A 2.0GHz quad-core quad-thread processor,TDP 15W, Compatible with the full range of Intel® Jasper Lake cpus, can flexibly choose
chipset SOC
Internal memory

1* SODIMM slot for supporting 2933MHz DDR4 memory (up to 16GB)

display



Integrated Intel® UHD Graphics core graphics card
1* VGA,1*HD OUTPUT,1* LVDS,1* EDP, Note:LVDS and EDP interfaces are optional
network 1* RTL8111H Gigabit NIC, supports network wake up and PXE functions
deposit 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps
  1 x M.2 slot, supporting the M.2 Key M 2260/2280 PCIE X2 SSD
  1* MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps
Tone frequency



Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support. Power amplifier
The power amplifier is recommended to use a 4Ω3W speaker
Expansion slot 1 x M.2 slot, supporting the M.2 Key B 2242/2252 5G module
  1* M.2 slot, supporting the M.2 Key E 2230 WIFI module
  NOTE: The Bluetooth function of M.2 is either F_USB2 or F_USB2. The default value is F_USB2

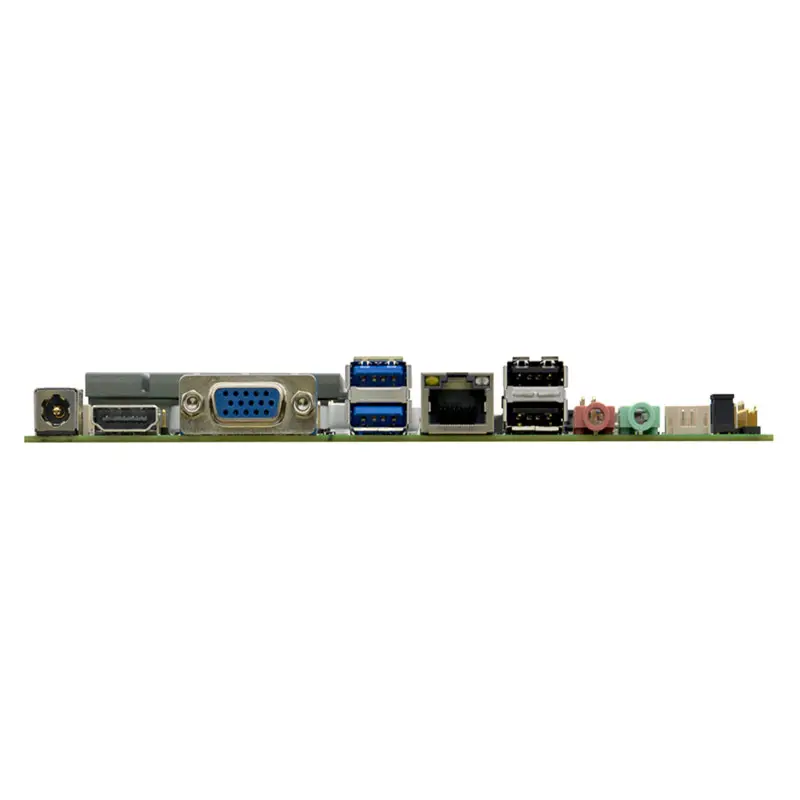

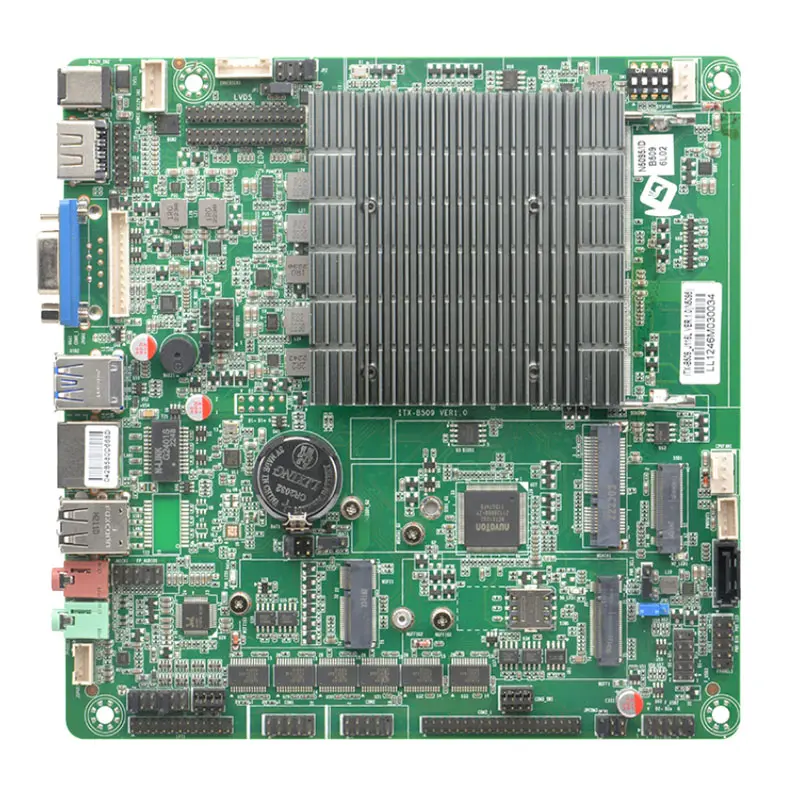

I/O ports on the backplane











1* DC 12V power input port
1 x VGA display port
1* HD OUTPUT display interface
2 x USB3.0 port,2 x USB2.0 port
1* RJ45 Gigabit network port
1* Line-out (green), 1*MICK(red)

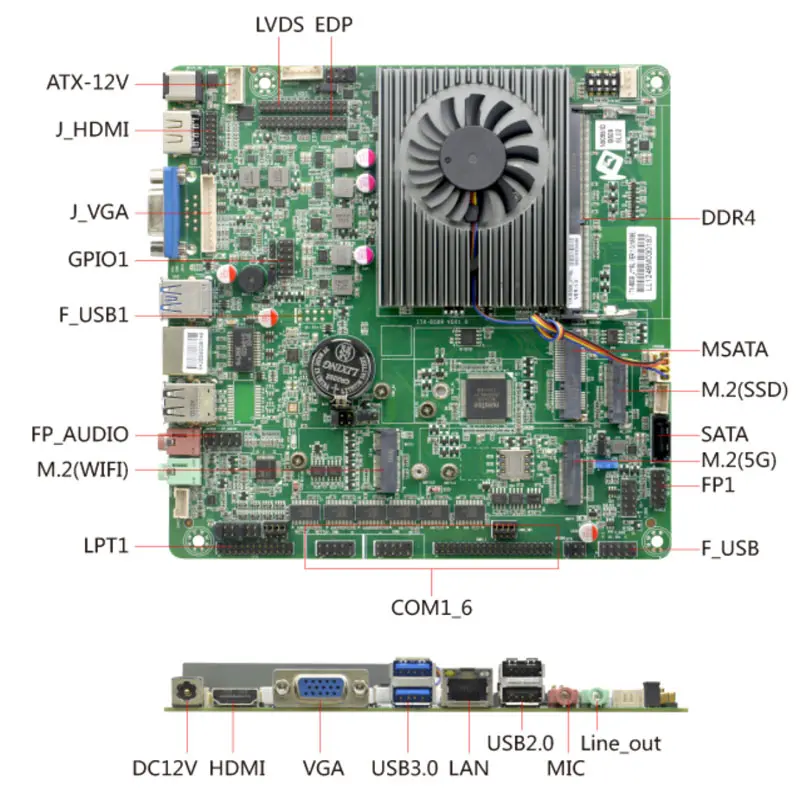

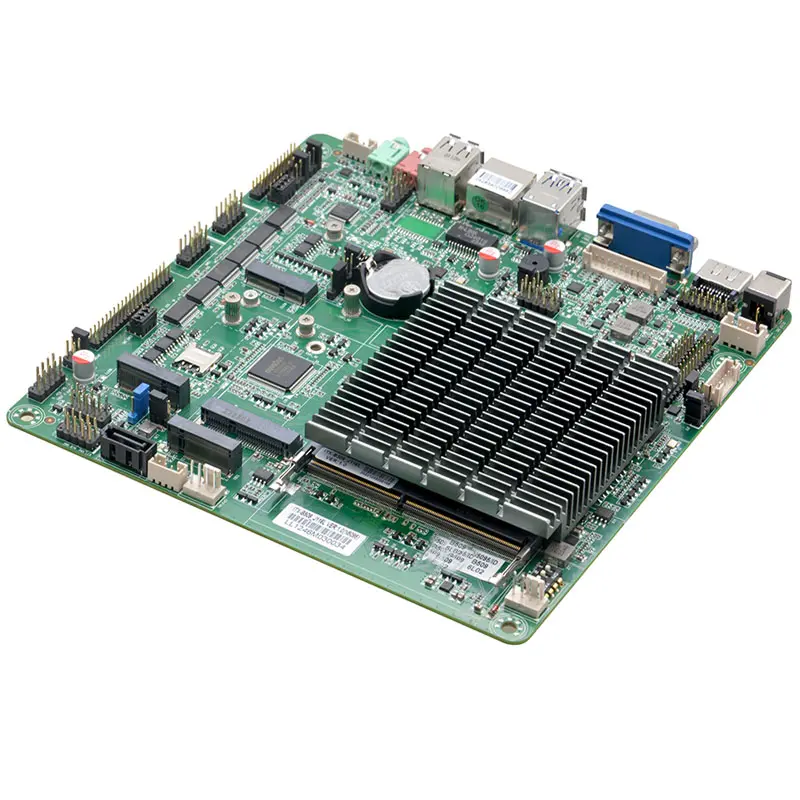

Built-in I/O interface



























1* DC power interface, 1*4pin support 12V power input and output
1* JVGA port 1*12pin, same signal as DB15
1* J_HD OUTPUT interface, 2*8pin, the same signal as HD OUTPUT
1* LVDS interface, 2*15pin, support dual channel 24BIT,
1* EDP interface, 2*15pin, and LVDS is one of two options, default LVDS
1* screen backlight power supply interface 1*6pin
4* USB2.0 interface, 2*5pin
6* RS232 serial interface,COM2/COM3 support RS485/422 function,
1* hard drive power port 1*4pin
1 Front audio interface 2*5pin
1* power amplifier interface 1*4pin
1* LPT interface 2*13pin
1* SIM card slot
1* Front panel function button and indicator port 2*5pin
Fan interface 1*4pin CPU intelligent fan interface,1*4pin system fan interface
GPIO Support 4 input/output GPIO(optional with PS/2)
BIOS 256Mb Flash ROM
Guard dog Support hardware reset function (256 level, 0~255 seconds)
Operating system Windows 10/Windows 11/Linux
Power supply type Adopts DC 12V power supply
Operating temperature -10℃ to 60℃
Storage temperature -20℃ to 70℃
Working humidity 5%-95% relative humidity, no condensation

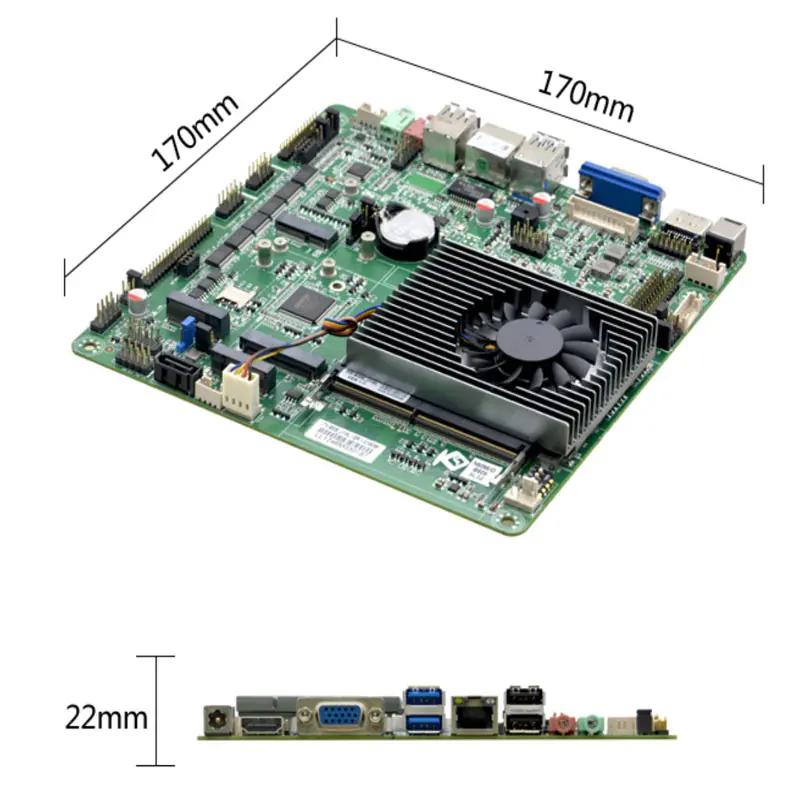

Dimension 170mm * 170mm
Model Processor Frequency Memory VGA LVDS HDMI LAN EDP USB RS485/422 COM Power
ITX-B509_J116L VER:1.0(N5095) N5095 2.0G 1*SODDR4

1

2ch*24bit

1

2*8111H 1 8 COM2/COM3 6 DC 12V
