Celeron J6412 4 Lan Firewall

Celeron J6412 4 Lan Firewall

Model: Partaker C10

  • Enjoy a secure and quiet network with the C10, a compact and fanless firewall device
  • Features an Intel Celeron J6412 processor with four cores and 1.5 MB L2 cache, running at 2.0GHz with a burst speed of up to 2.6 GHz
  • With high-quality memory and SSD/HDD from well-known brands for RAM and storage
  • Has 4x Intel 2.5 Gigabit Ethernet NIC ports, 2x USB 2.0, 2x USB 3.1, 1x HD-MI, and 1x DP ports for connectivity
  • Supports various operating systems, such as win10/11/ikuai/Linux/pfsense/opnsense
  • The C10 is suitable for various network applications, such as firewall, VPN, network server, network security, router, and more

Share to:

Overview



The C10 is a compact and fanless firewall device that offers a secure and quiet network solution. It has a powerful Intel Celeron J6412 processor, high-quality memory and SSD/HDD, and multiple ports for connectivity. It supports various operating systems and advanced features, such as power-on, timed power-on, network wake-up, PXE boot, watchdog, and TPM2.0 security encryption. It is suitable for various network applications, such as firewall, VPN, network server, network security, router, and more. The C10 is a versatile and reliable device for your network needs.





Mechanical

Material High-quality all aluminum,surface hard anodized
Colour Metal grey (color can be customized)
Size 144 x 136.7 x 42 mm
Weight 0.78 kg
Insallation Method Desktop type
Vesa



Motherboard

CPU Intel Celeron J6412 (quad core, four threads, 2.0GHz,Max to 2.6GHz)
Display Ports 1xDP: 4K 4096×2160 @ 60Hz, 1xHDMI: 3840×2160@ 60Hz
Network Card 4 x Intel i225-V 2.5G LAN
Memory 1 x DDR4 3200MT/s SODIMM, Max 32 GB
Storage 1 x M.2 2280 slot,1 x 2.5 inch HDD/SSD
Chipset Intel UHD Graphics
Other function Power-on, Timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption


Expansion Slot

Support 1 x M.2 2280 M-key slot (support SATA protocol)

Support 1 x M.2 2230 E-key slot(support WIFI, BT)

Support 1 x mini PCIE slot(Support 4GM modem,outside SIM slot,support USB signal WiFi/BT)

Application Firewall, VPN, network server, network security, router and other fields.



I/O Interfaces

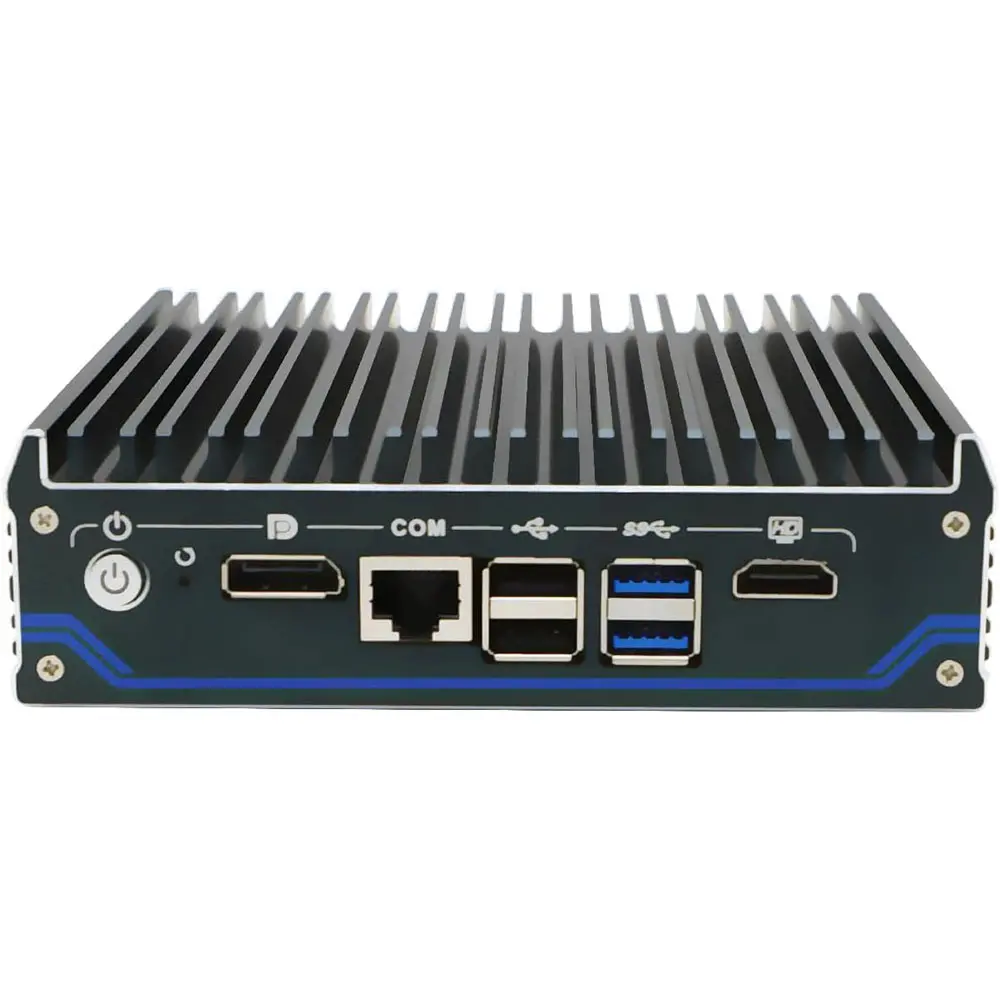

Front Panel

1 x Power Button
1 x DP
1 x RJ45 COM(support Console)
2 x USB2.0
2 x USB3.1
1 x HDMI

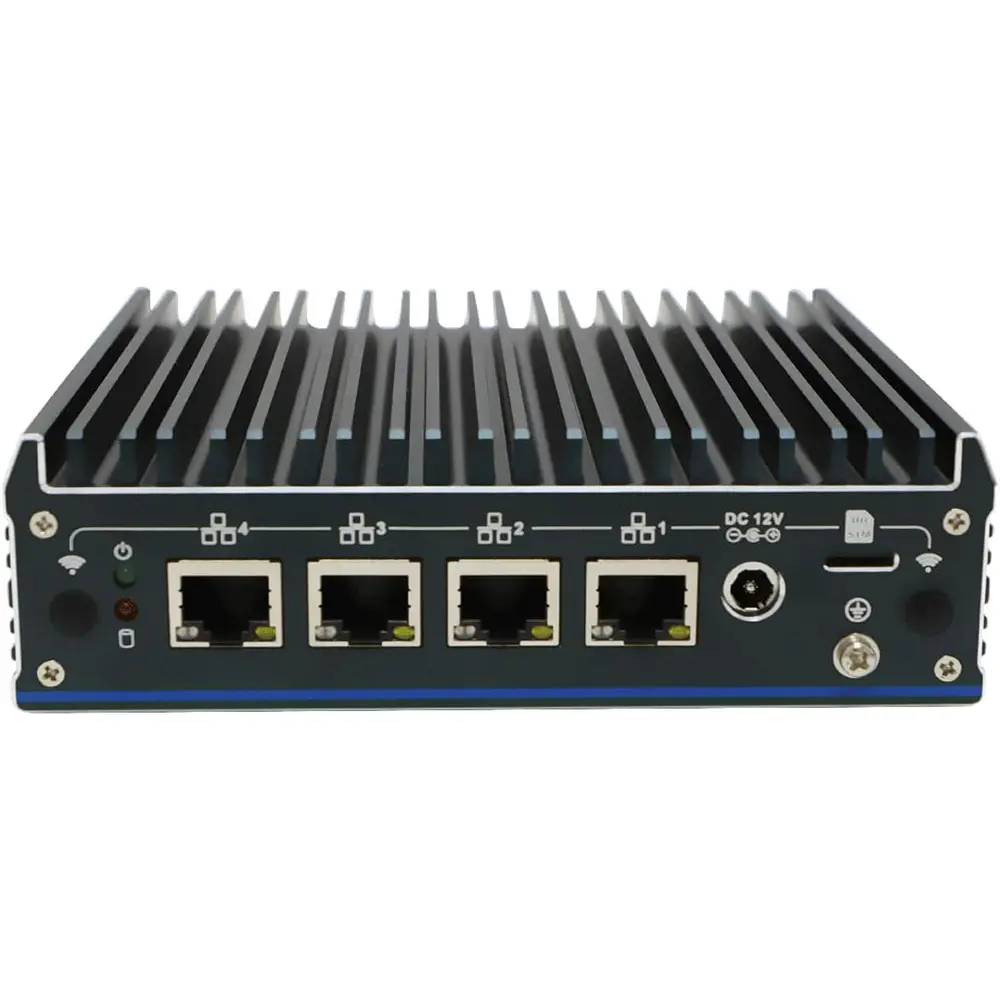

Rear Panel

1 x DC
4 x Inel Lan
1 x SIM card slot



Software Support

Bios AMI UEFI BIOS
System Support Windows 10/11/sever2012/2016/linux/centos/ubuntu



General

Cooling Mode Fanless
Power Supply DC 12V
Packing List Firewall appliance, power supply, power cord, vesa mount, warranty card



Environment

Work Temperature 0°C ~ +40°C Commercial HDD, -20°C ~ -60°C Industrial SSD, surface air flow
Work Humidity 0%~95% non-condensing
Certification CE FCC ROHS



Firewall Mini PC 4 Lan

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
C10 J6412 Intel® UHD Graphics 2.0~2.60GHz HDMI/DP  1 x SO-DIMM DDR4 1 x M.2 2280 Slot/1 x 2.5 Inch HDD/SSD 4 4 DC 12V
