AMD Ryzen R2314 Embedded Mini PC

Model: Partaker B4

AMD Ryzen R2314 – 4-core/4-thread, up to 3.5GHz turbo for industrial computing.
Fanless & rugged – All-aluminum passive cooling, silent 24/7 operation.
6x COM ports – 4x RS232 + 2x RS485 for extensive serial device connectivity.
Dual 4K HDMI – Two independent HDMI 2.0 outputs up to 4096×2160@60Hz.
Large memory capacity – 2x DDR4 SODIMM slots, supports up to 64GB RAM.
Wide voltage input – DC 12V–24V for flexible power integration.
Triple expansion: Mini PCIe + M.2 2230 + M.2 3052 (4G/5G with SIM).
Dual Gigabit Ethernet – 2x RTL8111H for stable, high-speed networking.
Rich front/rear I/O – USB 3.2, USB 2.0, audio, and 2.5″ HDD/SSD bay.
Wide temp: -20°C to 60°C (industrial SSD), ideal for harsh environments.

Share to:

Overview

Powered by the AMD Ryzen R2314 processor (4 cores/4 threads, up to 3.5GHz turbo), this fanless all-aluminum mini PC delivers silent, maintenance‑free 24/7 operation for demanding industrial environments. It features 6 COM ports (4×RS232 + 2×RS485), dual 4K HDMI outputs, two DDR4 SODIMM slots supporting up to 64GB RAM, and a wide DC 12‑24V input for flexible power integration.

Triple expansion options (Mini PCIe, M.2 2230 for Wi‑Fi/BT, and M.2 3052 for 4G/5G with SIM slot) make it ideal for factory automation, edge computing, multi‑device data acquisition, and digital signage – a highly reliable embedded solution for harsh conditions.

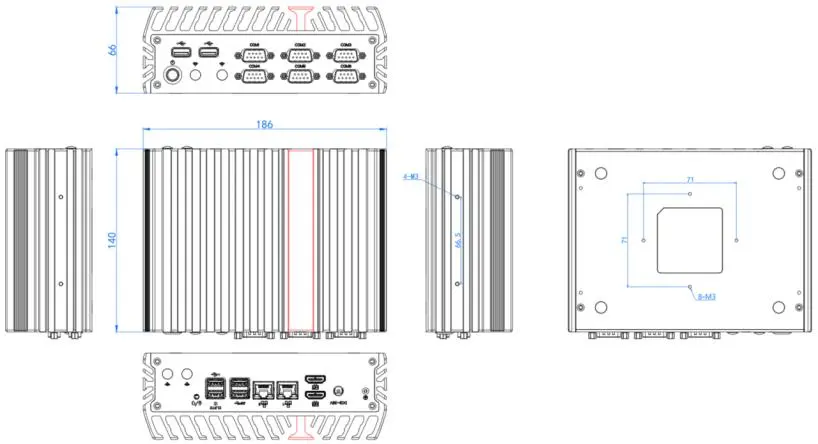

Mechanical

System Parameter
Model	Partaker B4
Processor	AMD Ryzen™ Embedded R2314 (4core 4-thread, base 2.1 GHz, turbo boost 3.5 GHz)
Architecture	Zen + Micro architecture
Memory	2 x DDR4 2400MHz SODIMM memory slots, max 64 GB.
Display chip	AMD Radeon™ Graphics
Display Port	2 x HD 2.0 Resolution up to 4096×2160 @ 60Hz
Storage	1 x MINI PCIe (MSATA SSD) slot ,, 1*2.5-inch HDD/SSD
Expansion	1 x MINI PCIe slot (support MSATA SSD) 1 x M.2 2230 E-key slot (PCIe & USB, with Wi-Fi 5/Wi-Fi 6 & BT) 1 x M.2 3052 B-key slot (support USB3.0,4G/5G), with built-in Micro-SIM card slot Scalable interface (not included in standard shipment): 8 GPIO channels
Front I/O	1 x power switch, 2 x USB 2.0, 6 x COM (COM 1–4 are RS232, COM 5–6 are RS485)

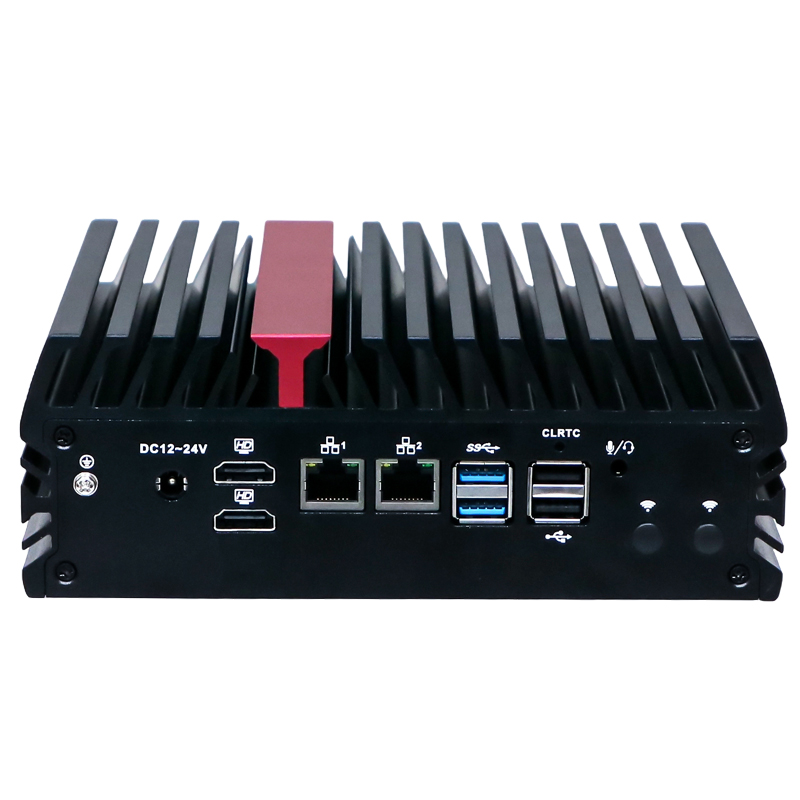

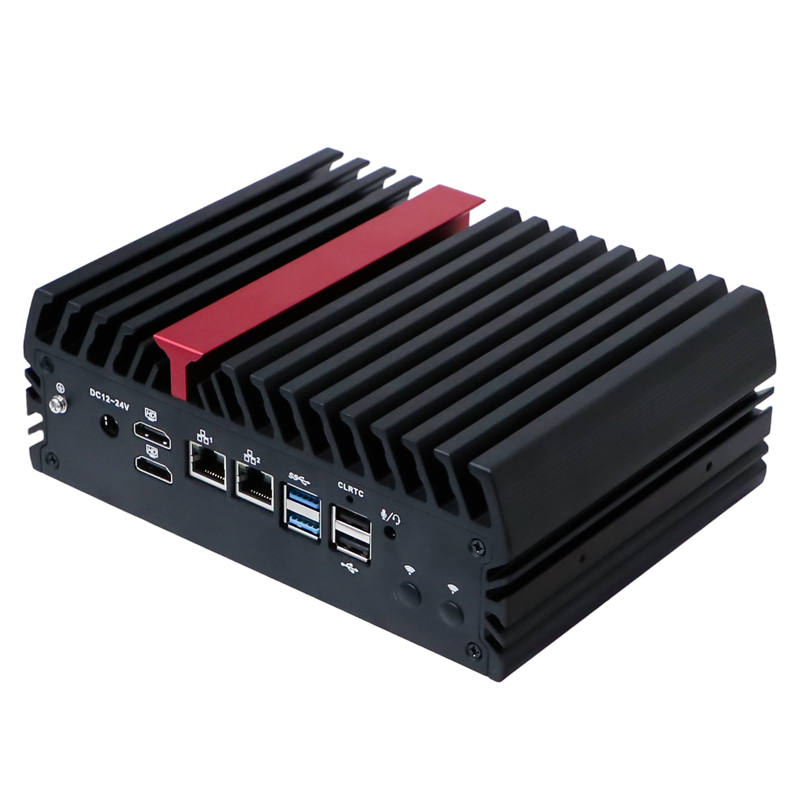

Rear I/O	1 x DC, 2 x HDMI, 2 x RJ45 network ports, 2 x USB 3.2 , 2 USB 2.0, 1 x MIC/SPK
Network	2 x RTL8111H 10/100/1000M Gigabit Ethernet cards
Input Voltage	DC 12V – 24V input
Certificates	CE, FCC, ROHS
Other Function	Power-on startup, scheduled startup, network wake-up, PXE boot, watchdog (level 0–255), TPM 2.0 security encryption
Application	Industrial control, industrial automation, robotics, IoT gateways, edge computing, machine vision, AGVs/AMRs, etc.
Structure Parameter
Color	Metal gray 【Any color can be customized】
Material	High-quality all aluminum，surface anodic oxidation
Dimension	186 * 140 * 66 mm
Weight	1.58kg
Environmental Parameter
Work Temp	0℃ ～ +40℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow
Work Humidity	0% ～ 95% non-condensing
