AMD Ryzen Mini PC
Model: Partaker B27
- Compact all-aluminum silver chassis
- AMD Ryzen 5 7535HS 6-core processor
- Supports up to 64GB DDR5 4800MHz RAM
- Quad-display support (2x HDMI, 2x DP)
- Dual 2.5G Ethernet ports for fast networking
- Multiple USB ports & 10Gbps Type-C
- M.2 for NVMe SSD & WiFi 6 expansion
- Flexible desktop or wall-mount installation
- Powered by a 19V DC input
- Reliable wide-temperature operation
Share to:
Overview
This Ryzen Mini PC, powered by an AMD Ryzen 5 7535HS 6-core processor, delivers robust performance in a compact, full aluminum alloy chassis. With support for up to 64GB of DDR5 4800MHz RAM, it ensures smooth multitasking, while its extensive connectivity—including dual HDMI 2.0 and DP++ ports for multi-display setups, dual 2.5G Ethernet ports, multiple USB ports, and a high-speed 10Gbps Type-C port—makes it a versatile hub for both office and home entertainment, all cooled by an efficient fan system.
Mechanical
|
Model
|
Partaker B27 | |
|
Chassis
|
Material/Construction
|
All Aluminium Alloy,Fan Cooling
|
|
Colour
|
Silver
|
|
|

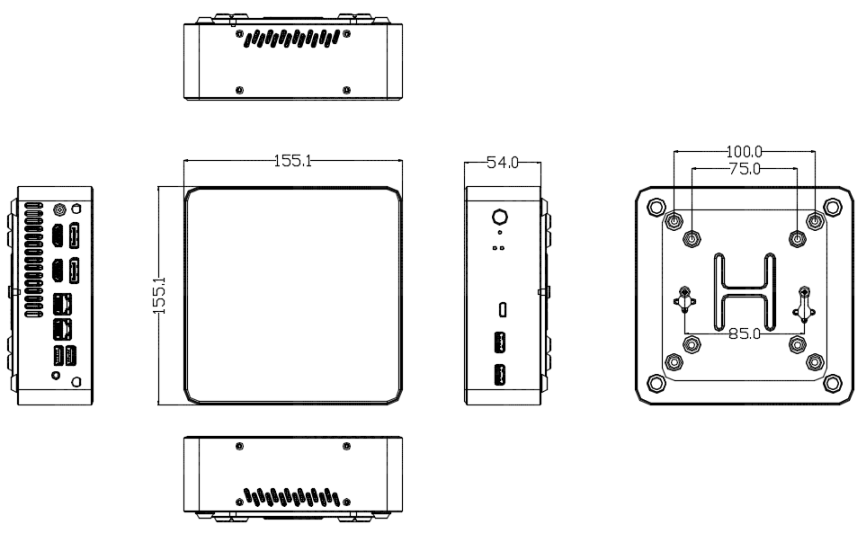

Dimensions (LWH)
|
155.1*155.1*54MM
|
|
|
Weight (bare net weight)
|
0.9KG
|
|
|
Installation
|
Desktop/Wall-mount
|
|
|
Motherboard
|
CPU
|
Integrated AMD ZEN3+ R5-7535HS/3.30GHz 6-core, 12-thread processor, TDP 35W
|
|
Display
|
Integrated AMD Radeon 660M
|
|
|
Memory
|
2*SODDR5 4800MHz, max. 64GB
|
|
|

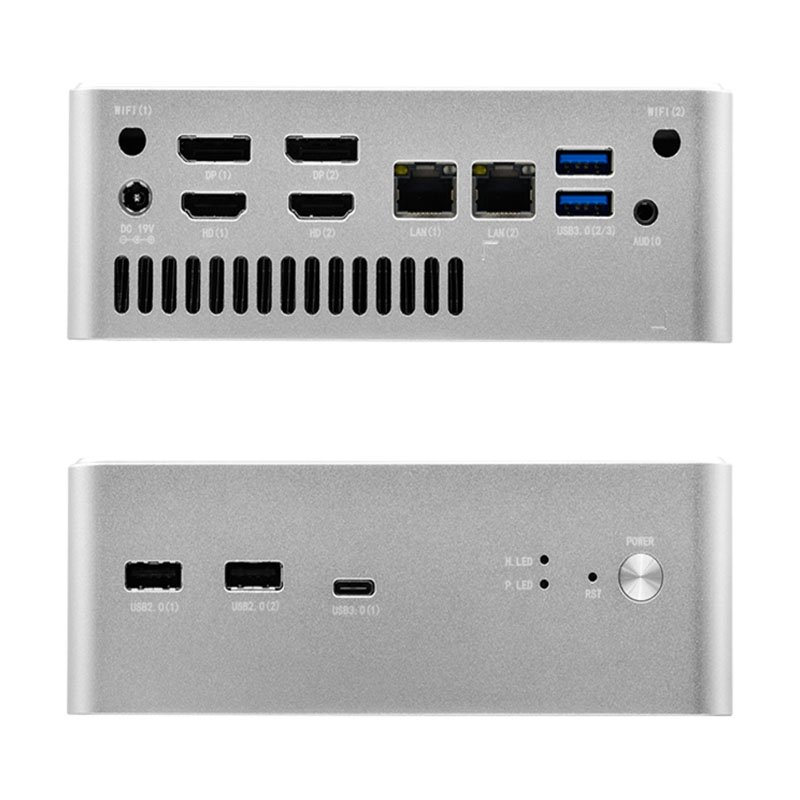

Front Panel Interface
|
POWER
|
1*Power switch, 1*Reset switch
|
|
LED
|
1*Power indicator,1* HDD indicator
|
|
|
USB
|
2*USB2.0
|
|
|
TYPE-C
|
1*Type-C (10Gbps)
|
|
|
Rear Panel Interface
|
Display Interface
|
2*HDMI2.0, 2*DP++
|
|
LAN
|
2*RTL8125G 2.5G Gigabit NIC, support Wake-on-Network, PXE function
|
|
|
USB
|
2*USB3.0
|
|
|
Audio
|
1*Audio, Line out and MIC 2-in-1
|
|
|
Power Supply
|
1*DC 19V(5.5*2.5) power connector
|
|
|
Storage
|
SSD
|
1*M.2, support Key-M. 2280, NVME PCIE x4/SATA Adaptive SSD
|
|
Expansion
|
WiFi/BT
|
1*M.2, support Key-E, 2230, WiFi6+BT Module
|
|
System Support
|
Windows
|
Windows 10
|
|
Linux
|
Ubuntu
|
|
|
Watch Dog
|
Support Hardware Reset Function (256 Levels, 0~255 sec)
|
|
|
Power Requirements
|
Type of Power Supply
|
DC 19V
|
|
Power Output
|
AC TO DC 90W
|
|
|
Environments
|
Operating Temperature
|
-10℃～50℃
|
|
Storage Temperature
|
-20℃～70℃
|
|
|
Relative Humidity
|
5%-95% relative humidity, non-condensing
|
|
|
Vibration
|
0.5g rms/5-500HZ/random
|
|
Order Information
|
No. |
Model | Processor | Memory | Motherboard | HDD | LAN | HDMI | DP | USB2.0 | USB3.0 | power |
| 1 | Partaker B27 | R5-7535HS/3.3G | 2*SODDR5 | A68HD2 | M.2 | 2*RTL8125 | 2 | 2 | 2 | 2 |
DC 19V |
Accessories List
|
No |
Part Number | Description | Qty | Unit | Remark |
| 1 | 03.02.N05-B0039-00 | Wall-mounting Fixing Plate, with mounting hole spacing of 100*100mm and 75*75mm | 1 | Set |
Optional |
