6 Lan Firewall Router

6 Lan Firewall Router

Model: Partaker S04

  • Sheet metal structure, fuel injection process, fan design
  • Onboard Intel D525/2-11th Gen I3 I5 I7/4405U/N5105/J4125
  • Support 1-2 DDR3/DDR4 Ram Slot, Max to 64GB
  • 1 x 2.5 inch SSD HDD, 1 x mSATA slot
  • 6 x Intel 82583V/82574L/I225/I226 network lan
  • 210 x 200 x 45(mm), CE, CCC, FCC, ROHS

Share to:

Overview



Partaker S04 firewall appliance with Intel celeron core series processor, it can compatible with many freebsd based router systems, linux distros, or win.os supported, tested with untangle, pfSense, opnsense etc.





Mechanical

Material Iron
Colour Silver (any color can be customized)
Size 210 x200 x 45(mm)
Weight 3Kgs
Insallation Method Desktop type



Motherboard

CPU Intel Atom D525, dual-core four-thread, main frequency: 1.8GHz

Intel Core i3-3110M, (Optional 1005M/I3-2350M/I5-2520M/3320M/I7-3520M/3610M/3630QM)

Intel Celeron J4125, quad-core and four-thread, main frequency: 2.0GHz(optional N4000)

Intel Celeron N5105, quad-core and four-thread, main frequency: 2.0GHz(optional N5100)

Intel Pentium 4405U (optional 3865U/I3-7100U/8130U/I5-7200U/8250U/I7-7500U/8550U)

Intel Core I3-1115G4 (optional I5-1135G7/I7-1165G7)

Network Card Intel 82583V/82574L/I211 1G adaptive network card interface, (optional I225/226 2.5G network card)(Depend on CPUs)
Graphic Intel HD Graphics
Memory 1 x DDR3 1066/1333 SODIMM Ram Slot, Up to 4GB

1 x DDR3L 1600MHz SODIMM Ram Slot, Up to 8GB

2 x DDR4 2400 MHz SODIMM memory slots, up to 8GB

2 x DDR4 2933 MHz SODIMM memory slots, up to 32GB

2 x DDR4 2133 MHz SODIMM memory slots, up to 64GB

2 x DDR4 3200 MHz SODIMM memory slots, up to 64GB

Storage 1 x mSATA SSD, 1 x 2.5 inch SSD/HDD
Display 1 x VGA, 1 x HDMI(Optional)
Expand Support 1 MINI PCIE channel (can be WIFI/Bluetooth/4G)
Others Support Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog



I/O Interfaces

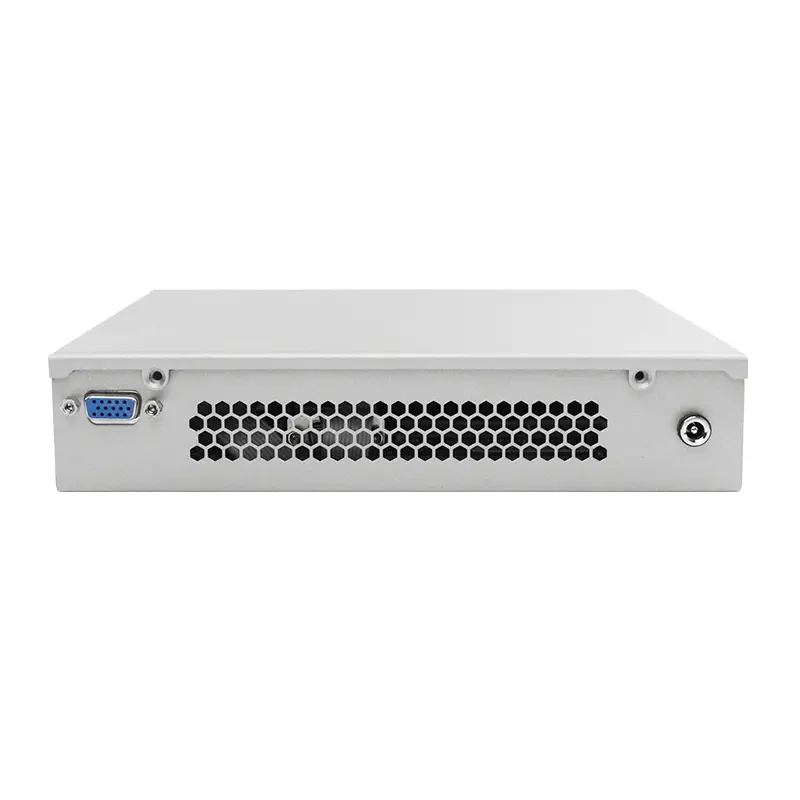

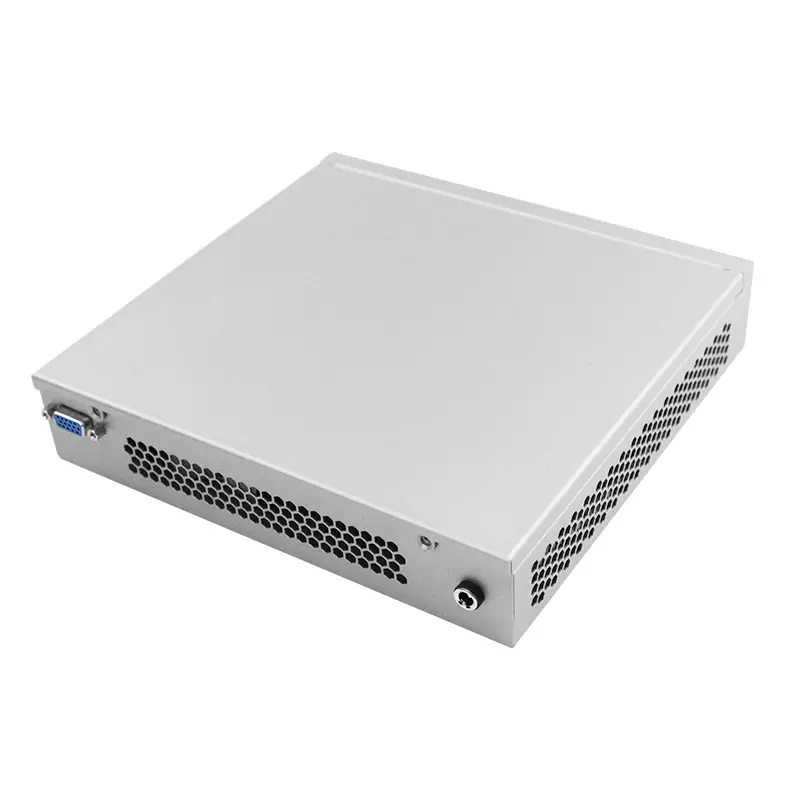

Front Panel 1 x VGA
1 x DC

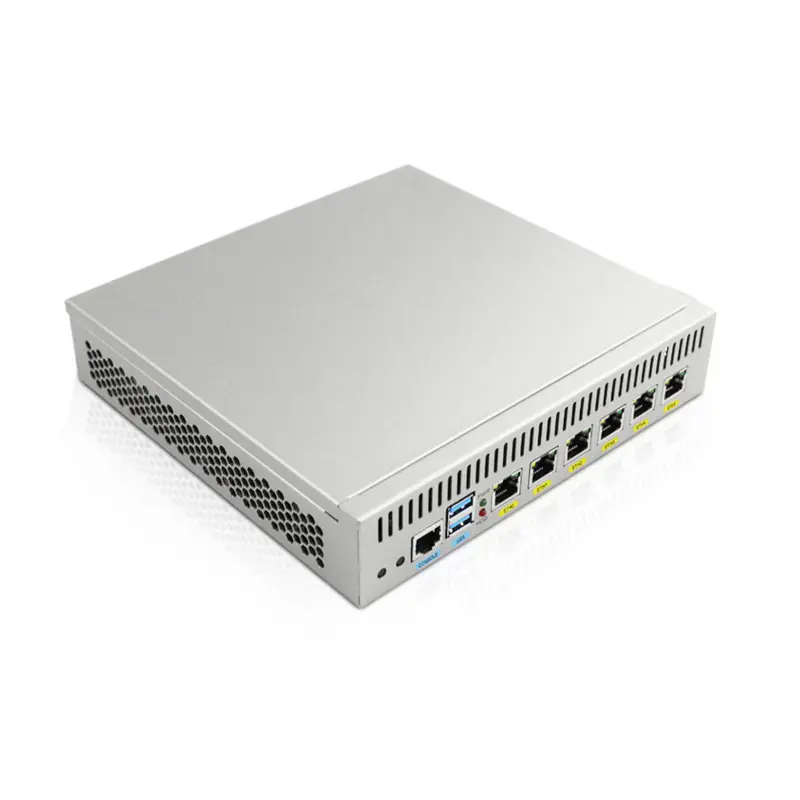

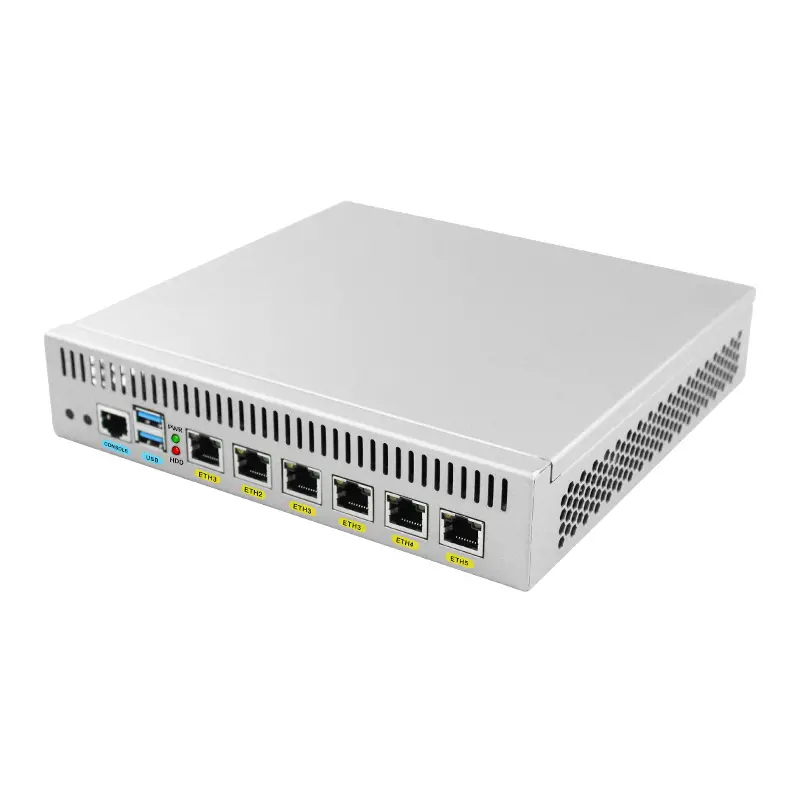

Rear Panel 1 x Console
2 x USB2.0/3.0
6 x LAN



Software Support

System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOS AMI EFI BIOS



General

Cooling Mode With Fan
Power Supply DC12V-4A 5.5*2.5

DC12V-5A 5.5*2.5

Packing List S04 firewall, power cord, warranty card



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
S04 D525 Intel® HD Graphics 1.80GHz 1 x VGA 1 x SO-DIMM DDR3, Max 4GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 I3 3110M Intel® HD Graphics 4000 2.40GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 1005M Intel® HD Graphics 1.90GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 I3 2350M Intel® HD Graphics 3000 2.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 I5 2520M Intel® HD Graphics 3000 2.5~3.20GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 I5 3320M Intel® HD Graphics 4000 2.6~3.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 I7 3520M Intel® HD Graphics 4000 2.9~3.60GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 I7 3520M Intel® HD Graphics 4000 2.9~3.60GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 I5 3610ME Intel® HD Graphics 4000 2.7~3.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 I7 3630QM Intel® HD Graphics 4000 2.4~3.40GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 J4125 Intel® UHD Graphics 600 2.0~2.70GHz 1 x VGA 2 x SO-DIMM DDR4, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 N4000 Intel® UHD Graphics 600 1.1~2.60GHz 1 x VGA 2 x SO-DIMM DDR4, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 N4000 Intel® UHD Graphics 600 1.1~2.60GHz 1 x VGA 2 x SO-DIMM DDR4, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 N5105 Intel® UHD Graphics 2.0~2.90GHz 1 x VGA 2 x SO-DIMM DDR4, Max 32GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 N5100 Intel® UHD Graphics 1.1~2.80GHz 1 x VGA 2 x SO-DIMM DDR4, Max 32GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 4405U Intel® HD Graphics 510 2.10GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S04 I3 7100U Intel® HD Graphics 620 2.40GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
S04 I3 8130U Intel® UHD Graphics 620 2.2~3.40GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
S04 I5 8250U Intel® UHD Graphics 620 1.6~3.40GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
S04 I7 8550U Intel® UHD Graphics 620 1.8~4.00GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
S04 I3 1115G4 Intel® UHD Graphics 1.7~4.10GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
S04 I5 1135G7 Intel® Iris Xe Graphics 2.4~4.20GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
S04 I7 1165G7 Intel® Iris Xe Graphics 1.2~4.70GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
