1U Rack Firewall Router Server

1U Rack Firewall Router Server

Model: Partaker S10

  • Equipped with 12/13th gen Intel Core i3/i5/i7 LGA1700 processors.
  • Supports up to 128GB DDR4 RAM via 2 U-DIMM slots.
  • 1 PCIE X8 slot supports optional 4 optical or 4 network ports.
  • Features 6 Intel 1000M LAN ports with 2 sets of Bypass.
  • Supports console access and TPM 2.0 for enhanced security.
  • Support Windows 8/10, Linux, pfSense, OPNsense.

Share to:

Overview



The 1U Rackmount Router Firewall Server is a comprehensive network security solution, boasting an aluminum alloy front panel and SGCC cabinet for durability. It offers a range of Intel Core processors, including the I3-12100, I5-12400, and I7-12700, for robust performance. Equipped with DDR4 3200MHz RAM slots supporting up to 128GB, M.2 storage, and an Intel H610 chipset, it provides ample memory and storage capacity. Connectivity is enhanced with Gigabit RJ45 and 2.5G LAN ports, USB 3.0, and optional expansion slots for optical or network ports. The server also supports various functions like watchdog timers, diskless boot, Wake on LAN, and auto power-on. With CE, CCC, FCC Class A, and ROHS certifications, it is suitable for demanding applications like firewalls, VPNs, network servers, and routers.



Model
Partaker S10
Color
Black
Material
Aluminum Alloy Front Panel, SGCC Cabinet
CPU
Intel Core I3-12100 (4 Core 8 Threads, 3.3 Ghz, Turbo Frequency 4.3 Ghz, 5MB)
Intel Core I5-12400 (6 Core 12 Threads, 2.5 Ghz, Turbo Frequency 4.4 Ghz, 7.5MB)
Intel Core I7-12700 (12 Core 20 Threads, 2.10 Ghz, Turbo Frequency 4.9 Ghz, 12MB )
Chipset
Intel H610
RAM
Support 2 DDR4 3200 U-DIMM Memory Slots, Max. 128GB
Storage
1 M.2 (M-Key 2280 supports SATA), optional 1*3.5-inch hard drive fixing position or 2 2.5-inch hard drive fixing positions
Display Chip
Intel UHD Graphics 730/770
Display Port
1*HD

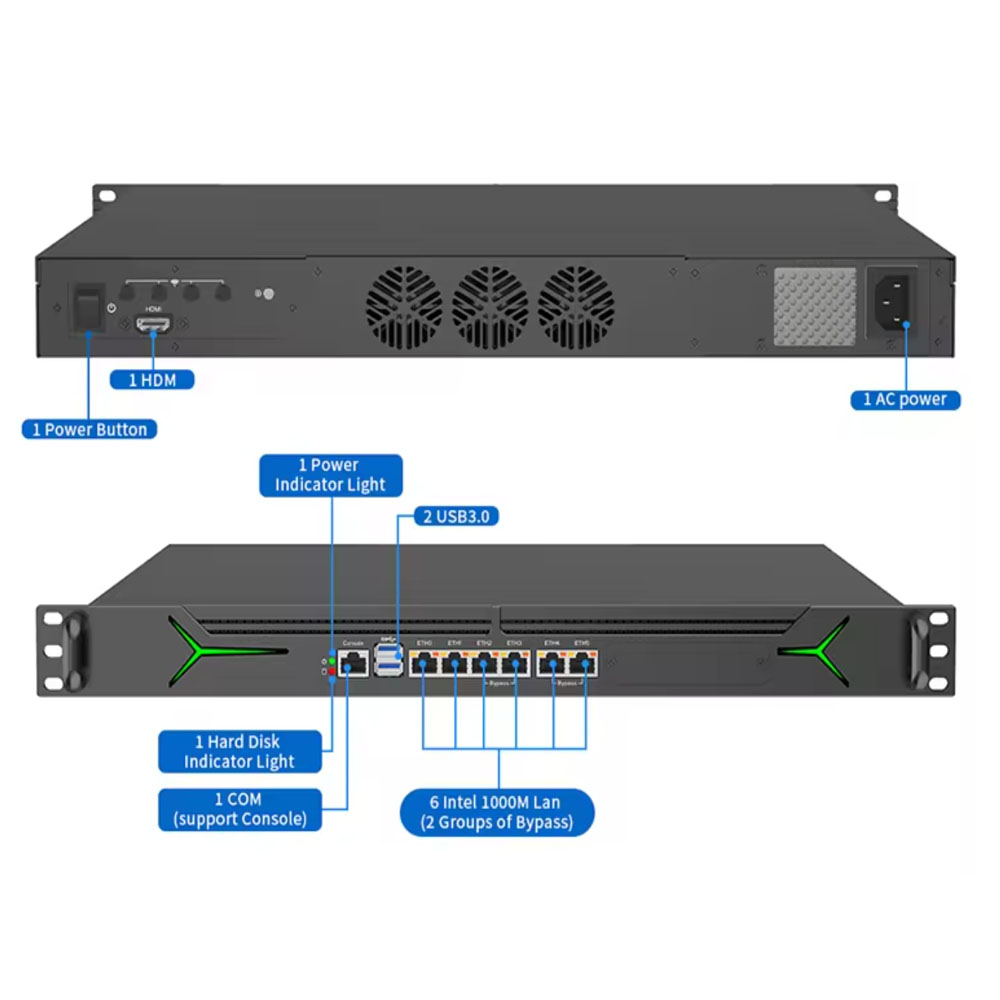

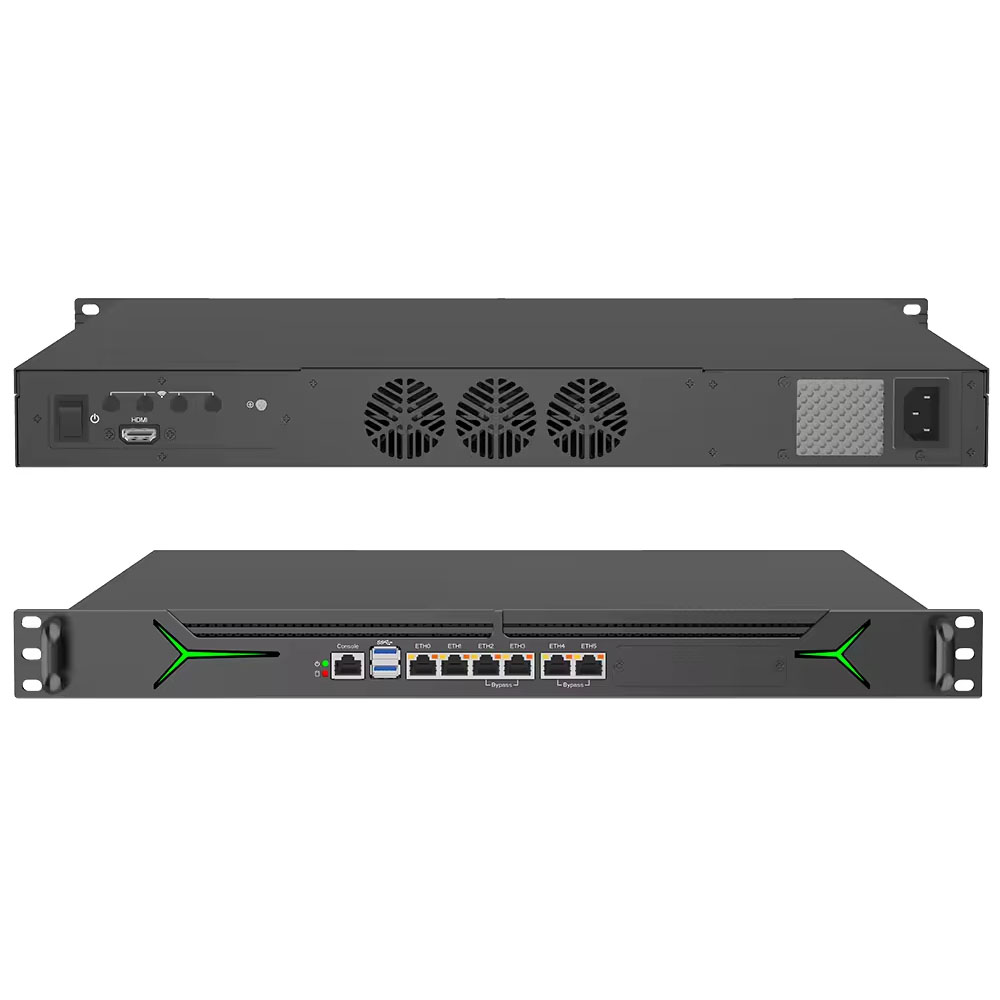

Front I/O
1 power indicator light, 1 hard disk indicator light, 1 COM (support Console), 2 USB3.0,
6 RJ45 Gigabit network ports (supports 2 groups of Bypass)

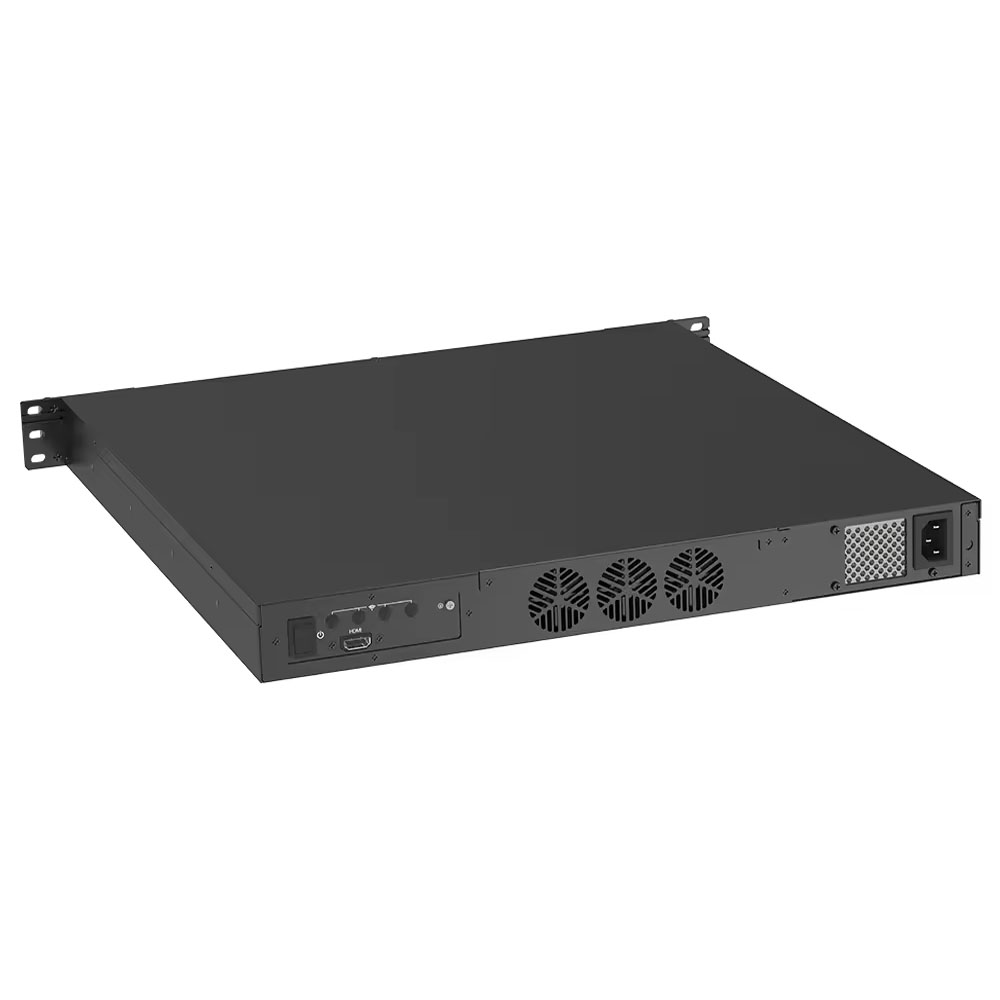

Rear I/O
1 Power Button, 1 HD , 1 AC power
Network Card
2 *Intel i225-V 2.5G LAN
Expansion
1 PCIE X8 (optional 4 Optical Ports or 4 Network Ports)
1 M.2 (M-Key 2280, supports SATA SSD)
1 M.2 (E-Key 2230, supports WiFi/BT)
1 M.2 (B-Key 3042, supports 4G)
Expansion Slot
Standard shipment doesn’t include this Port: 8 GPIO, 1 COM (RS232/485 optional), 4 USB2.0;
1 USB3.0 (built-in Type-A port)
Lan Port
6 Intel i210-AT 1000M LAN ports (supports 2 sets of Bypass)
Input Power
90~264 V (47Hz-63Hz) AC input (optional redundant power supply)
Other Function
Support Watchdog (level 0-255)Diskless boot, Wake on LAN, Auto power on, Timing boot
Work Temp
0℃~+50℃, surface air flow
Work Humidity
5% – 95% non-condensing
Cetificates
CE, CCC, FCC Class A, ROHS

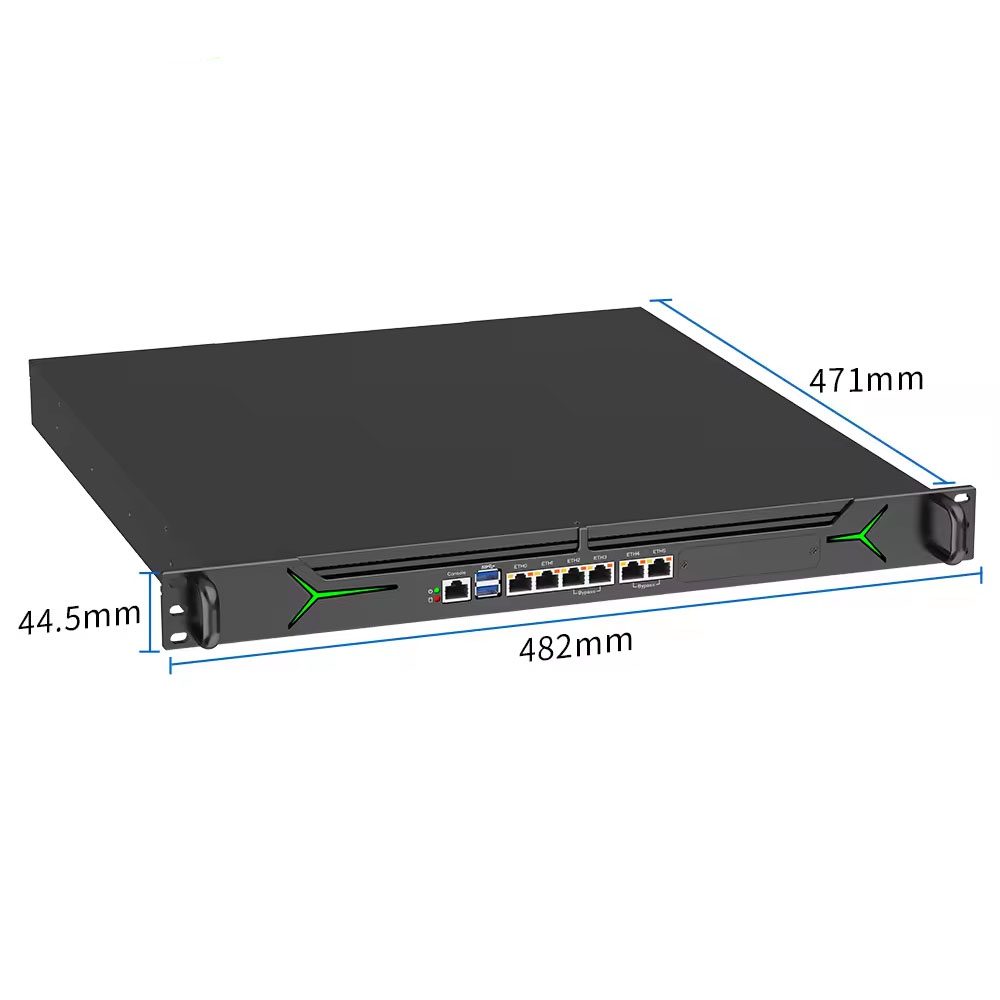

Dimension
482*471*44.5mm
Net Weight
6.11 kg (barebone) (including radiator)
Application
Firewall, VPN, network server, network security, router and etc.



Model Processor Graphics Frequency Display Memory Storage LAN SFP USB Power
S10 I3 12100 Intel® UHD Graphics 730 3.3~4.30GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 128GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
S10 I5 12400 Intel® UHD Graphics 730 2.5~4.40GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 128GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
S10 I7 12700 Intel® UHD Graphics 770 1.6~4.90GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 128GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
S10 I9 12900 Intel® UHD Graphics 770 1.8~5.10GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 128GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
