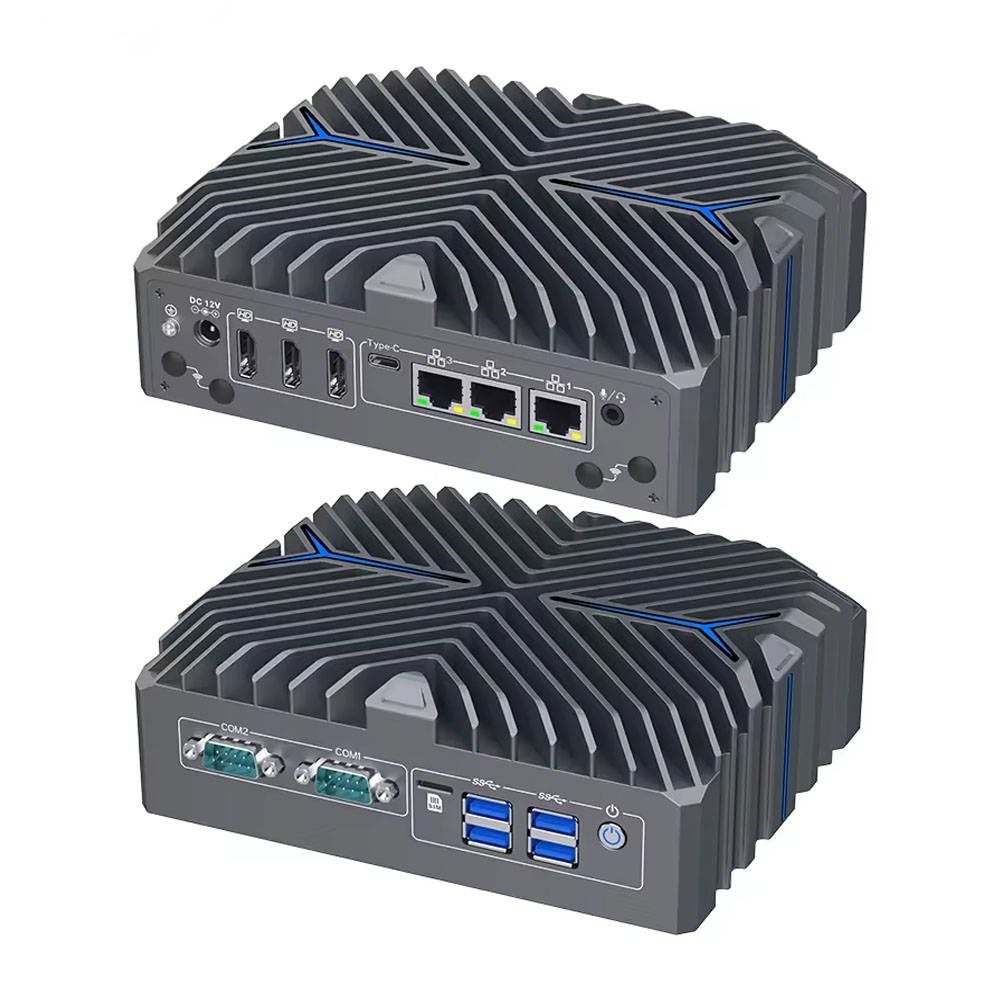

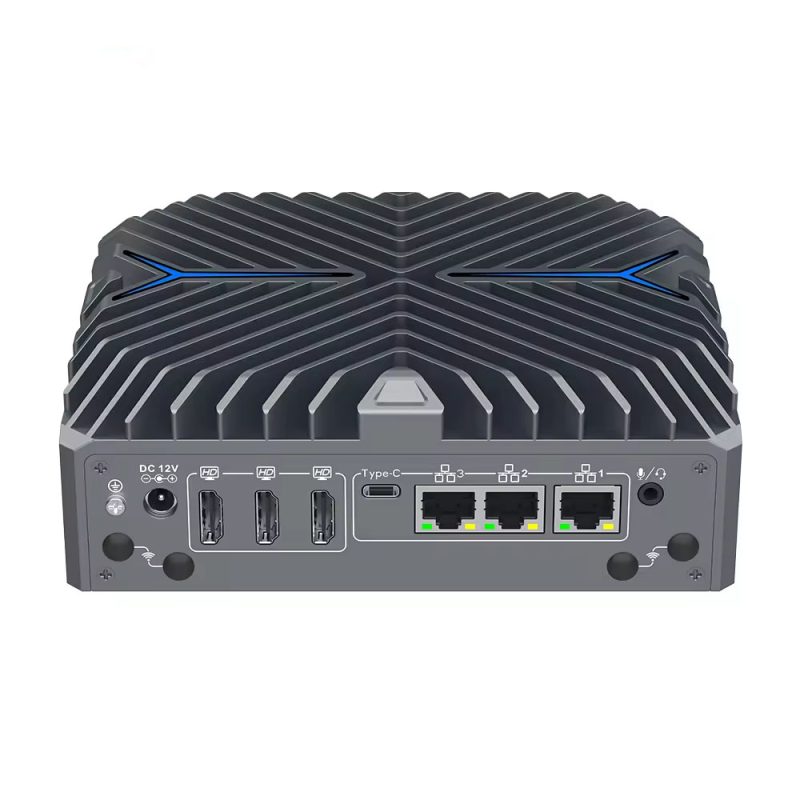

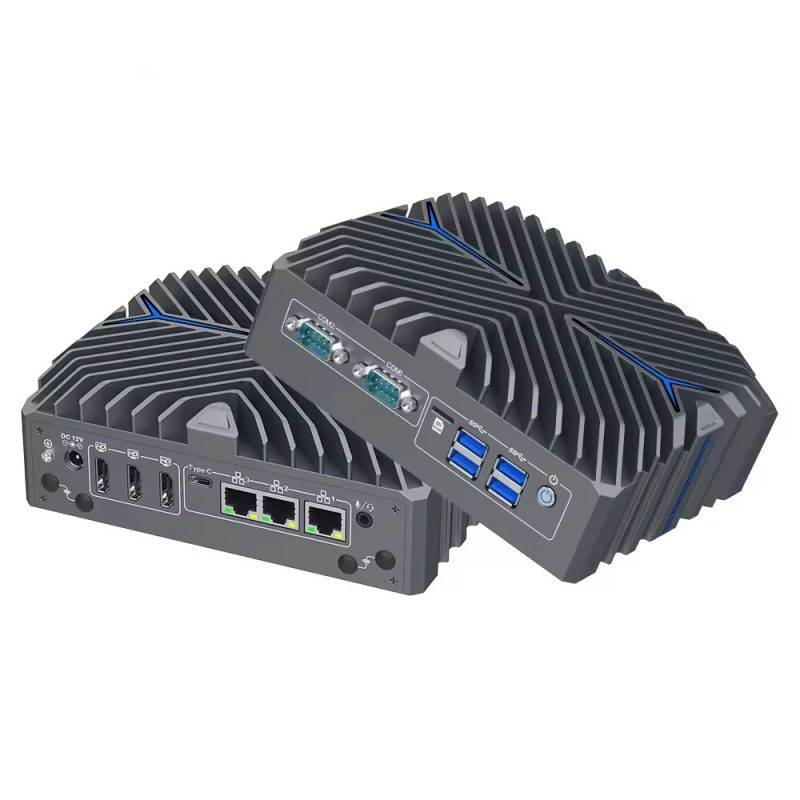

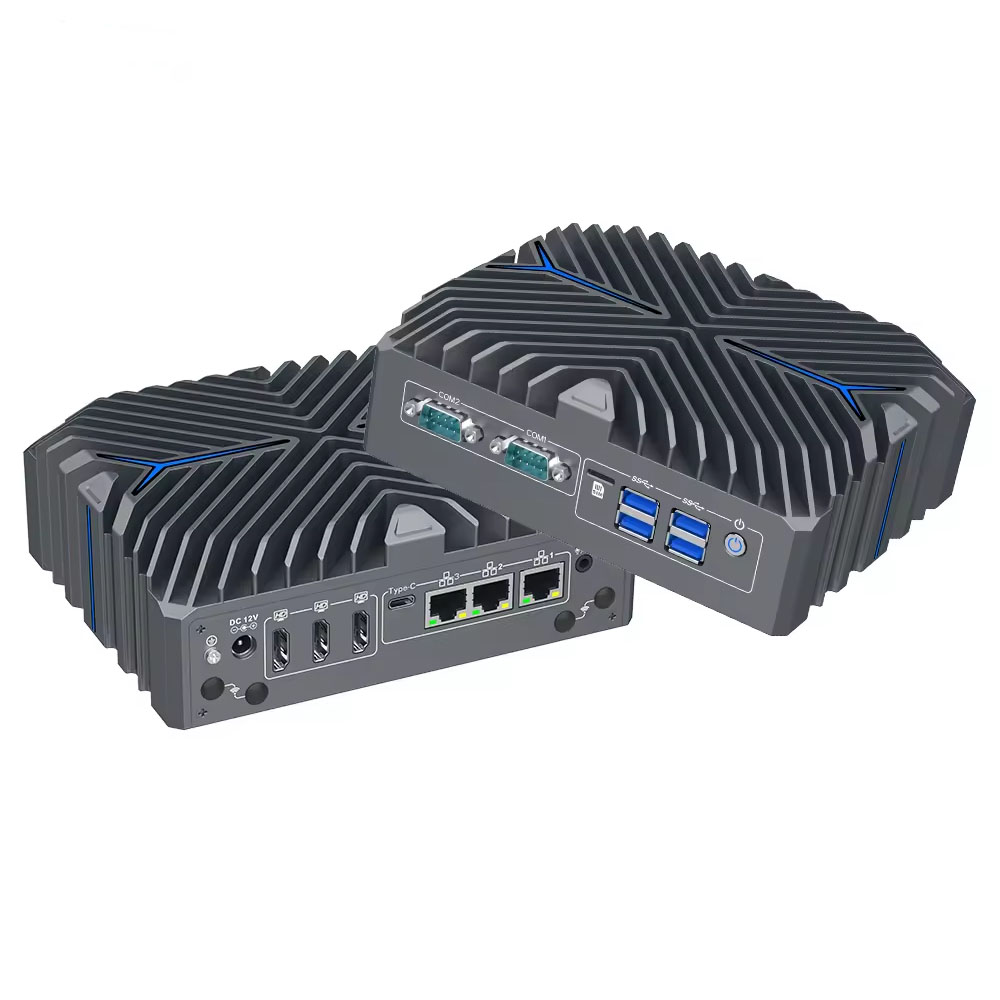

14th Gen Fanless Mini PC

14th Gen Fanless Mini PC

Mode: Partaker N8

  • Crafted with aviation-grade aluminum alloy for efficient fanless heat dissipation.
  • Choose from Intel Core Ultra 5 125U or 7 155U, up to 12 cores & 4.8 GHz Turbo.
  • Intel AI Boost NPU for faster AI processing tasks.
  • Powered by Intel Graphics chipset for smooth visuals.
  • Supports M.2 NVME, WIFI, BT, MINI PCIE, and 4G/WIFI expansion.
  • 3x HDMI, 1x Type-C, multiple USB & COM ports.
  • TPM 2.0 encryption & watchdog function for data protection.
  • Suitable for temperatures from -20℃ to +50℃ with industrial SSD.
  • Measures 170x140x58mm & weighs just 1.1kg for easy deployment.
  • Perfect for Automation, IoT Gateways, Edge Computing, & more.

Share to:

Overview



Experience unparalleled performance in harsh industrial settings with our 14th Gen Fanless Mini PC. Crafted with aviation-grade aluminum alloy for silent, efficient heat dissipation, it boasts Intel Core Ultra processors (up to 12 cores, 14 threads, 4.8 GHz Turbo) and Intel AI Boost NPU for AI acceleration. With DDR5 RAM support, Intel Graphics, and versatile I/O including HDMI, Type-C, USB, and 2.5G LAN, it’s the ideal solution for Industrial Control, Automation, Robotics, IoT Gateways, Edge Computing, and Machine Vision applications.



Mechanical



Model Partaker N8
Processor Intel 14th Gen Core Ultra processor Mini PC
Intel Core Ultra 5 125U (12 core 14 threads, Max Turbo 4.3 GHz, 15W )
Intel Core Ultra 7 155U (12 core 14 threads, Max Turbo 4.8 GHz , 15W)
Memory 1*DDR5 4800 SODIMM memory slot, Max. 32 GB
BIOS AMI UEFI BIOS
Display Chip Intel Graphics
Display Port 3*HD-MI, 1 Type-C , Support synchronous/asynchronous Four display, Max resolution 4096×2160 @ 60Hz
Storage Support 1*M.2 2280 Slot,1*2.5”HDD
Expansion  1 x M.2 2280 M-Key slot (NVME protocol, PCIE4.0X4)

1 x M.2 2230 E-key slot (supports WIFI, BT)

1 x MINI PCIE slot (PCIE &USB2.0 , supports 4G/WIFI), external SIM card slot (Nano card)

Expansion slot: (not included in standard shipments): 2 USB 2.0, 4 GPIO

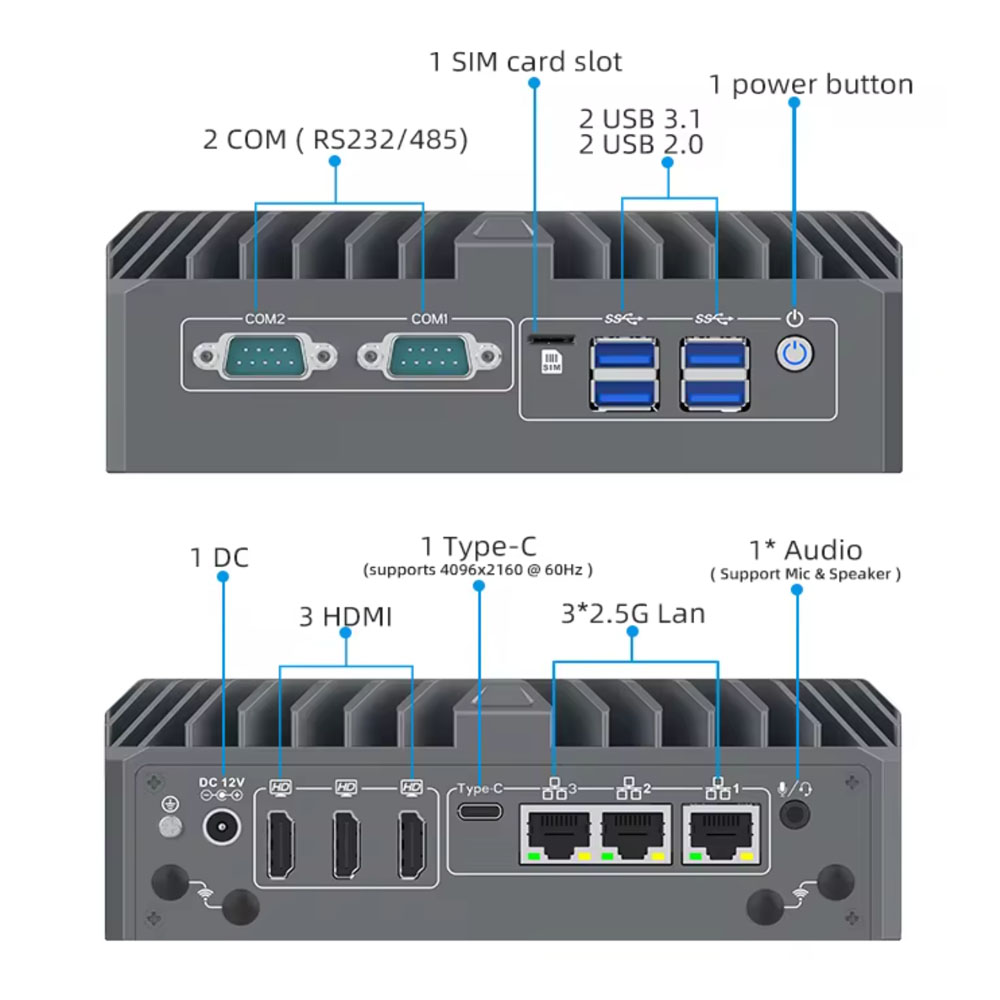

I/O 2*COM RS232/485,1*SIM slot,2*USB3.1,2*USB2.0,1*Power button

1*DC port,3*HD-MI,1 Type-C ,2*USB2.0 , 3*2.5G Lan, 1* Audio ( Support Mic & Speaker at the same time)

Network 3 x Intel i226-V 2.5Gbe Lan
Input Voltage DC 12V
Certificates CE, CCC,  FCC Class A,  ROHS
Other Function Power-on, timed startup, network wake up, PXE startup, watchdog (level 0-255), TPM2.0 security encryption)(Standard version doesn’t set these function)
Application Industrial Control, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/ARM, etc.
Structure Parameter
Color Metal gray【Any color can be customized】
Material High-quality all aluminum

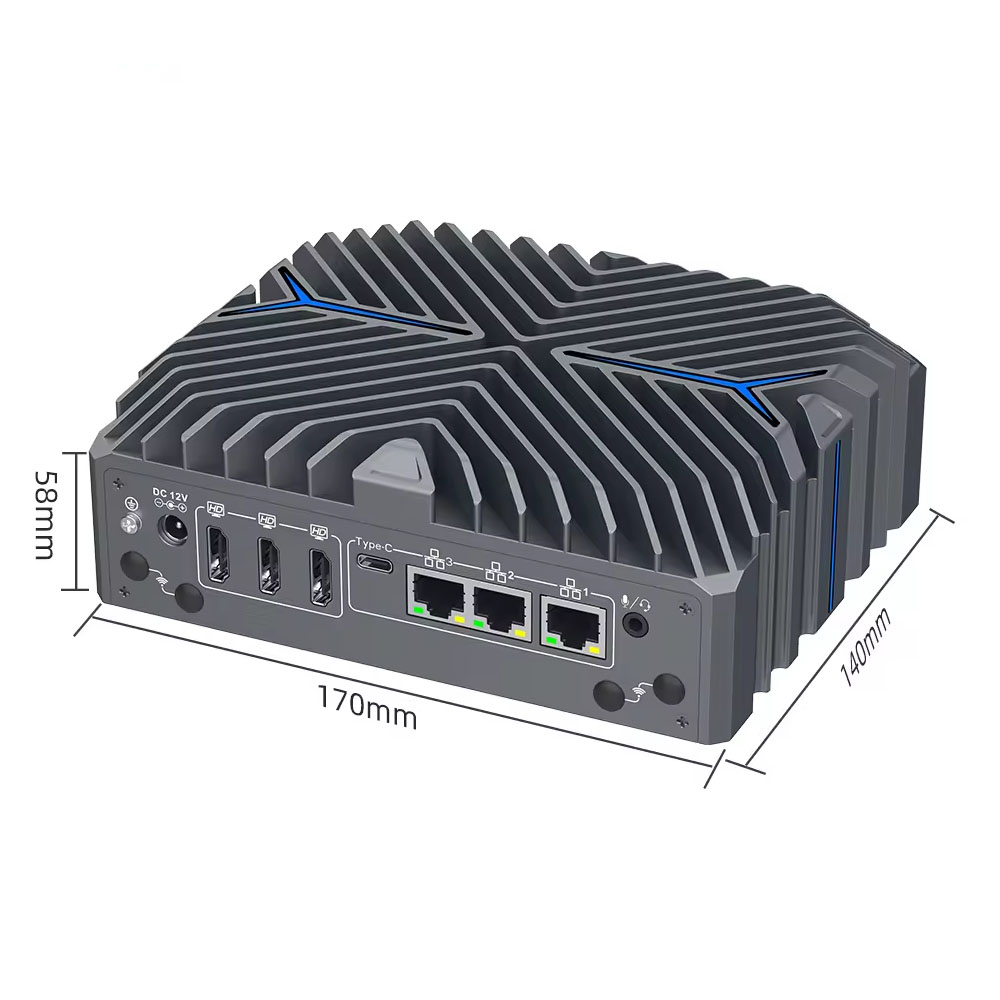

Dimension 170 * 140 * 58 mm
Weight 1.1 kg
Environmental Parameter
Work Temp 0℃ ~ +40℃(Commercial HDD),-20℃ ~ +50℃(Industrial SSD),Surface air flow
Work Humidity 5% ~ 95% non-condensing



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
N8 5 125U Intel® Graphics 1.3-4.30 GHz 3 x HDMI+ 1 x Type C 1*DDR5 4800 SODIMM memory slot, Max 32 GB 1*M.2 2280 slot,1*2.5 inch HDD 3 4 DC 12V
