13 Inch Firewall Appliance 4 LAN J1900

13 Inch Firewall Appliance 4 LAN J1900

Model: Partaker S10

  • Intel Celeron J1900/J1800/N2840
  • Support 1 x DDR3L memory
  • Support 1 x mSATA SSD
  • 4 x 82583V/82574L LAN
  • Windows/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense

Share to:

Overview



Partaker 13 inch firewall appliance S10 4 LAN soft routing with sheet metal structure, fuel injection process, support multi system. It can work on company, internet cafe, hotel, rental room, apartment etc. The host is equipped with high performance celeron J1900/J1800/N2840 processor which can better meet your needs.





Mechanical

Material Iron
Colour Silver (any color can be customized)
Size 242 x 173 x 45(mm)
Weight 4Kgs
Insallation Method Desktop type/Wall type/Embedded



Motherboard

CPU Intel Bay Trail Celeron Processor J1900, FCBGA1170, 4 Cores 4 Threads, 2.00 GHz Base Frequency, Burst Frequency 2.42GHz, 2MB
Intel Smart Cache, TDP 10W processor.

Other available processors:
Intel Celeron/Pentium CPU N2840,J1800,J1900,J2900,N2940

Network Card 4 x Intel 82583V/82574L 10/100/1000M lan
Graphic Integrated Intel HD Graphics
Memory 1 x DDR3L 1600MHz SODIMM memory slot, up to 8GB

1 x DDR3 1333 MHz SODIMM memory slot,up to 4GB

1 x DDR3L 1600 MHz SODIMM memory slot,up to 4GB

1 x DDR4 2400 MHz SODIMM memory slot,up to 8GB

Storage 1 x mSATA SSD, 1*SATA3.0
Display 1 x VGA
Expand Support 1 MINI PCIE channel (can be WIFI/Bluetooth/4G)



I/O Interfaces

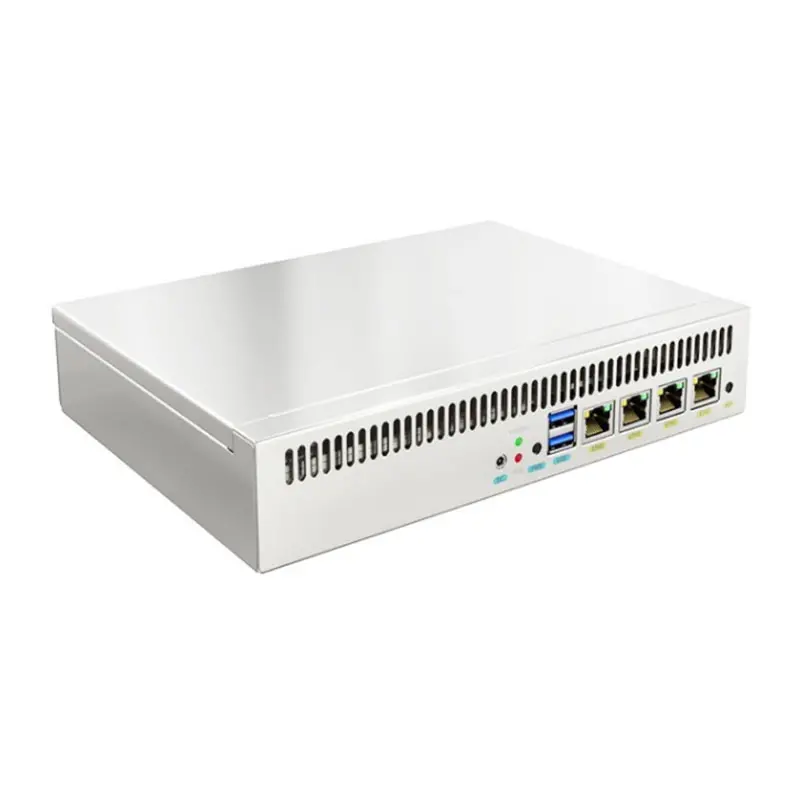

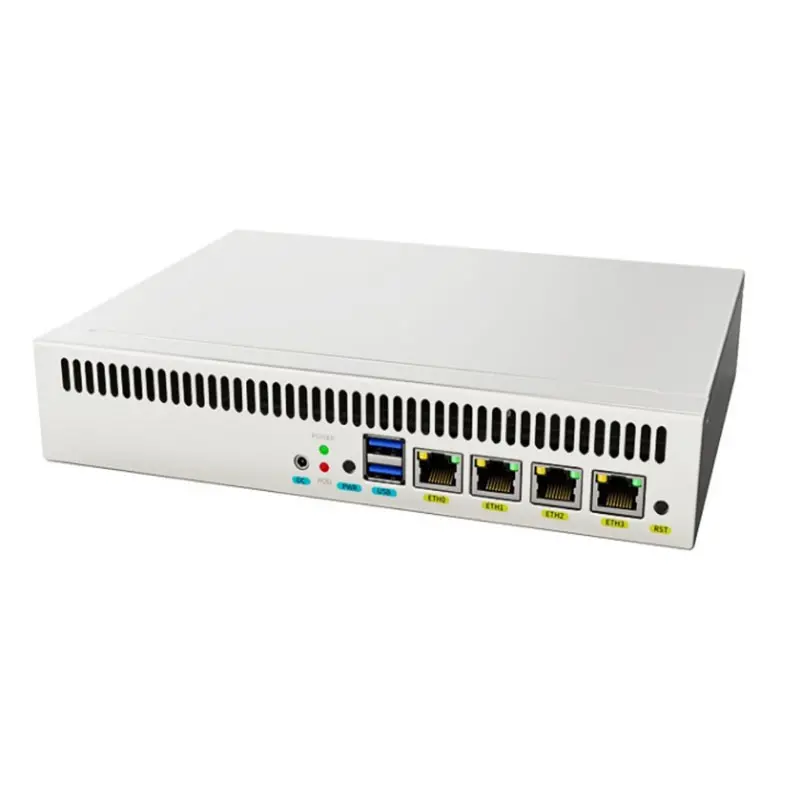

Front Panel 1 x DC-IN 12V
1 x Power supply/hard disk light
1 x PWR
2 x USB3.0
4 x LAN
1 x RST

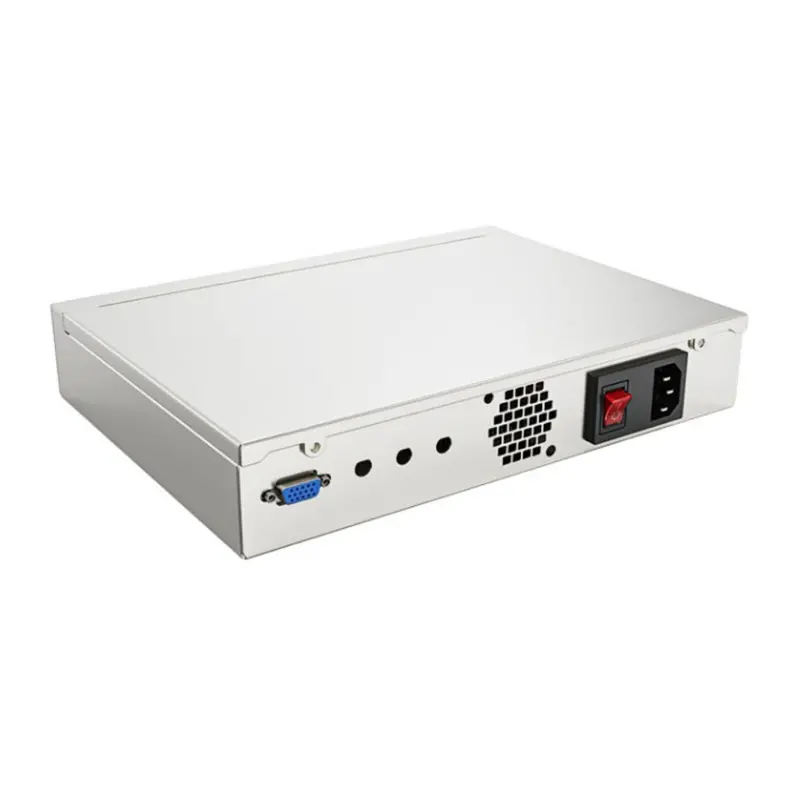

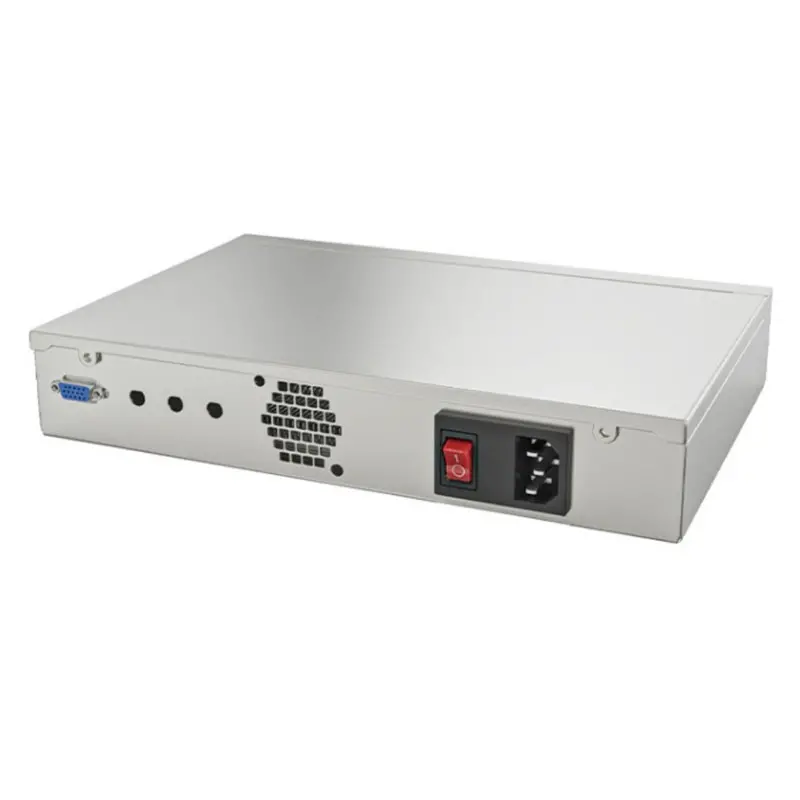

Rear Panel 1 x VGA
3 x Wifi Holes
1 x Power Interface
1 x Switch



Software Support

BIOS AMI EFI BIOS
System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux



General

Cooling Mode With Fan
Power Supply Industrial grade power supply Taiwan MEAN WELL LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A
Packing List S10 firewall, power adapter, power cord, warranty card



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
S10 J1900 Intel® HD Graphics 2.0~2.42 GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 4G 1 x mSATA/1 x 2.5 inch SATA 4 2 12V/4.2A
S10 J1800 Intel® HD Graphics 2.41~2.58 GHz 1 x VGA 1 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SATA 4 2 12V/4.2A
S10 N2840 Intel® HD Graphics 2.16~2.58 GHz 1 x VGA 1 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SATA 4 2 12V/4.2A
