10th Gen Intel Motherboard

10th Gen Intel Motherboard

Model: ITX-B100_I516L

  • I5-10110U/10210U/10710U 1.1/1.6/GHz quad-core eight-thread
  • 2 x DDR4 SODIMM memory slot, support 2666MHz memory, maximum support 64GB
  • One VGA port, supporting up to 1920X1200@60Hz resolution
  • One HD OUTPUT1.4 port, supporting up to 4096×2304@24Hz resolution
  • 1 x Support dual channel 24bit LVDS interface, choose one of two with EDP, default LVDS
  • 1 x RTL8111H Gigabit network card, support Wake on LAN, PXE function

Share to:

Overview

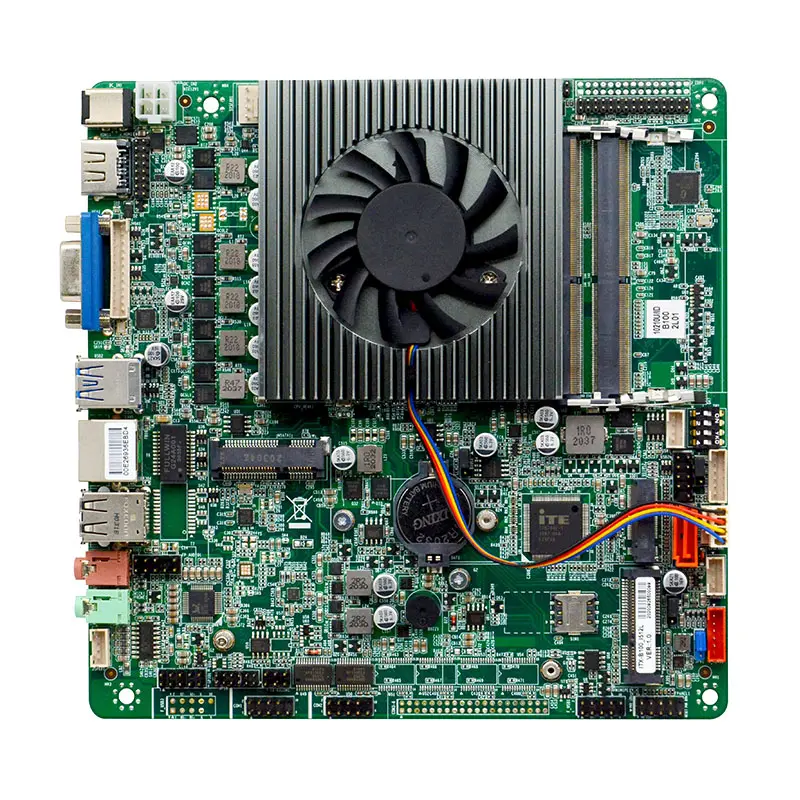

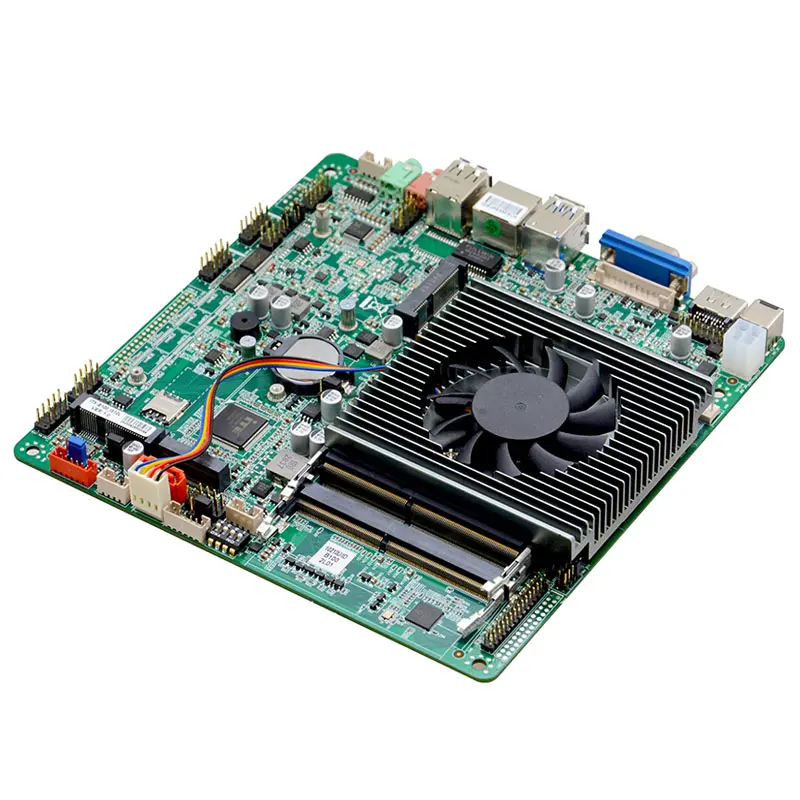

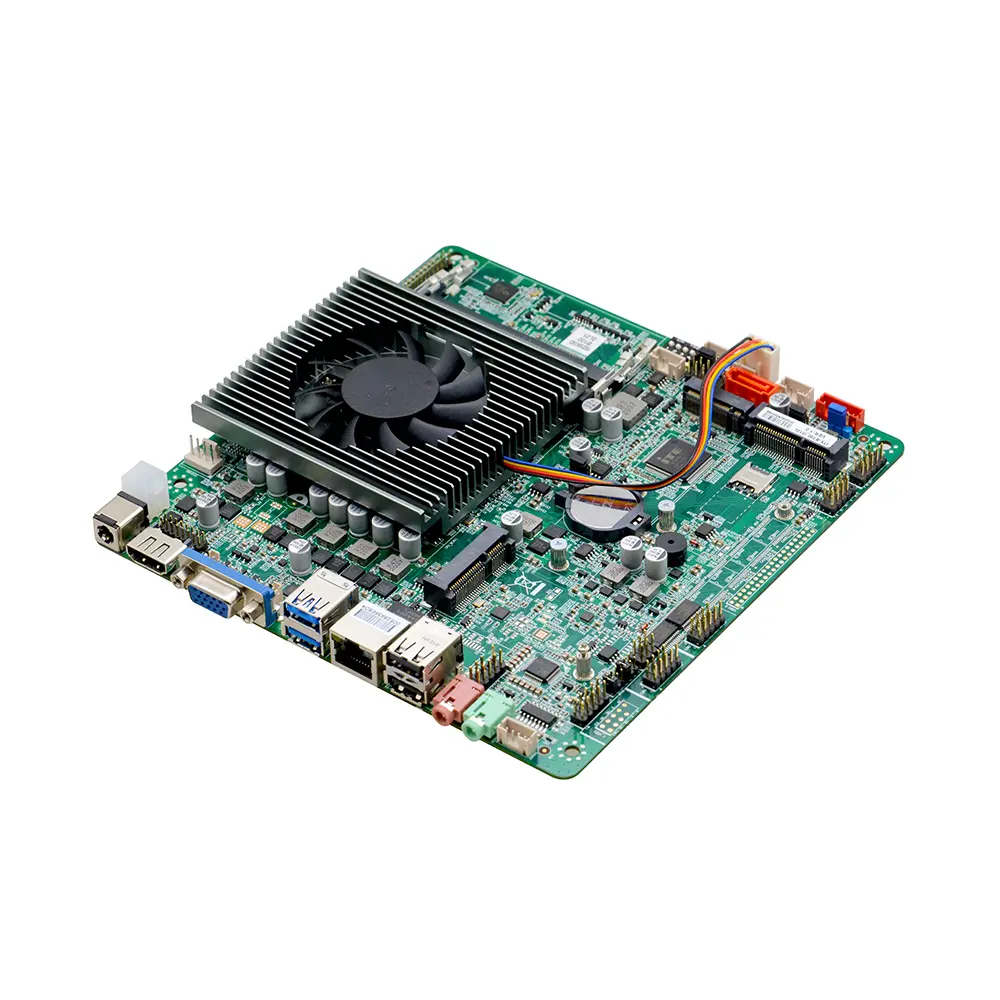

DDR4 thin itx mainboard industrial mini pc motherboard I5-10110U/10210U/10710U is a slim and powerful mainboard that features Intel Core i5-10110U/10210U/10710U processor, 1*8111H Gigabit Ethernet, DC 12V power input. It supports dual-channel DDR4 memory, dual display output via HDMI and DP, and has one M.2 slot for SSD or WiFi module. It is designed for industrial mini pc applications that require high performance, low power consumption, and space efficiency.

Product No. ITX-B100_I516L VER:1.6(10210U)
Processor Integrated 10th generation Intel®I5-10210U 1.6GHz quad-core eight-thread processor, TDP 15W
Compatible with Intel® Comet Lake-U Celeron/Pentium/I3/I5/I7 low-power processors
Chipset SOC
RAM 2*DDR4 SODIMM memory slot, support 2666MHz memory, maximum support 64GB
Display Integrated Intel® UHD Graphics, support DirectX 12 OpenGL 4.5, support 4K
1*VGA interface, the highest resolution supported is: 1920X1200@60Hz
1*HD OUTPUT1.4 interface, the highest resolution supported is: 4096×2304@24Hz
1*Support dual channel 24bit LVDS interface, choose one of two with EDP, default LVDS
Internet 1* RTL8111H Gigabit network card, support Wake on LAN, PXE function
Store 1* SATA3.0 hard disk interface, transmission speed can reach 6Gbps
1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps
1* M.2 slot, support M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD
Audio Integrated ALC662 6-channel high-fidelity audio controller, support MIC, Line_out, power amplifier
Support power amplifier 2Ω5W speaker
Expansion slot 1* Mini-PCIE slot, support WIFI/4G module

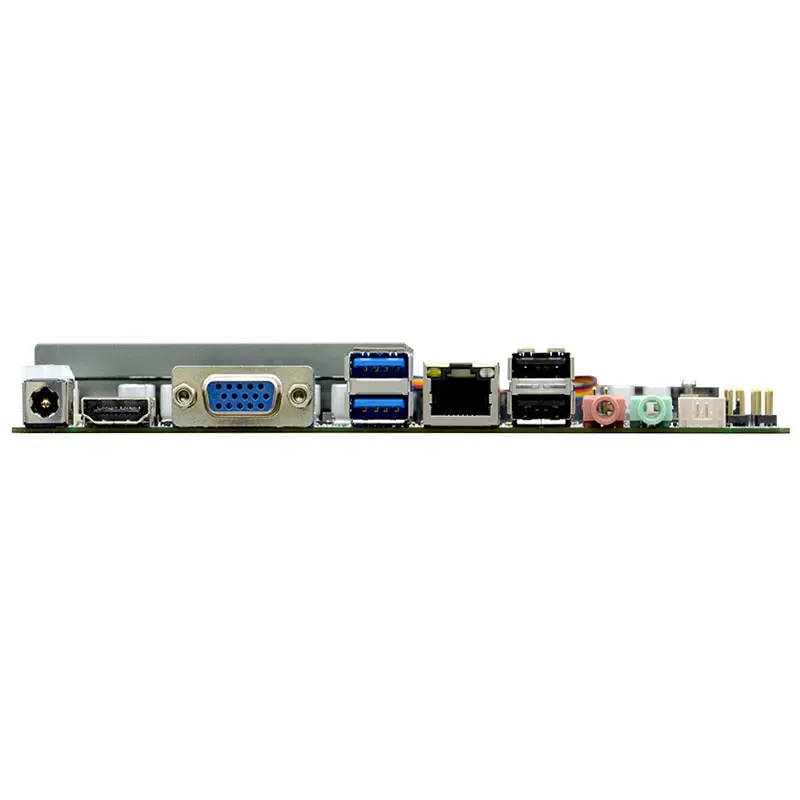

Backplane I/O interface 2*USB3.0 interface, 2*USB2.0 interface
1* HD OUTPUT port
1* DB15 VGA interface
1* RJ45 Gigabit network interface
1* Line-out (green), 1*MIC (red)
1* DC12V power interface, support 12V power input
Built-in I/O interface 1* JVGA1 interface 1*12pin (same signal with DB15)
1* JHD OUTPUT interface 2*10pin, same signal as HD OUTPUT interface
1* LVDS interface 2*15pin, support dual channel 24bit,
1* LVDS backlight power supply interface 1*6pin
1* Screen brightness adjustment interface 1*4pin
2* RS232 serial interface, COM1/2 supports the 9th pin charged function, COM2 supports RS485 function,
1* PS/2 keyboard and mouse interface (red) 1*6Pin
4* USB2.0 interface 2*5pin,
1* Front audio interface 2*5pin
1* Front panel switch button and indicator light interface 2*5Pin
1* Hard disk power supply interface 1*4pin
1* power amplifier interface 1*4pin
1* 4pin ATX power interface (can be used as 12V input power interface)
1* SIM card holder
Fan interface 1*4pin CPU smart fan interface, 1* 4pin system fan interface
GPIO Support 4 input and output GPIO function
BIOS 128Mb Flash ROM
Watchdog Support hardware reset function (256 levels, 0~255 seconds)
Power type Support hardware reset function (256 levels, 0~255 seconds)
operating system Windows 10 ,/Linux
Operating temperature -10℃~60℃
Storage temperature -20℃~70℃
Working humidity 5%-95% relative humidity, non-condensing
Size 170mm x 170mm
Model Processor Frequency Memory VGA LVDS HDMI LAN EDP USB RS485 COM Power
ITX-B100_I516L VER:1.6(10210U) i5 10210U 1.60~4.20G 2*SODDR4

1

2ch*24bit

1

1*8111H / 8 COM2 2 DC 12V
ITX-B100_I316L VER:1.5(10110U) i3 10110U 2.1~4.10G 2*SODDR4

1

2ch*24bit

1

1*8111H / 8 COM2 2 DC 12V
ITX-B100_I526L VER:1.5(10210U) i5 10210U 1.60~4.20G 2*SODDR4

1

2ch*24bit

1

2*8111H / 8 COM2 2 DC 12V
