Differences between DDR3, DDR3L, DDR4 in Partaker Mini PC

Before installing RAM for the Partaker mini PC, make sure you are aware of the specific RAM style required. You can use the link http://ark.intel.com/ to search for CPU details and determine the compatible RAM style (DDR3, DDR3L, LPDDR3, DDR4) for your Partaker mini PC. The supported memory types can be directly found, as illustrated in the provided image.



what kind of memory will install on mini pc



DDR3, DDR3L, LPDDR3, and DDR4 are different types of RAM used in computers. DDR3 is commonly used in both laptops (204-pin SO-DIMM) and desktops (240-pin), operating at higher voltage levels. DDR3L is a low voltage variant compatible with DDR3 slots. LPDDR3 is optimized for low power consumption in mobile devices and is soldered onto the motherboard. DDR4 is the latest generation, offering higher performance and lower power consumption, using a 288-pin configuration for both laptops and desktops.



DDR3L Ram

Mini PC Memory



Distinguishing Factors: DDR3 vs DDR4 RAM



DDR3 DDR4 RAM



1. Frequency: DDR3 RAM starts at a frequency of 800MHz and can reach up to 2133MHz, while DDR4 RAM begins at a higher frequency of 2133MHz and can go up to 3000MHz or higher. Higher frequency DDR4 RAM delivers significantly improved performance compared to DDR3, with a 70% increase in bandwidth for DDR4-3200 compared to DDR3-1866.



2. Appearance: DDR4 RAM features curved gold fingers, distinguishing it from the straight gold fingers of DDR3. This difference in appearance indicates that DDR4 is not compatible with DDR3, requiring a new platform or motherboard that supports DDR4 for replacement.



3. Memory Capacities: DDR3 RAM supports a maximum single capacity of 64GB, but typically, the market offers 16GB and 32GB options. In contrast, DDR4 RAM can provide a maximum single capacity of 128GB, allowing for support of larger memory configurations for more demanding applications.



4. Power Consumption: DDR3 RAM operates at a standard voltage of 1.5V, consuming more power and generating more heat, which can affect performance. DDR4 RAM, on the other hand, primarily operates at a lower voltage of 1.2V or even lower. This reduced power consumption leads to lower heat generation, enhancing stability and minimizing performance degradation caused by heat-related frequency drops.



5. Cost: DDR4 RAM tends to be more expensive than DDR3 due to its newer technology and improved performance. When purchasing new memory, it is important to consider all parameters, compatibility, and consult with sales representatives to make an informed decision.

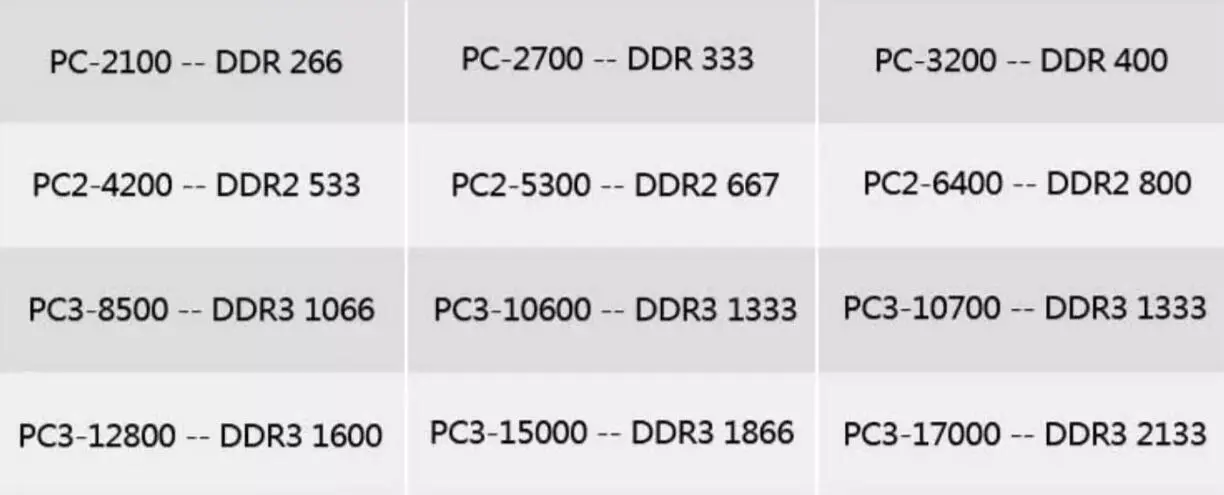

Memory and Bandwidth Frequency Comparison Table

Partaker fanless mini computer



In summary, DDR4 RAM offers advantages such as higher frequencies, increased memory capacities, lower power consumption, and improved performance compared to DDR3. However, it is essential to consider compatibility, cost, and specific requirements before selecting the appropriate RAM type for your system.
