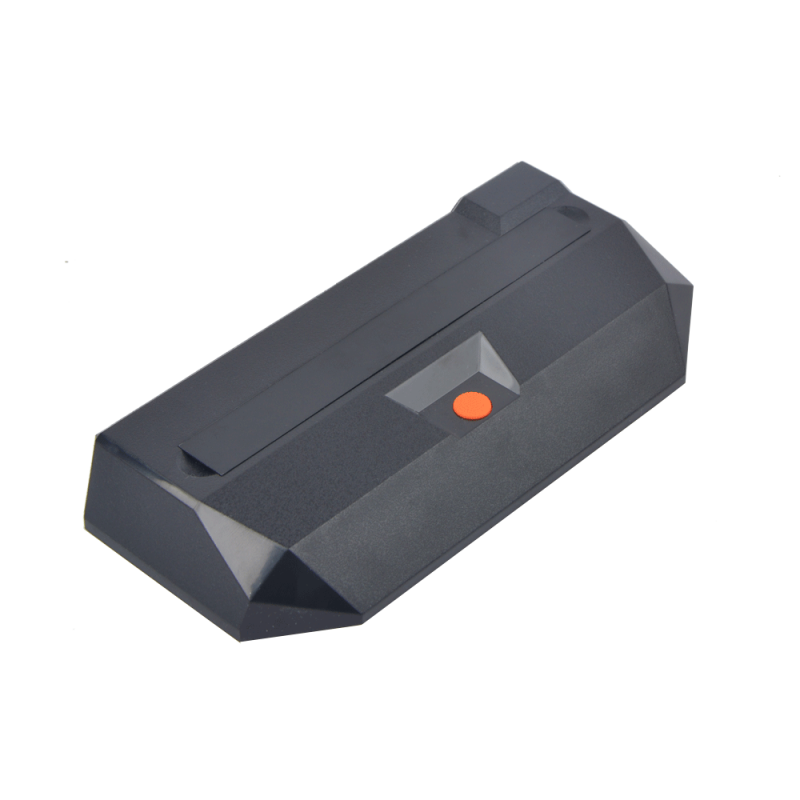

RDP Thin Client
Mode: R1 Pro
- Streamline IT with smart, centralized software.
- Simple setup and maintenance for hassle-free operations.
- Enjoy seamless 1080P video playback in full screen.
- Gigabit LAN with Wake-on-LAN support for efficient networking.
- Share screens for collaborative learning and presentations.
- Ultra-low power consumption at just 5W for eco-friendly use.
- Delivers a rich, familiar user experience for seamless transition.
- Supports HD, VGA, USB 2.0, and Gigabit Ethernet.
- No local data storage, ensuring data protection and compliance.
- Solid-state design with over 100,000 hours MTBF for long-lasting use.
Share to:
Overview
The R1 PRO is a high-performance RDP Thin Client equipped with comprehensive management software, tailored specifically for schools, enterprises, CBT (Computer-Based Training) environments, computer labs, and similar settings. This advanced thin client not only offers superior performance but also supports the seamless integration of external peripherals such as printers, scanners, and more, enhancing its versatility and functionality.
Mechanical
| Specification | ||
| Software | System | ( 7/10/Multipoint server 2012 Recommended) |
| Linux (Ubuntu ) | ||
| Included Software | Central Management Software Pro Version (Optional Basic Version at different cost) | |
| Appearance | Size | 162(W)*7(D)*28(H)mm |
| Net Weight | 118g | |
| Color | Matte black | |

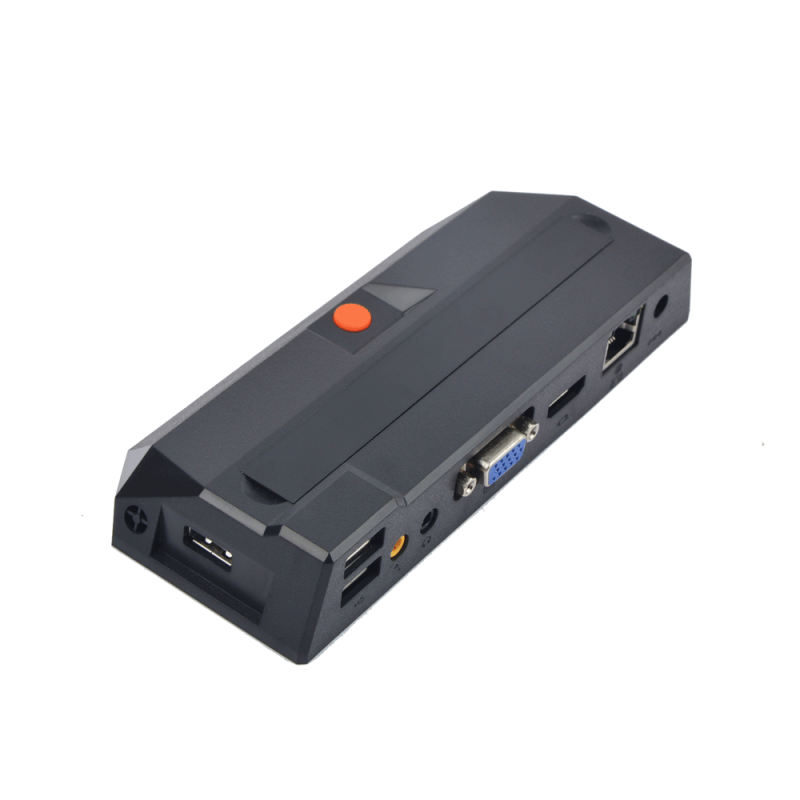

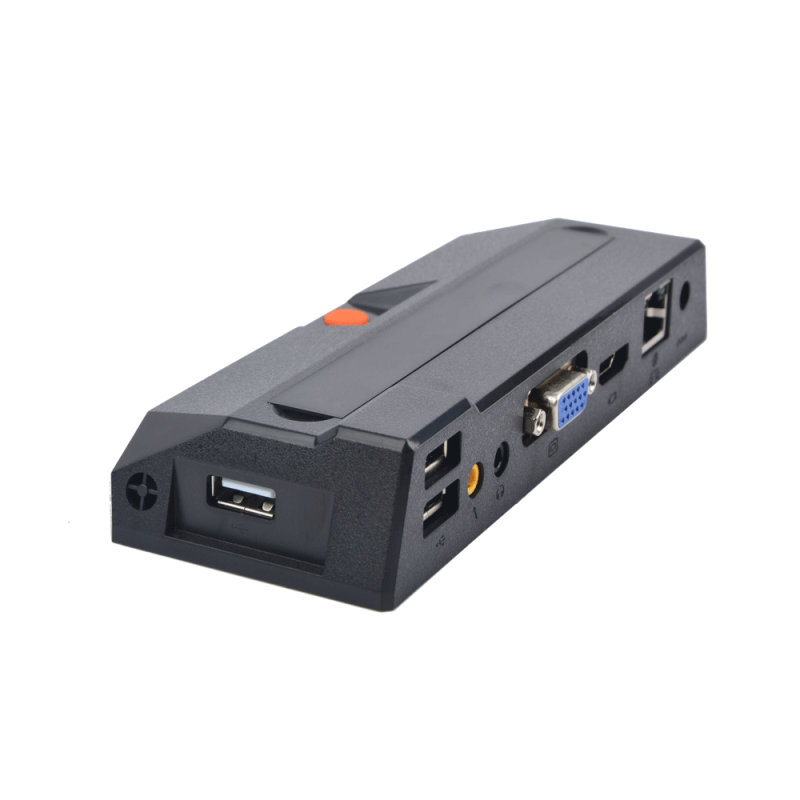

| Connections | Video | 1×HD，1×VGA |
| USB | 3×USB 2.0 | |
| Network | 1×RJ45 | |
| Audio | 1× 3.5mm audio input，1× 3.5mm audio output | |

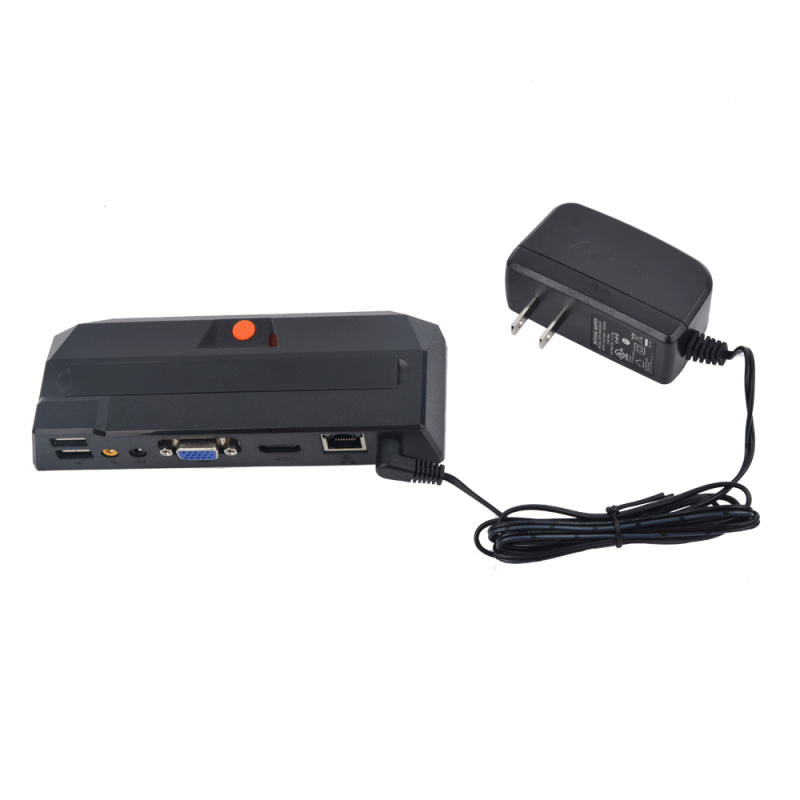

| Power | 1×5V DC | |
| Switch | 1×Power switch | |
| Anti-theft Gadget | Yes | |
| Power Consumption | Standby:0.2W | |
| Working:5W (independent of external USB devices) | ||
| Display Support | HD / VGA | |
| Resolution | Standard (32 bits @ 60Hz) | 640×480，800×600，1024×768，1280×1024，1600×1200 |
| Wide (32 bits @ 60Hz) | 1360×768，1366×768，1440×900，1600×900，1680×1050,1920×1080 | |
| Configuration Methods | Host side & Client-side | |
| Audio Support | HQ16 bits, 44.1Khz/ 48Khz，input and output through 3.5mm jacks or USB ports | |
| Video Support | Full HD 1080p for all media formats | |
| Player Support | Media Player Recommended | |
| USB devises Support | Removable Hard Drive/USB Hubs/Printer/Office &POS Scanners | |
| WIFI | Optional internal WIFI | |
| at additional cost: 802.11b/g/n | ||
| Maximum number | Unlimited. The actual number of supported users depends on the host configuration, operating system limit and the type of applications used. | |
| Internal hardware | All solid-state design/No moving parts/No fans/No local user storage | |
| Data Security | No local data storage on device. USB data access controlled by user policy. | |
| Reliability(MTBF) | >100,000 hours | |
| Environmental | 0 to 40 degrees Celsius 10 to 85% relative humidity (non-condensing) No moving parts permit use in high dust/particulate/ vibration environments. | |
| Certifications | FCC/CE/CCC/RoHS compliant/BIS/ISO 9001:2015/ ISO 14001:2015/China CECP | |
How is thin client works?
A.thin client can’t work stand-alone as PC. It must required one server. All thin client as user to login this server by RDP protocol. This is Sharing computing. Thin client login server to share all resources of this server.
B. Thin client need to connect with Monitor. Keyboard. Mouse. Cable.
C. Thin client usually apply to Computer Lab/Smart Classroom/Library/Office/Real estate/ Call Center/Trainning Center this kind of group places. don’t suitable for home personal pc use.
D. It’s better you are familiar with thin client technology, then you can buy it. because this is not PC. It required do some settings on Server. then thin client can login server for working.
