NUC Mini PC 7th Intel Core I7 I5

NUC Mini PC 7th Intel Core I7 I5

Model: Partaker B9

  • Intel® 7th Gen Intel® Core™ i5/i7 Processor
  • 1 x DP, 1 x HDMI, 6 x USB 3.0, Type C for USB, LAN, Spk, Mic
  • Support 2 x SODIMM DDR4 Memory, Max 32GB
  • Support 1 x M.2 2280 SATA/NVME SSD, 1 x M.2 2280 NVME SSD
  • Embedded Expansion: PCIe for WiFi
  • Support HDMI 1.4 4K: 4096×2304@30Hz
  • Support DP 1.2 4K: 4096×2304@60Hz
  • Support DP & HDMI Dual Display

Share to:

Overview



The B9 Mini PC is a compact yet powerful desktop solution, crafted from aluminum alloy in a sleek silver finish. Equipped with Intel Core i5 or i7 processors, it offers robust performance in a compact form factor. Featuring dual M.2 storage slots, up to 32GB of DDR4 RAM, and a range of connectivity options, the B9 is suitable for both office and home use. It can be mounted on a desktop or VESA-compatible display, making it a versatile addition to any workspace.



Mechanical

Material Aluminum alloy
Colour Silver
Size 160 x 150 x 57mm
Weight 2Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional



Motherboard

CPU Intel® Core™ i5-7300HQ Processor (6M Cache, up to 3.50 GHz)
Intel® Core™ i7-7820HK/7820HQ/7700HQ Processor (8M Cache, up to 3.90 GHz)
Chipset HM370
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 32GB RAM
Storage 1 x M.2 2280 (SATA/NVME), 1 x M.2 2280 (NVME)
Expand 1 x M.2 PCIE WiFi slot

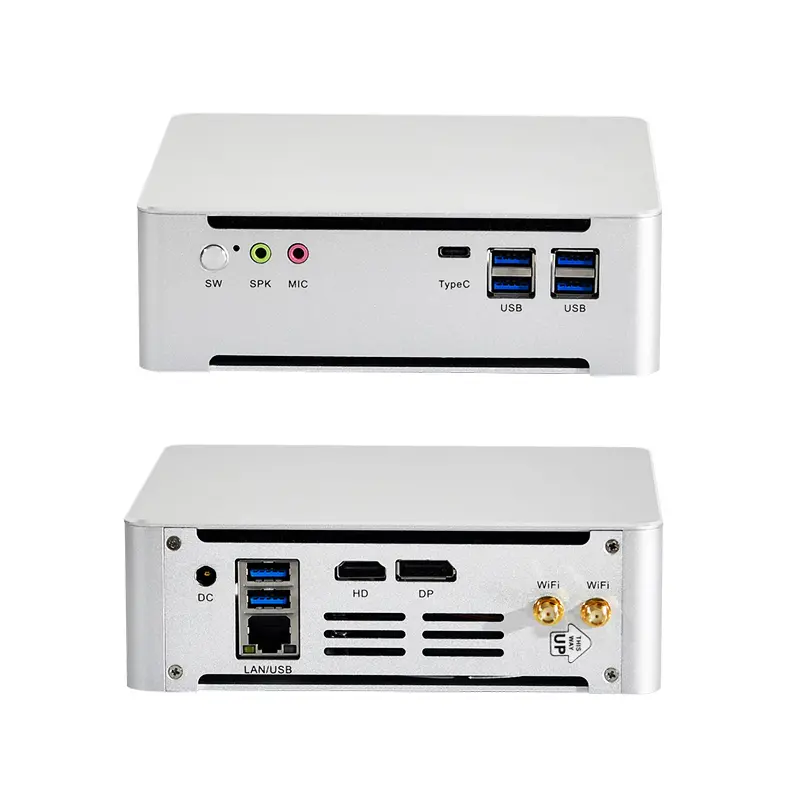

I/O Interfaces

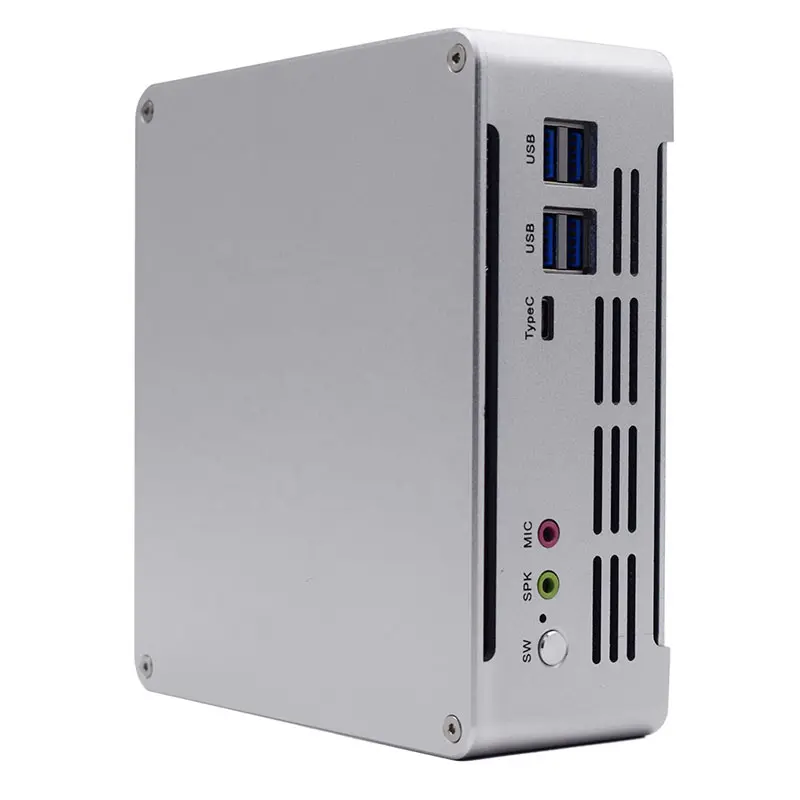

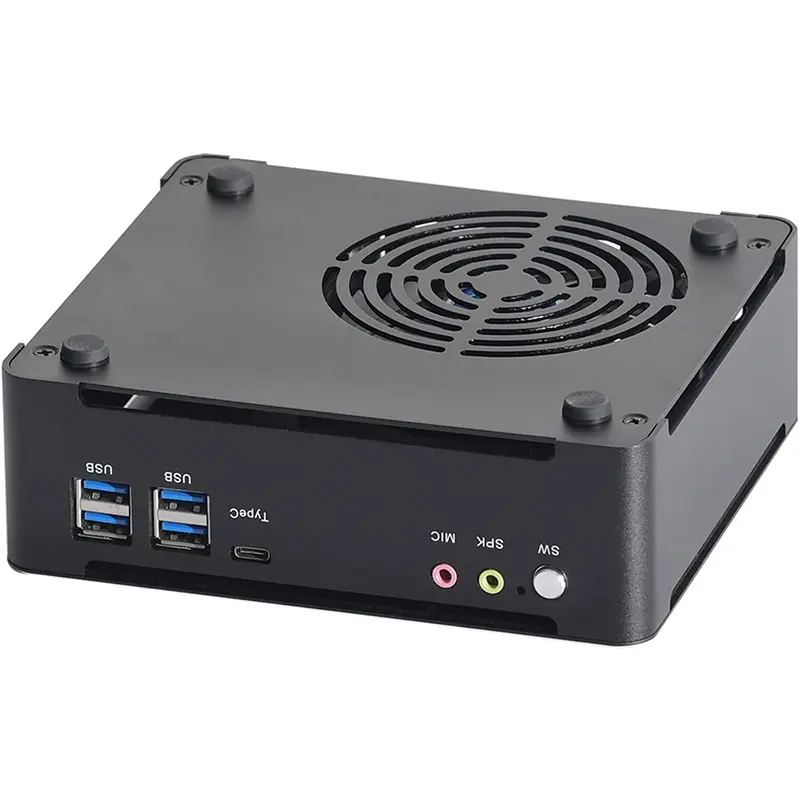

Front Panel 1 x Power button
1 x Audio
1 x Type C
4 x USB3.0

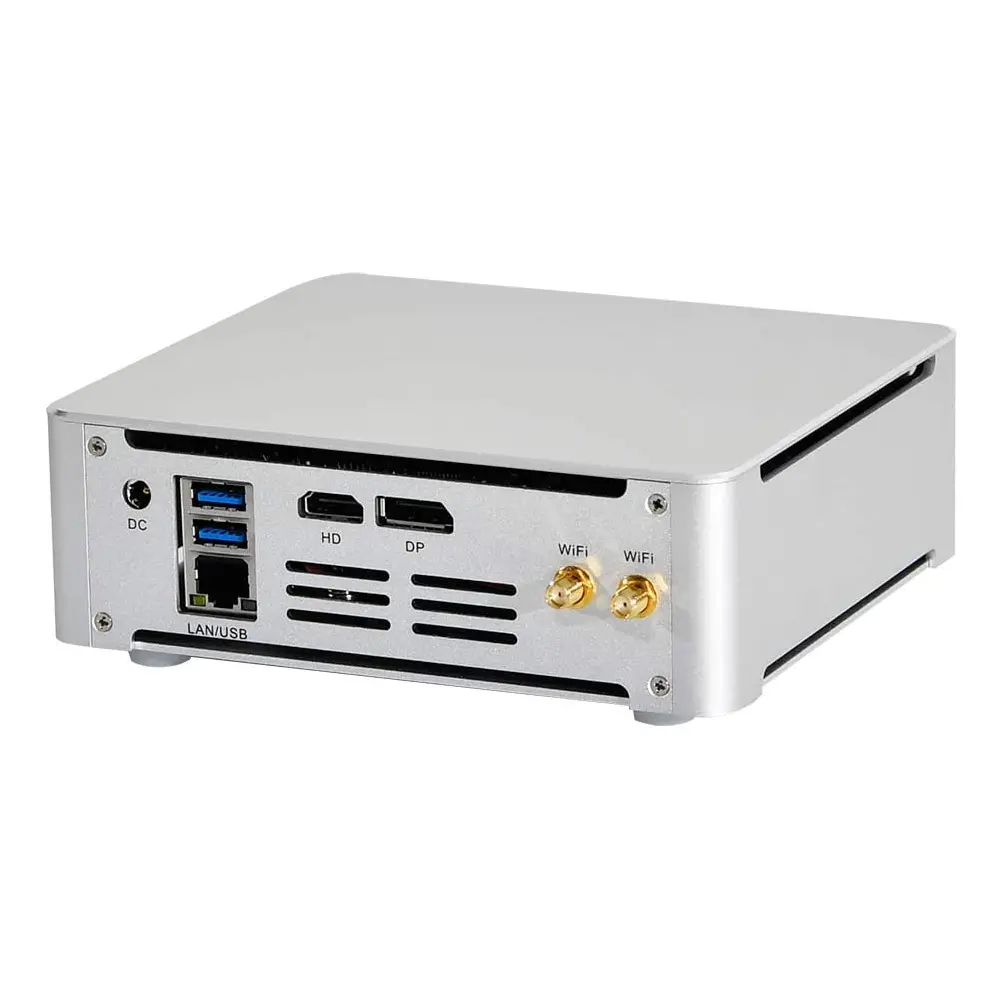

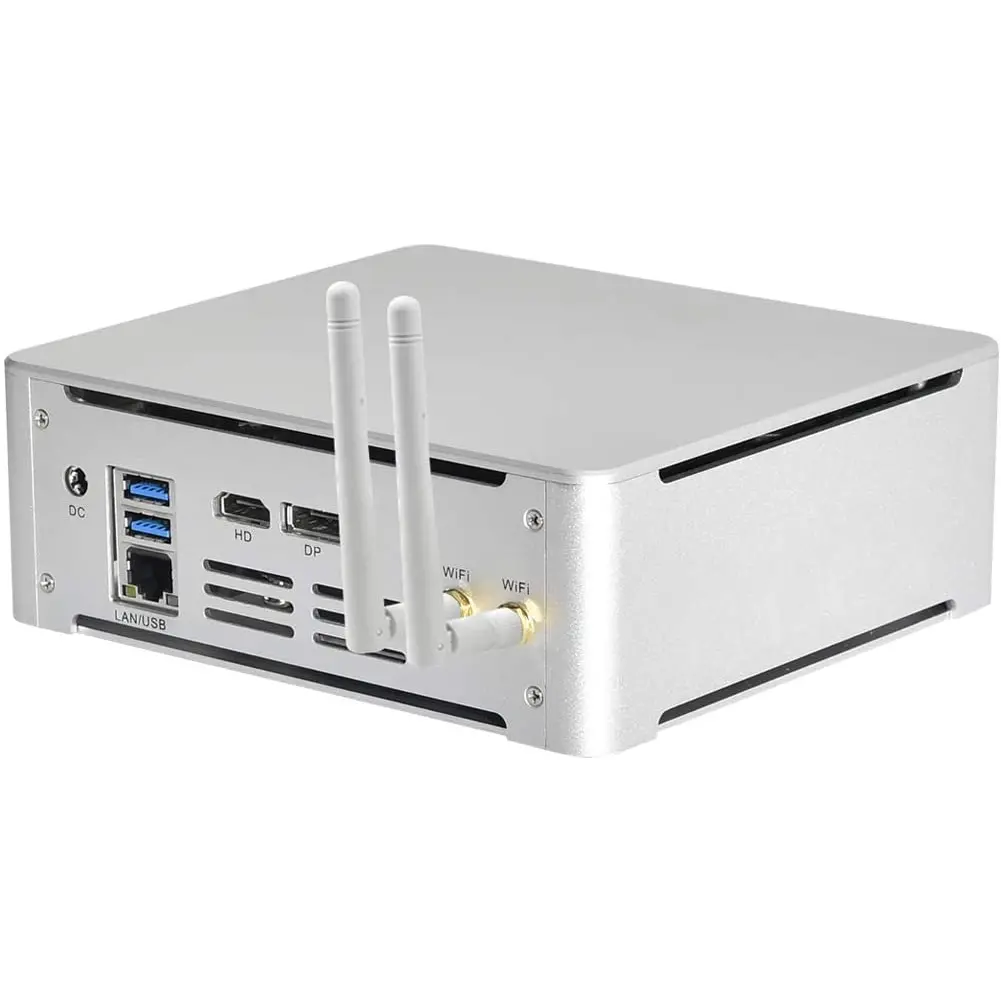

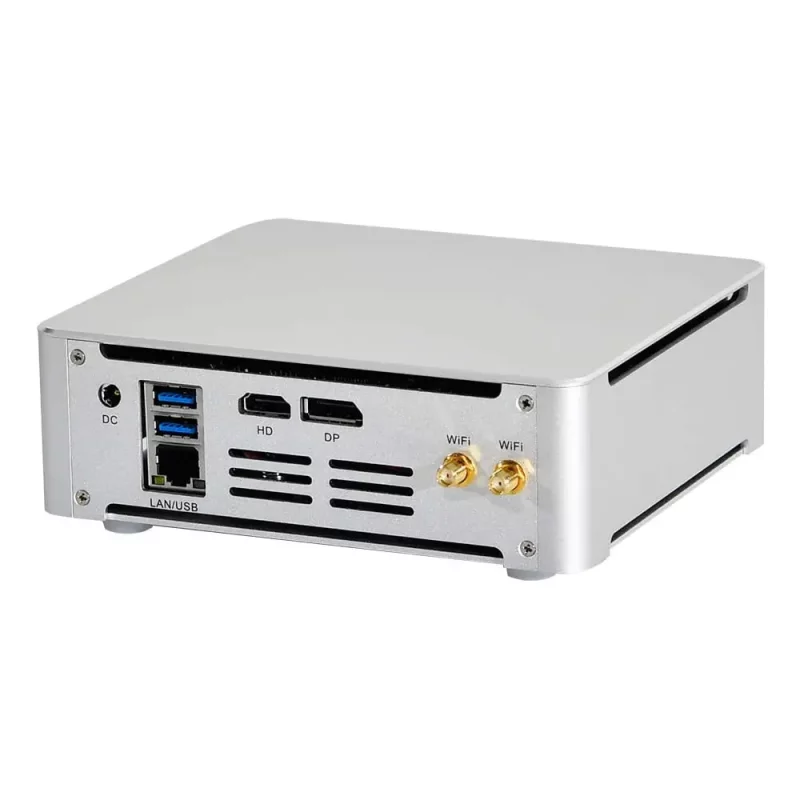

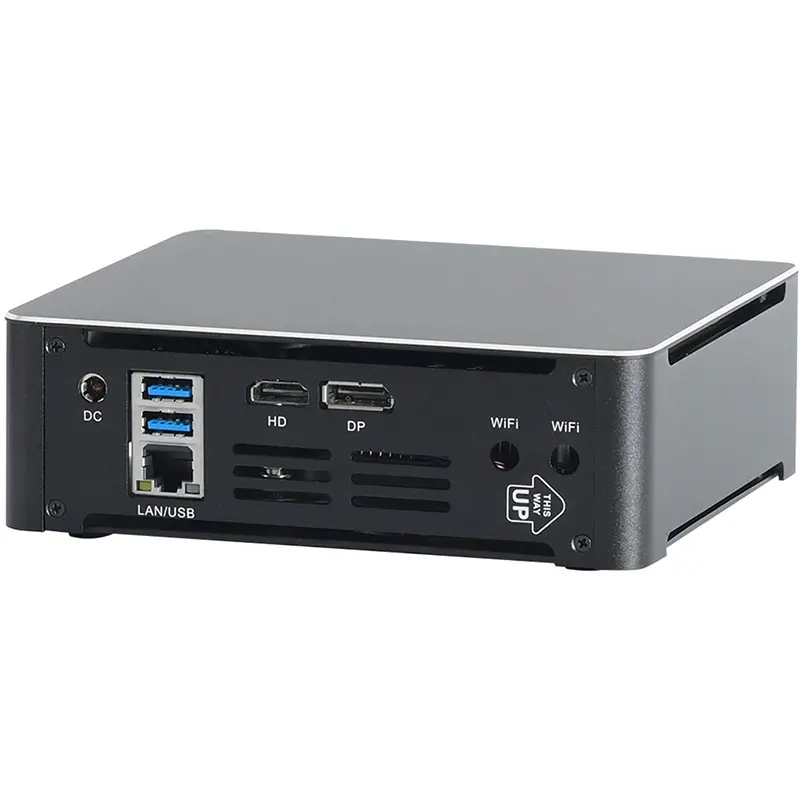

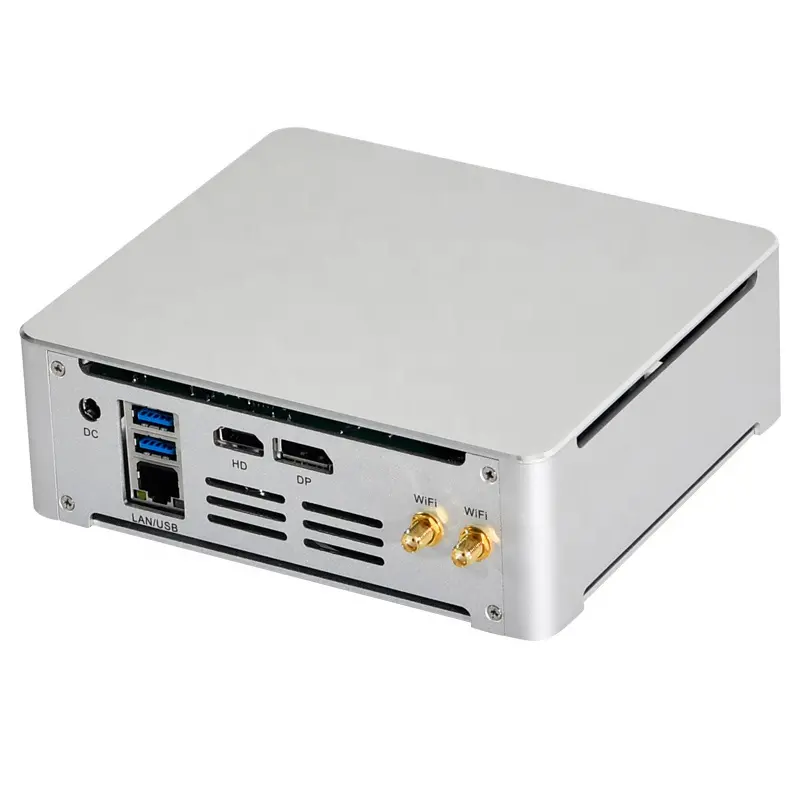

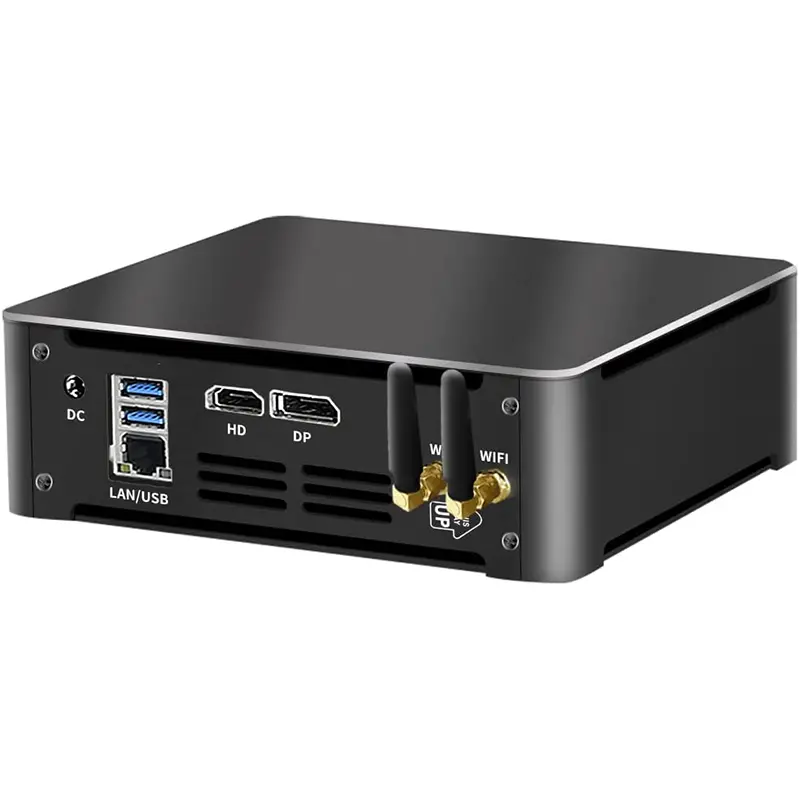

Rear Panel 1 x DC_in
2 x USB3.0
1 x Lan
1 x HDMI
1 x DP
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc
General
Cooling Mode Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply DC100-240V AC/50-60Hz, DC 12V/7A
Packing List B9 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B9 I5 7300HQ Intel® HD Graphics 630 2.5~3.5 GHz DP/HDMI 2 x SO-DIMM DDR4, up to 32GB 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) 1 6 12V/7A
B9 I7 7820HK 7820HQ Intel® HD Graphics 630 2.9~3.9 GHz DP/HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) 1 6 12V/7A
