Multi LAN Firewall Mini PC I7 I5

Model: Partaker C1

All aluminum structure, Fanless design
Onboard Intel 8th Generation Core i5/i7
Support 2 x DDR4 RAM Slot, Max Support 32G
Support 1 x MSATA，1 x 2.5”SATA
Support 6 x Intel 1000M Lan
Support 1 x RJ45 COM(Support Console)

Share to:

Overview

The 6 Port Firewall Mini PC is a small and powerful device that can provide you with a robust and secure industrial computing solution. It features:

• A fanless design, which means it has no moving parts and can operate silently and reliably in harsh environments.

• An onboard Intel quad core 8th Core i5/i7 processor, which provides high performance and low power consumption for various industrial applications.

• A support for 2*DDR4 RAM slot, which can support up to 32GB of memory for fast and smooth operation.

• A mini PC offers flexibility with support for 1 x MSATA slot and 1 x 2.5″ HDD, allowing for ample data storage and retrieval capabilities.

• A mini PC with 6 x Intel 1000M LAN ports, providing extensive connectivity options for network configurations and security applications.

The 6 Port Firewall Mini PC is a great solution for applications such as firewall, VPN, network security, router, gateway, industrial control, IoT, etc.

Mechanical

Material	Aluminum alloy
Colour	Black(color can be customized)
Size	186 x126.5 x 66 mm
Weight	2.5Kgs
Insallation Method	Desktop type/vesa mounting

Motherboard

CPU	Ondoard Intel Core i5 8250U（quad core,8 threads,1.6G，Max.Turbo 3.4G,6MB Cache） Onboard Intel Core i7 8550U（quad core,8 threads, 1.8G，Max.Turbo 4.0G,8MB Cache） Onboard Intel Celeron 3867U（dual core,2 threads, 1.8G，2MB Cache）
Graphic	Integrated Intel UHD Graphics 620/610
Network Card	6 x Intel i211-AT 10/100/1000M LAN, I210 for 3867U
Display Port	1 x HDMI
Memory	Support 2 x DDR4 2133/2400 MHz SODIMM RAM slot，Max. 32 GB
Storage	1 x mSATA SSD, 1 x 2.5 inch SSD/HDD
Expand	1 x Half height MINI PCIE slot (WIFI/BT Optional), Support 1 x Full height MINI PCIE slot (Support MSATA/4G, 1 x Nano-SIM slot on the plate)

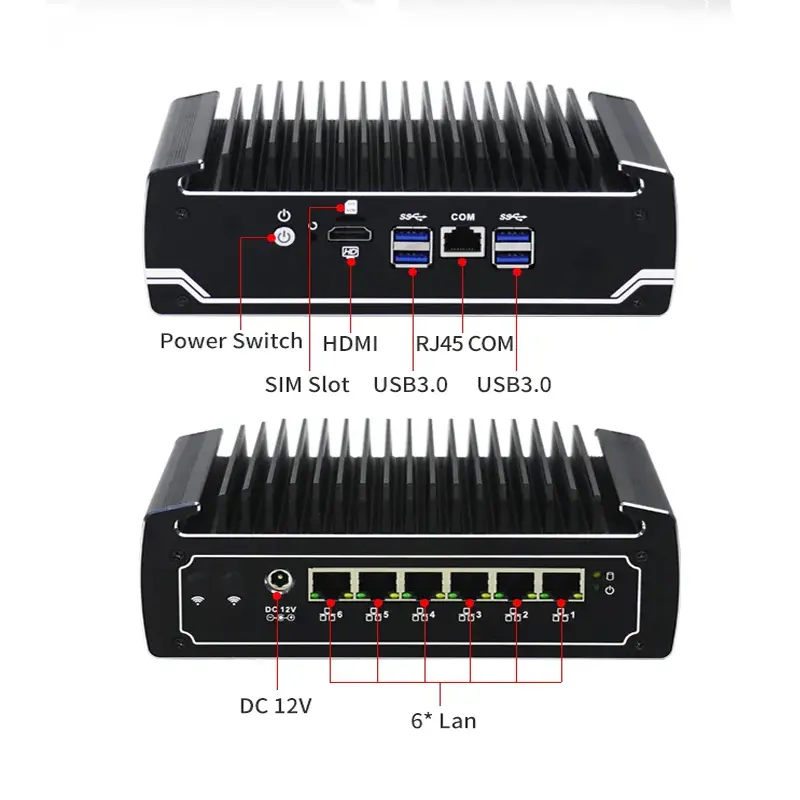

I/O Interfaces

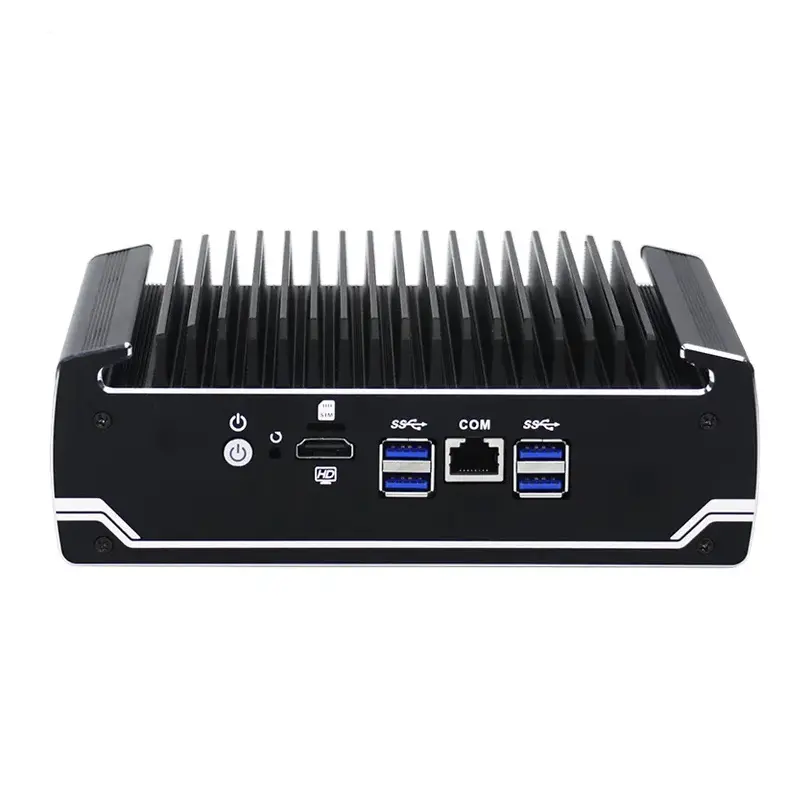

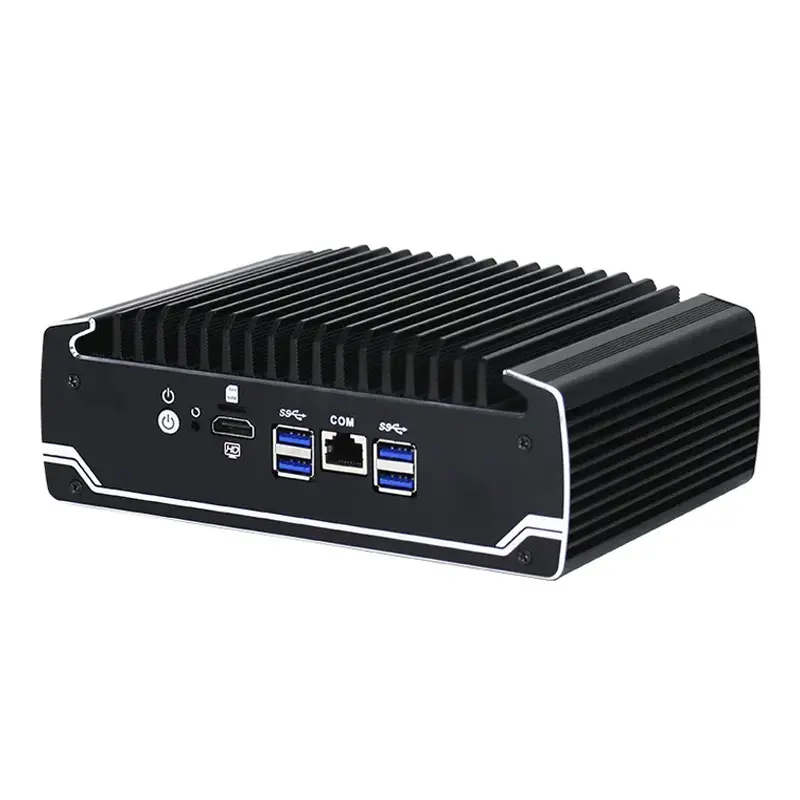

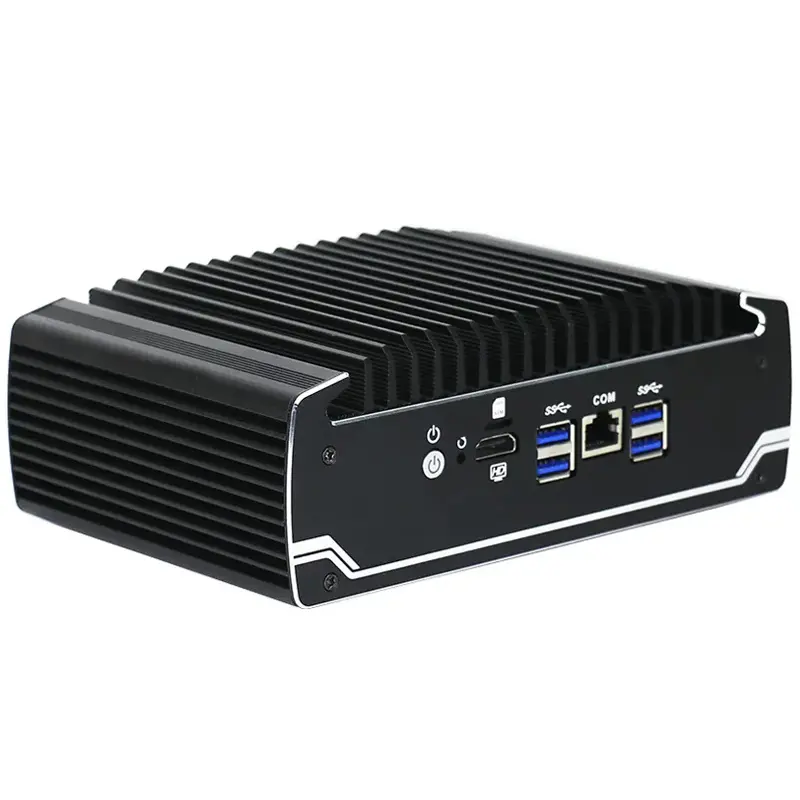

Front Panel	4 x USB3.0
	1 x Power Switch
	1 x RJ45 COM(Support Console)
	1 x HDMI

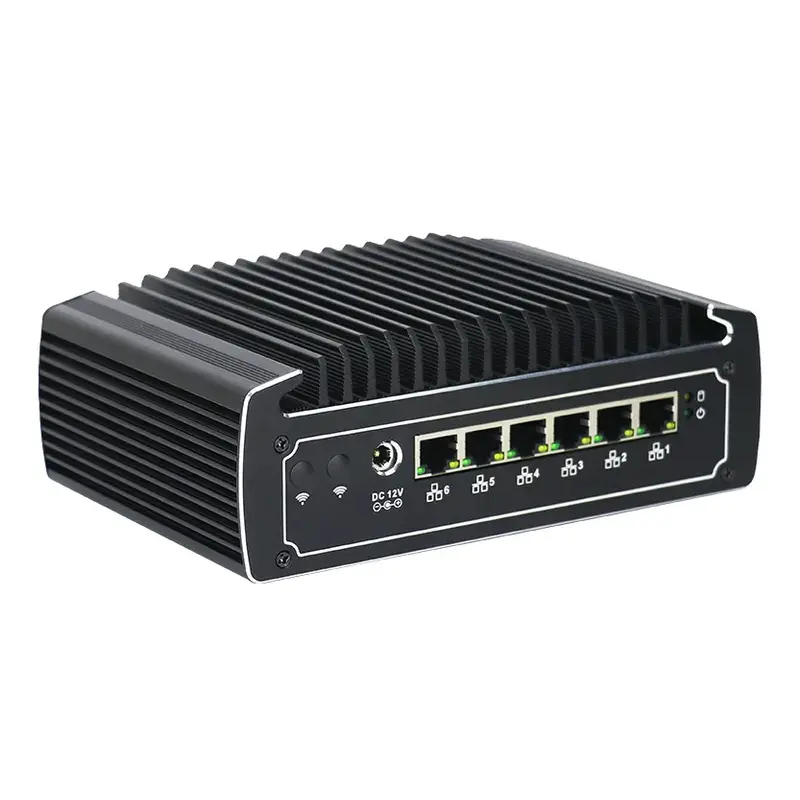

Rear Panel	6 x LAN
Rear Panel	1 x DC-IN 12V

Software Support

Bios	AMI EFI BIOS
System Support	Windows 7/8/10/11, Linux, pfSense etc

General

Cooling Mode	Fanless
Power Supply	DC 12V-IN power supply and AC power adapter
Packing List	C1 mini pc, power supply, power cord, vesa, warranty card

Environment

Working Temperature	0℃ ～ +50℃(Commercial HDD), -20℃ ～ +50℃(Industrial SSD), Surface air flow
Working Humidity	0% – 95% relative humidity, Non-condensing
Application	Firewall, VPN, Network server, Network security, Router etc.
Certification	CE FCC ROHS

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	USB	Power
C1	I5 8250U	Intel® UHD Graphics 620	1.6~3.4 GHz	1 x HDMI	2 x SO-DIMM DDR4	1 x M-SATA SSD/1 x 2.5 inch SSD	6	4	12V/5A
C1	I7 8550U	Intel® UHD Graphics 620	1.8~4.0 GHz	1 x HDMI	2 x SO-DIMM DDR4	1 x M-SATA SSD/1 x 2.5 inch SSD	6	4	12V/7.5A
C1	3867U	Intel® UHD Graphics 610	1.8 GHz	1 x HDMI	2 x SO-DIMM DDR4	1 x M-SATA SSD/1 x 2.5 inch SSD	6	4	12V/5A
