4K Mini PC, HTPC, NUC, Small Server, Windows 11 or Linux Ubuntu

4K Mini PC, HTPC, NUC, Small Server, Windows 11 or Linux Ubuntu, Support Proxmox, Vmware, ESXI, KODI, Intel XEON W-10885M

Mini Desktop PC 9880H i9 Mini PC Windows 11 Dual LAN

Mini Desktop PC 10750H i7 Mini PC Windows 11 Dual LAN

Mini Desktop PC 10880H i9 Mini PC Windows 11 Dual LAN

Mini Desktop PC 10980HK i9 Mini PC Windows 11 Dual LAN

Mini PC Desktop PC Intel Core I9 I7

Model: Partaker B18

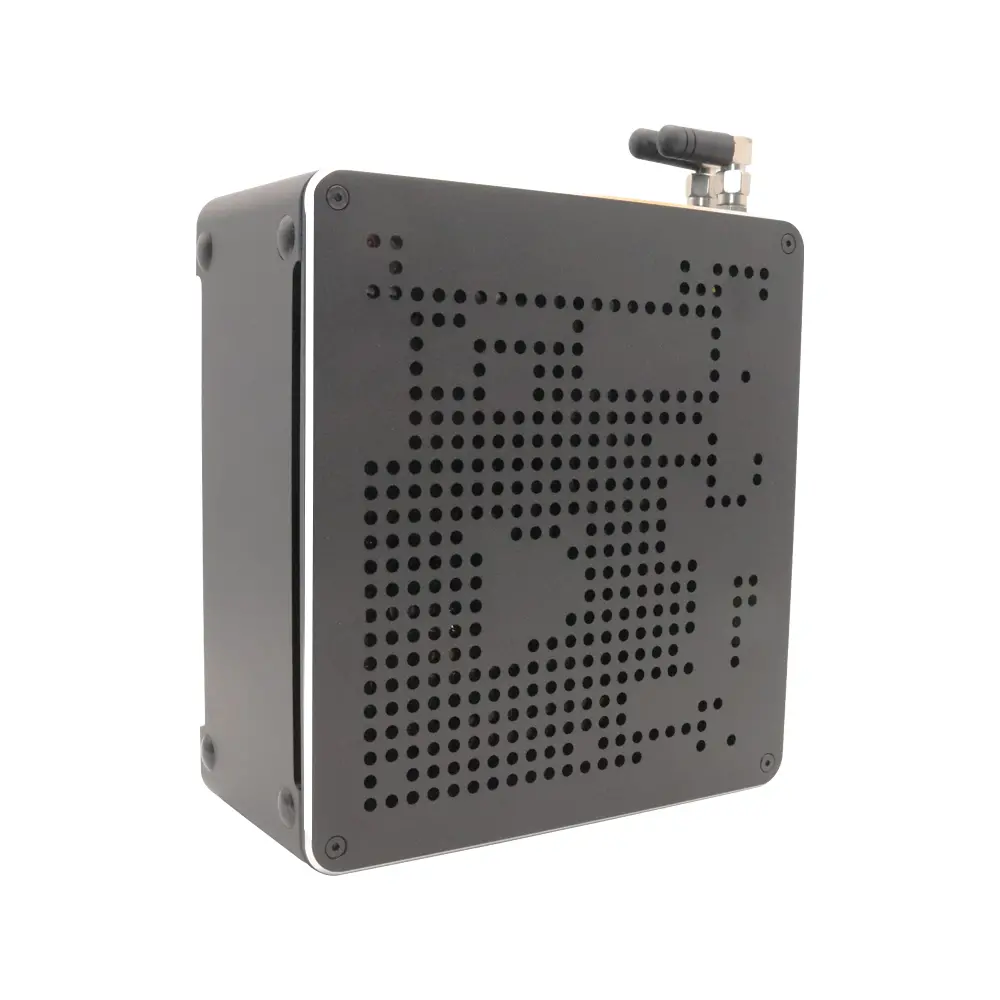

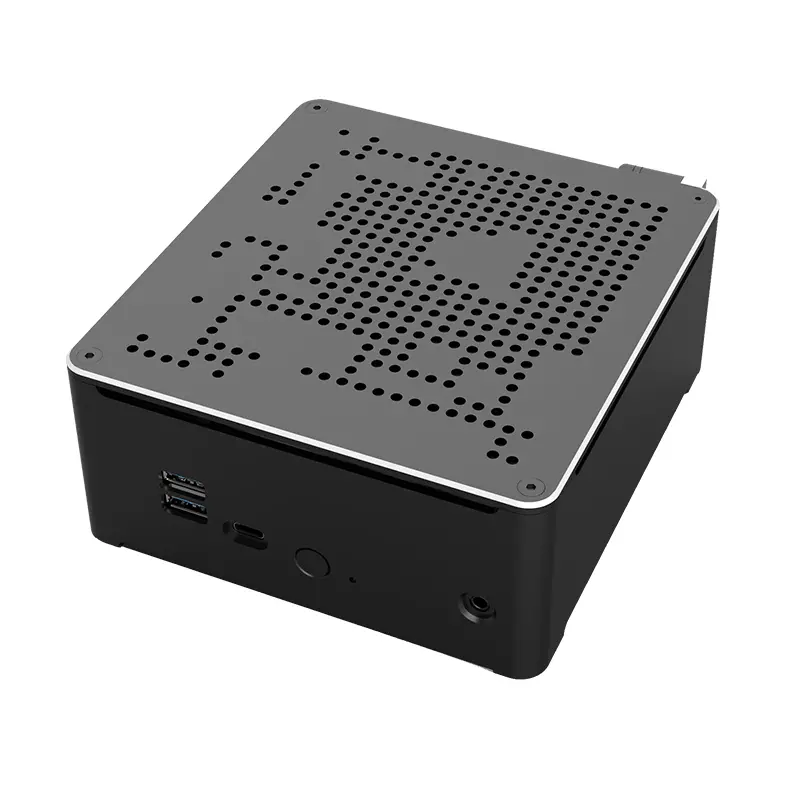

Compact aluminum alloy Mini PC with black finish.
Supports high-end Intel Core i7 and i9 processors.
Up to 64GB DDR4 RAM for multitasking.
Dual M.2 NVMe SSDs for ultra-fast storage.
Includes 2.5″ HDD support for additional capacity.
HDMI and DisplayPort outputs for 4K visuals.
Intel Ethernet, WiFi, and Bluetooth connectivity.
USB 3.0 and Type-C ports for high-speed data transfer.
Smart silent fan for efficient cooling.
Ideal for home, office, or multimedia use.

Share to:

Overview

The Partaker B18 Mini PC is a compact yet powerful desktop solution. It features an aluminum alloy black chassis and supports a range of high-end Intel processors, including the Core i7 and i9 series. Equipped with Intel Ethernet, WiFi, Bluetooth, and USB 3.0 ports, it offers exceptional connectivity. The mini PC boasts up to 64GB of DDR4 RAM and dual M.2 NVMe SSDs for blazing-fast storage. It also supports 2.5″ HDDs and has HDMI and DisplayPort outputs for 4K visuals. With smart silent cooling and a 100W power supply, the B18 is ideal for home, office, or multimedia use.

Mechanical

Material	Aluminum alloy
Colour	Black
Size	134 x 144 x 64mm
Weight	2.5Kgs
Insallation Method	Desktop type/vesa mounting

Motherboard

CPU	Intel Core i7-10750H/i7-10870H/i9-10885H/i9-10980HK/i9-9980HK/Xeon E-2186M/E-2276M/W-10885M/E3-1545MV5
Chipset	Intel 300 series PCH
Network Card	1 x Intel Ethernet Connection I219-V,1 x Realtek RTL8111
WiFi and Bluetooth	2.4G or 5G WiFi B/G/N/AC, Bluetooth 4.0 2-in-1 WiFi & BT combo card
Memory	2 x SODIMM DDR4-2933, Max. 64GB
Storage	NGFF(M.2) 22 x 80 Key M, UP to 2TB(Only Nvme, PCIe3.0x4) NGFF(M.2) 22 x 80 Key M, UP to 2TB(Nvme or SATA) STD-2.5 inch 9.5mm HDD, UP to 2TB
Safe Lock	Kensington Lock
Status Indication	LED ON/OFF/FLASH
Audio Card/Codec	Azalia Codec support 2.1 channel output

I/O Interfaces

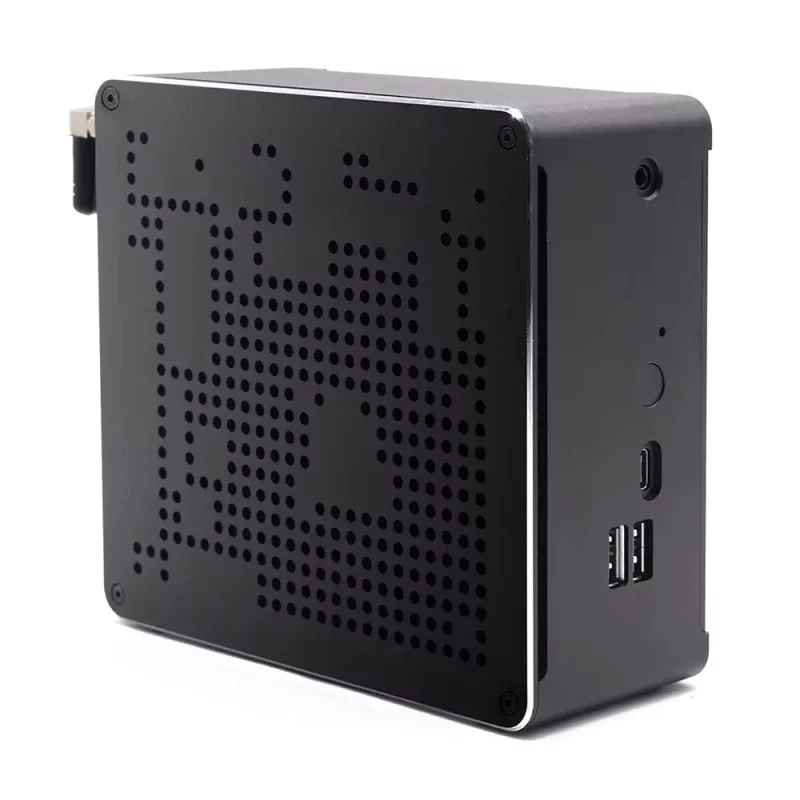

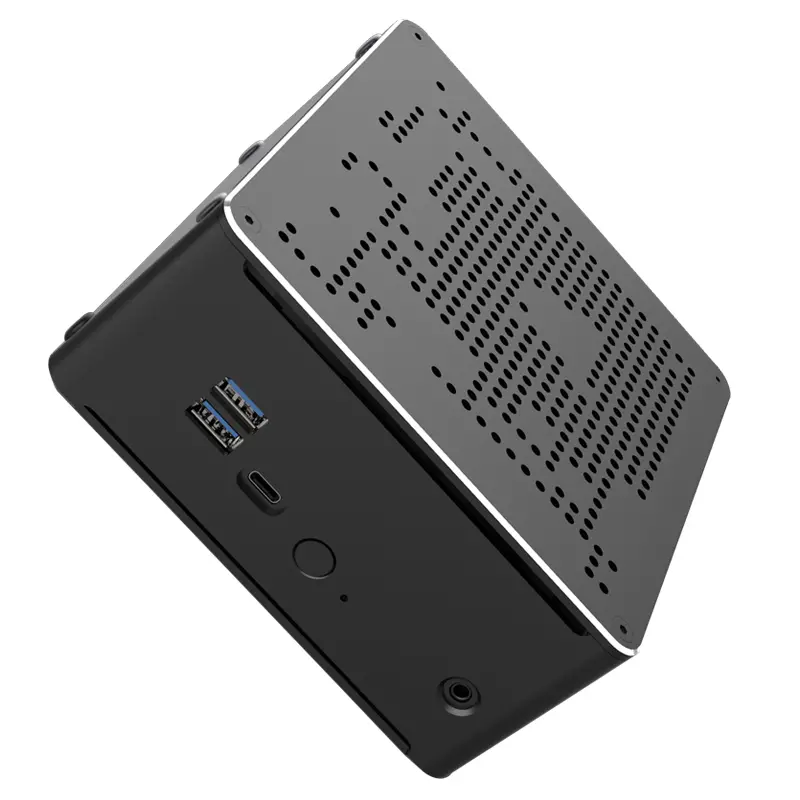

Front Panel	2 x USB3.0
	1 x Type C
	1 x ON/OFF Switch
	1 x LED
	1 x Audio in/out

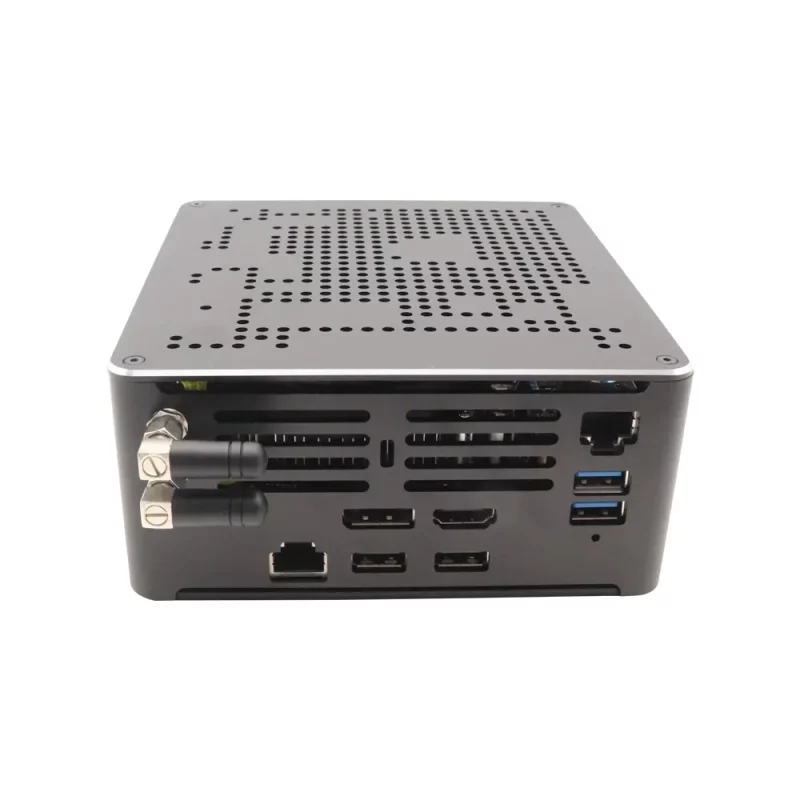

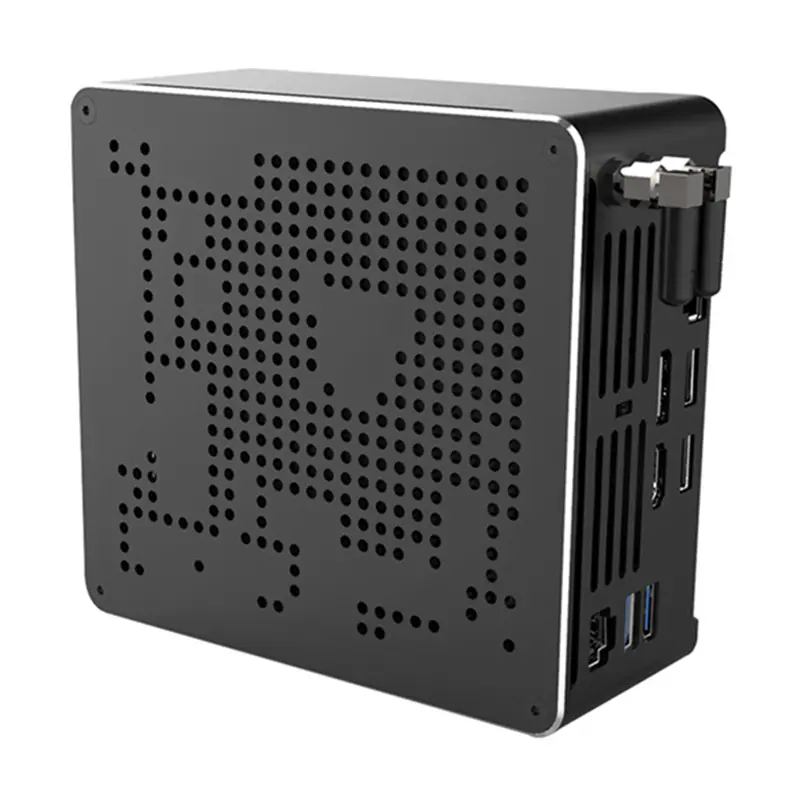

Rear Panel	2 x WiFi
	1 x DC-IN
	2 x RJ45
	1 x DP1.2 support 4k@60Hz
	2 x USB2.0
	1 x HDMI2.0 support 4k@60Hz
	1 x Kensington
	2 x USB3.0

Software Support

Support	Wake on LAN, Auto Power On, PXE Boot, Virtualization Technology, Optane Memory
System Support	Windows 10/11, Linux Ubuntu etc, Hardware supports kodi, virtual system as proxmox/vmware/esxi server etc

General
Cooling Mode	Smart silent fan
Power Supply	100W 20V 5A, DC-5.5 x 2.5mm

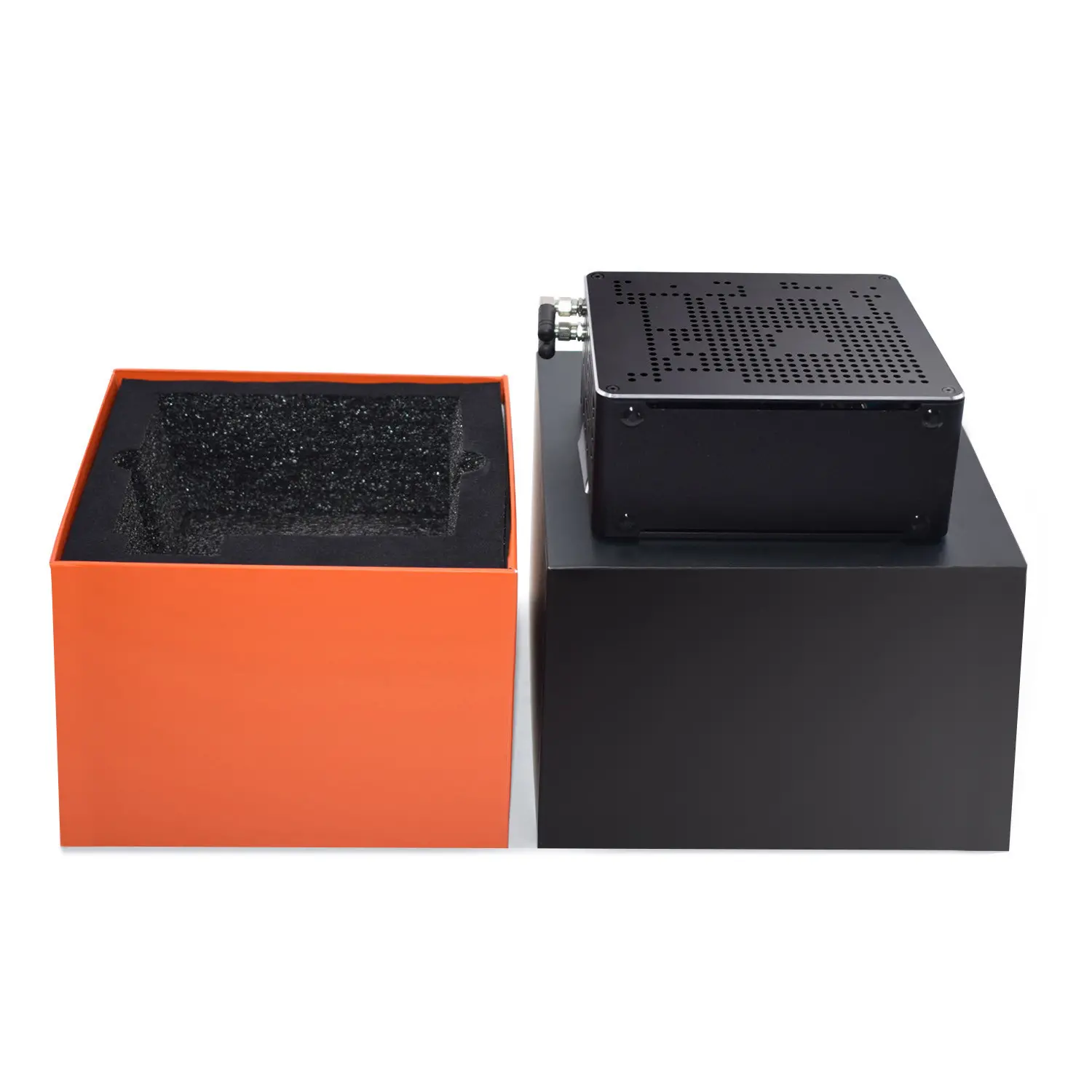

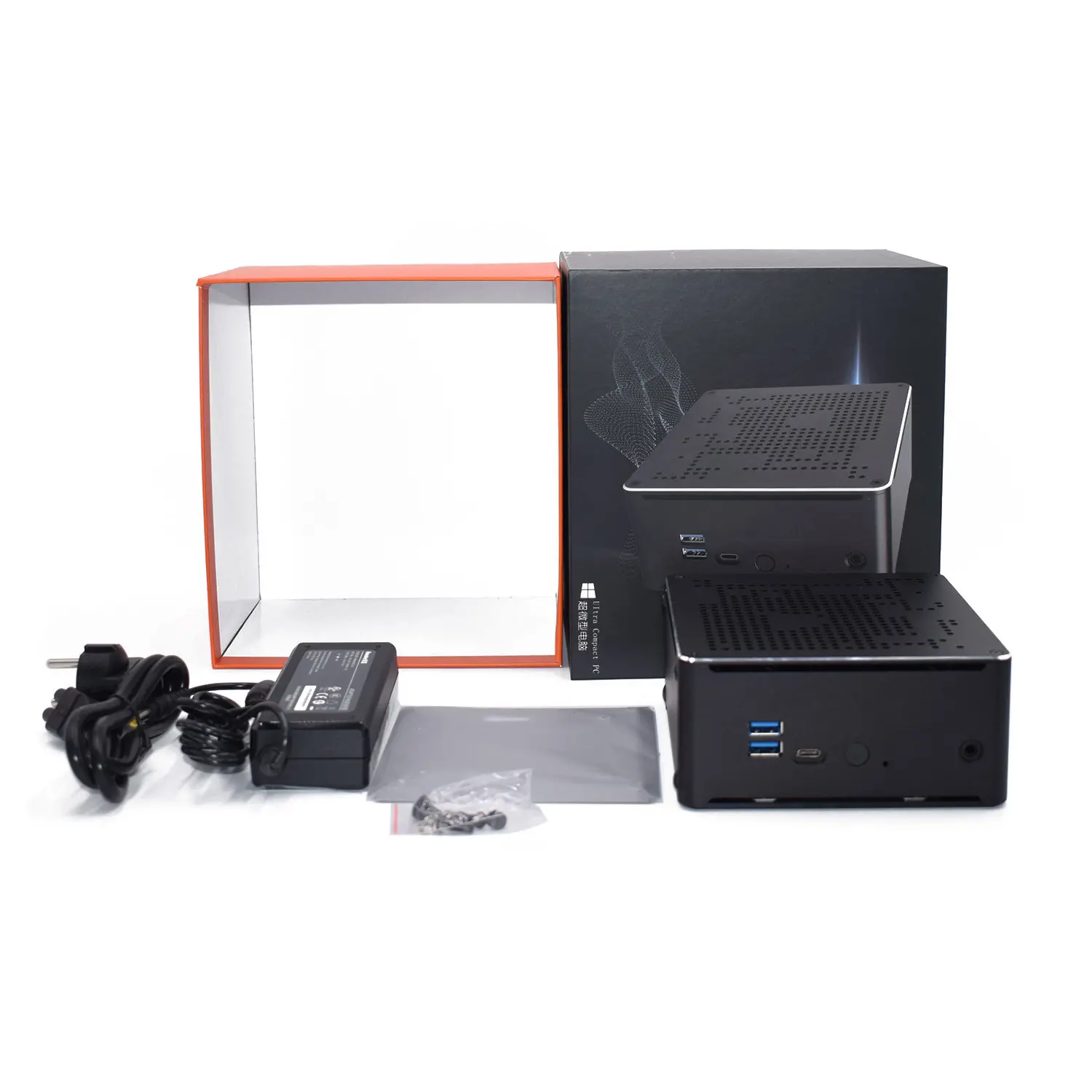

Packing List	Partaker B18 Mini PC, power supply, power cord, wifi antennas, vesa mount, warranty card

Environment

Operating Temperature	0°C~70°C Centigrade (32°F~140°F)
Storage Temperature	-20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity	10%~90% (non-condensing)
Certification	CE FCC ROHS

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	USB	Power
B18	Xeon E-2186M	Intel® UHD Graphics P630	2.9~4.8 GHz	DP/HDMI	2 x SO-DIMM DDR4	1 x M.2 NVME SSD/1 x SATA/NVME SSD/1 x SATA 3.0 2.5 Inch	2	6	100W 20V 5A
B18	Xeon E-2276M	Intel® UHD Graphics P630	2.8~4.7 GHz	DP/HDMI	2 x SO-DIMM DDR4	1 x M.2 NVME SSD/1 x SATA/NVME SSD/1 x SATA 3.0 2.5 Inch	2	6	100W 20V 5A
B18	Xeon W-10885M	Intel® UHD Graphics	2.4~5.3 GHz	DP/HDMI	2 x SO-DIMM DDR4	1 x M.2 NVME SSD/1 x SATA/NVME SSD/1 x SATA 3.0 2.5 Inch	2	6	100W 20V 5A
B18	I9-10980HK	Intel® UHD Graphics	2.4~5.3 GHz	DP/HDMI	2 x SO-DIMM DDR4	1 x M.2 NVME SSD/1 x SATA/NVME SSD/1 x SATA 3.0 2.5 Inch	2	6	100W 20V 5A
B18	I9-10885H	Intel® UHD Graphics	2.4~5.3 GHz	DP/HDMI	2 x SO-DIMM DDR4	1 x M.2 NVME SSD/1 x SATA/NVME SSD/1 x SATA 3.0 2.5 Inch	2	6	100W 20V 5A
B18	I7-10870H	Intel® UHD Graphics	2.2~5.0 GHz	DP/HDMI	2 x SO-DIMM DDR4	1 x M.2 NVME SSD/1 x SATA/NVME SSD/1 x SATA 3.0 2.5 Inch	2	6	100W 20V 5A
B18	I7-10750H	Intel® UHD Graphics	2.6~5.0 GHz	DP/HDMI	2 x SO-DIMM DDR4	1 x M.2 NVME SSD/1 x SATA/NVME SSD/1 x SATA 3.0 2.5 Inch	2	6	100W 20V 5A
B18	I9-9980HK	Intel® UHD Graphics 630	2.4~5.0 GHz	DP/HDMI	2 x SO-DIMM DDR4	1 x M.2 NVME SSD/1 x SATA/NVME SSD/1 x SATA 3.0 2.5 Inch	2	6	100W 20V 5A

HOW DO I CHOOSE THE BEST PROCESSOR FOR ME?

All is good for office work, graphic editing, video editing, modeling, data analysis and gaming.

If you only use the mini computer for office, graphics editing and playing lol (League of Legends), the i7-10750H is good enough for your daily needs.

If your work is more oriented towards video editing and sand table games, and you want better pictures, it is better to choose a mini PC with i9 processor.

If you often play 3A games, the i9-10980HK processor is without a doubt the best choice for you.

The Mini PC i7 / i9 can run the following software/games perfectly.

MS Office, Adobe Reader, Zoom, AI, PR, Photoshop, Counter-Strike, Grand Theft Auto V, The Elder Scrolls V, FIFA, Tomb Raider (2013), Overwatch, Battlefield. Batman: Arkham Origins and Arkham City, Max Payne 3, Sniper Elite 2, Far Cry 3, etc.

Partaker Mini PC B18
