Industrial-Grade Firewall for AGV Systems
Model: Partaker C2
- Full Aluminum Alloy Structure
- 8th/10th Gen Intel® Core™ Processors
- 4× Intel i210-AT/i211-AT Gigabit Ports
- 32GB DDR4 RAM Support
- 6× USB 3.1 + 2× RS232/485 Serial Ports
- 9–36V Wide Voltage Input
Share to:
Overview
Designed for industrial resilience, this compact system combines a full aluminum alloy chassis with fan-assisted cooling for superior thermal management. Powered by onboard 8th/10th Gen Intel® Core™ processors, it supports up to 32GB DDR4 RAM and delivers versatile connectivity via 4 Intel Gigabit Ethernet ports, 6 USB 3.1 ports, and 2 configurable RS232/485 serial ports. Engineered for harsh environments, it operates reliably with 9–36V wide-range DC input, making it ideal for automation, IoT gateways, and edge computing.
Mechanical
| Material | High quality aluminum alloy |
| Colour | Dark gray (color can be customized) |
| Size | 135 * 134 * 48 mm |
| Weight | 0.83kg |
| Insallation Method | Wall-mounted, Desktop |
Motherboard
| CPU | Intel Core i3-10110U (Dual core 4 threads, 2.1GHz,Max.Turbo 4.1GHz) Intel Core i5-8260U (4 Cores 8 threads, 1.60GHz, Max Turbo 3.9GHz) Intel Core i7-10810U (6 Cores 12 threads, 1.10GHz, Max Turbo 4.9GHz) |
| Display Ports | 1 x HDMI（4096×2304@24Hz） |
| Network Card | 4 x Intel i210-AT/i211-AT Lan |
| Memory | 1 x DDR4 2400/2666 SODIMM memory slot, Max 32 GB |
| Storage | 1 x M.2 2280 slot, 1 x 2.5 inch SATA HDD, support RAID 0/1 |
| Other Function | Auto power on when there is electricity,Timing boot,Wake on LAN, PXE boot,Watchdog(0～255 level), TPM2.0 |
| Expansion | 1 x M.2 2280 M-Key slot（ SATA or NVME） 1*MINI PCIE slot(WIFI/3G/4G), preposition SIM card slot |
I/O Interfaces

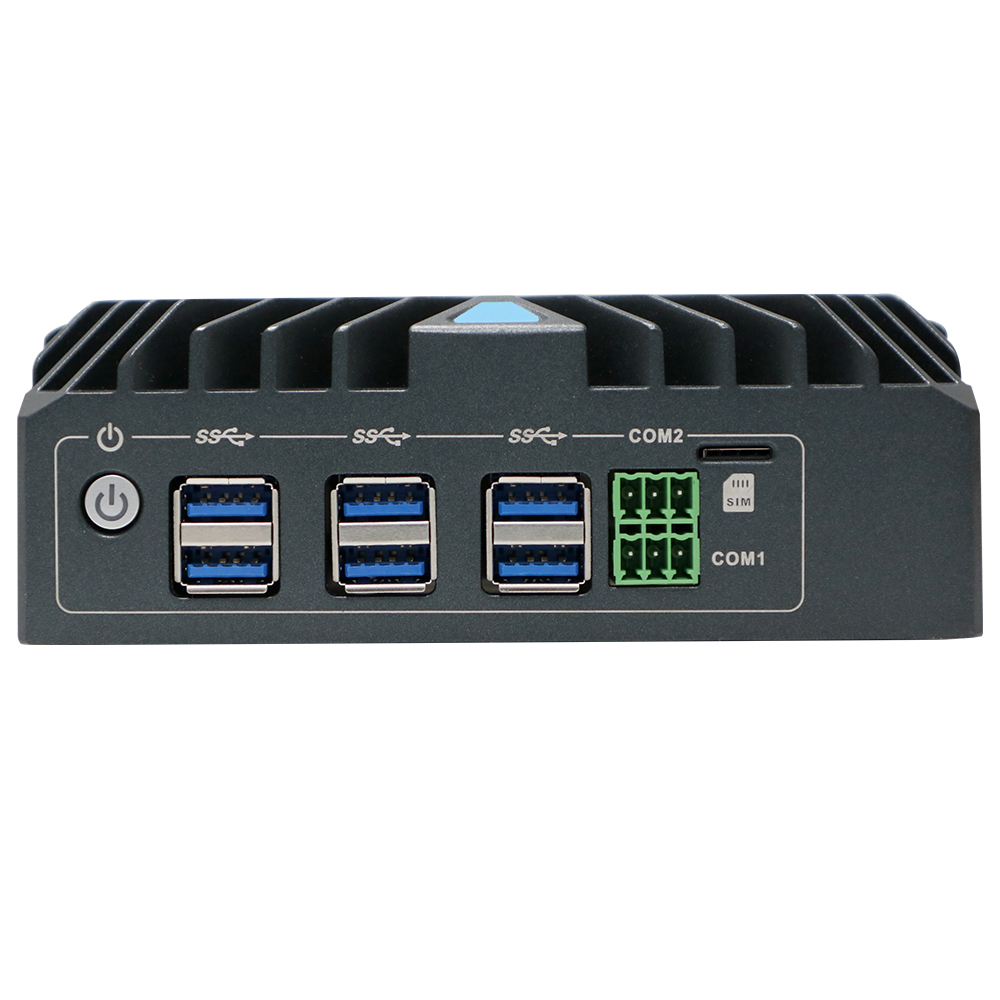

| Front Panel | 1 x Power Button |
| 6 x USB3.1 | |
| 1 x SIM card slot | |
| 2 x 3 pin Phoenix port(Can be option 2*RS232/485) | |
| Rear Panel | 1 x Audio/Mic interface |
| 4 x RJ45 | |
| 1 x HDMI | |
| 1 x DC 9~36V |
Software Support
| Bios | AMI EFI BIOS |
| System Support | Windows 10/11 & Linux |
General
| Cooling Mode | With fan, PWM Intelligent temperature control |
| Power Supply | Support DC 9~36V |

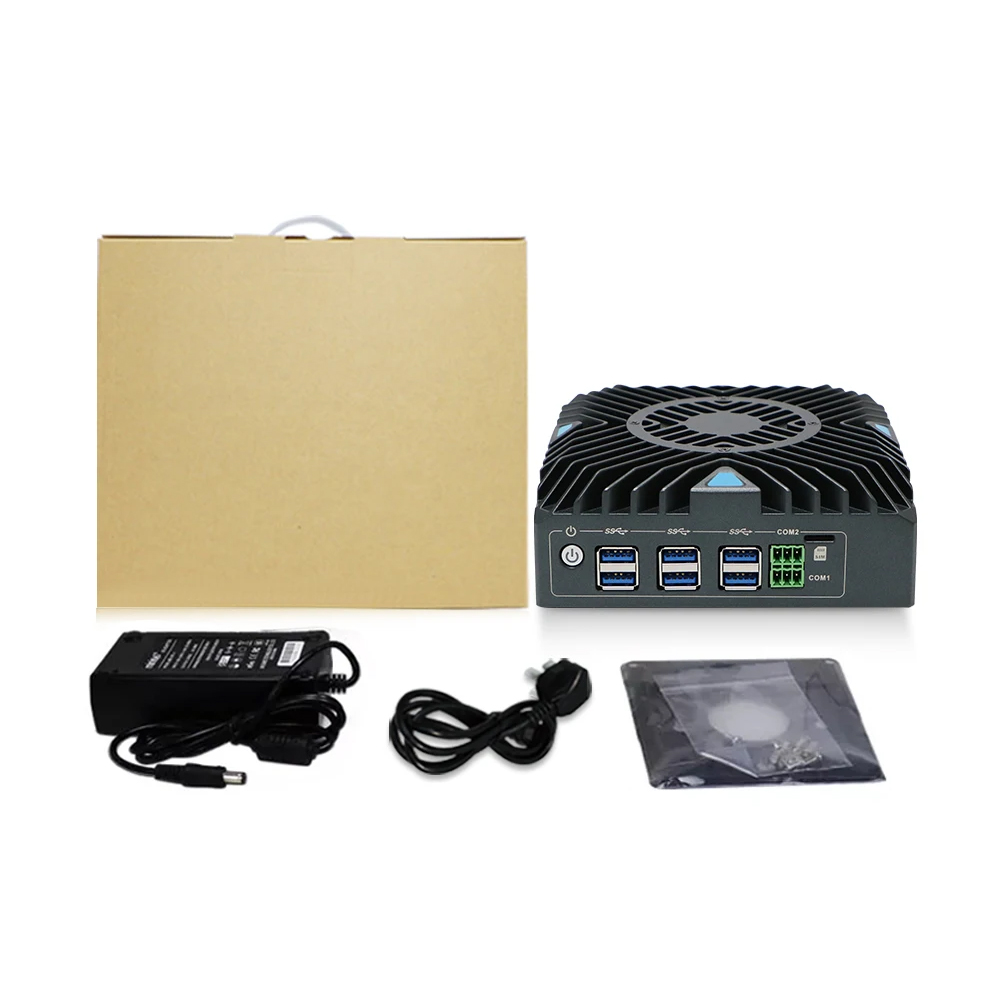

| Packing List | Mini PC, Power supply, Power cord, WiFi antennas, VESA, warranty card |
| Application | HD film and television broadcasting, e-education, machine vision, industrial automation, Business office,etc |
Environment
| Work Temperature | 0°C ~ +40°C (commercial HDD), -20°C ~ +50°C (industrial SSD), surface air flow |
| Work Humidity | 5% ~ 95% non-condensing state |
| Certification | CE FCC ROHS |
| Model | Processor | Graphic | Frequency | Display | Memory | Storage | COM | LAN | USB | Power |
| C2 | I3 10110U | Intel UHD Graphics 620 | 2.10~4.10GHz | 1 x HDMI | 1 x DDR4, Max 32G | 1 x M.2 2280, 1 x 2.5 inch SSD/HDD | 2*3 pin Phoenix port(Can be option 2*RS232/485) | 4 | 6 | 9~36V |
| C2 | I5 8260U | Intel UHD Graphics | 1.60~3.90GHz | 1 x HDMI | 1 x DDR4, Max 32G | 1 x M.2 2280, 2 x 2.5 inch SSD/HDD | 2*3 pin Phoenix port(Can be option 2*RS232/485) | 4 | 6 | 9~36V |
| C2 | I7 10810U | Intel UHD Graphics | 1.10~4.90GHz | 1 x HDMI | 1 x DDR4, Max 32G | 1 x M.2 2280, 2 x 2.5 inch SSD/HDD | 2*3 pin Phoenix port(Can be option 2*RS232/485) | 4 | 6 | 9~36V |
