Fanless Mini PC 4-12th Gen Intel Core I5 I3

Fanless Mini PC 4-12th Gen Intel Core I5 I3

Model: Partaker B1

  • Aluminum alloy Fanless mini pc for durability.
  • Powerful Intel Core processors for seamless performance.
  • Silent operation for undistracted computing.
  • Up to 64GB RAM for smooth multitasking.
  • Expandable storage with multiple drive options.
  • HDMI & VGA ports for high-res displays.
  • Fast networking with Intel gigabit LAN & WiFi.
  • AMI BIOS & OS flexibility for user-friendliness.
  • Compact design for desktop or VESA mounting.
  • Ideal for noise-sensitive environments.

Share to:

Overview



The Mini PC Partaker B1 is a compact, fanless design without noise, low power consumption, energy saving and power saving powered by the Intel® Core® 4th/5th/6th/7th/8th/11th/12th Gen CPU i3 i5 Processor. This product is widely used in business offices, mini home PCs, school teaching, libraries, program display, hospital medical equipment, entertainment games, living room computers, educational institutions, digital signage, graphic design, etc.



Mechanical

Material Aluminum alloy
Colour Silver
Size 197 x 197 x 37mm
Weight 2.5Kgs
Insallation Method Desktop type/vesa mounting

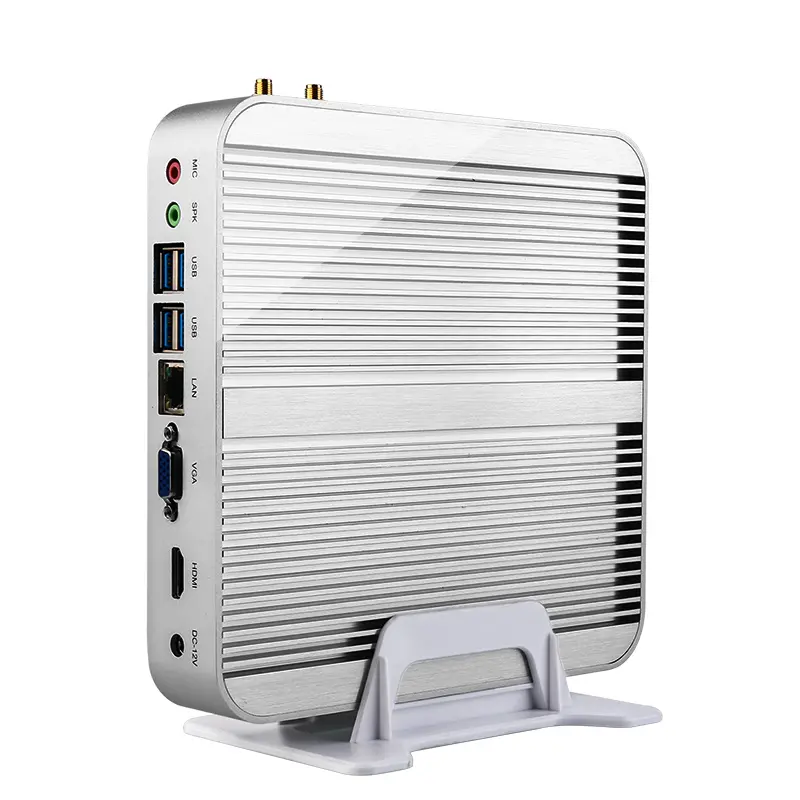

With holding vertical stand, vesa mount as the optional



Motherboard

CPU Intel® Core™ i3-4005U Processor (3M Cache, 1.70 GHz)
Intel® Core™ i3-5005U Processor (3M Cache, 2.00 GHz)
Intel® Core™ i3-6157U Processor (3M Cache, 2.40 GHz)
Intel® Core™ i3-7167U Processor (3M Cache, 2.80 GHz)
Intel® Core™ i5-4200U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i3-8145U Processor (4M Cache, up to 3.90 GHz)
Intel® Core™ i5-8250U Processor (6M Cache, up to 3.40 GHz)
Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
Intel® Core™ i5-1235U Processor (12M Cache, up to 4.40 GHz)
Chipset HM97
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SO-DIMM DDR3L 1333/1600, up to 16GB RAM
2 x SO-DIMM DDR4, up to 64GB RAM(i3 8145U)
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME) (i3 8145U)
Expand 1 x Mini PCIE (half size) WiFi slot



I/O Interfaces

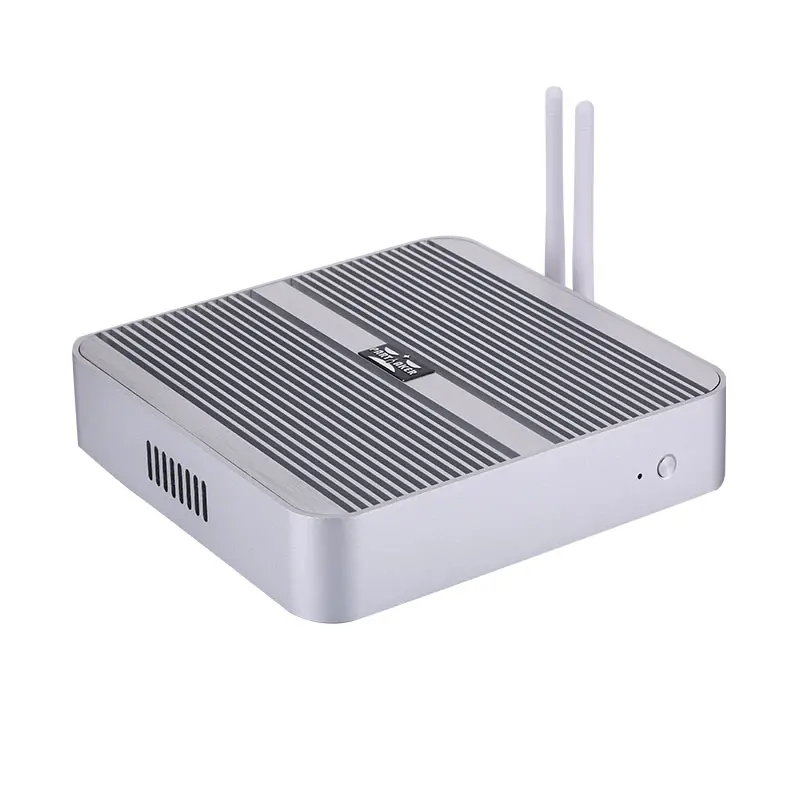

Front Panel 1 x Power button

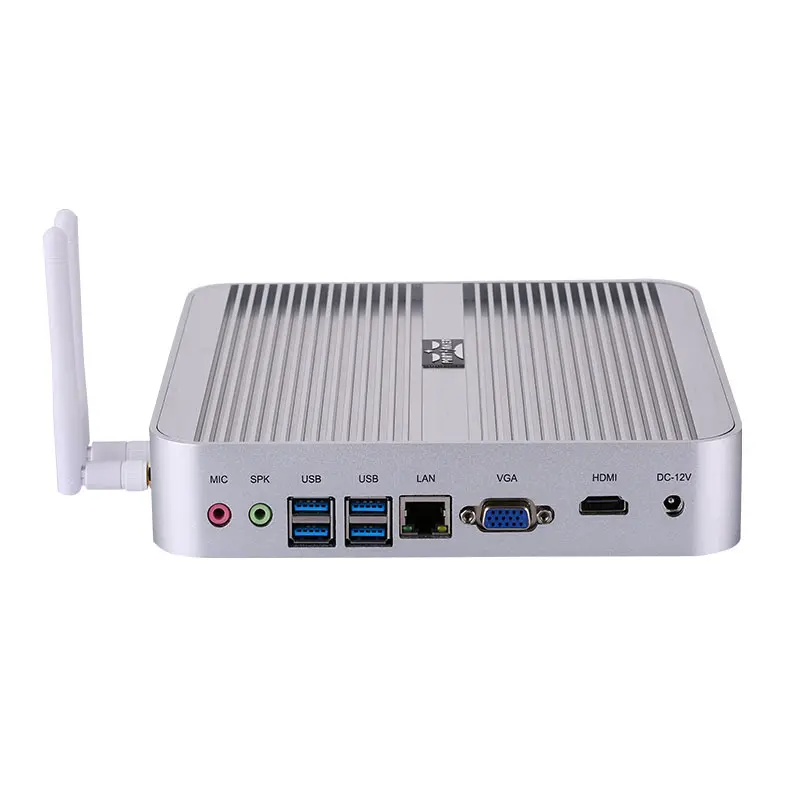

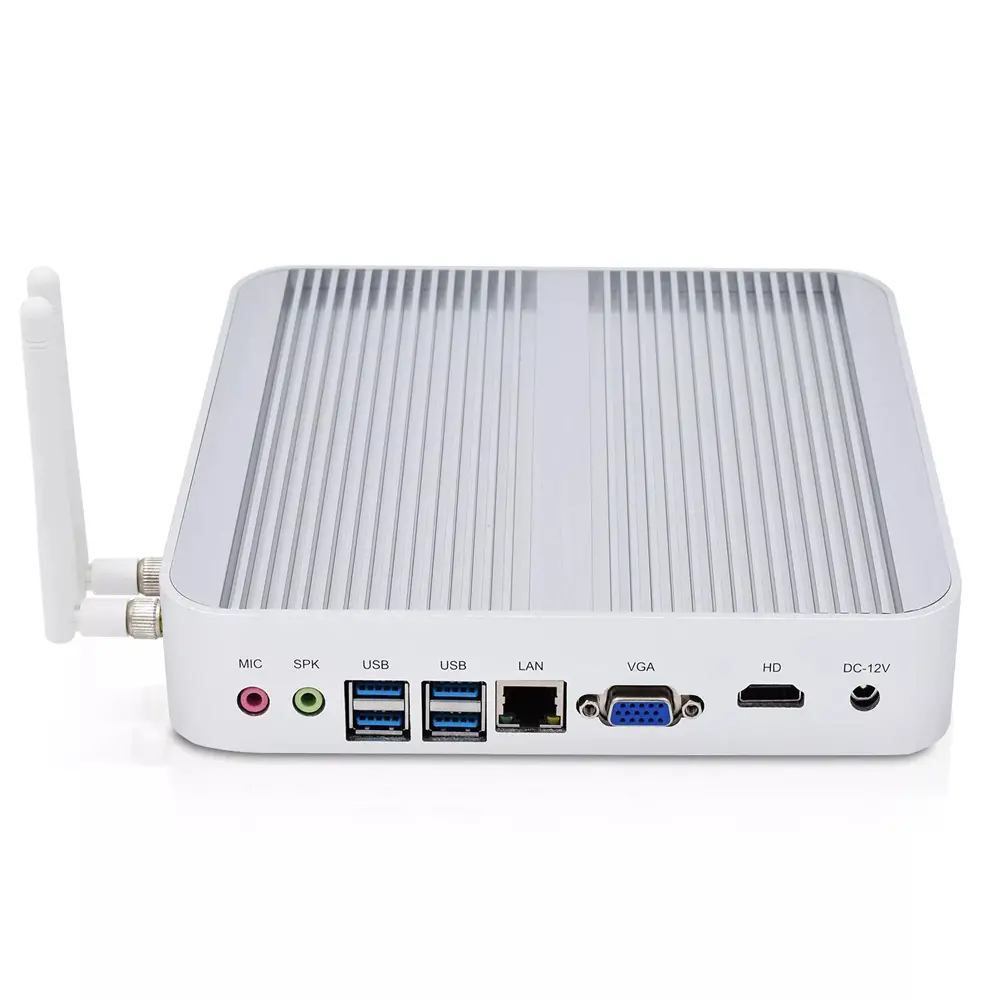

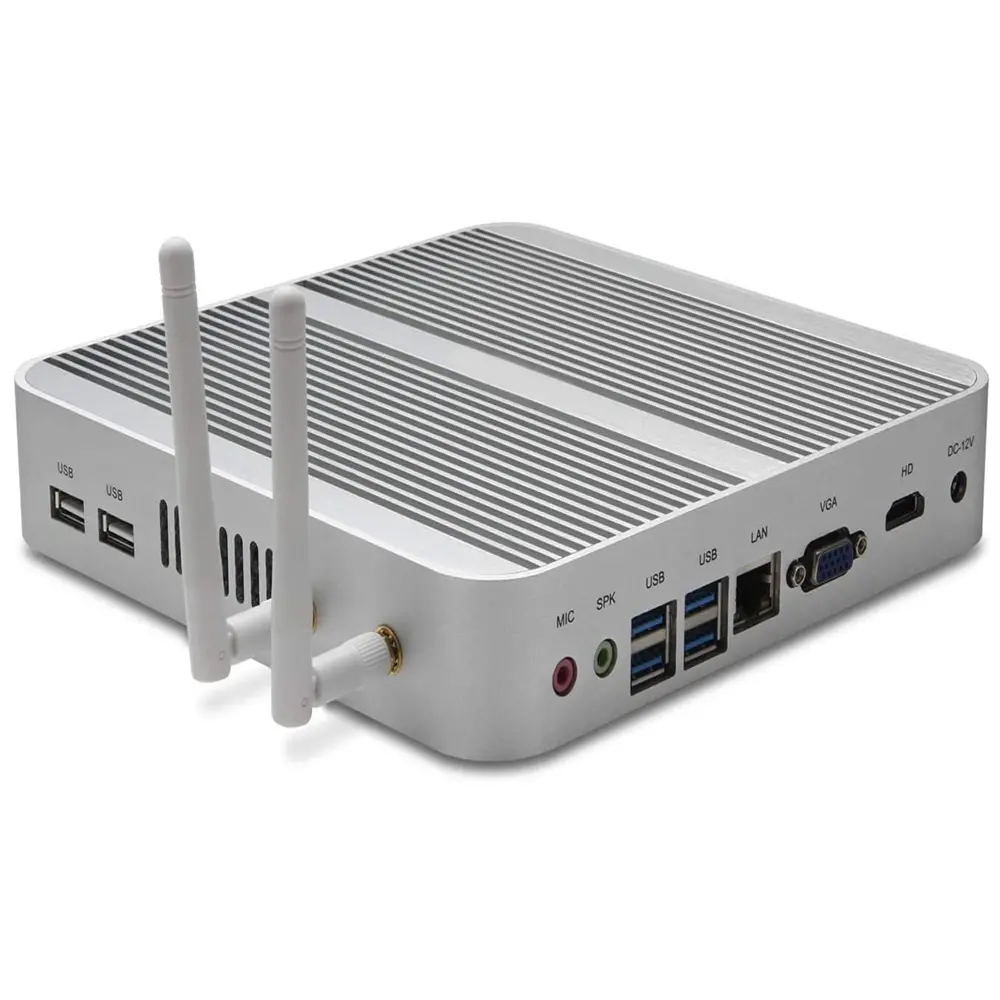

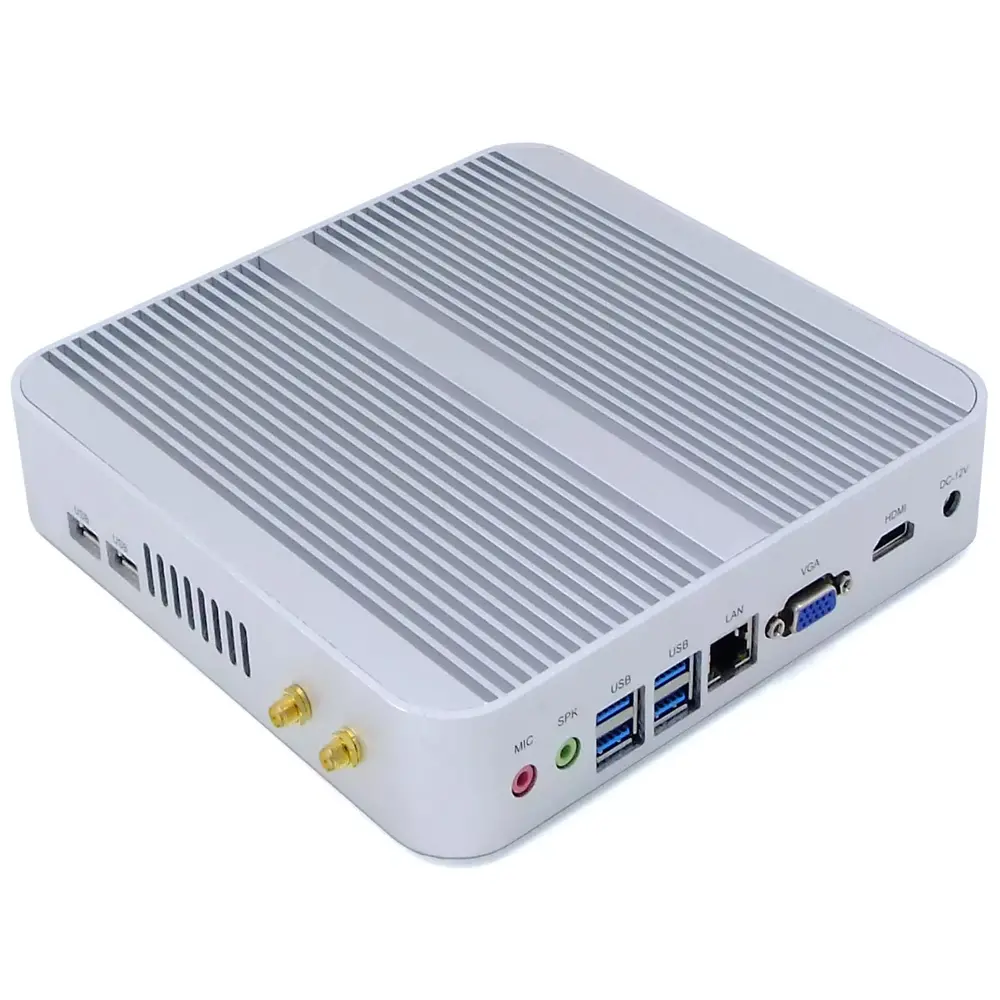

Rear Panel 1 x DC_in
1 x VGA
1 x HDMI
1 x Lan
4 x USB3.0
1 x Audio

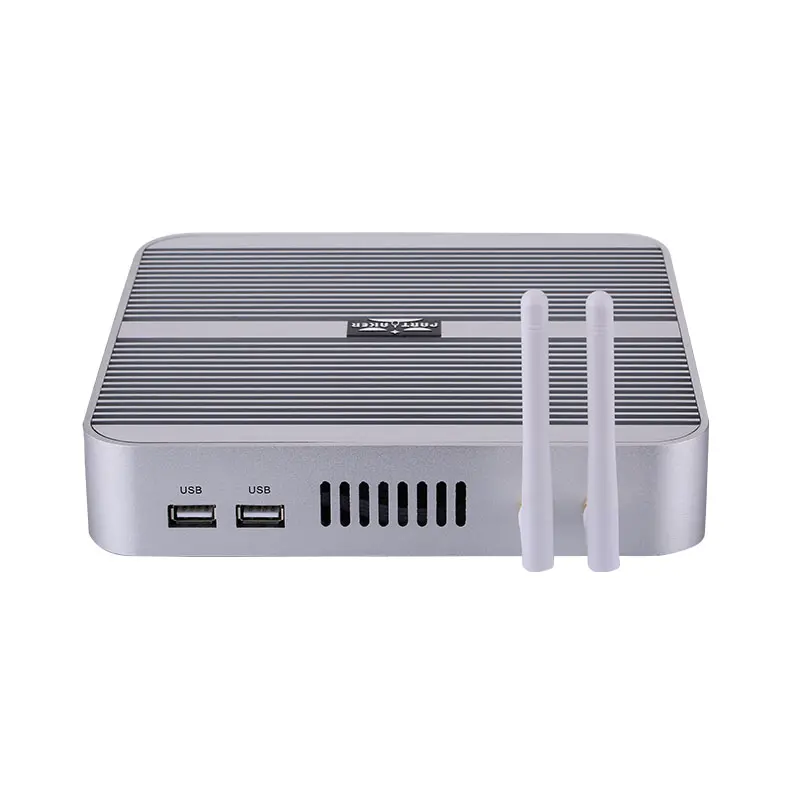

Side Panel 2 x WiFi antennas
2 x USB2.0



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc



General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V 3A/5A
Packing List B1 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B1 I3 4005U Intel® HD Graphics 4400 1.70 GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 6 12V/3A
B1 I3 5005U Intel® HD Graphics 5500 2.00 GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 8 12V/3A
B1 I3 6157U Intel® Iris® Graphics 550 2.40 GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 8 12V/3A
B1 I3 7167U Intel® Iris® Plus Graphics 650 2.80 GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 8 12V/3A
B1 I5 4200U Intel® HD Graphics 4400 1.60~2.60 GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 8 12V/5A
B1 I3 8145U Intel® UHD Graphics 2.10~3.90 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/3A
B1 I5 8250U Intel® UHD Graphics 620 1.60~3.40 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/5A
B1 I5 1135G7 Intel® Iris Xe Graphics 2.40~4.20 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/5A
B1 I5 1235U Intel® Iris Xe Graphics Eligible 3.30~4.40 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/5A
