Mini Computer Ryzen 5 3500U 7 3700U 7 4700U

Mini Computer Ryzen 5 3500U 7 3700U 7 4700U

Model: Partaker B29

  • Compact size for space-saving desktops.
  • Powerful AMD Ryzen 7 processors.
  • Blazing-fast M.2 NVME SSD.
  • Dual HDMI 2.0 ports for dual displays.
  • Multiple USB 3.0 & Gigabit LAN ports.
  • Pre-installed Windows 11 Pro.
  • Quiet smart fan cooling.
  • Includes VESA mount for easy installation.
  • Expandable up to 32GB DDR4 RAM.
  • Versatile for home, office, or media center use.

Share to:

Overview



Partaker Mini PC B29 uses AMD Ryzen series R5-3500U/R7-3700U/R7-4700U processors, with Radeon Vega 8/10/Radeon 7 Graphics, providing powerful performance and graphics. Supports dual DDR4 high-speed memory, up to 32G, and M2+SATA dual hard drives, meeting your storage needs. Built-in 3165 dual-band dual-antenna WiFi, supports 2HDMI2.0, 5USB3.0, 2LAN and other interfaces, making it easy to connect various devices.





Mechanical

Material Aluminum alloy
Colour Black
Size 125 x 125 x 47mm
Weight 1.5Kgs
Insallation Method Desktop type/Vesa



Motherboard



CPU

Ryzen 7 4700U, 8 Cores 8 Threads, base frequency: 2.0GHz, max 4.1GHz, 8MB L3 cache.

Ryzen 7 3700U processor, 4 Cores 8 Threads, base frequency: 2.3GHz, max 4.0GHz, 4MB L3 cache.

Ryzen 7 3700U processor, 4 Cores 8 Threads, base frequency: 2.3GHz, max 4.0GHz, 4MB L3 cache.

Display Ports 2 x HDMI2.0 Ports
Graphic AMD Radeon 7 Graphics(1600MHz)

AMD Radeon Vega 10 Graphics(1400MHz)

Network Card 2 x RJ-45 Giga LAN port
Memory 2 x so-dimm DDR4 slot,max support 32GB
Storage 1 x 2280 M.2 NVME/PCIE 3.0 high speed SSD
Other Function RTC/Wake on Lan/Timing boot(BIOS setting)



I/O Interfaces

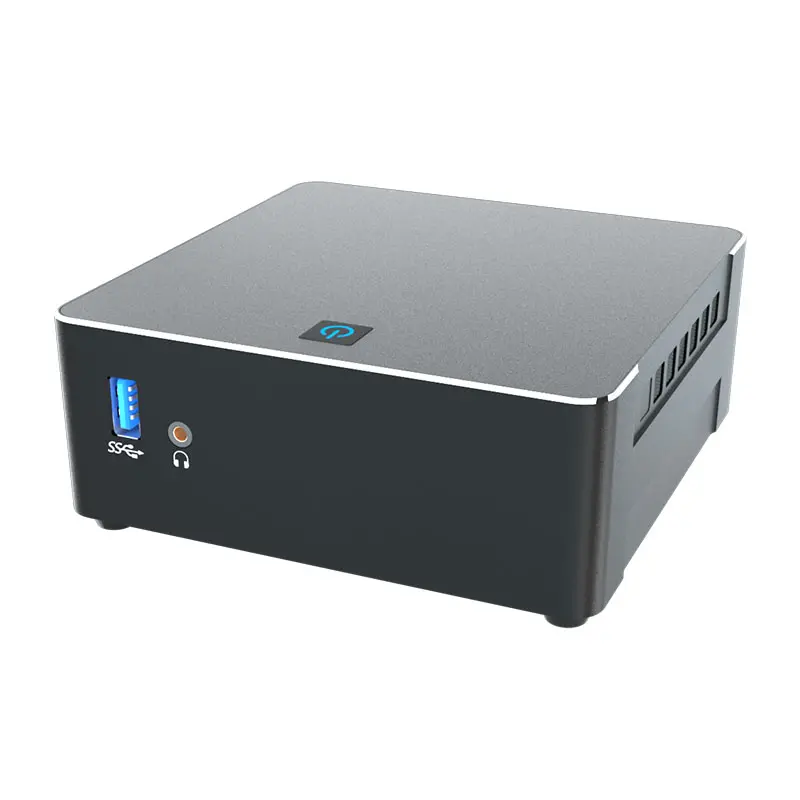

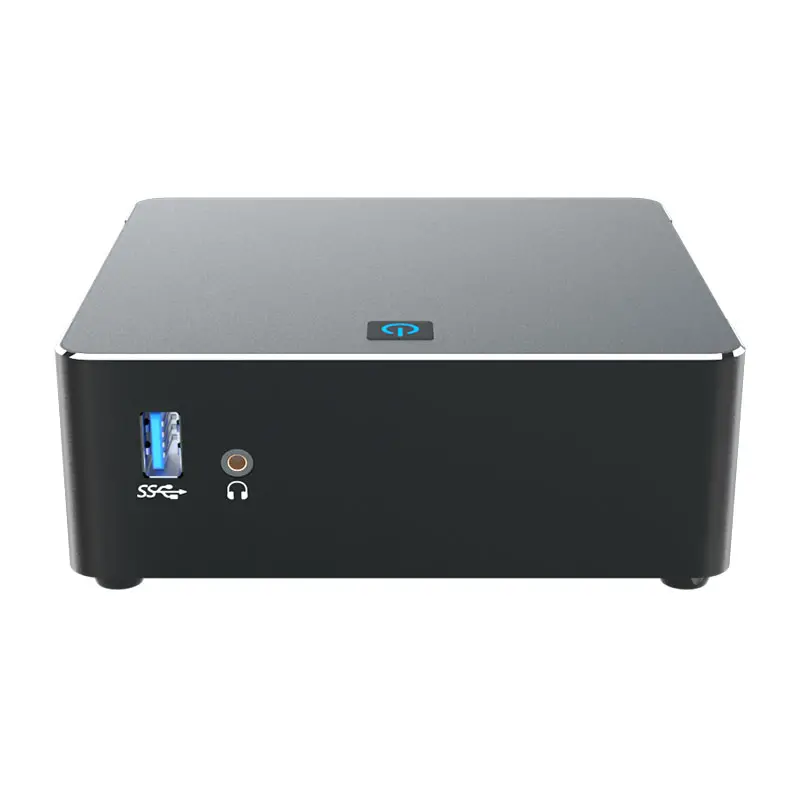

Front Panel 1 x Auido(3.5mm)
1 x USB3.0 port

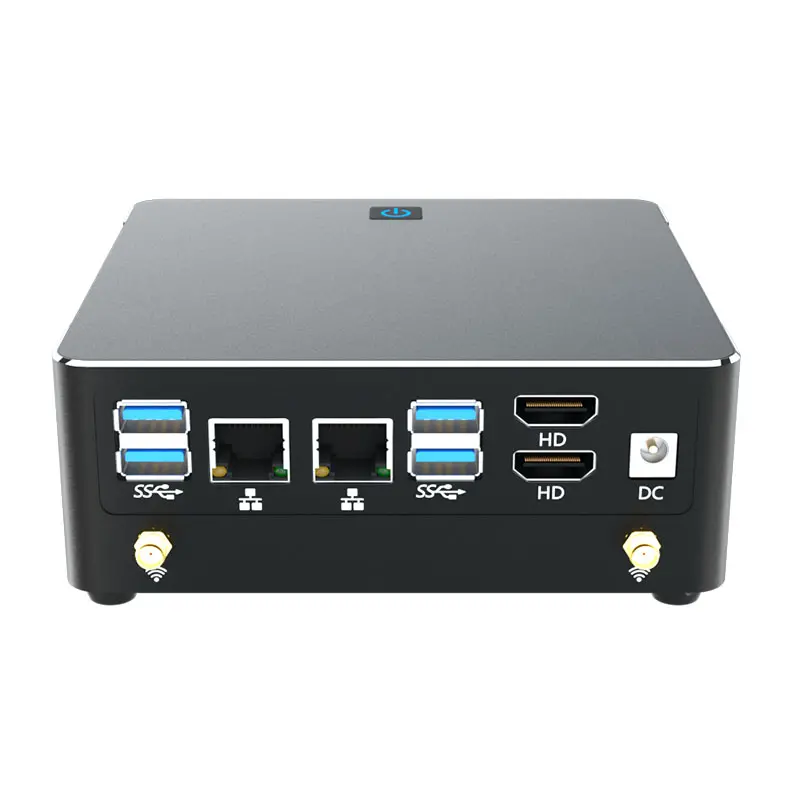

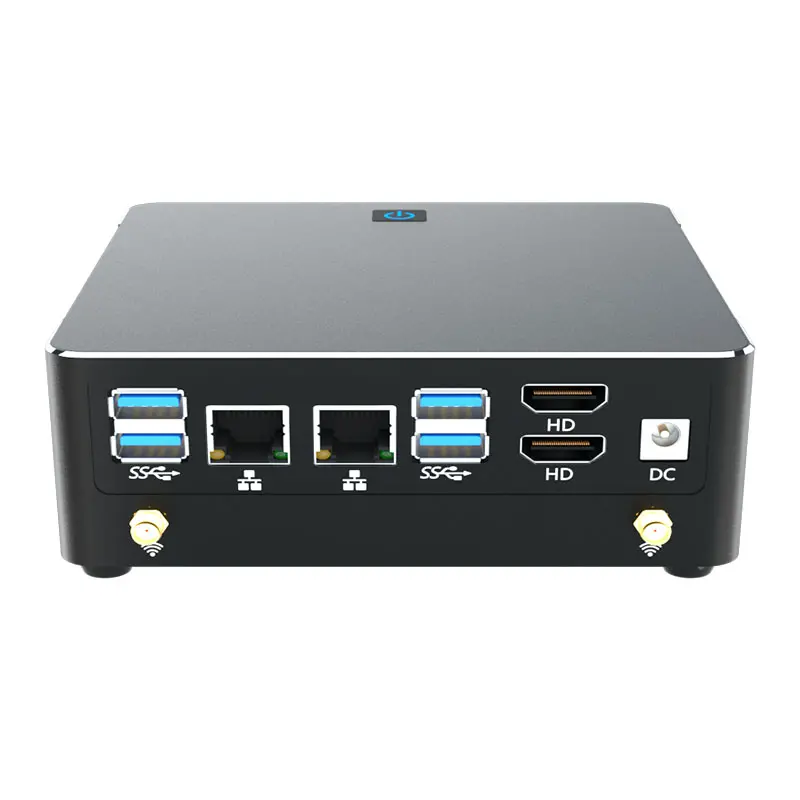

Rear Panel 2 x USB3.0 ports
2 x USB3.0 ports
2 x RJ-45 Giga LAN port(Can be used as soft route)
2 x HDMI2.0 ports
1 x DC IN



Software Support

Bios AMI EFI BIOS
System Support Pre-install Windows 11 Pro 64 Bit, Also support Windows 10 pro, Linux



General

Cooling Mode With Smart Fan
Power Supply Support 100-240V; Output: 19V 5A.
Packing List 1 x Mini PC, 1 x Power Adapter, 1 x VESA Mount & Screws, 1 x HDMI Cable, 1 x User manual



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B29 5 3500U Radeon™ Vega 8 Graphics 2.1~3.7GHz 2 x HDMI2.0 2 x SO-DIMM DDR4 1 x 2280 M.2 NVME/PCIE 3.0 high speed SSD 2 5 Support 100-240V
B29 7 3700U Radeon™ RX Vega 10 Graphics 2.3~4.0GHz 2 x HDMI2.0 2 x SO-DIMM DDR4 1 x 2280 M.2 NVME/PCIE 3.0 high speed SSD 2 5 Support 100-240V
B29 7 4700U AMD Radeon™ Graphics 2.0~4.1GHz 2 x HDMI2.0 2 x SO-DIMM DDR4 1 x 2280 M.2 NVME/PCIE 3.0 high speed SSD 2 5 Support 100-240V
