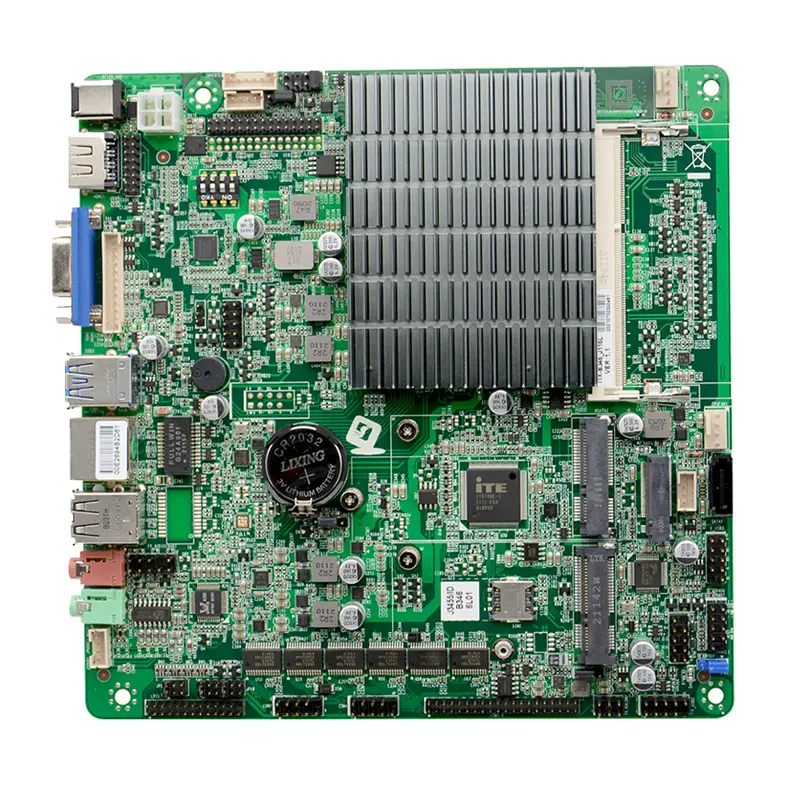

J3455 motherboard with HDMI

Model: ITX-B346_J116L

Intel Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W
1 x DDR3L SODIMM, support single channel 1600/1866MHz 1.35V memory, maximum support 8GB
1 x VGA, 1 x HDMI OUTPUT, 1 x LVDS interface (support dual channel 24Bit) or 1 x EDP interface
Support VGA, HDMI OUTPUT, LVDS synchronous/asynchronous display
1 x RTL8111HS gigabit network card chip, support Wake-on-LAN/PXE function

Share to:

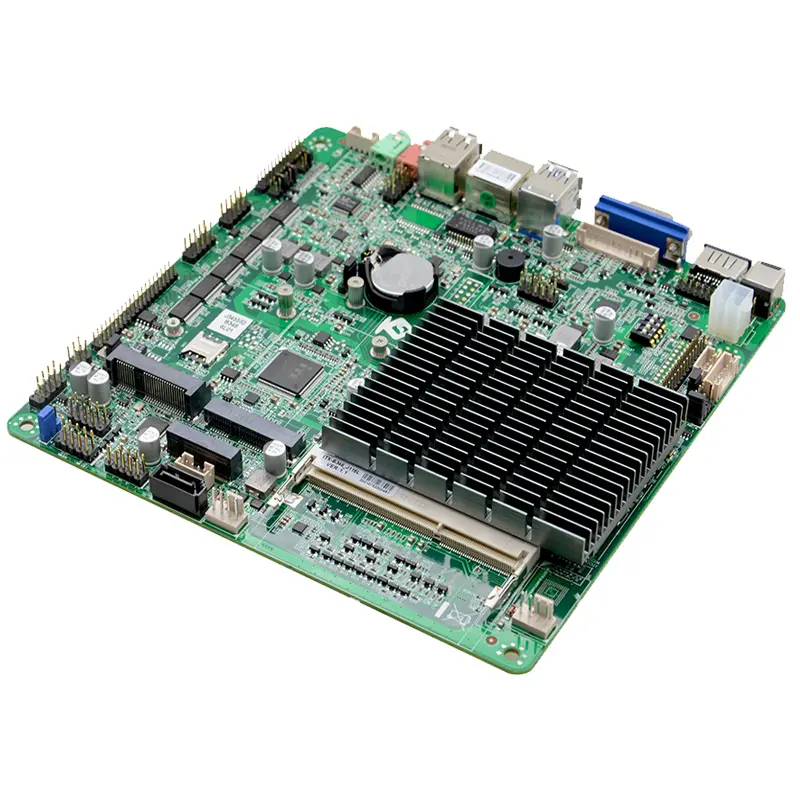

Overview

Our Fanless Celeron J3455 Motherboard is a cutting-edge Mini-ITX solution that combines powerful performance with a compact form factor, making it an ideal choice for a wide range of industrial and embedded applications. With a size of 170mm x 170mm, this motherboard is designed to fit seamlessly into space-constrained environments while providing exceptional reliability and performance.

Mechanical

Product number	ITX-B346_J116L VER:1.2E(J3455)
processor	Integrated Intel Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W Compatible with Intel® Apollo Lake Celeron/Pentium low-power processor
chipset	SOC
RAM	1*DDR3L SODIMM, support single channel 1600/1866MHz 1.35V memory, maximum support 8GB
show	Integrated Intel®HD Graphics 500 core graphics card
	1VGA, 1HD OUTPUT, 1LVDS interface (support dual channel 24Bit) or 1EDP interface
	Support VGA, HD OUTPUT, LVDS synchronous/asynchronous display
The internet	1* RTL8111HS gigabit network card chip, support Wake-on-LAN/PXE function
Store	1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
	1* MSATA slot, support SSD transfer speed up to 6Gbps,
	1* M.2 slot, support M.2 2280 NVME PCIE standard SSD
Audio	Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.
Audio	It is recommended to use 2Ω5W speakers for the power amplifier
Expand	1* Mini-PCIE slot supports WIFI/3G module

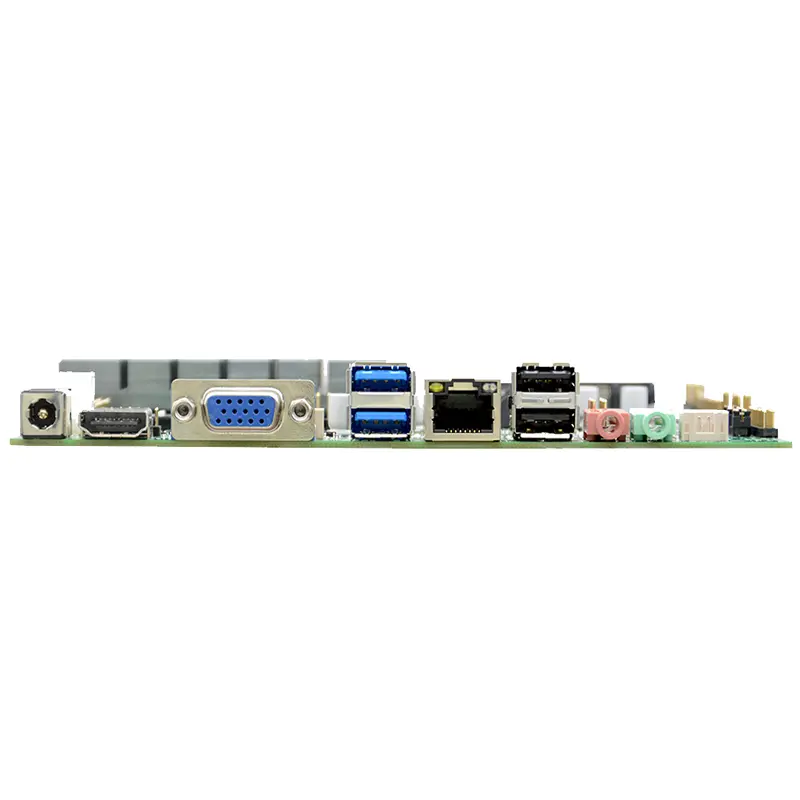

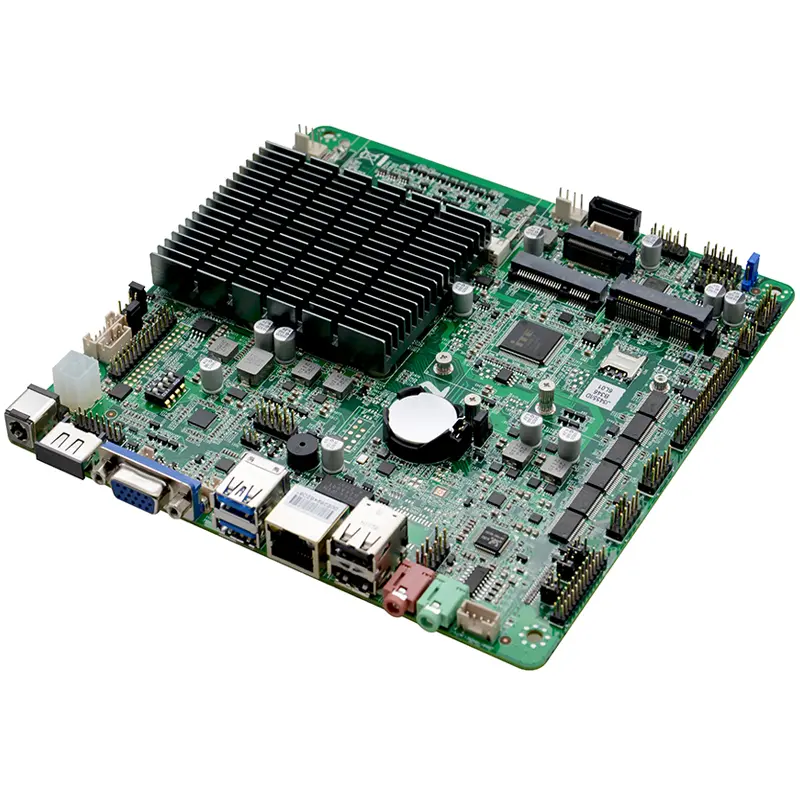

Backplane I/O interface	2* USB3.0 interface, 2*USB2.0 interface
	1* HD OUTPUT1.4 interface
	1* VGA DB15 interface
	1* RJ-45 Gigabit network interface
	1* Line out (green)
	1* Mic (red)
	1* 12V DC power input interface
Built-in I/O interface	1* LVDS interface 2*15pin, support dual channel 24Bit LCD display
	1* screen backlight power supply interface (1*6pin)
	1* Screen brightness adjustment interface 1*4pin
	1* HD OUTPUT interface 2*8Pin, the same signal as the HD OUTPUT interface on the back panel
	1* JVGA interface 1*12pin, the same signal as DB15
	6* RS232 serial port, COM2 can support RS485, COM1/COM2 supports the 9th pin charged function
	1* LPT interface 2*13pin
	6* USB2.0 interface, 2*5pin
	1* Front panel audio interface 2*5pin
	1* SIM card holder
	1* Hard disk power supply interface, 1*4pin
	1* Front panel function button and indicator port 2*5pin
	2* 2pin ATX power interface, can be used as +12V input and output
	1* power amplifier interface 1*4pin
Fan interface	Fanless cooling, reserved 1* 4pin CPU smart fan interface, 1*4pin system fan interface
GPIO	Support 4 input and output GPIO
BIOS	64Mb Flash ROM
Watchdog	Support hardware reset function (256 levels, 0~255 seconds)
Power supply type	DC 12V single power input
Operating temperature	-10℃~60℃
Storage temperature	-20℃~70℃
Working humidity	5%-95% relative humidity, non-condensing
size	170mm x 170mm

Model	Processor	Frequency	Memory	VGA	LVDS	HDMI	LAN	USB	RS485	COM	Power
ITX-B346_J116L VER:1.2E(J3455)	J3455	1.5G	1*SODDR3L	1	1	1	1*RTL8111HS	8	COM2	6	DC 12V
