Intel 6th Fanless Industrial PC
Mode: Partaker I20
- Powerful Processors: Intel Core i3/i5/i7 6th Gen.
- Fanless Design: Reliable for harsh environments.
- Fast Memory: Up to 16GB DDR4.
- Rich I/O: USB, COM, CAN, LAN.
- HD Graphics: VGA & HDMI outputs.
- Flexible Slots: MINI PCIE & M.2.
- Sturdy Aluminum: Durable construction.
- Wide Range: -20°C to +60°C, 9-36V.
- Wake-up Options: Network, timed, PXE.
- Multi-Application: Industrial, medical, logistics.
Share to:
Overview
Introducing our Intel 6th Generation Fanless Industrial PC, featuring powerful Core i3/i5/i7 processors, up to 16GB DDR4 RAM, MSATA & optional 2.5″ HDD storage, USB3.0/USB2.0 & versatile COM ports (RS232/RS485/RS422 configurable), M.2 & Mini PCIE slots, and flexible mounting options for reliable and efficient operation in demanding industrial environments.
Mechanical
| Model | Partaker I20 Industrial pc |
| Processor | Onboard Intel Core i3 6100T (dual core four threads，3.2 GHz) Onboard Intel l Core i5 6500T (four core four threads，2.5 GHz,Max 3.1 GHz) Onboard Intel l Core i7 6700T (four core eight threads，2.8 GHz,Max:3.6 GHz) |
| Chip | Intel H110 / H170 |
| Memory | Support 1*DDR4 2133/2400 SODIMM memory slot，Max :16GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 530 |
| Display port | 1*VGA port，1*HDMI port |

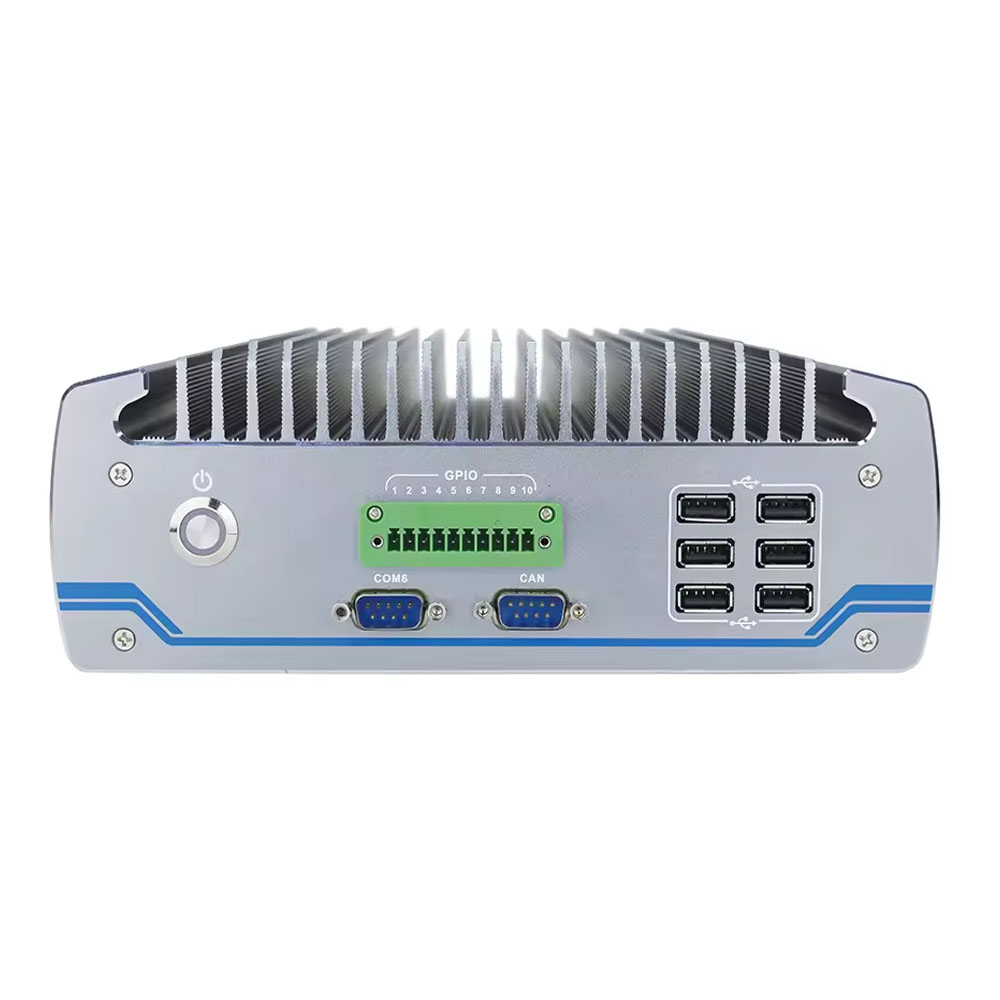

| Front I/O | 6*USB2.0 ，1*10 PIN GPIO Power supply phoenix terminal，1*COM，1*CAN port，1* Metal switch |

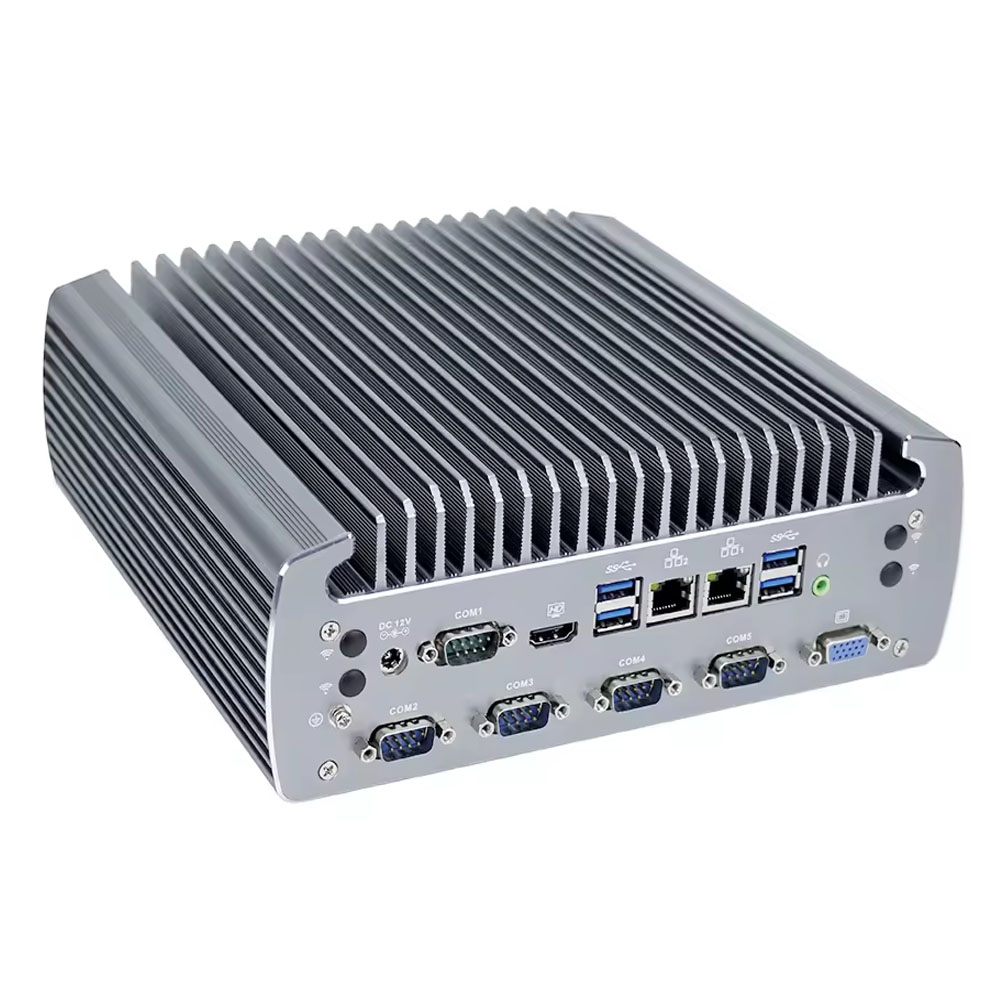

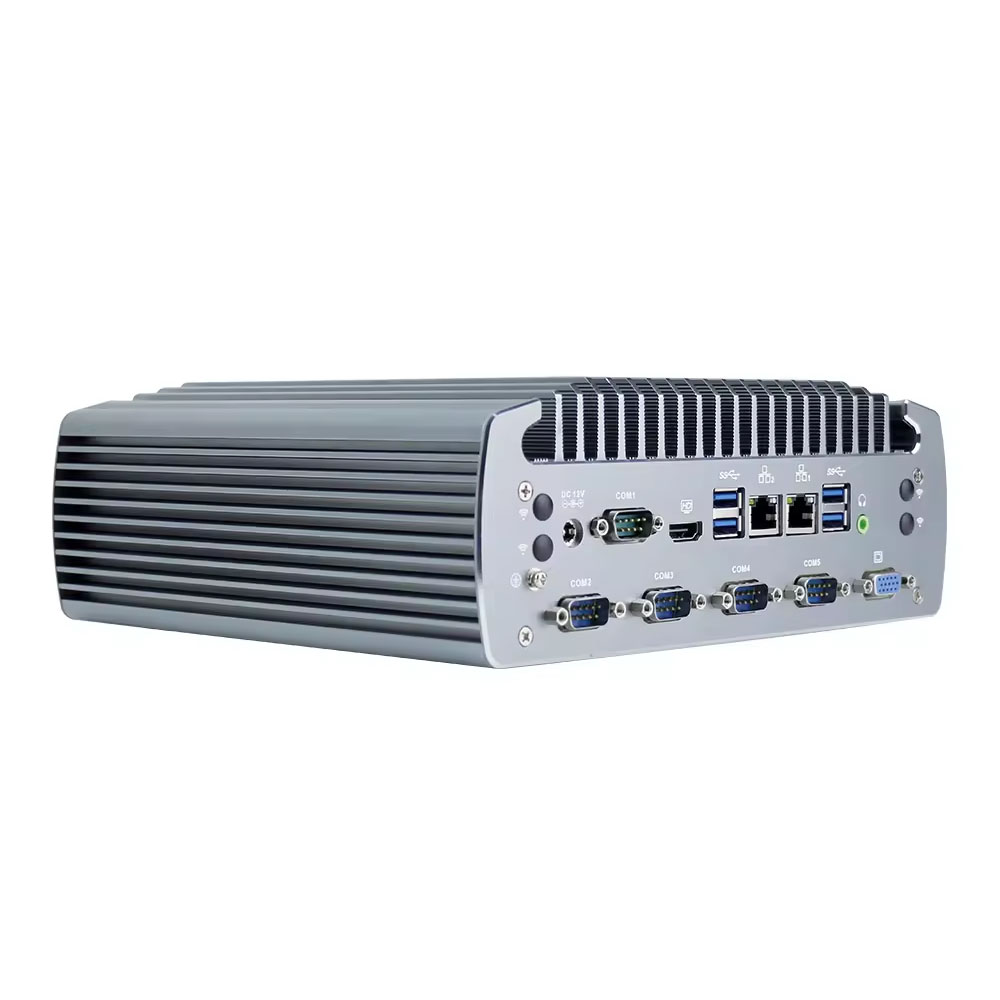

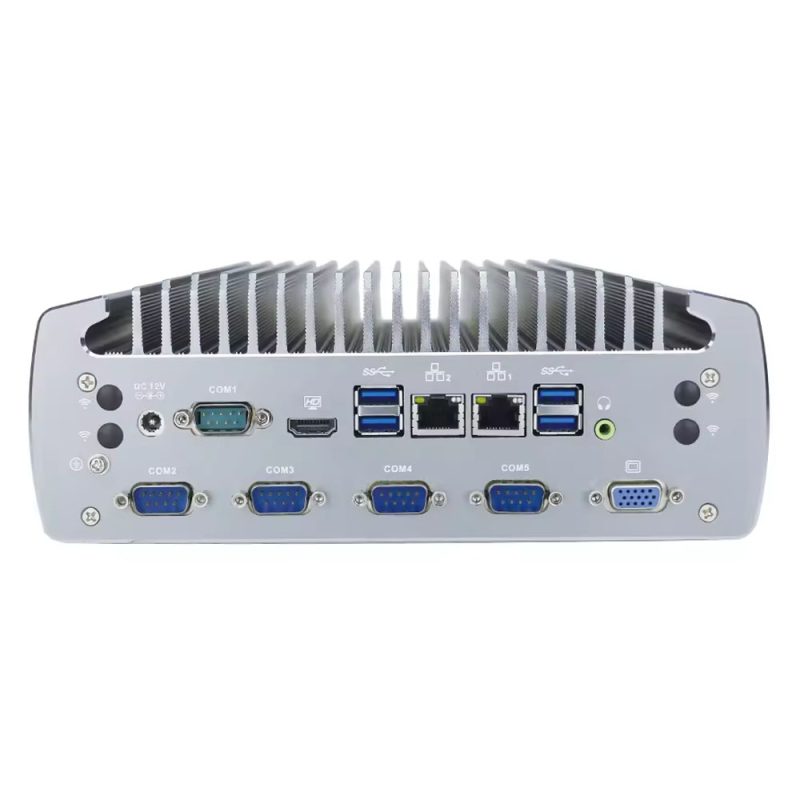

| Rear I/O | 4*USB3.0，2*Intel 1000M LAN ，1*VGA，1*HDMI，1*audio interface， 5*COM（COM1/2 Optional RS232/RS422/485），1*DC |
| Expansion Slot | Support 1*MINI PCIE slot（support MSATA）； Support 1*MINI PCIE slot（WIFI/3G/4G Optional），Embedded Sim Slot；
Support 1*M.2 slot（Optional WIFI/BT） CAN interface parameters：baud rate 5K～1Mbit/s，Conforms CAN bus specification 2.0A/B，１way CAN channel |
| Network | 2*Intel i211-AT 10/100/1000M Lan |
| Storage port | Support 1* MSATA slot，1*2.5” HDD （Optional 2*2.5inch hard disk） |
| Power Supply | Support DC 12 V input , 【Optional DC 9～36 V】 |
| Other functions | Power-on, Time-on, network wake-up, PXE boot, watchdog(0-255) |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
| Structure Parameter : | |
| Color | Titanium gray (Color can be customized) |
| Material | High-quality all aluminum，surface anodic oxidation |

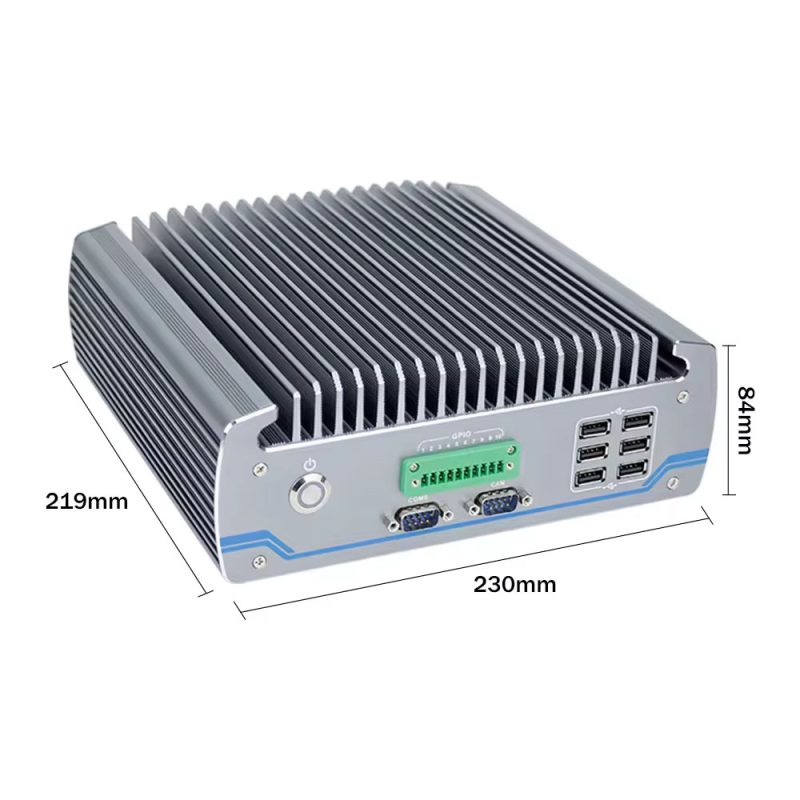

| Size |
230 * 219 * 84mm【No VESA mount】 |
| Weight | 4.0 kg【No VESA mount】 |
| Environmental Parameters : | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industry SSD），Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| I20 | i3 6100T | Intel® HD Graphics 530 | 3.20 GHz | 1 x VGA, 1 x HDMI | 1 x DDR4, Max 16G | 1 x mSATA, 2 x 2.5”HDD | 2 | 10 | DC 12 9~36V Optional |
| I20 | i5 6500T | Intel® HD Graphics 530 | 2.5-3.1 GHz | 1 x VGA, 1 x HDMI | 1 x DDR4, Max 16G | 1 x mSATA, 2 x 2.5”HDD | 2 | 10 | DC 12 9~36V Optional |
| I20 | i7 6700T | Intel® HD Graphics 530 | 2.4-4.0 GHz | 1 x VGA, 1 x HDMI | 1 x DDR4, Max 16G | 1 x mSATA, 2 x 2.5”HDD | 2 | 10 | DC 12 9~36V Optional |
