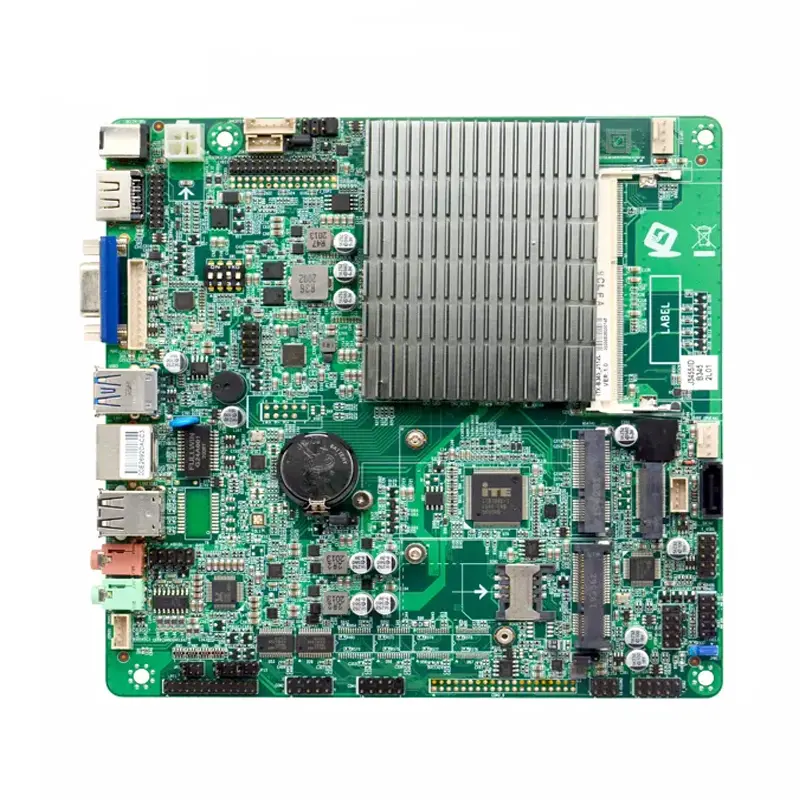

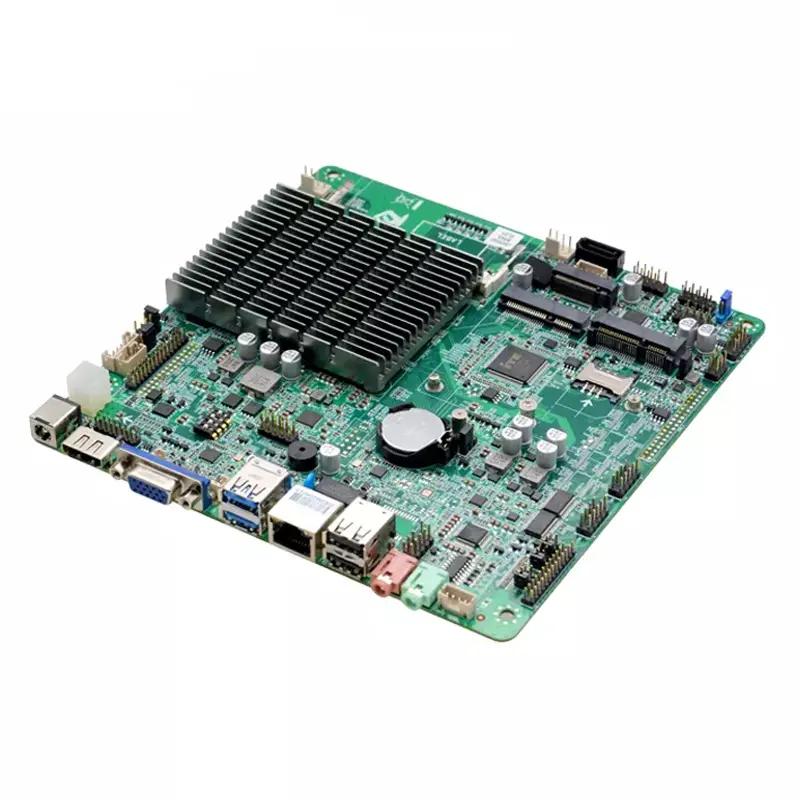

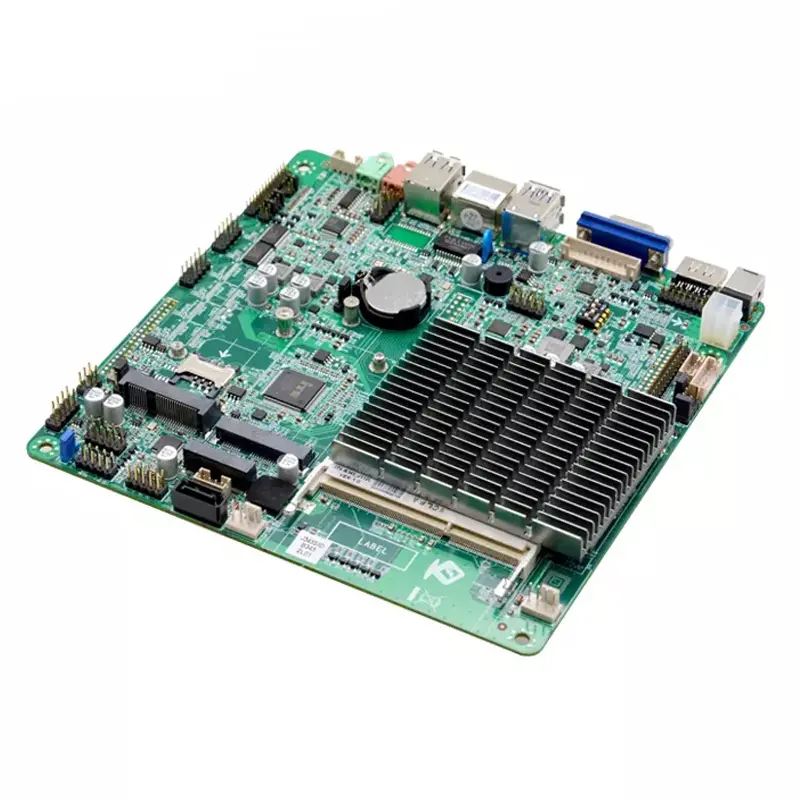

Industrial Motherboard J3455

Model: ITX-B345_J112L

Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W
Compatible with Intel® Apollo Lake Celeron/Pentium low power processor
1 x DDR3L DIMM slot,support 1600/1866MHz memory, max. up to 8GB
1 x SATA3.0, 1*MSATA, 1*M.2, VGA/HDMI OUT
1 x RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function
Fanless cooling, reserved 1 x 4pin CPU smart fan interface, 1 x 4pin system fan interface

Share to:

Overview

The J3455 thin itx motherboard is a versatile and efficient motherboard that supports VGA, HDMI, MI, and LVDS display output. It has a gigabit ethernet port, 10 USB interfaces, and 2 COM ports for connectivity and expansion. It is based on the Intel J3455 processor that delivers high performance and low power consumption. This motherboard is suitable for various applications that require a thin and flexible computing solution.

Mechanical

Product number	ITX-B345_J112L VER:1.0(J3455)
processor	Integrated Intel® Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W
chipset	Compatible with Intel® Apollo Lake Celeron/Pentium low power processor
RAM	SOC
Show	1*DDR3L SODIMM, support dual channel 1600/1866MHz 1.35V memory, maximum support 8GB
	Integrated Intel®HD Graphics 500 core graphics card
	1VGA, 1HDMI, 1LVDS interface (support dual channel 24Bit) or 1EDP interface
The internet	Support VGA, HDMI, LVDS synchronous/asynchronous display
Store	1* RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function
	1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
	1* MSATA slot, support SSD transfer speed up to 6Gbps,
Audio	1* M.2 slot, support M.2 2280 NVME PCIE standard SSD
Audio	Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.
Expand	The power amplifier is recommended to use 2Ω5W speakers

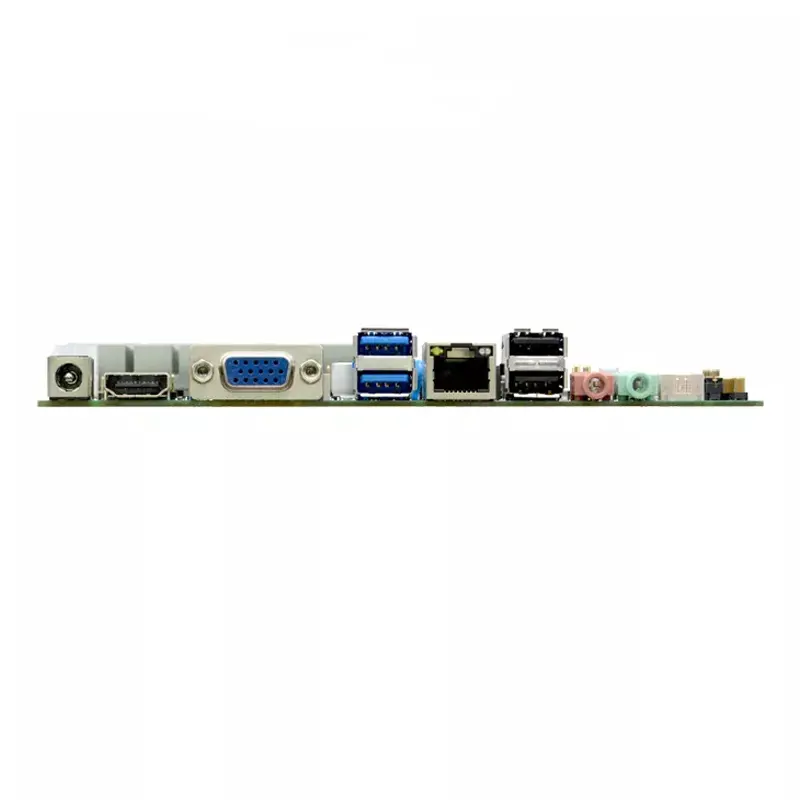

Backplane I/O interface	1* Mini-PCIE slot supports WIFI/3G module
	2* USB3.0 interface
	1* HDMI1.4 interface
	1* VGA DB15 interface
	2* RJ-45 Gigabit network interface
	1* Line out (green)
	1* Mic (red)
Built-in I/O interface	1* 12V DC power input interface
	1* LVDS interface 2*15pin, support dual channel 24Bit LCD display
	1* screen backlight power supply interface (1*6pin)
	1* Screen brightness adjustment interface 1*4pin
	1* EDP interface 2*15pin, (optional) and LVDS alternative
	1* HDMI interface 2*8Pin, the same signal as the HDMI interface on the back panel
	1* JVGA interface 1*12pin, the same signal as DB15
	2* RS232 serial port, COM2 can support RS485, COM1/COM2 supports the 9th pin charged function
	1* LPT interface 2*13pin
	8* USB2.0 interface, 2*5pin
	1* Front panel audio interface 2*5pin
	1* SIM card holder
	1* Hard disk power supply interface, 1*4pin
	1* Front panel function button and indicator port 2*5pin
	2* 2pin ATX power connector, can be used as +12V input and output
Fan interface	1* power amplifier interface 1*4pin
GPIO	Fanless cooling, reserved 1* 4pin CPU smart fan interface, 1*4pin system fan interface
BIOS	Support 4 input and output GPIO
Watchdog	64Mb Flash ROM
Power type	Support hardware reset function (256 levels, 0~255 seconds)
Operating temperature	DC 12V single power input
Storage temperature	-10℃~60℃
Working humidity	-20℃~70℃
Size	5%-95% relative humidity, non-condensing
