Fanless Mini PC Industrial PC Celeron J4125 with Windows 11 Pro, Mini Computer

HISTTON Mini PC Windows 10 Pro, Celeron J4125

Topton Cheap Industrial Mini PC Intel Celeron J4125 Quad Core N2840 Fanless Mini Computer Dual LAN

Mini PC without fan, Celeron J4125 Industrial PC

Industrial Mini PC Intel Celeron J4125 J4105

Model: Partaker I23

Intel Celeron J4125 J4105 Processor
1 x DDR4 SO-DIMM RAM
1 x mSATA, 1 x 2.5” SSD/HDD
2 x Gagabit Ethernet
2 x RS232 Ports
Support VGA HDMI Dual Display

Share to:

Overview

Partaker I23 is the cost-effective industrial mini PC. Multiple application fields, smooth operation, stable structure, flexible installation, simple operation, can be applied to industrial field control, food processing assembly line equipment control, CNC machine tools, instrument panels, robot controllers, cinemas, KTV, commercial banks, ATM machines , self-service inquiry machines, insurance companies, digital signage, medical industry, etc.

Mechanical

Material	Aluminum alloy
Colour	Black
Size	170 x 125 x 50mm
Weight	1.5Kgs
Insallation Method	With mounting ears
Insallation Method	Wall-mounted, embedded, desktop

Motherboard

CPU	Intel® Celeron® Processor J4125 (4M Cache, up to 2.70 GHz)
CPU	Intel® Celeron® Processor J4105 (4M Cache, up to 2.50 GHz)
Chipset	SOC
Network Card	2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth	With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory	1 x SO-DIMM DDR4, up to 8GB RAM
Storage	1 x 2.5 inch hard disk bay/1 x mSATA
Expand	1 x Mini PCIE WiFi slot

I/O Interfaces

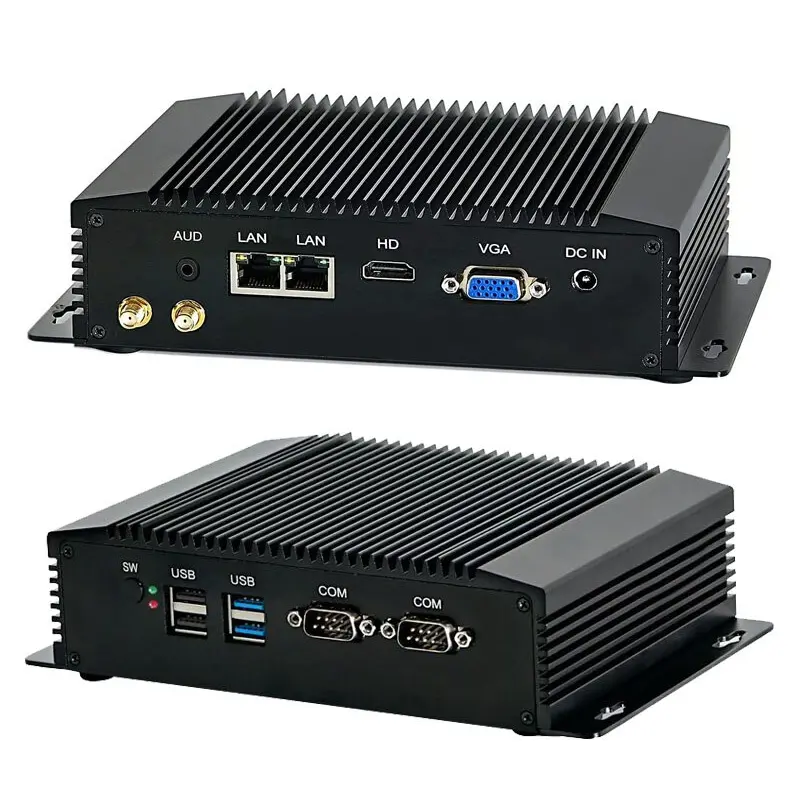

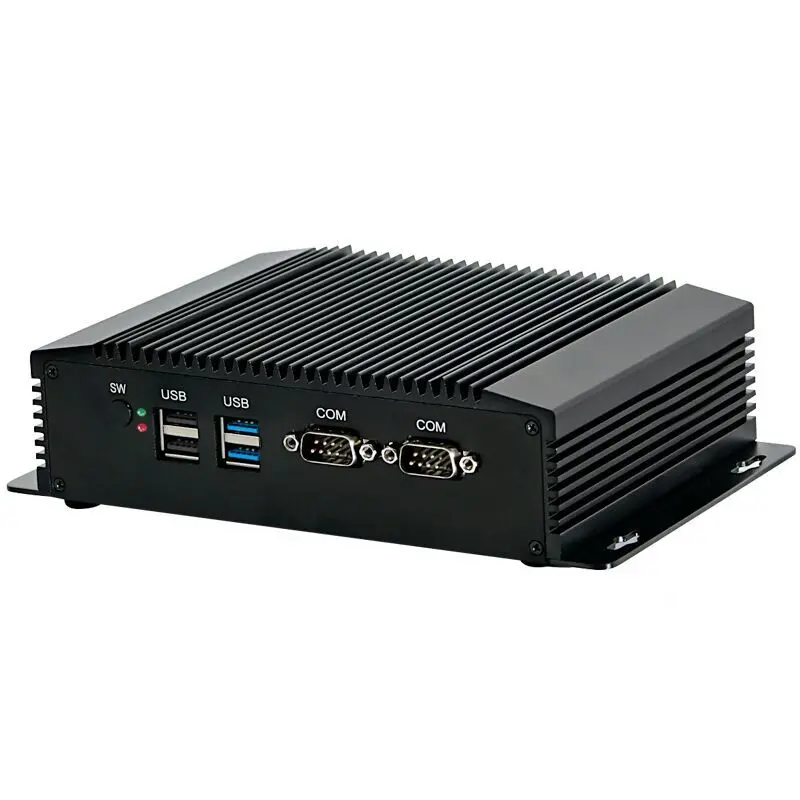

Front Panel	1 x Power button
	2 x USB3.0
	2 x USB2.0
	2 x COM

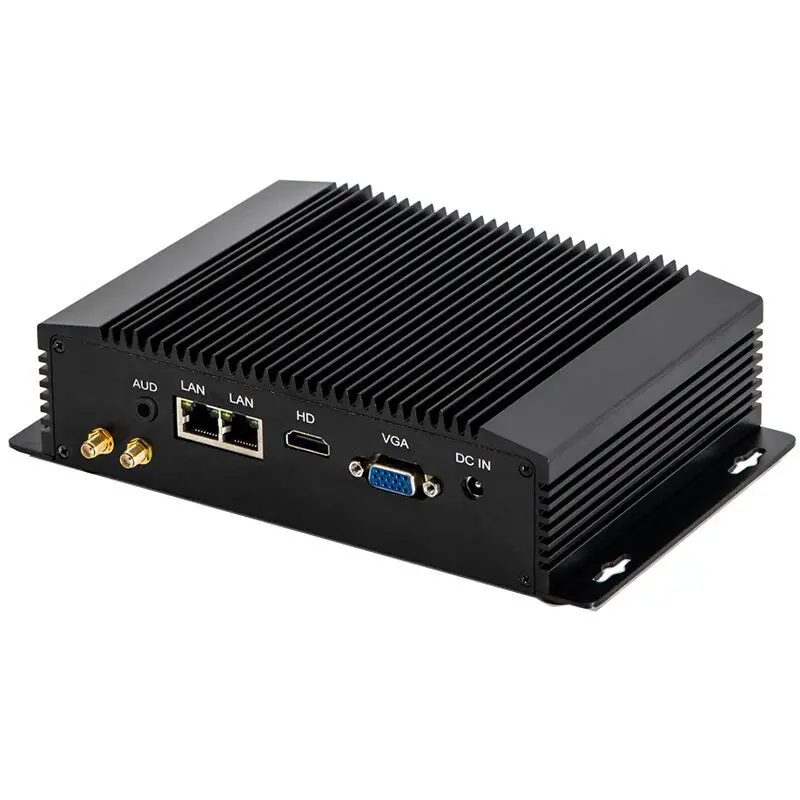

Rear Panel	1 x DC_in
	1 x VGA
	1 x HDMI
	2 x Lan
	1 x Audio
	2 x WiFi antennas

Software Support

Bios	AMI bios
System Support	Windows 10, linux ubuntu etc

General

Cooling Mode	Fanless
Power Supply	DC100-240V AC/50-60Hz, DC 12V/3A
Packing List	Partaker I23 industrial pc, power supply, power cord, wifi antennas, warranty card

Environment

Operating Temperature	0°C~70°C Centigrade (32°F~140°F)
Storage Temperature	-20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity	10%~90% (non-condensing)
Certification	CE FCC ROHS

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	USB	Power
I23	J4125	Intel® UHD Graphics 600	2.00~2.70 GHz	VGA/HDMI	1 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA	2	4	12V/3A
I23	J4105	Intel® UHD Graphics 600	1.5~2.50 GHz	VGA/HDMI	1 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA	2	4	12V/3A
