Micro Firewall Appliance 10GbE NAS Mini PC

Firewall VPN Mini PC OPNsense

Model: Partaker H15

Equipped with an Intel Core i5 1245U i7 1265U processor, is compatible with various FreeBSD-based router systems.
Features a compact aluminum design, a 12V8A power supply, and low power consumption.
Including USB 3.1 Gen2, USB 2.0, HDMI, DisplayPort, and more, as well as six LAN ports.
Supports 2 x SODIMM DDR4 slots with a maximum capacity of 64GB.
With 1 x M.2 2280 M-Key NVMe SSD slot and 1 x 2.5-Inch SATA SSD/HDD slot.

Share to:

Overview

The 6 LAN Firewall Hardware is a mini PC that can provide you with advanced network security and performance. It features:

A 12th Gen Industrial Firewall Appliance Mini PC, which is designed for harsh environments and supports various firewall software
A support for 3 x M.2 slots, which can accommodate WIFI and 4G/5G modules for wireless communication
A support for 2 x DDR4 memory slots, which can hold up to 64GB RAM for fast and smooth operation
A support for 1 x DP and 1 x HD dual 4K HD display, which can deliver high-quality and clear images
A support for TPM 2.0 security encryption, which can enhance the security and integrity of the mini PC
A support for 6 x Intel i225-V 2.5G LAN ports, which offer high-speed and stable network connectivity, and optional 4 POE ports, which can power other devices through the network cable

The 6 LAN Firewall Hardware is a great solution for applications such as network security, VPN, firewall, router, industrial control, IoT gateway, and more.

Mechanical

Material	High-quality all aluminum,surface hard anodized
Colour	Metal gray (any color is optional)
Size	186 x 126.5 x 66mm
Weight	2Kgs
Insallation Method	Desktop type
Insallation Method	Vesa

Motherboard

CPU	Intel Core i3 1215U (Six cores Eight threads, turbo frequency up to 4.4 GHz)
	Intel Core i5 1245U (Ten cores Twelve threads, turbo frequency up to 4.4 GHz)
	Intel Core i7 1265U (Ten cores Twelve threads, turbo frequency up to 4.8 GHz)
Display Ports	1 x DP,1 x HDMI(Support synchronous/asynchronous dual display, DP interface resolution up to 4096*2160@60Hz)
Network Card	6 Intel i225-V 2.5G Ethernet, Lan 1-4 optional 802.3af standard POE
Memory	2 x DDR4 3200 MHz SODIMM Ram slots, Max 64 GB
Storage	1 x M.2 2280 slot, 1 x 2.5-inch SSD/HDD
Chipset	Intel Iris Xe Graphics
Other function	TPM 2.0 security encryption Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255)
Expansion Slot	1 x M.2 2280 M-key slot (only supports NVME protocol) 1 x M.2 3052 B-key slot (USB3.0 signal, support 4G/5G), external SIM card slot 1 x M.2 2230 E-key slot (support WIFI, BT)

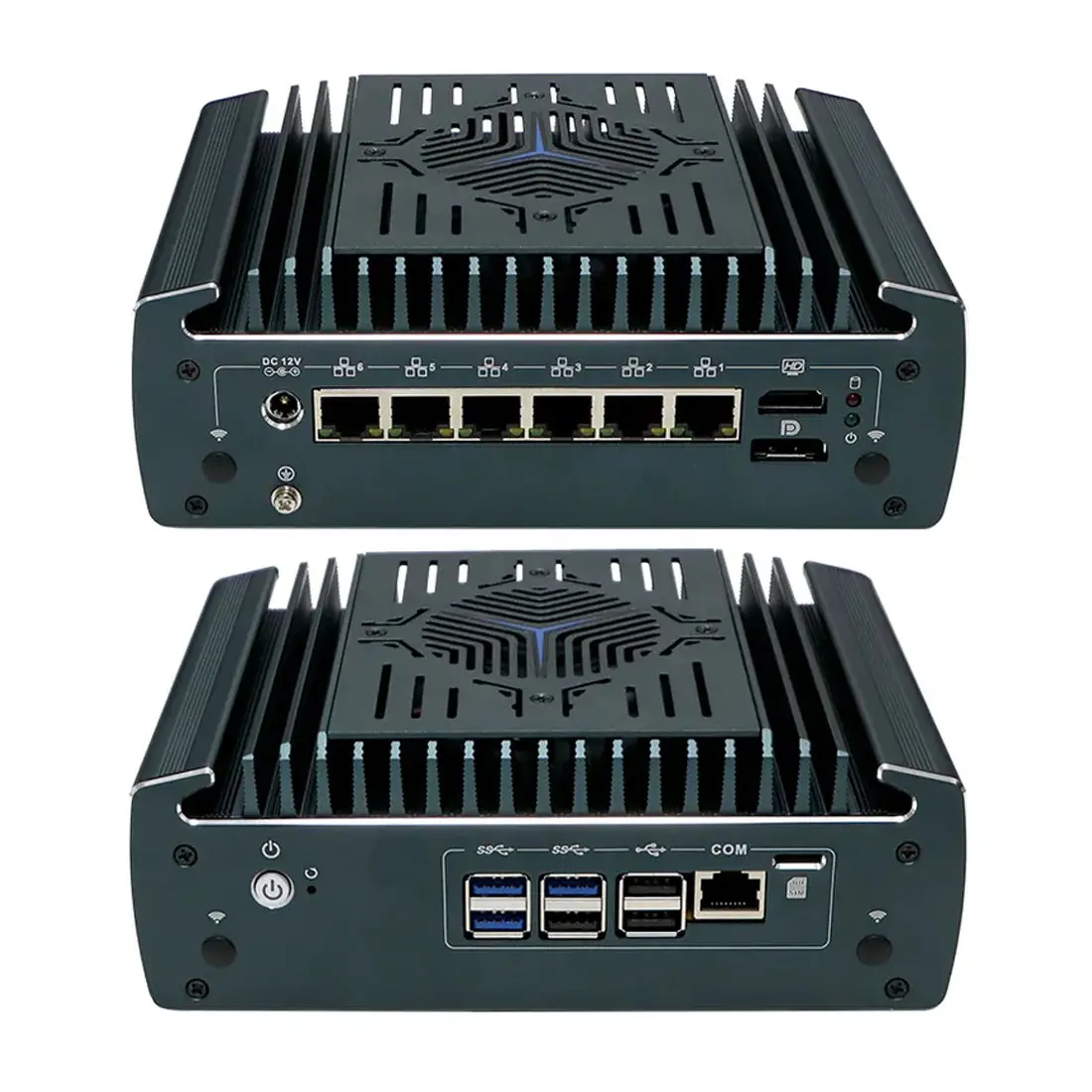

I/O Interfaces

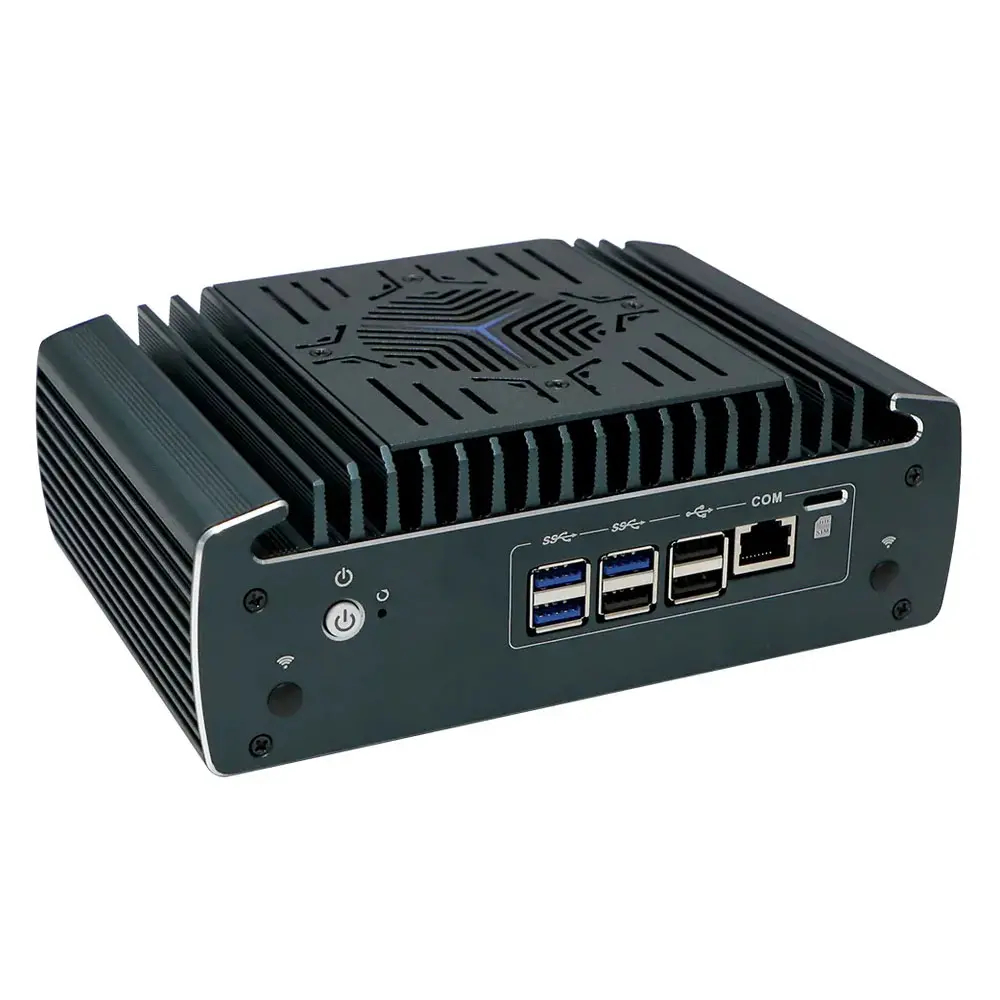

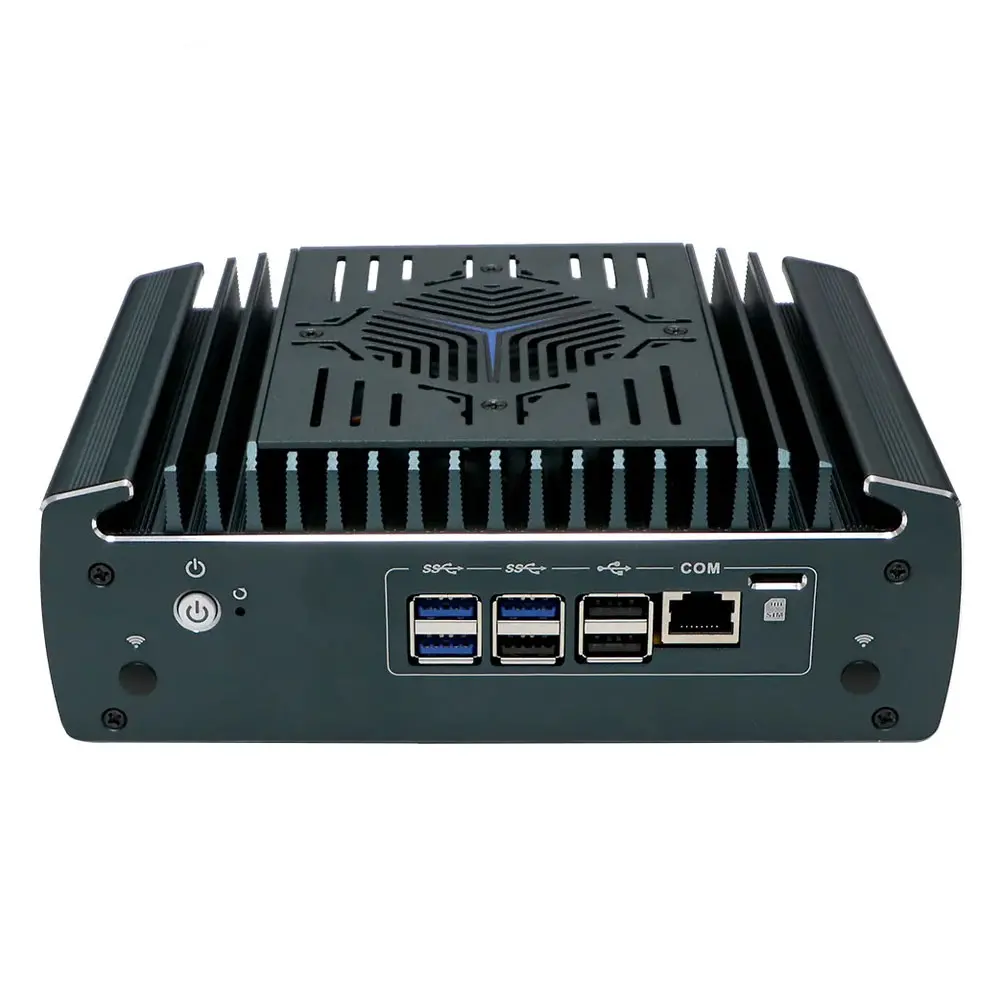

Front Panel	1 x Power Button
	1 x Restart
	3 x USB3.1
	3 x USB2.0
	1 x RJ45 COM (support Console function)

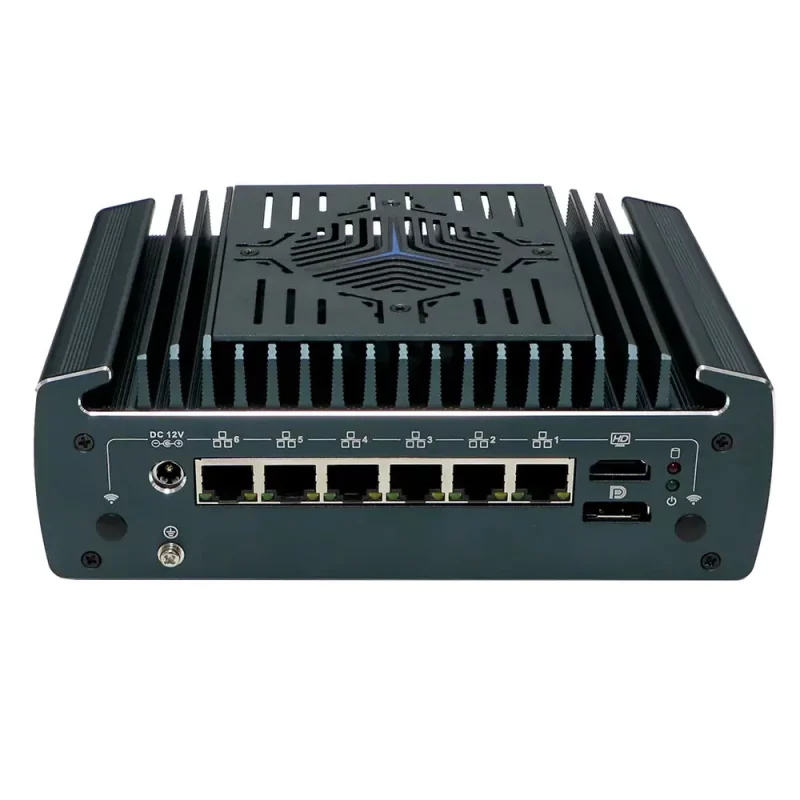

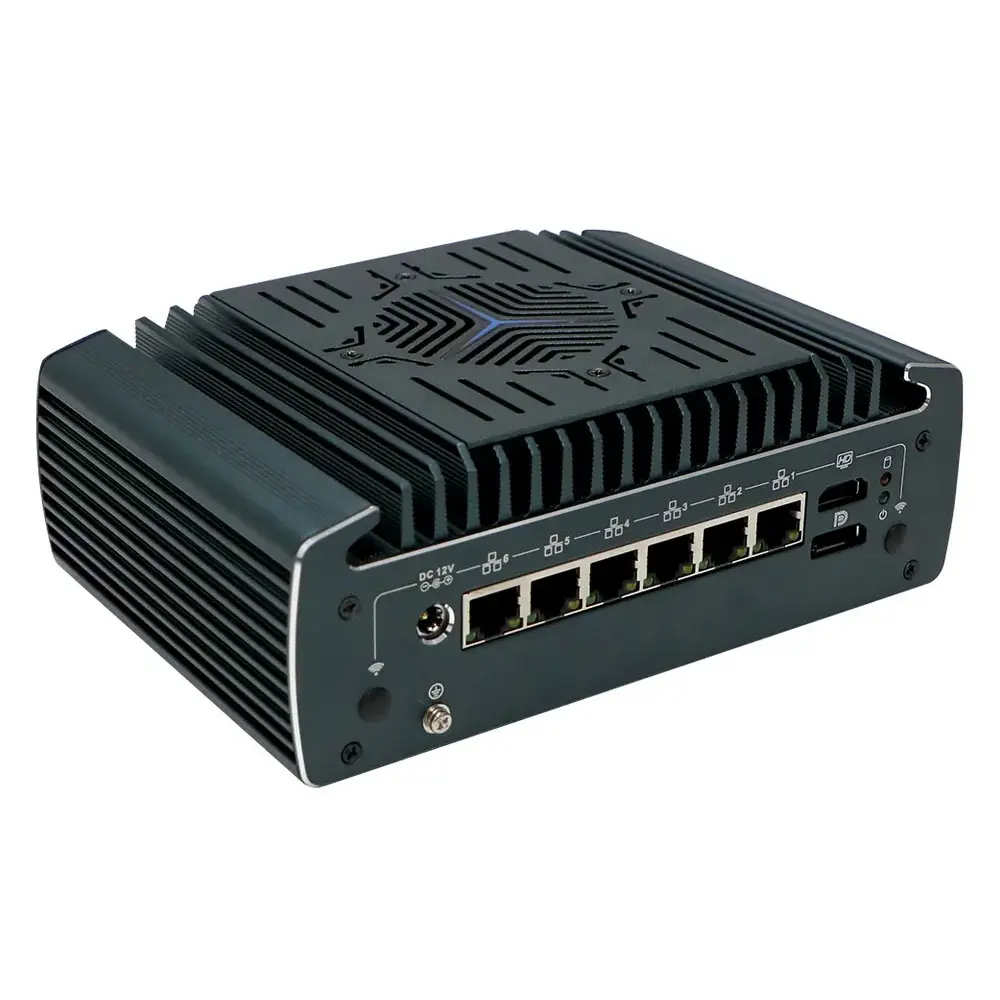

Rear Panel	1 x DC
	1 x RJ45 Lan
	1 x DP(1.4a)
	1 x HDMI(2.1)

Software Support

Bios	AMI UEFI BIOS
System Support	Windows 10/11/sever2012/2016/linux/centos/ubuntu

General

Cooling Mode	Active and passive heat dissipation design, PWM intelligent temperature control fan
Power Supply	DC100-240V AC/50-60hz, 12V8A

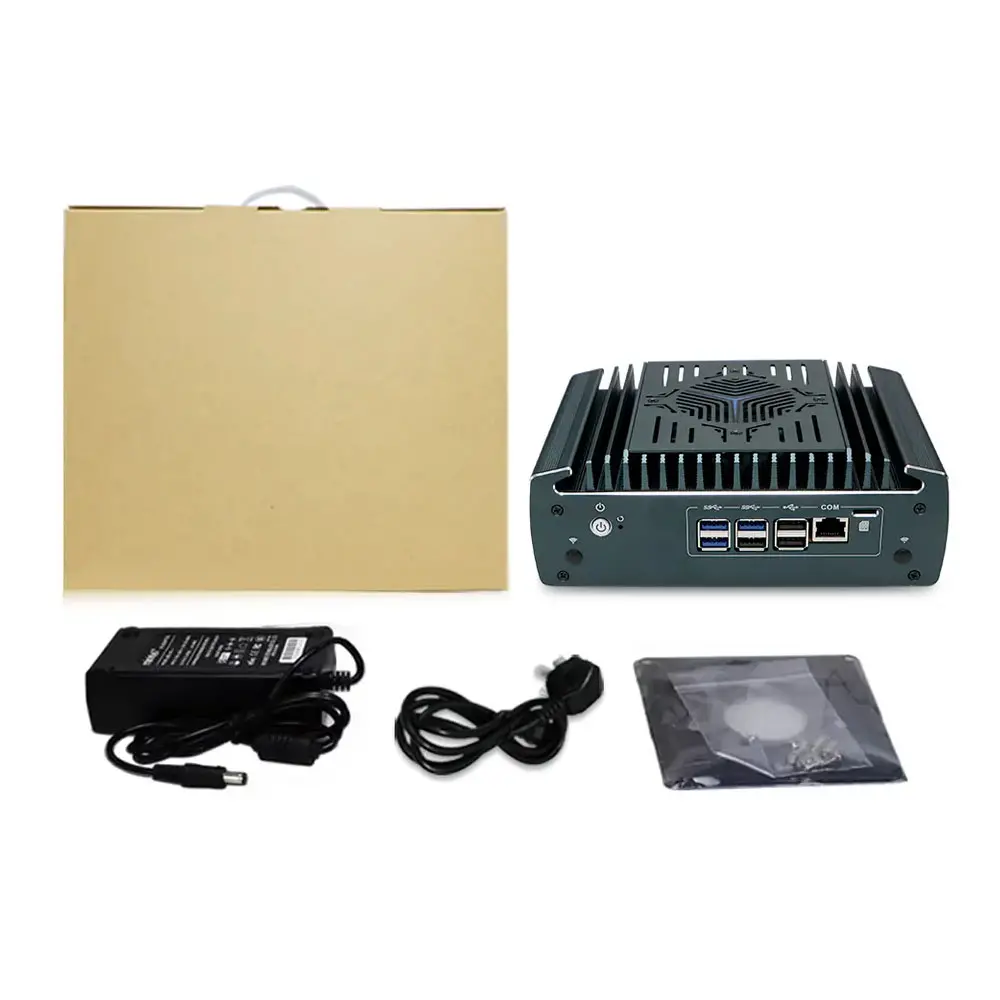

Packing List	Firewall appliance, power supply, power cord, vesa mount, warranty card

Environment

Work Temperature	0°C ~ +50°C Commercial HDD, -20°C ~ +50°C Industrial SSD, surface air flow
Work Humidity	0%~95% non-condensing
Certification	CE FCC ROHS

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	POE	USB	Power
H15	I5 1245U	Intel® Iris® Xe Graphics	3.3~4.40GHz	HDMI/DP	2 x SO-DIMM DDR4	1 x M.2 2280 Slot/1 x 2.5 Inch HDD/SSD	6	4	6	DC 12V
H15	I7 1265U	Intel® Iris® Xe Graphics	3.6~4.80GHz	HDMI/DP	2 x SO-DIMM DDR4	1 x M.2 2280 Slot/1 x 2.5 Inch HDD/SSD	6	4	6	DC 12V
