Fanless Mini PC Intel 2955U 3825U i3 4020Y i5 4200Y

Fanless Mini PC Celeron I3 I5

Model: Partaker B6

Intel® Celeron® & Intel® Core™ i3/ i5 Processor
1 x SODIMM 8GB DDR3L Memory
Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD
Embedded Expansion: Mini PCIe for WiFi
Support VGA & HDMI dual display

Share to:

Overview

Partaker B6 is a fanless, zero-noise, Intel 2955U 3825U core i3 i5 mini computer, the size is only 1/20 of the traditional desktop computer, if you are a student party, entrepreneur, purchaser, designer, need a cost-effective, stylish Small and compact, with simple wiring and powerful performance, our B6 is your best choice. It can meet the daily needs of most people using computers, office, customer service, classroom, training, home theater, cash register, etc.

Mechanical

Material	Aluminum alloy
Colour	Black
Size	170 x 120 x 36mm
Weight	1.5Kgs

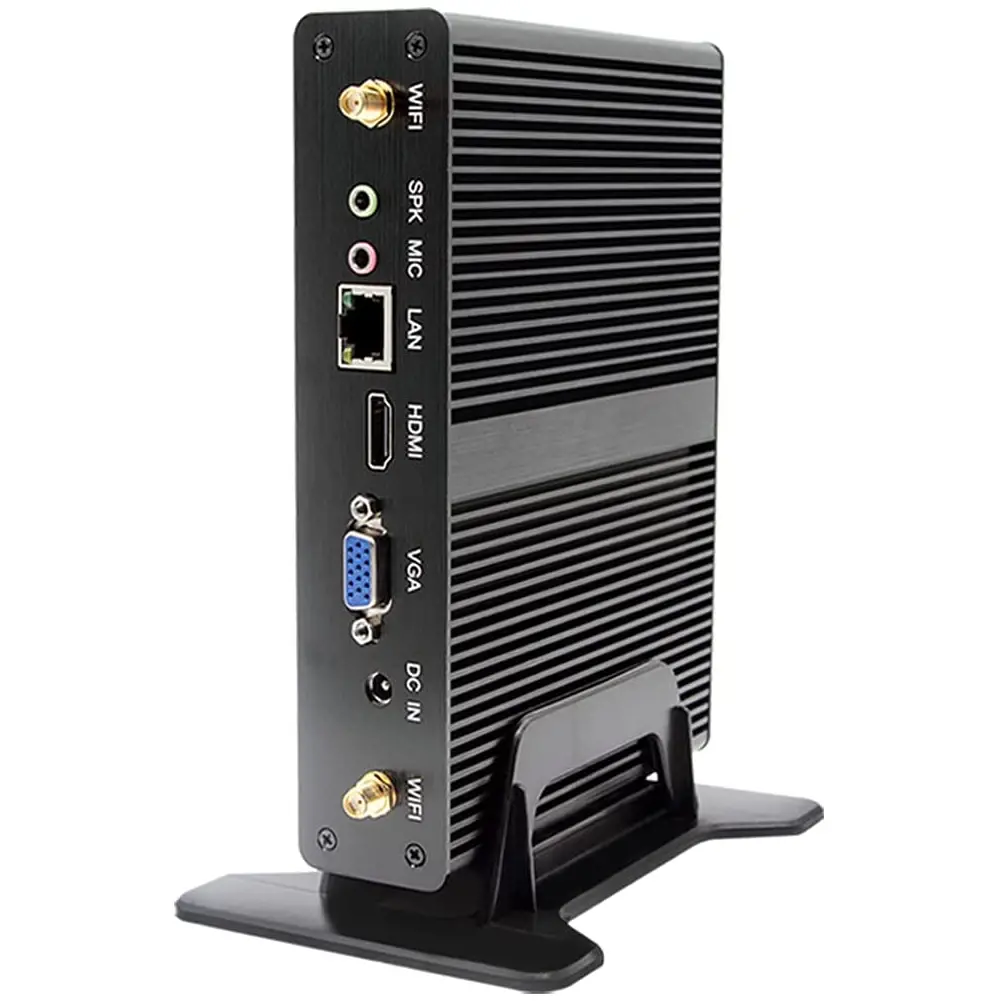

Insallation Method	Desktop type/vesa mounting
Insallation Method	With holding vertical stand, vesa mount as the optional

Motherboard

CPU	Intel® Celeron® Processor 2955U (2M Cache, 1.40 GHz)
	Intel® Celeron® Processor 3205U/3215U/3755U/3556U/3558U (2M Cache, 1.50 GHz)
	Intel® Core™ i3-4020Y Processor (3M Cache, 1.50 GHz)
	Intel® Core™ i5-4200Y Processor (3M Cache, up to 1.90 GHz)
Chipset	SOC
Network Card	1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth	With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory	1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM
Storage	1 x mSata SSD, 1 x 2.5 inch SSD/HDD
Expand	1 x Mini PCIE (half size) WiFi slot

I/O Interfaces

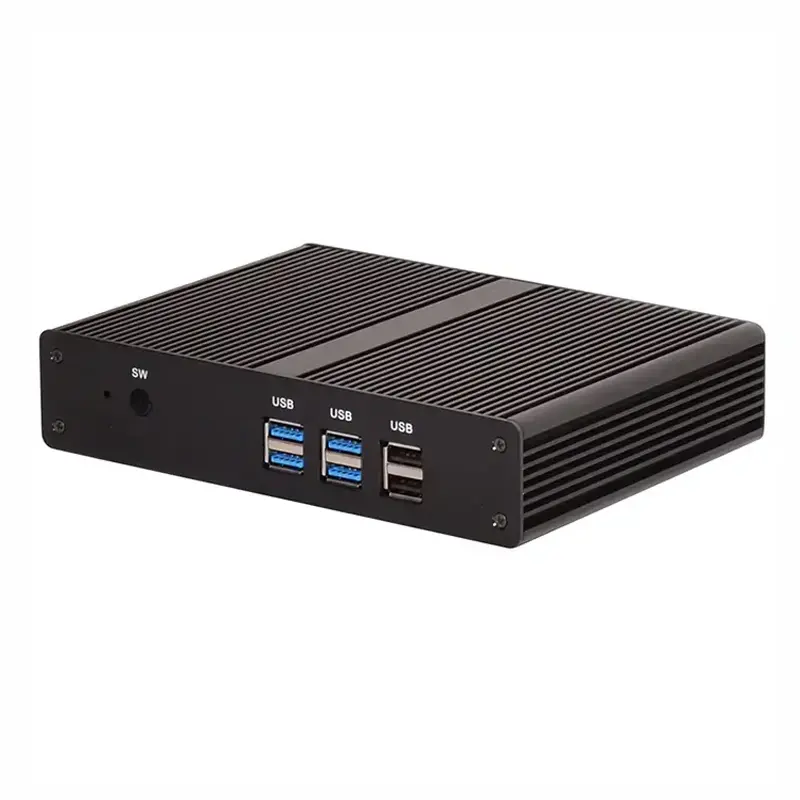

Front Panel	1 x Power button
	4 x USB3.0
	2 x USB2.0

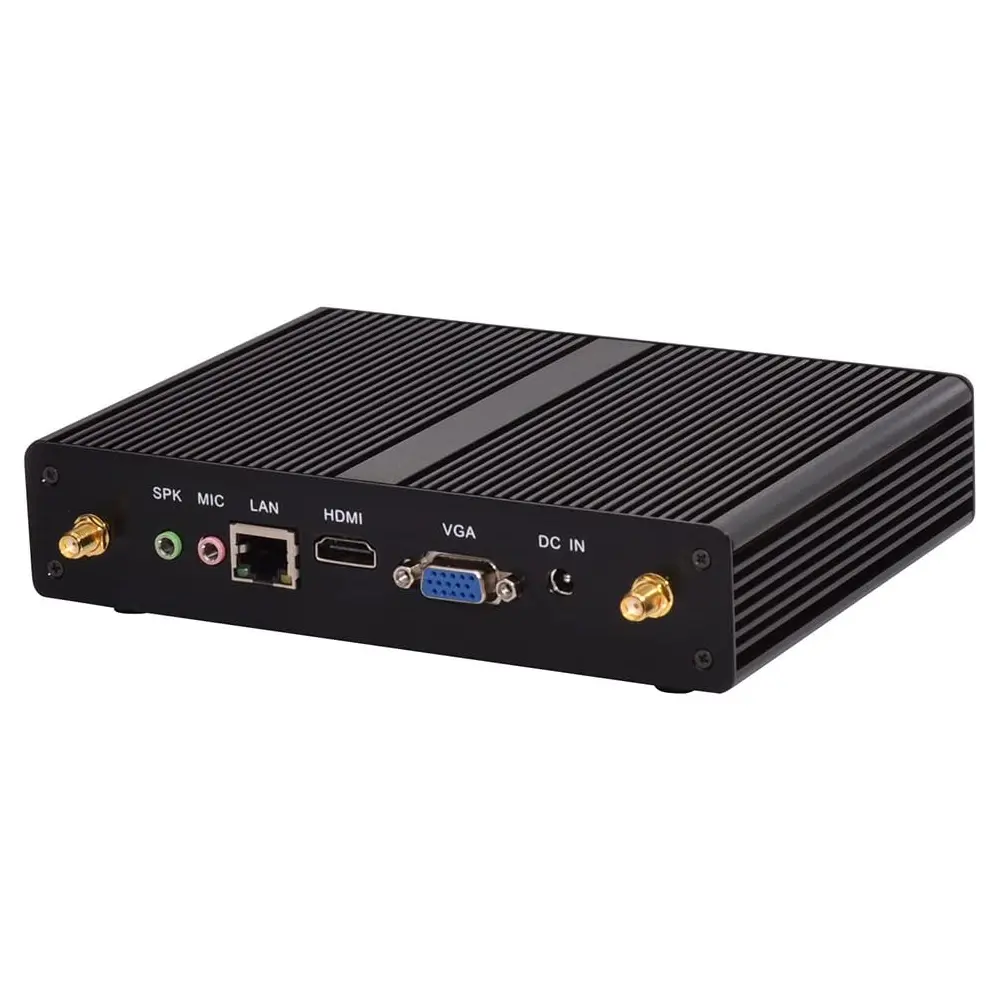

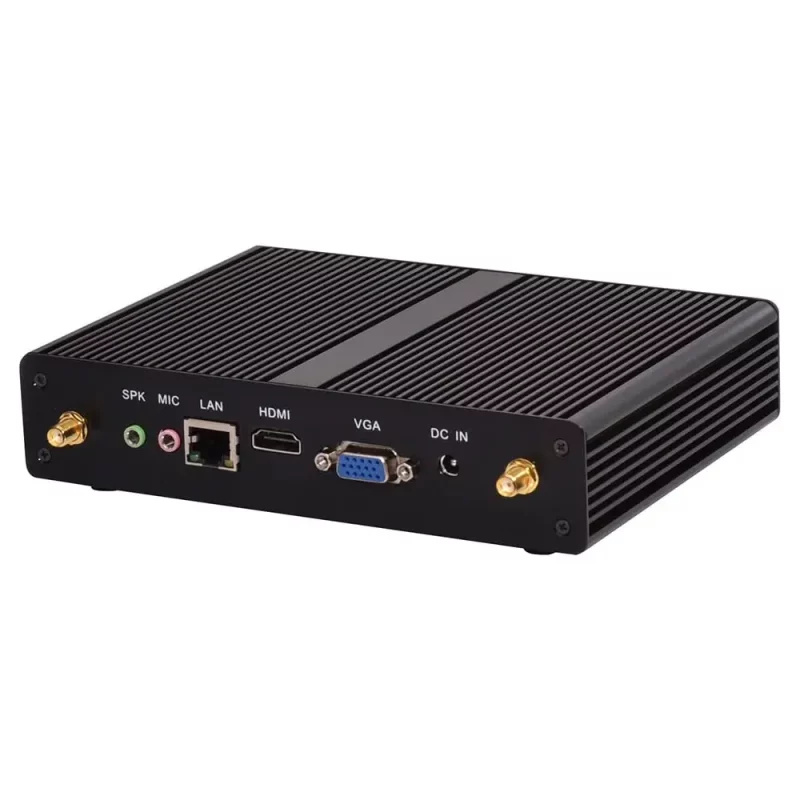

Rear Panel	1 x DC_in
	1 x VGA
	1 x HDMI
	1 x Lan
	1 x Audio
	2 x WiFi antennas

Software Support

Bios	AMI bios
System Support	Windows 10, linux ubuntu etc

General

Cooling Mode	Fanless
Power Supply	DC100-240V AC/50-60Hz, DC 12V3A/5A
Packing List	B6 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card

Environment

Operating Temperature	0°C~70°C Centigrade (32°F~140°F)
Storage Temperature	-20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity	10%~90% (non-condensing)
Certification	CE FCC ROHS

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	USB	Power
B6	2955U	Intel® HD Graphics	1.40 GHz	VGA/HDMI	1 x SO-DIMM DDR3L	1 x 2.5 inch/1 x M-SATA	1	6	12V/3A
B6	3205U	Intel® HD Graphics	1.50 GHz	VGA/HDMI	1 x SO-DIMM DDR3L	1 x 2.5 inch/1 x M-SATA	1	6	12V/3A
B6	I3 4020Y	Intel® HD Graphics 4200	1.50 GHz	VGA/HDMI	1 x SO-DIMM DDR3L	1 x 2.5 inch/1 x M-SATA	1	6	12V/3A
B6	I5 4200Y	Intel® HD Graphics 4200	1.40~1.9 GHz	VGA/HDMI	1 x SO-DIMM DDR3L	1 x 2.5 inch/1 x M-SATA	1	6	12V/5A
