Fanless Industrial Computer 6th Gen i3/i5/i7
Mode: Partaker I32
- Fanless Design: Silent & dust-resistant for reliable operation.
- Intel Processors: Powerful CPU options for industrial tasks.
- Compact Size: Lightweight & easy to integrate.
- Dual Display: Boosts productivity with VGA & HDMI.
- Gigabit LAN: Fast networking for seamless data transfer.
- TPM 2.0: Advanced security encryption for data protection.
- Flexible Storage: MSATA & 2.5″ HDD/SSD compatibility.
- Versatile I/O: Multiple ports for diverse peripherals.
- Rugged Aluminum: Durable construction for harsh environments.
- Wide Temp Range: Reliable from -20°C to +50°C.
Share to:
Overview
Introducing our sleek and durable Fanless Industrial Computer, crafted from high-quality all-aluminum in customizable titanium gray. Equipped with powerful Intel processors (Celeron 3855U to Core i5 6200U), up to 16GB DDR4 RAM, and Intel HD Graphics, it’s perfect for demanding industrial applications. With multiple I/O ports, expansion slots, and secure TPM 2.0 encryption, this computer is designed for reliability and versatility. Suitable for industrial automation, medical, logistics, warehouse, and electronic education environments.
Mechanical
| Model | Partaker I32 Industrial Fanless PC |
| Processor | Onboard Intel Core i3 6100U（Dual core quad threading，2.3G，TDP:15W） Onboard Intel Core i5 6200U（Dual core quad threading，2.3GHz，Max turbo 2.8GHz） Onboard Intel Core i7 6500U（Dual core quad threading，2.5GHz，Max turbo 3.1GHz） |
| CPU | Skylake-U |
| Memory | Support 1*DDR4 1866/2133 SODIMM memory slot，Max :16GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 510/520 |
| Display port | 1*VGA port，1*HDMI port |

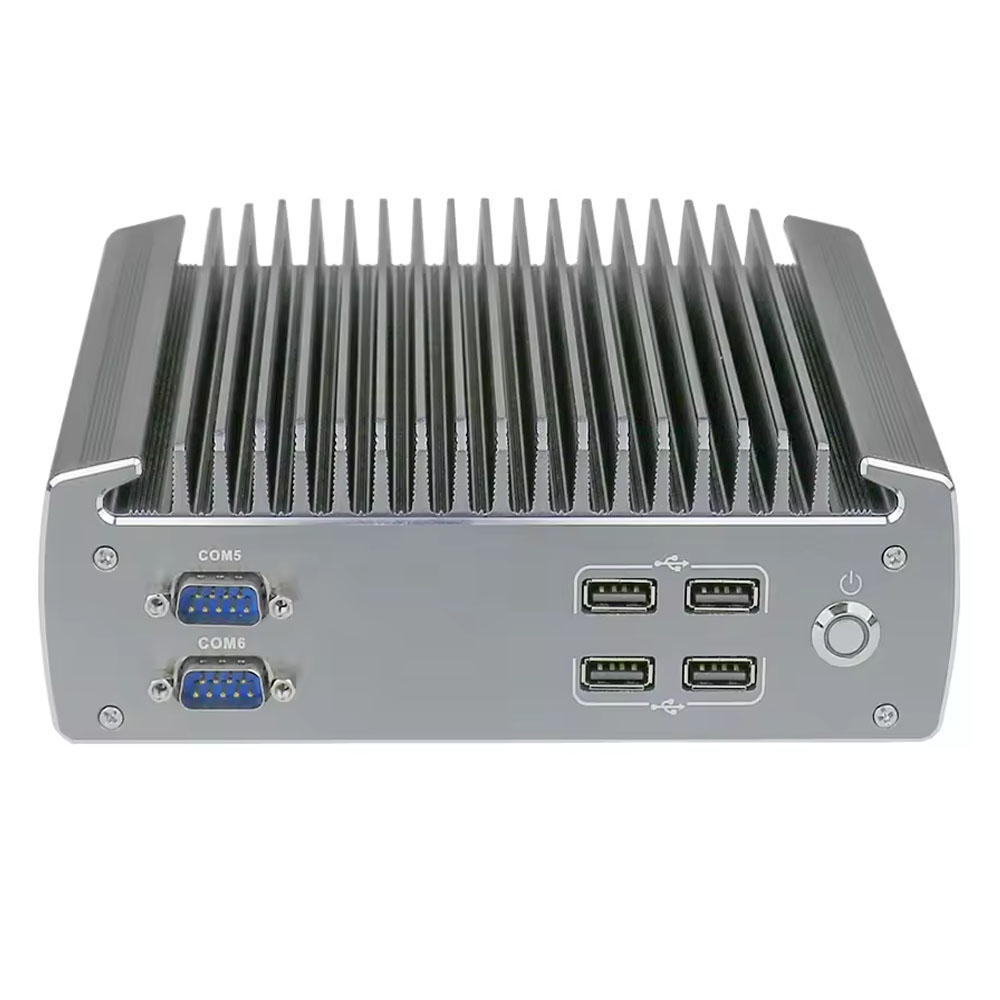

| Front I/O | 4*USB2.0，2* COM ，1* Power Switch |

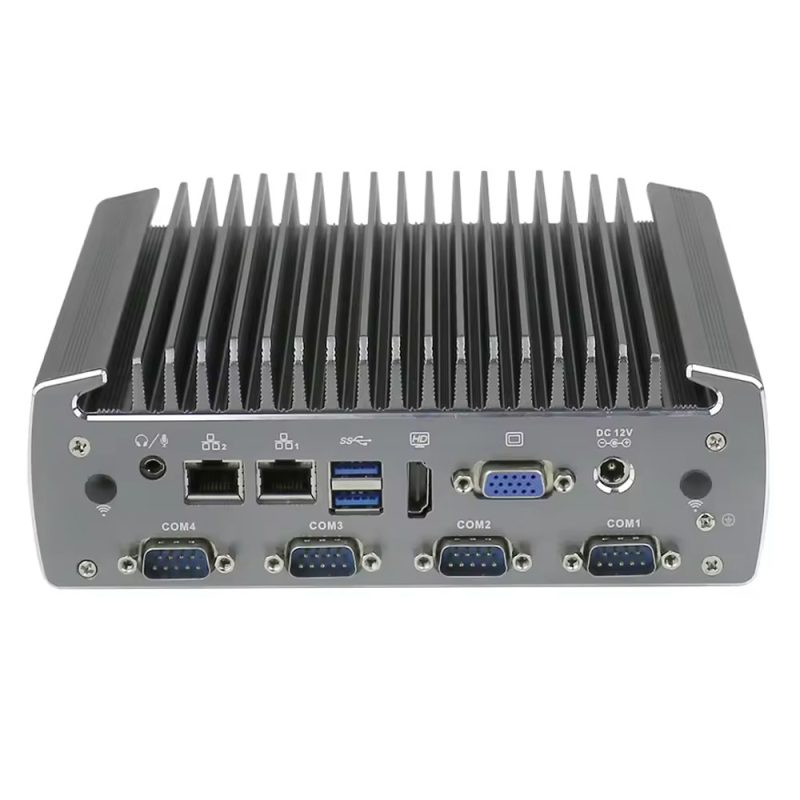

| Rear I/O | 4*4 2*USB3.0，4* COM，2*Intel 1000M LAN,1*VGA，1*HDMI，1*DC 、 1*Audio (Support Mic and Speaker at the same time） |
| Expansion Slot | Support 1*MINI PCIE slot（support MSATA）； Support 1*MINI PCIE slot（WIFI/3G/4G Optional），Embedded Sim Slot； |
| Lan port | 2*Intel i211-AT 10/100/1000M Lan |
| Storage port | Support 1* MSATA slot，1*2.5” HDD |
| Power Supply | Support DC 12 V input |
| Other functions | Power-on, Time-on, network wake-up, PXE boot, watchdog(0-255) |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
| Structure Parameter : | |
| Color | Titanium gray (Color can be customized) |
| Material | High-quality all aluminum，surface anodic oxidation |
| Size | 186* 150 * 66mm【No VESA mount】 |
| Weight | 1.6 kg【No VESA mount】 |
| Environmental Parameters : | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industry SSD），Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| I32 | i3 6100U | Intel® HD Graphics 520 | 2.30 GHz | 1 x VGA, 1 x HDMI | 1 x DDR4, Max 16G | 1 x mSATA, 1 x 2.5”HDD | 2 | 6 | DC 12V |
| I32 | i5 6200U | Intel® HD Graphics 520 | 2.3-2.80 GHz | 1 x VGA, 1 x HDMI | 1 x DDR4, Max 16G | 1 x mSATA, 1 x 2.5”HDD | 2 | 6 | DC 12V |
| I32 | i7 6500U | Intel® HD Graphics 520 | 2.5-3.10 GHz | 1 x VGA, 1 x HDMI | 1 x DDR4, Max 16G | 1 x mSATA, 1 x 2.5”HDD | 2 | 6 | DC 12V |
