Embedded I3 I5 I7 Industrial PC

Mode: Partaker I22

Celeron 3855U, i3-6100U, i5-6200U, or i7-6500U CPUs.
Up to 16GB DDR4 RAM supports demanding applications.
1x mSATA slot and 1x 2.5″ HDD for flexible storage configurations.
5x Gigabit LAN (4x PoE 802.3af) for powering cameras/devices.
32-channel opto-isolated GPIO ensures industrial-grade signal integrity.
Expandable via mini PCIe (WiFi/3G/4G) and embedded SIM slot.
Wide 9-36V DC input for unstable power environments.

Share to:

Overview

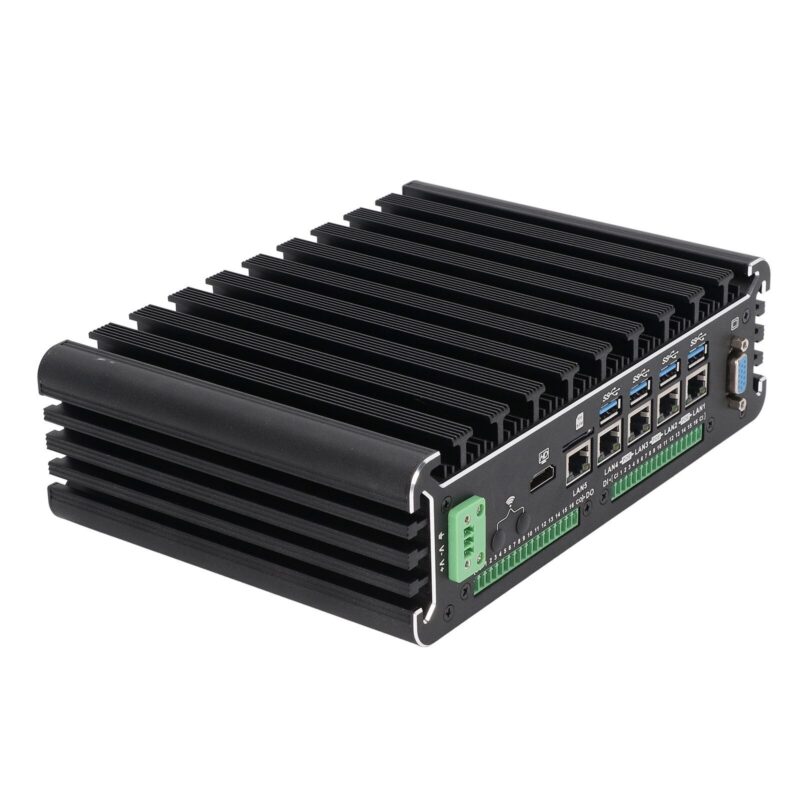

I22 Fanless Industrial PC delivers robust performance for industrial applications with 6th Gen Intel processors (Celeron 3855U, i3-6100U, i5-6200U, or i7-6500U) and Intel HD Graphics 510/520, supporting dual displays via HDMI and VGA for seamless multitasking. Built for durability, its fanless design houses up to 16GB DDR4 RAM, five Intel i211-AT Gigabit LAN ports (four 802.3af PoE-enabled), and two opto-isolated GPIO connectors, ensuring reliable connectivity for machine vision, CCTV systems, and industrial automation. Compact, silent, and engineered for 24/7 operation, it combines high-speed networking, expandability, and rugged performance in harsh environments.

Mechanical

Model	Partaker I22 Machine Vision Industrial PC

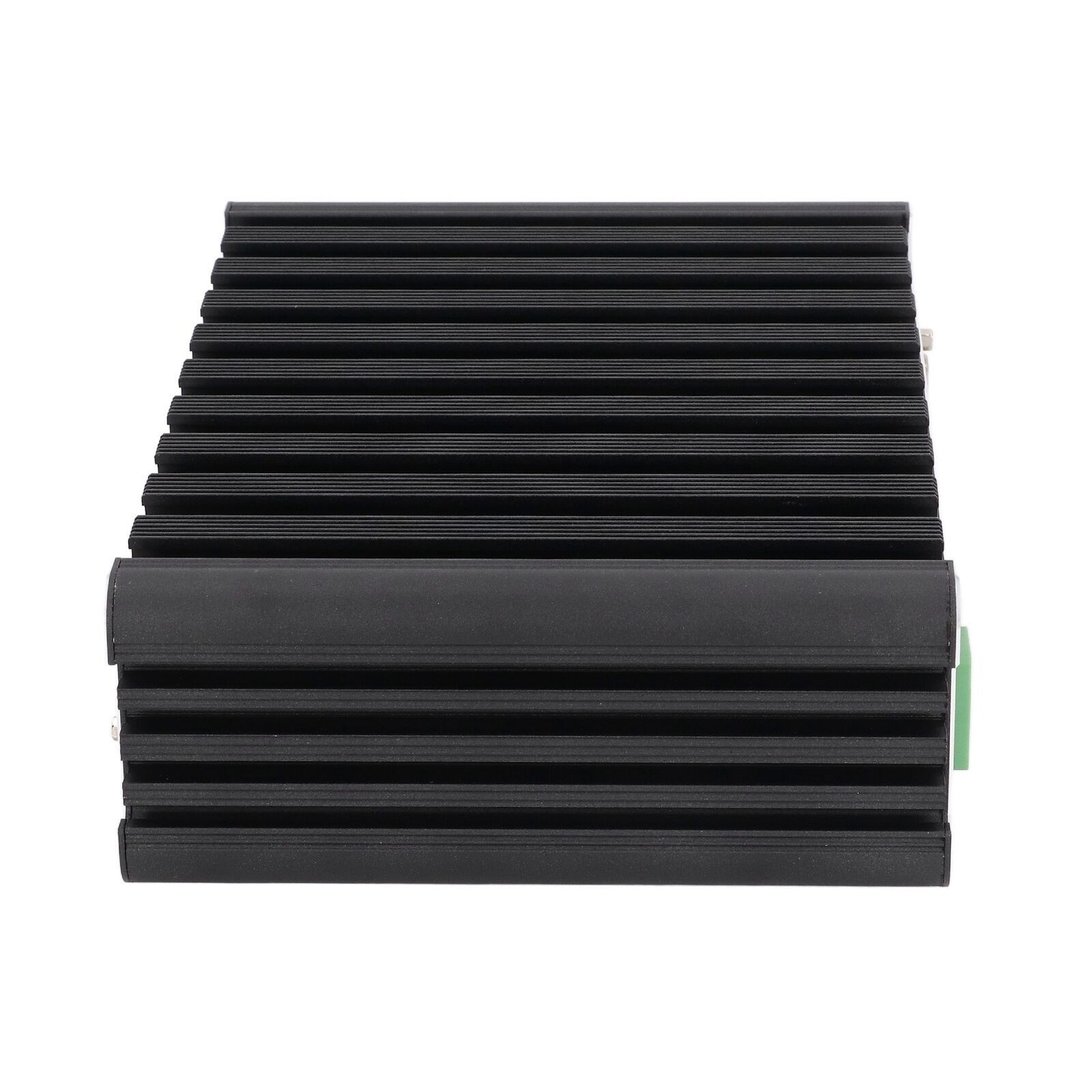

Case	High-quality pure aluminum mini pc case
CPU	Adopt Intel Skylake Celeron 3855U Dual Core 1.6GHz; Core I3 6100U, i5 6200U, i7 6500U is optional
Display chip	Integrated Intel HD Graphics 510/520
Mainboard	17*17CM mini itx motherboard
Usable system	Win 7/8/10, linux OS
Memory	Support 1*DDR4 1866/2133Mhz ram slot , max 16GB
Storage	1SATA3.0, 1MSATA
Display port	1VGA, 1HD
BIOS	SPI AMI EFI BIOS

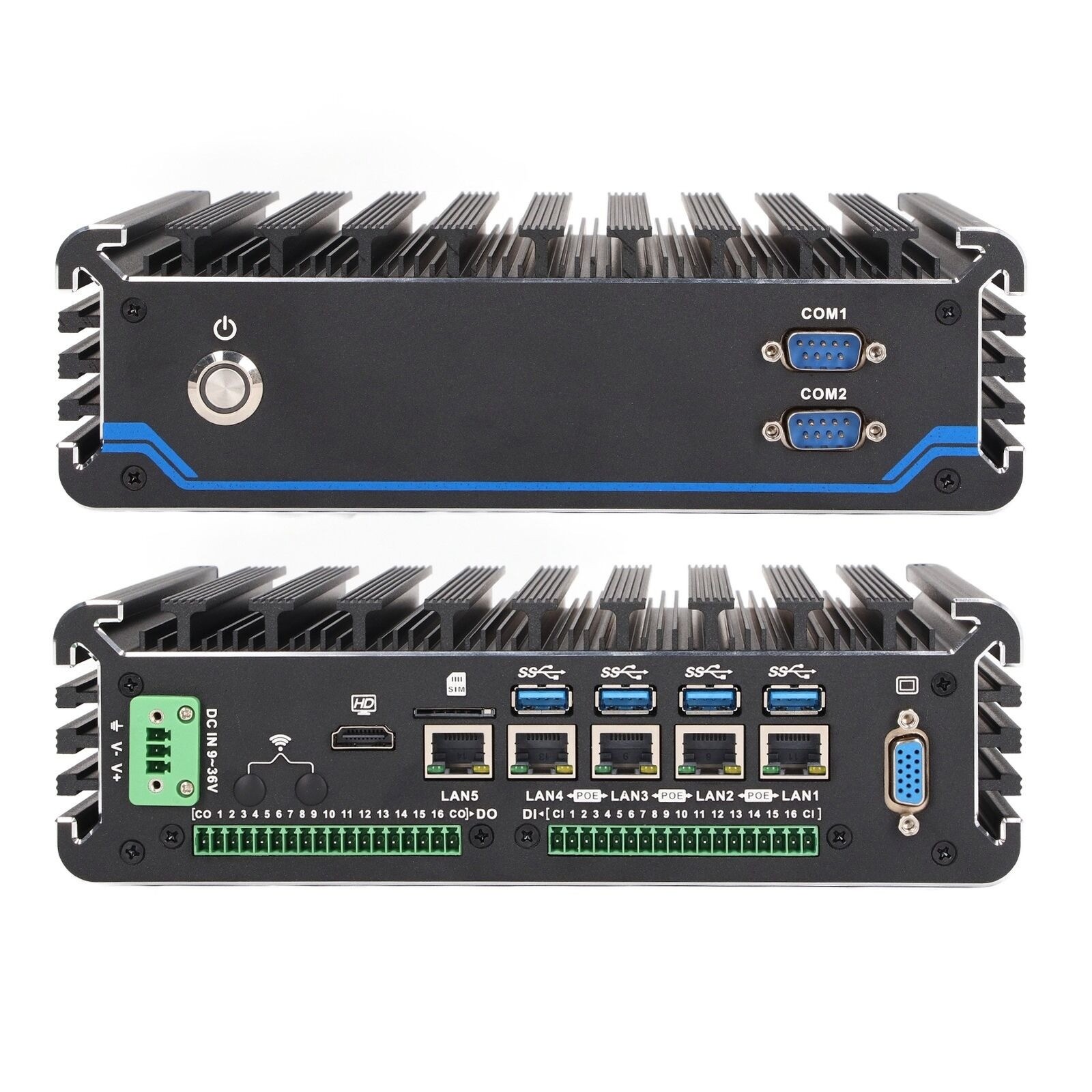

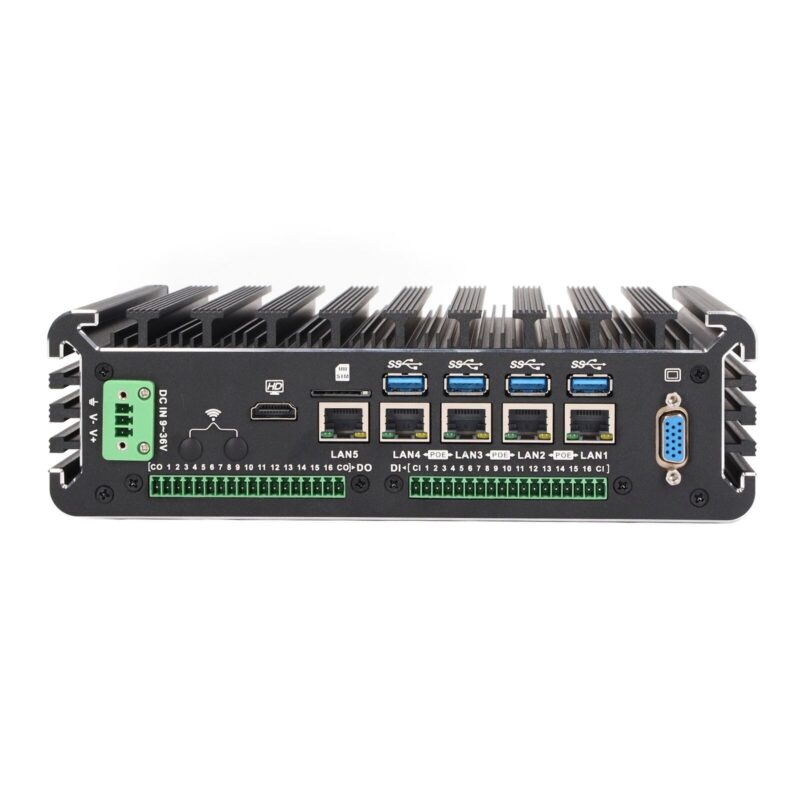

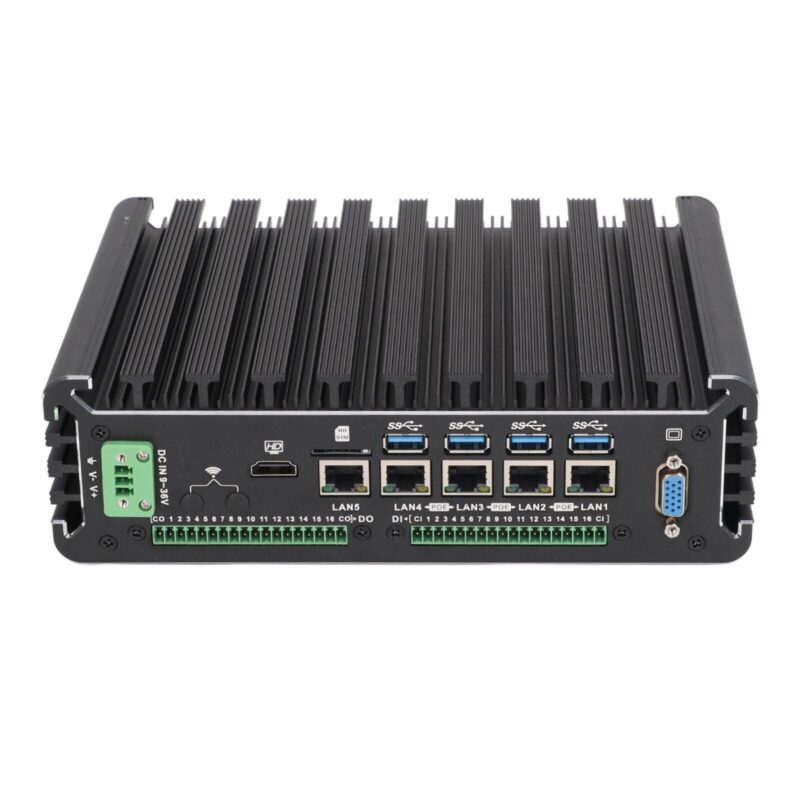

Rear I/O	1*HD
	4*USB3.0
	1*2Pin Phoenix Terminal
	5Intel Lan (4Lan support 802.3af standard POE port)
	1*VGA
	2*18Pin GPIO Phoenix Terminal (with optocoupler isolation function)
	6COM (2COM support RS422/485) (10*COM Optional)

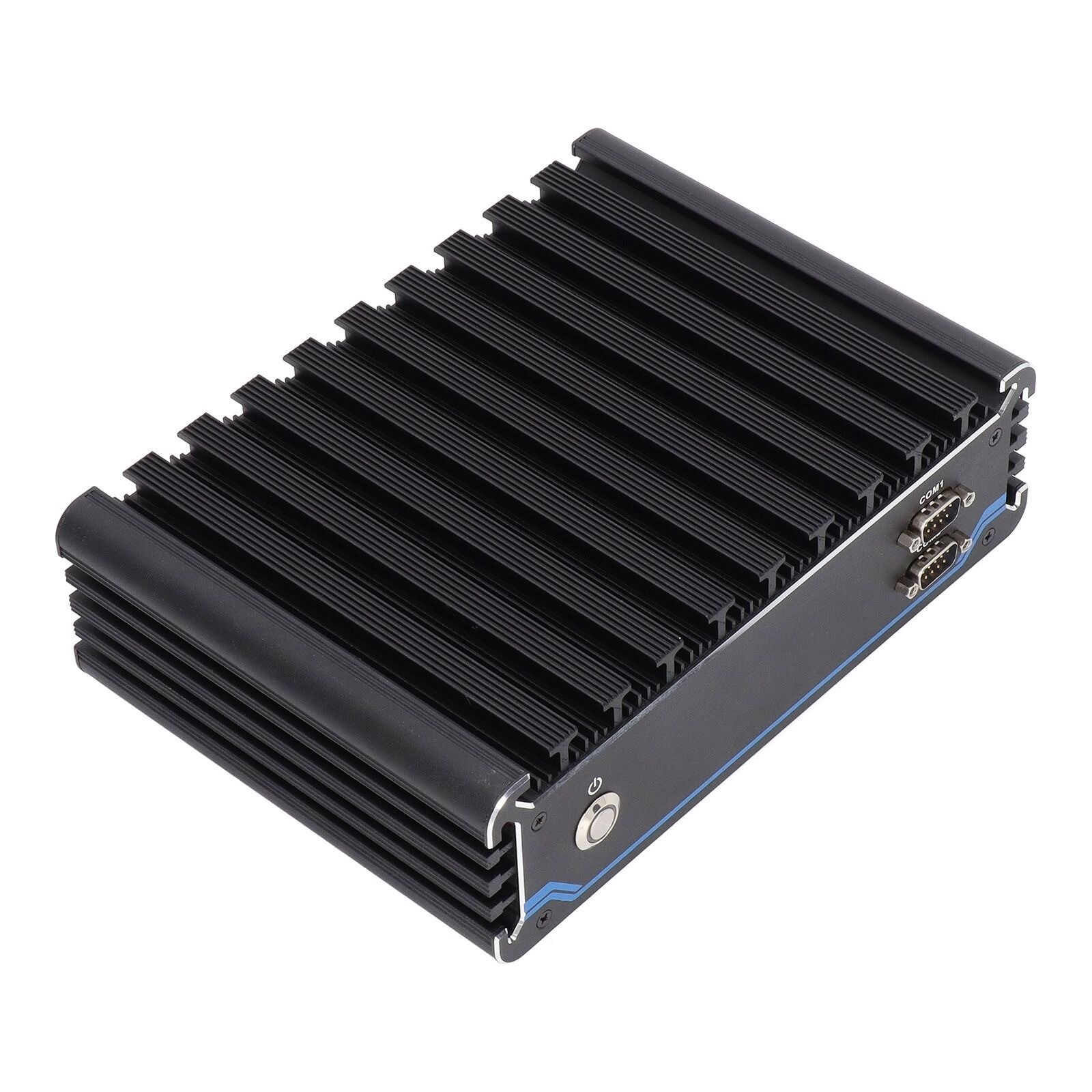

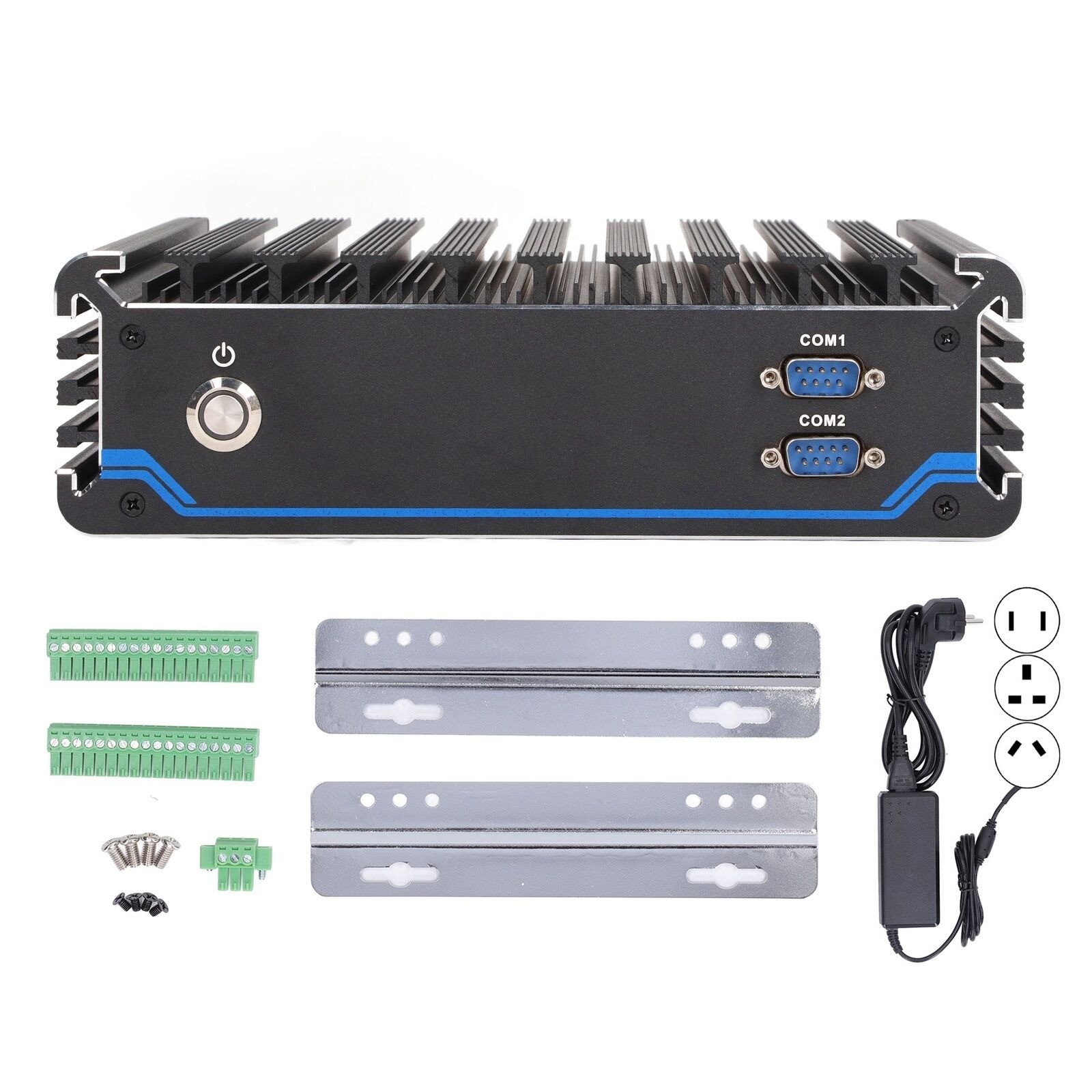

Front I/O	2*COM (COM2 support RS232/485 optional)
Front I/O	1*Power Switch
expansion slot	1Mini-PCIE (support Wifi/3G/4G optional), Embedded SIM Slot; 1Mini-PCIE (support MSATA)
Network	5Intel i211-AT 10/100/1000M Lan (4Lan support 802.3af standard POE port)
Power supply	Support 9V ~ 36V wide voltage
Work temp	0℃ ~ +50℃ (HDD),-20℃ ~ +60℃ (SSD), Surface air flow
Work humidity	5%~95% non-condensing
Dimension	237 * 164 * 70.5mm
Applications	Applied in Automat, Machine Vision, Digital signage, kiosk, Energy, telecommunication, Networking, Transportation, IP camera etc.

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	USB	Power
I22	3855U	Intel HD Graphics 510	1.60 GHz	1 x VGA 1 x HDMI	1 x DDR4, Max 16G	1 x mSATA 1 x 2.5 Inch HDD	5	4	DC 9~36V wide voltage
I22	i3 6100U	Intel HD Graphics 520	2.30 GHz	1 x VGA 1 x HDMI	1 x DDR4, Max 16G	1 x mSATA 1 x 2.5 Inch HDD	5	4	DC 9~36V wide voltage
I22	i5 6200U	Inte HD Graphics 520	2.3-2.80 GHz	1 x VGA 1 x HDMI	1 x DDR4, Max 16G	1 x mSATA 1 x 2.5 Inch HDD	5	4	DC 9~36V wide voltage
I22	i7 6500U	Intel HD Graphics 520	2.5-3.10 GHz	1 x VGA 1 x HDMI	1 x DDR4, Max 16G	1 x mSATA 1 x 2.5 Inch HDD	5	4	DC 9~36V wide voltage
