AMD Ryzen Mini PC

AMD Ryzen Mini PC

Model: Partaker B13

  • Aluminum alloy chassis in black, lightweight at 1.5Kgs.
  • Supports desktop or VESA mount installation.
  • Choose from Ryzen 5, 7, or 9 processors with Radeon Graphics.
  • Up to 8 cores and 16 threads for maximum performance.
  • Display connectivity via HDMI, DP, and Type-C ports.
  • Dual M.2 NVMe SSD slots for fast storage.
  • Up to 64GB DDR4 RAM for multitasking and high-performance tasks.
  • I/O ports for versatile connectivity, including USB 3.0, USB-C, and 2.5G LAN.
  • Supports Wake on LAN, RTC, and Auto Power On features.

Share to:

Overview



Mini PC Ryzen 5 5600H, Ryzen 7 5800H, Ryzen 9 5900HX are powerful and compact mini computers with AMD Ryzen processors, DDR4 memory, M.2 SSD storage and multiple ports. They support 4K UHD video output, dual display and Wi-Fi 6.  They are ideal for home, office, gaming, entertainment and more. You can customize your mini PC according to your needs and preferences. Mini PC Ryzen 5 5600H, Ryzen 7 5800H are the ultimate mini PC solutions for your various computing needs.



Mechanical

Material Aluminum alloy
Colour Black
Size 5.7x 5.7 x 1.8 Inch
Weight 1.5Kgs
Insallation Method Desktop type/Vesa

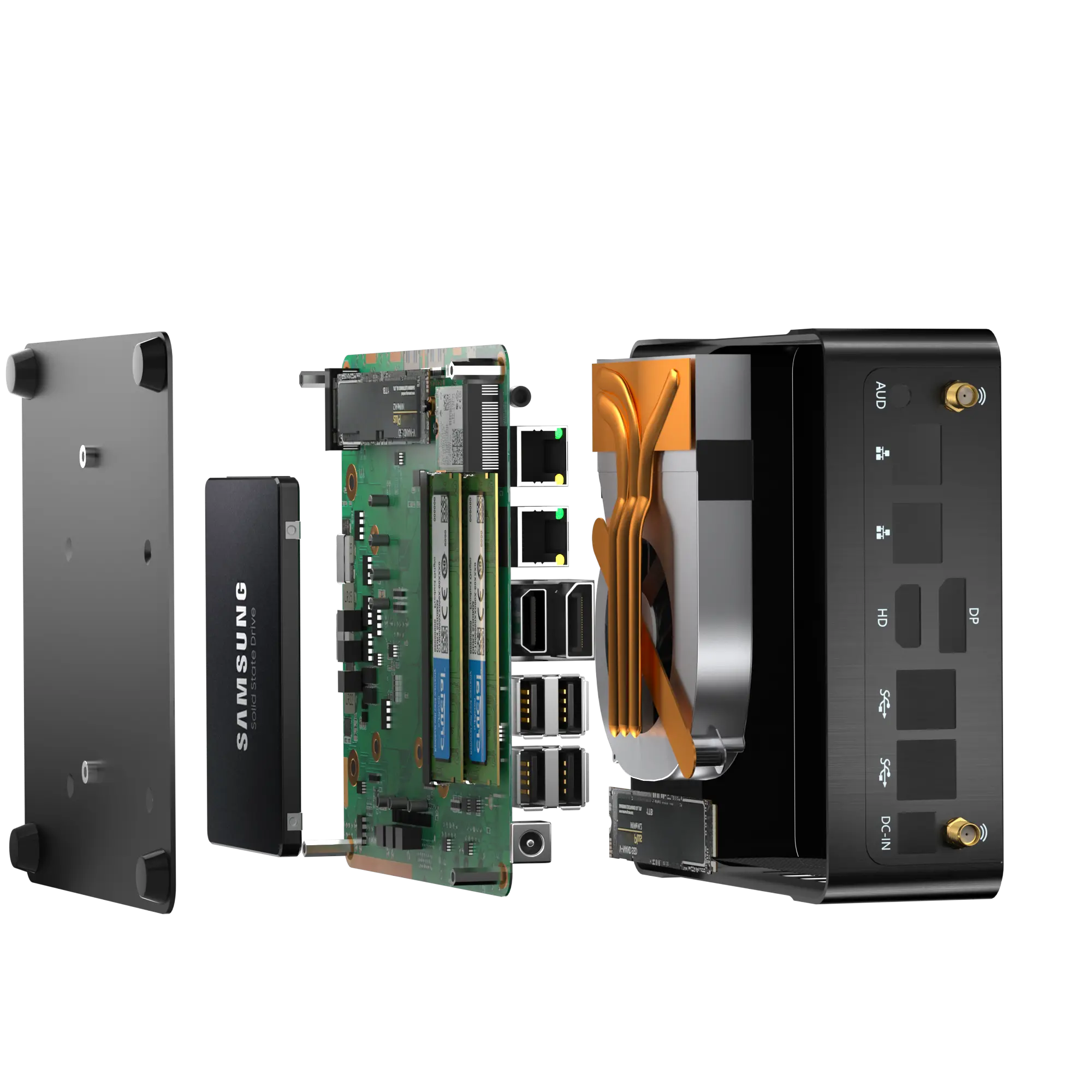

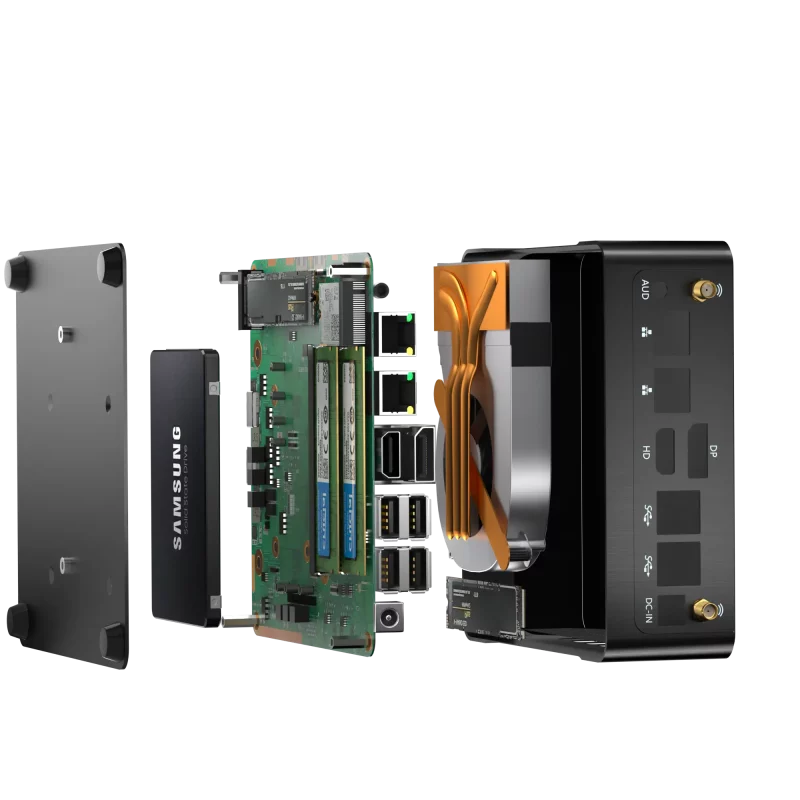

Motherboard

CPU Ryzen 5 5600H processor, 6 Cores 12 Threads, base frequency: 3.3GHz, max 4.2GHz, 16MB L3 cache

Ryzen 7 5800H processor and Radeon Graphics, 8 Cores 16 Threads, base frequency: 3.2GHz, max 4.4GHz, 16MB L3 cache

Ryzen 9 5900HX processor and Radeon Graphics, 8 Cores 16 Threads, base frequency: 3.3GHz, max 4.6GHz, 16MB L3 cache

Display Ports 1 x HDMI, 1 x DP,  1 x Type-C
Graphic AMD Radeon Graphics
Network Card 1 x 1GB LAN PORT, 1 x 2.5GB LAN PORT
Memory 2 x DDR4-3200 RAM slot, Max 64GB RAM

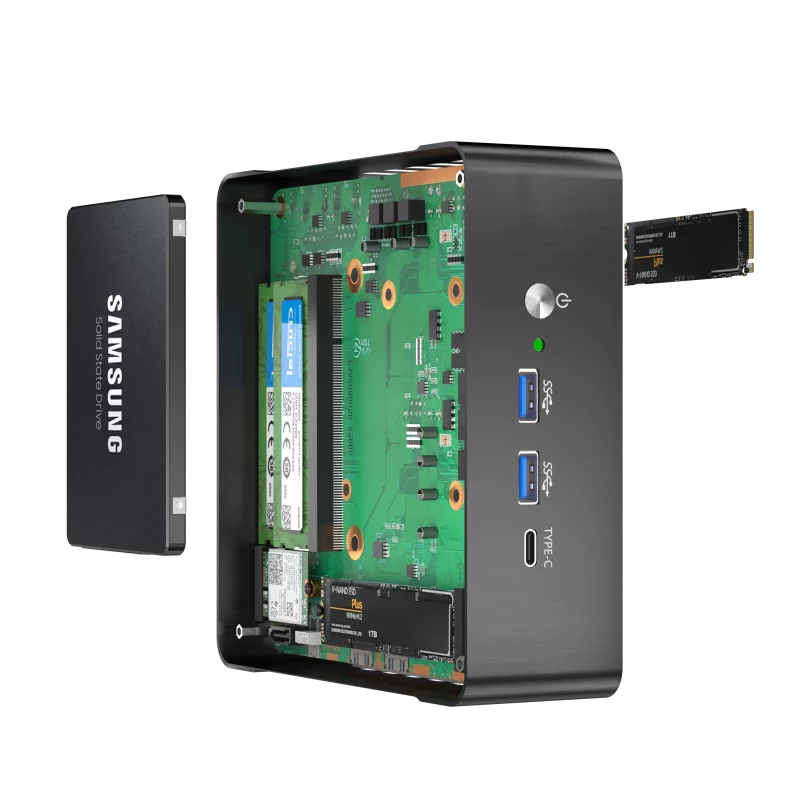

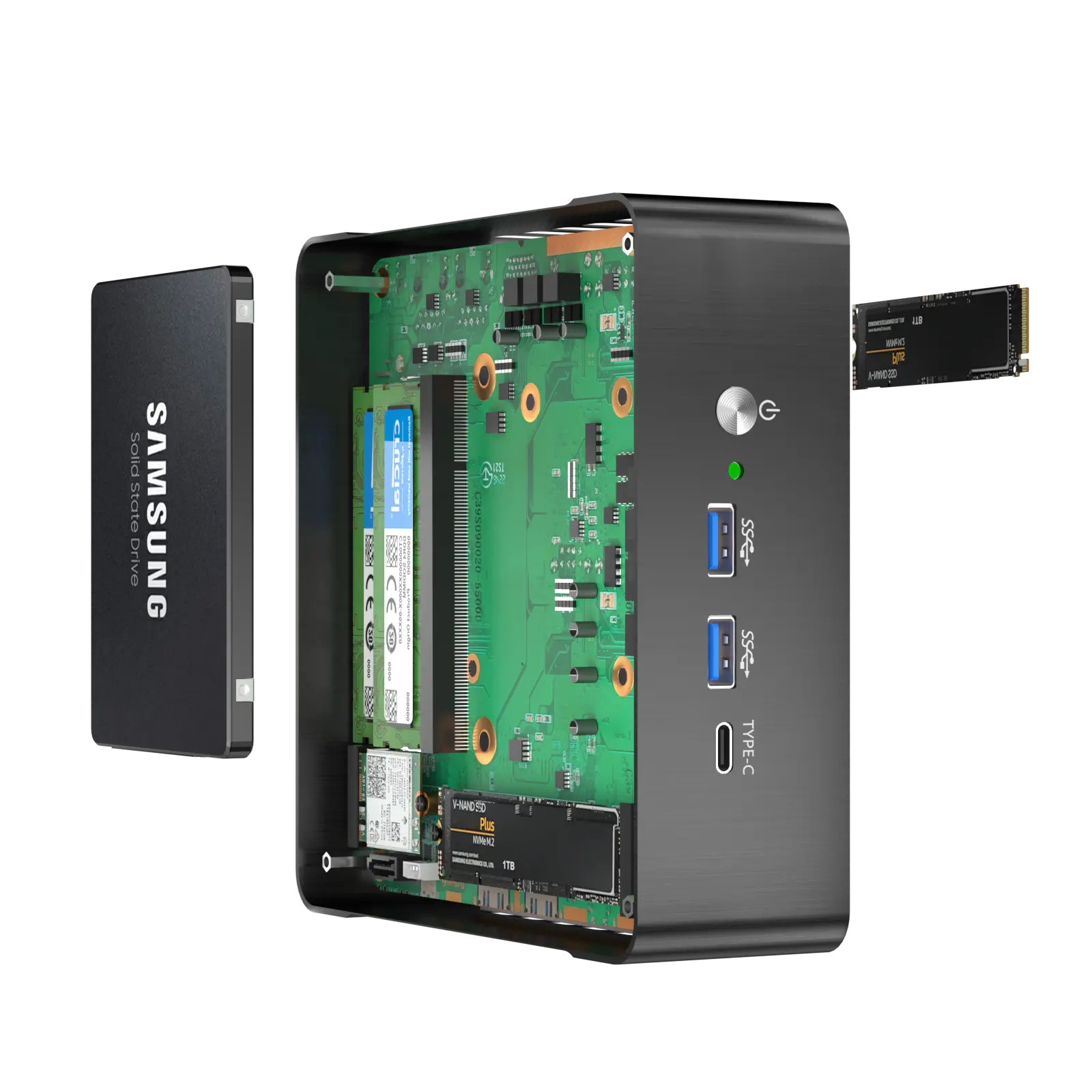

Storage 2 x 2280 M.2 NVME/PCIE3.0 high speed SSD. Support Add 2TB 2.5’SSD/HDD(NOT INCLUDE)
Other Function RTC/Wake on Lan/Auto Power on(BIOS setting)



I/O Interfaces

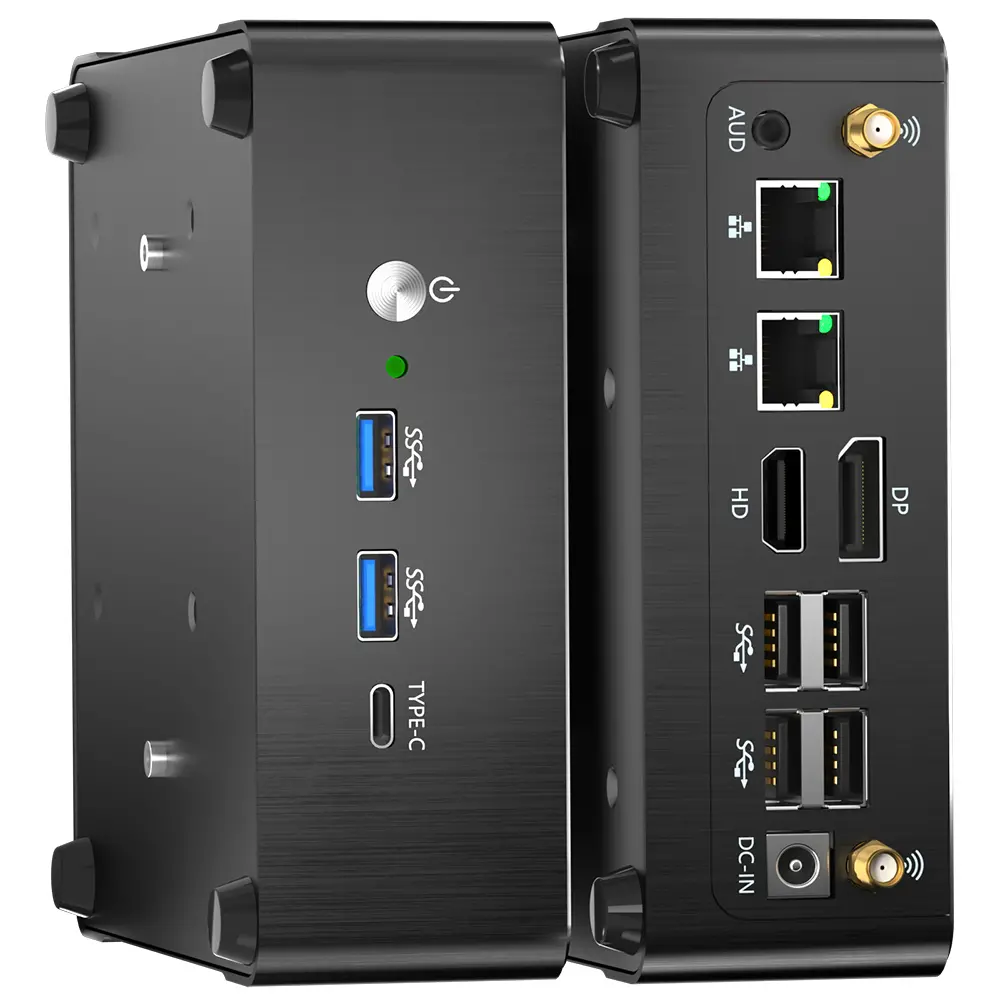

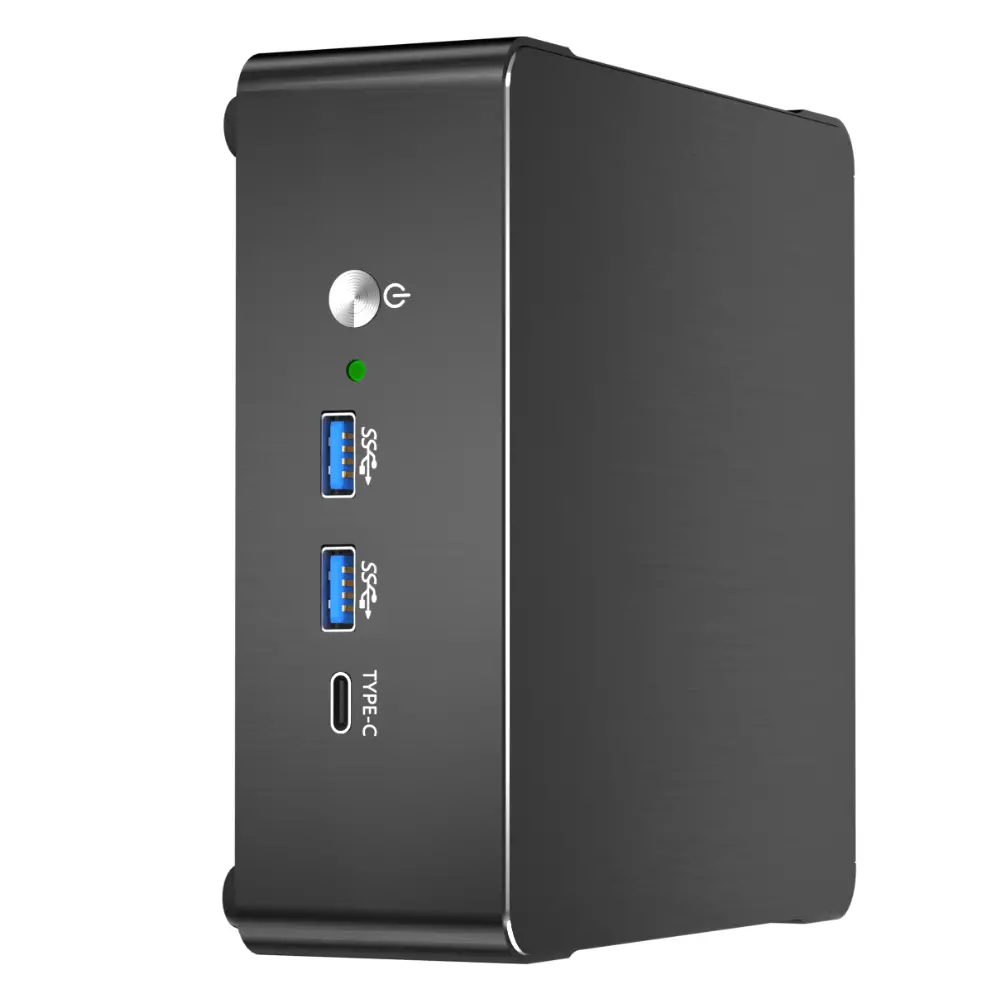

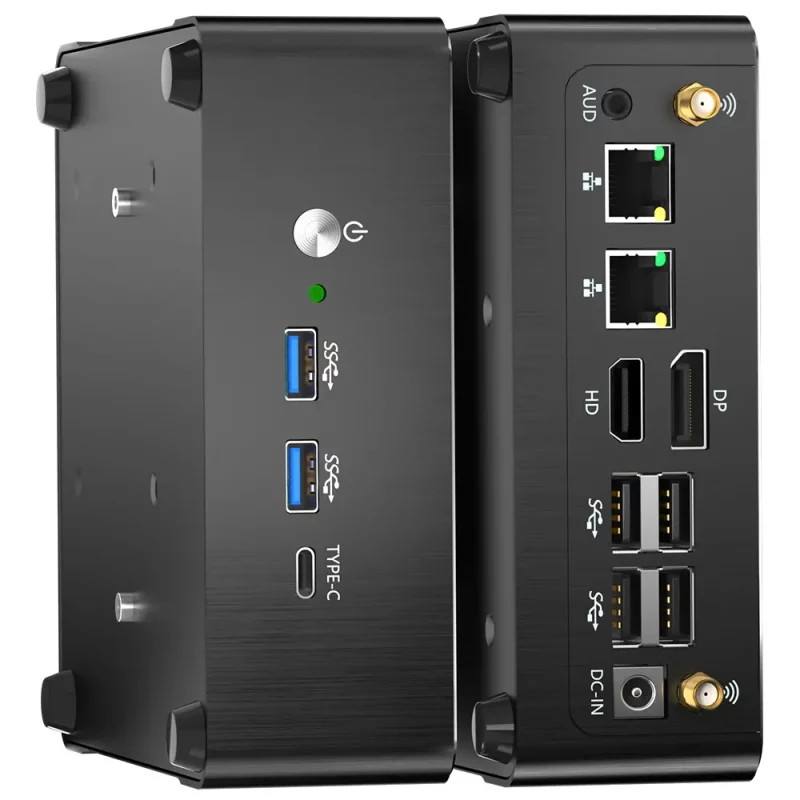

Front Panel 2 x USB3.0
1 x Type-C(USB-C, 4K@60Hz) Support one-line video output
1 x Power Button

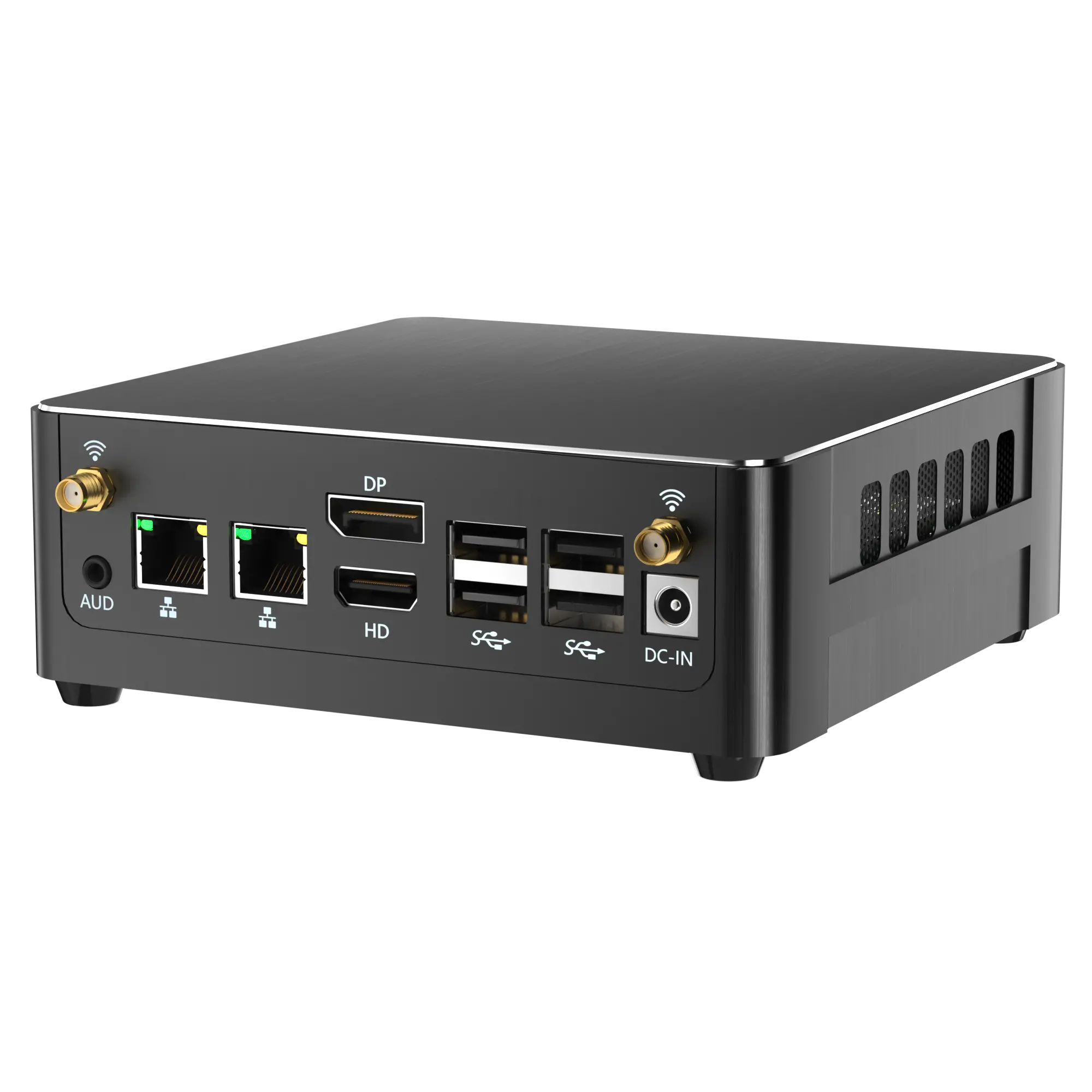

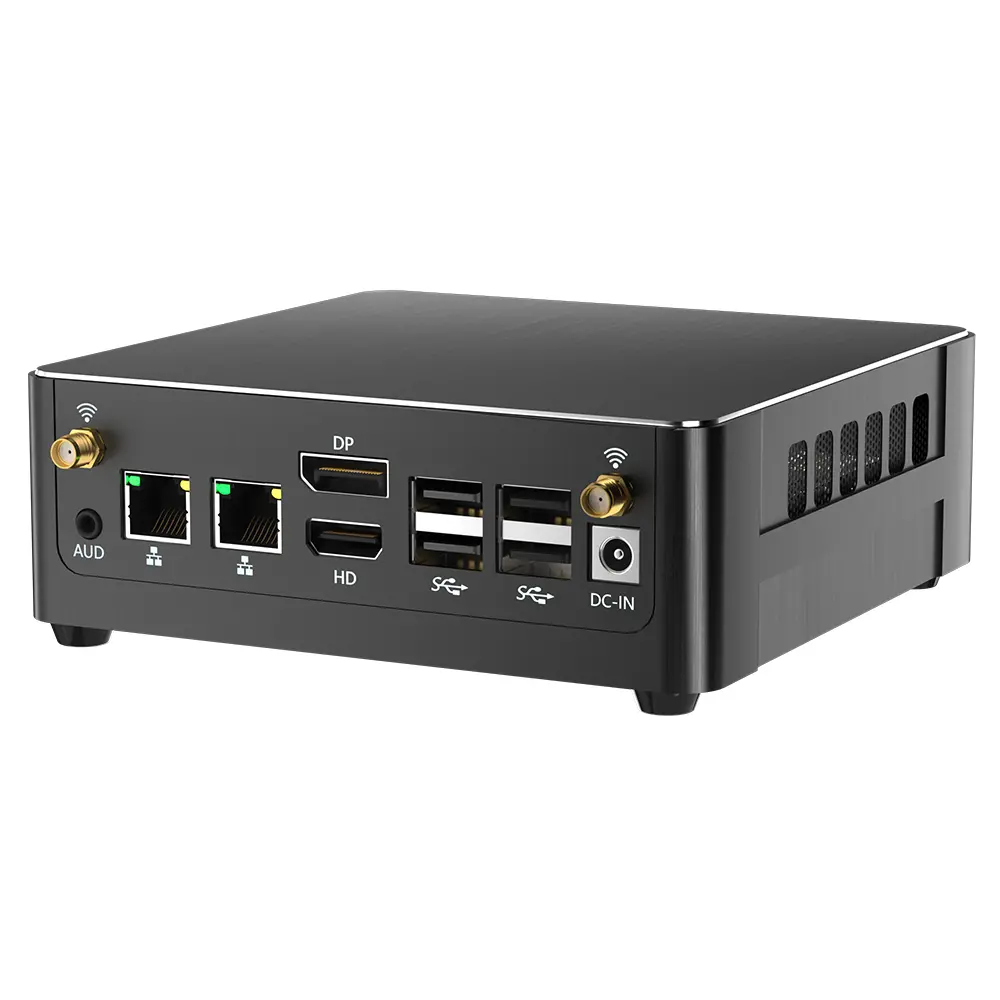

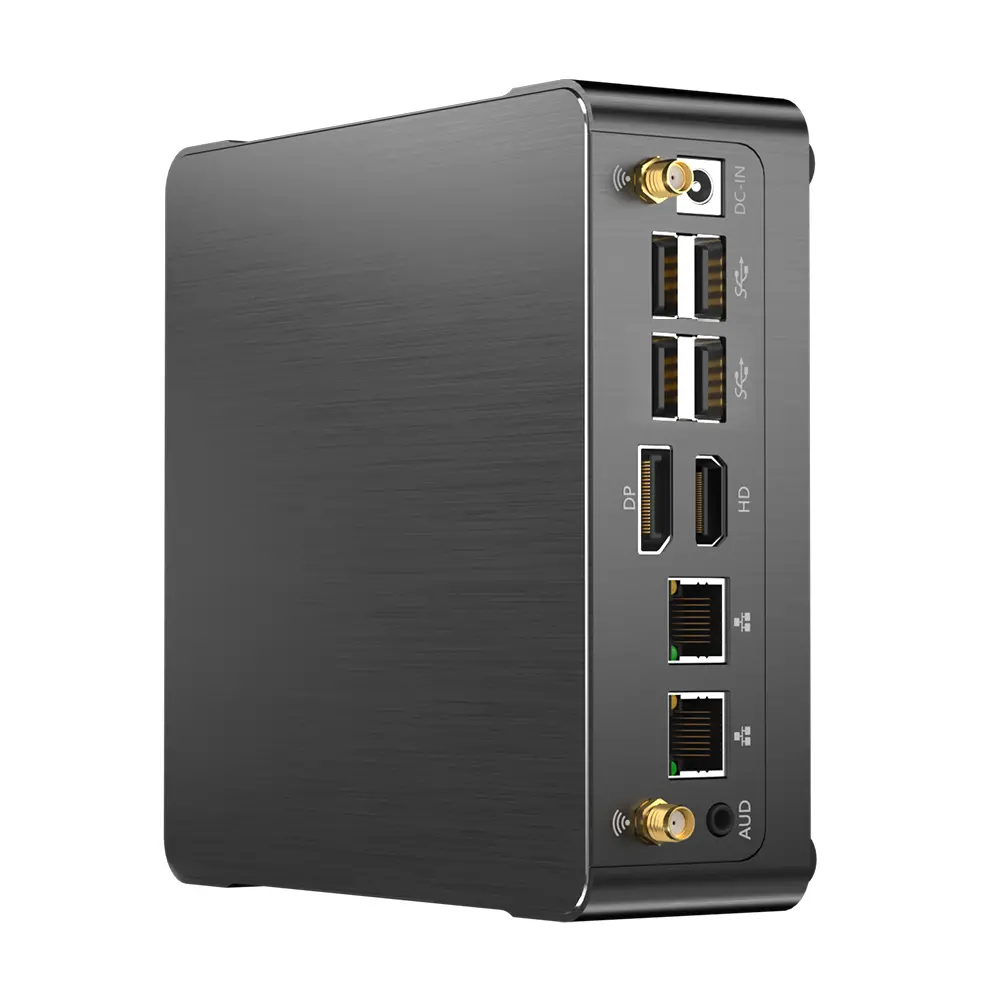

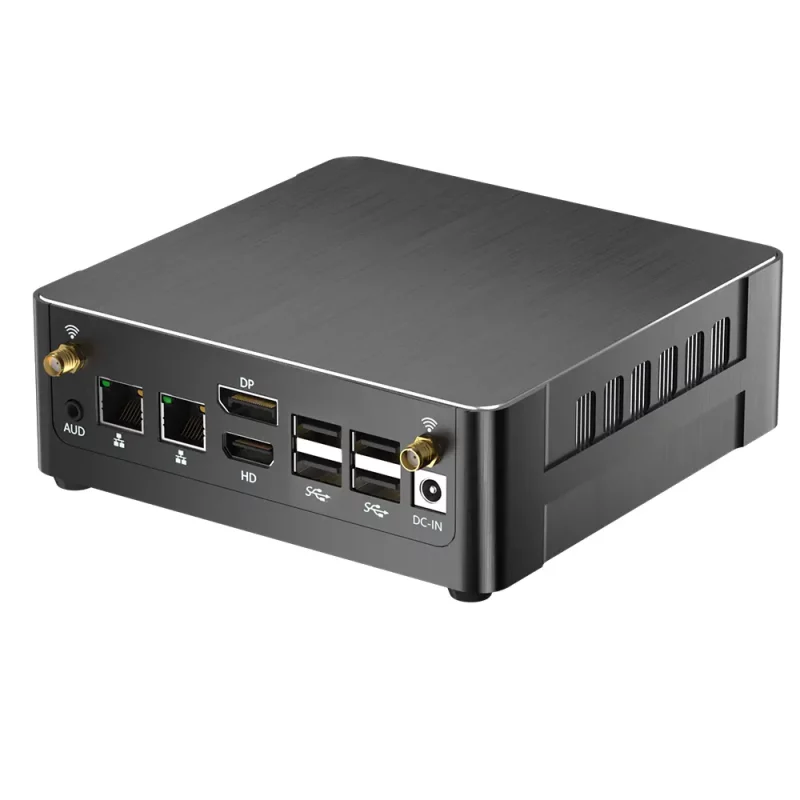

Rear Panel 1 x 3.5mm Headest Jack

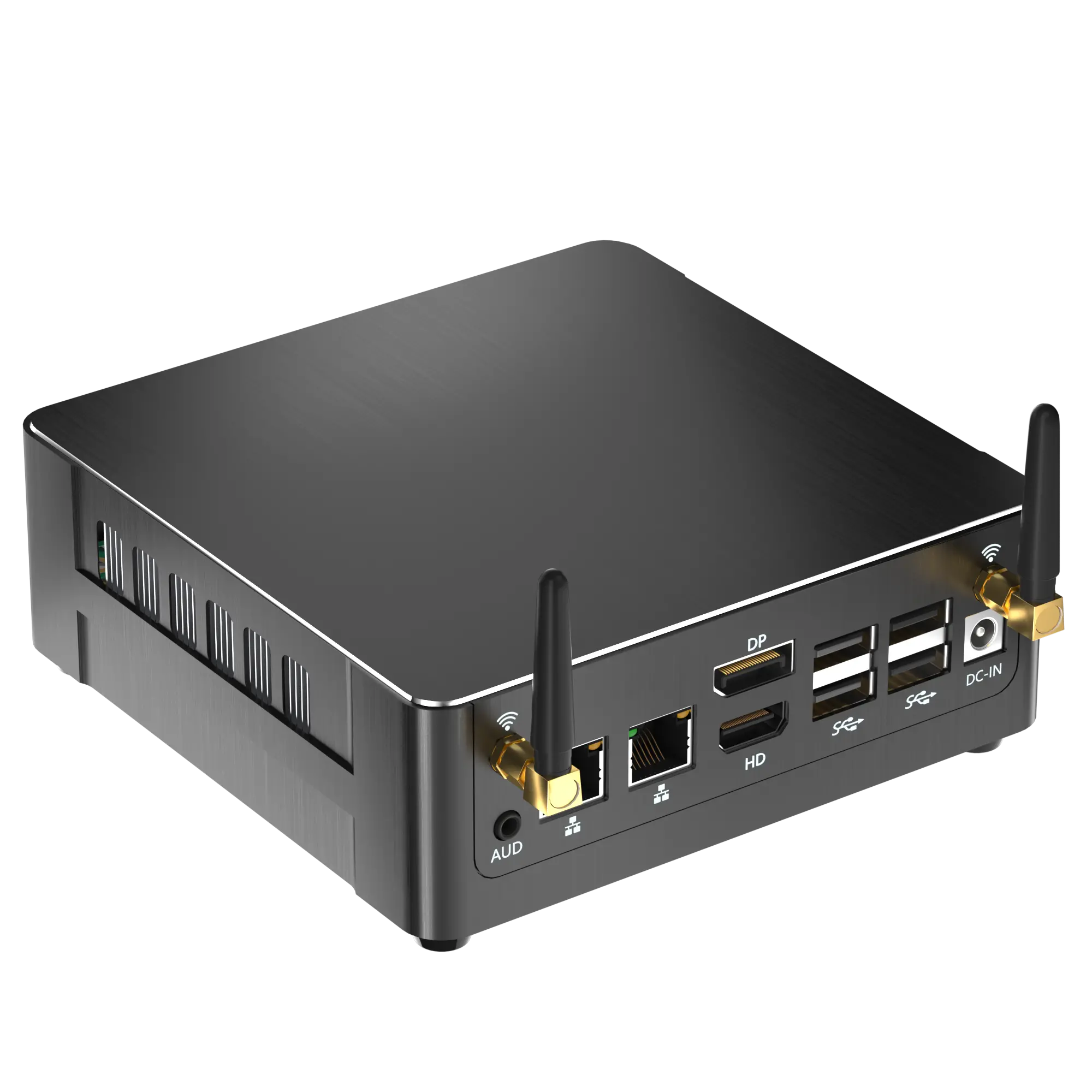

2 x WiFi Holes
1 x 2.5G Lan
1 x 1G Lan
1 x DP 1.4A(4K@60Hz)
1 x HDMI 2.0(4K@60Hz)
4 x USB2.0
1 x DC-IN



Software Support

Bios AMI EFI BIOS
System Support Windows, Linux Ubuntu,



General

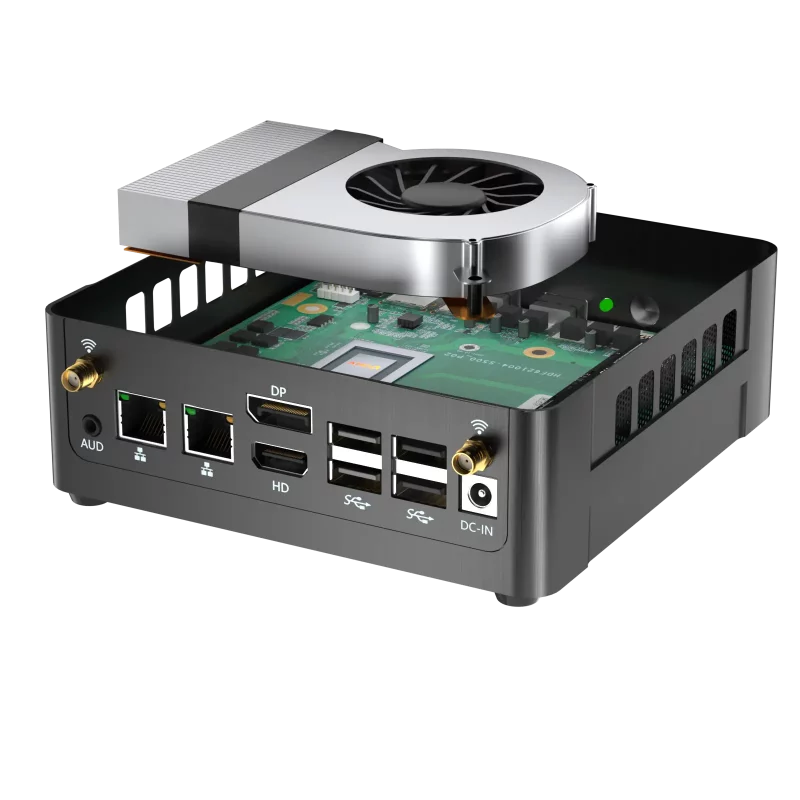

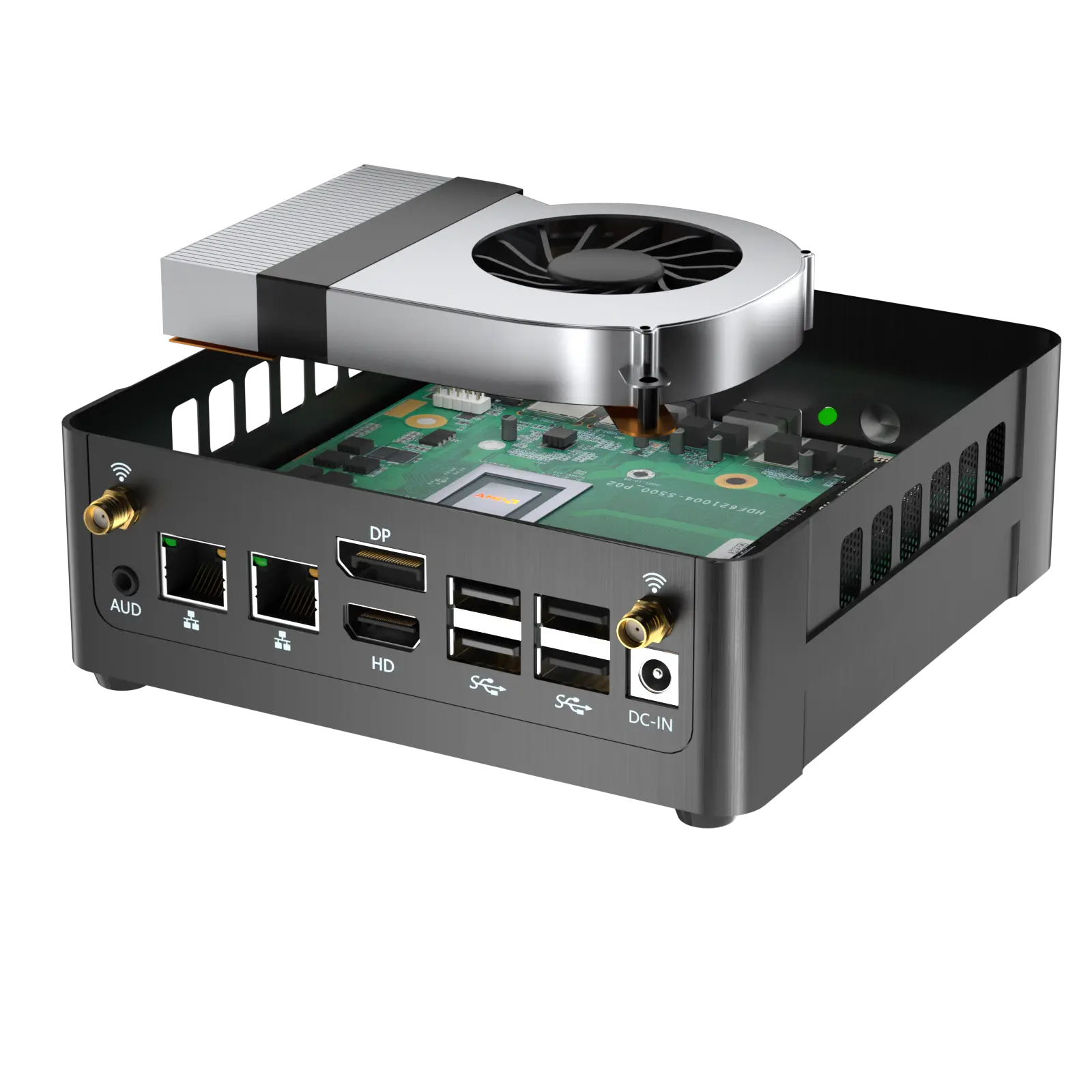

Cooling Mode With Smart Fan
Power Supply Support 100-240V
Packing List 1 x mini computer, 1 x Bracket, 1 x HDMI Cable, 1 x Power adapter with cable, 2 x External antenna, 1 x User Manual, 1 x VESA mount



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B13 5 5600H AMD Radeon™ Graphics 3.3~4.2GHz DP/HDMI/Type-C 2 x SO-DIMM DDR4 2 x M.2 2280 NVMe/1 x 2.5 Inch SSD/HDD 2 6 Support 100-240V
B13 7 5800H AMD Radeon™ Graphics 3.2~4.4GHz  DP/HDMI/Type-C 2 x SO-DIMM DDR4 2 x M.2 2280 NVMe/1 x 2.5 Inch SSD/HDD 2 6 Support 100-240V
B13 9 5900HX AMD Radeon™ Graphics 3.3~4.6GHz  DP/HDMI/Type-C 2 x SO-DIMM DDR4 2 x M.2 2280 NVMe/1 x 2.5 Inch SSD/HDD 2 6 Support 100-240V
