8 Inch Embedded Panel PC

Model: Partaker Z18

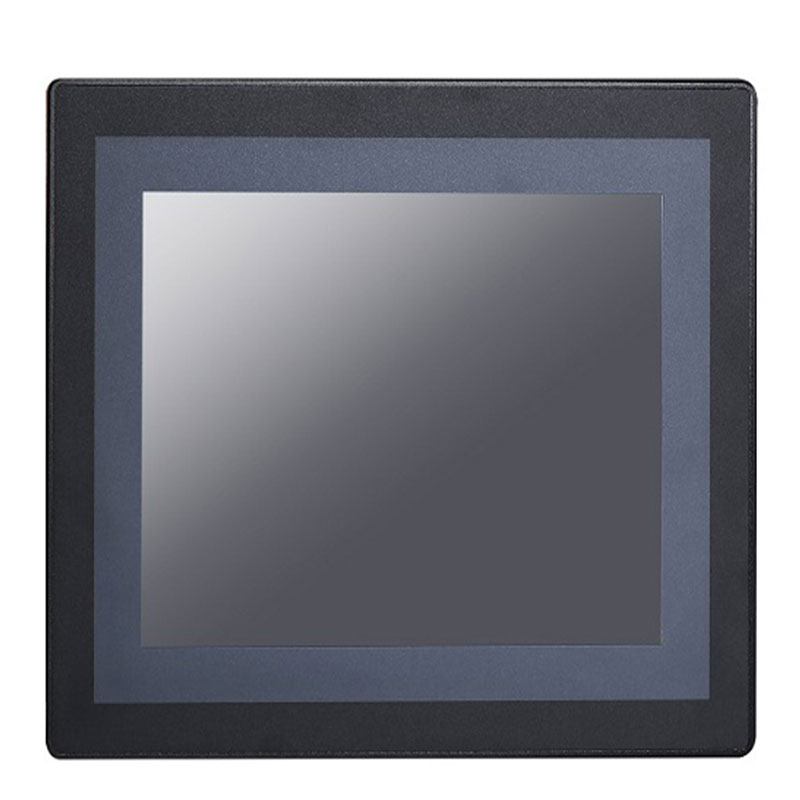

8″ Industrial-Grade Display
1024×768 resolution, 250cd/m² brightness, 800:1 contrast
Intel J1900, 2.42GHz CPU, 8GB DDR3L RAM, mSATA SSD
High-temp 5-wire resistive screen, 0–50°C operation, silent & dustproof
RS485/422, dual RS232, USB 3.0, dual LAN, HDMI, 9–28V DC
Mini PCIe slot with SIM support, Flexible Expansion Options
Pre-Installed Win11 Pro,Includes power, mounts, warranty
15K-hour backlight, humidity-resistant
12V DC or 100-240V AC, auto-reboot
Embedded/wall/desktop/cantilever; 208.4×166.4mm opening

Share to:

Overview

Engineered for demanding environments, the Partaker Z18 8-Inch Embedded Panel PC combines rugged reliability with powerful computing. Featuring an industrial-grade 8-inch TFT LED screen (1024×768) with IP65 front protection and a high-temperature 5-wire resistive touch panel, it delivers clarity and durability for 24/7 operation. Powered by an Intel Celeron Quad-Core J1900 processor and preloaded with Windows 11 Pro, this fanless system ensures silent, energy-efficient performance in diverse industrial settings.

Mechanical

Mechanical
Front Panel Protection	IP65 standard
Material	PET film/sheet metal/aluminum alloy
Colour	Gray
Opening Hole Size	208.4 x 166.4mm (L x W)
Size	225.8 x 185.8 x 65mm
Weight	1.1Kgs
Installation Method	Standard VESA screw hole (75 x 75 or 100 x 100mm) for flexible installation, vesa mount for optional Embedded (recommended)/wall-mounted/desktop/cantilevered etc
LCD Display
Display Type	Industrial grade 8 inch LED
Resolution	1024 x 768
Lumens (cd/m2)	200
Contrast	500
Touch Screen
Touch Type	Original imported resistive touch screen
Durability (Number of Touches)	>35 million times
Motherboard
CPU	Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Chipset	Intel SOC
Watchdog Timer	255 levels
Network Card	2 x Realtek 8111E gigabit lan
WiFi and Bluetooth	N/A, optional to add
Memory	1 x SO-DIMM DDR3L, up to 8GB RAM
Storage	1 x 2.5 inch hard disk bay/1 x mSATA
Expand	1 x Mini PCIE for WiFi/4G, with sim slot

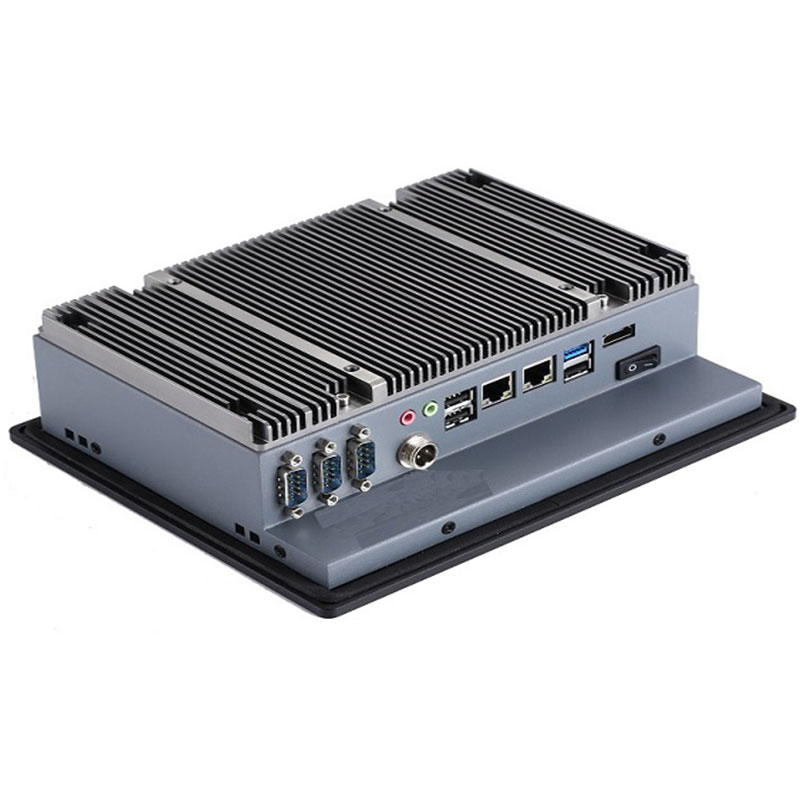

I/O Interfaces

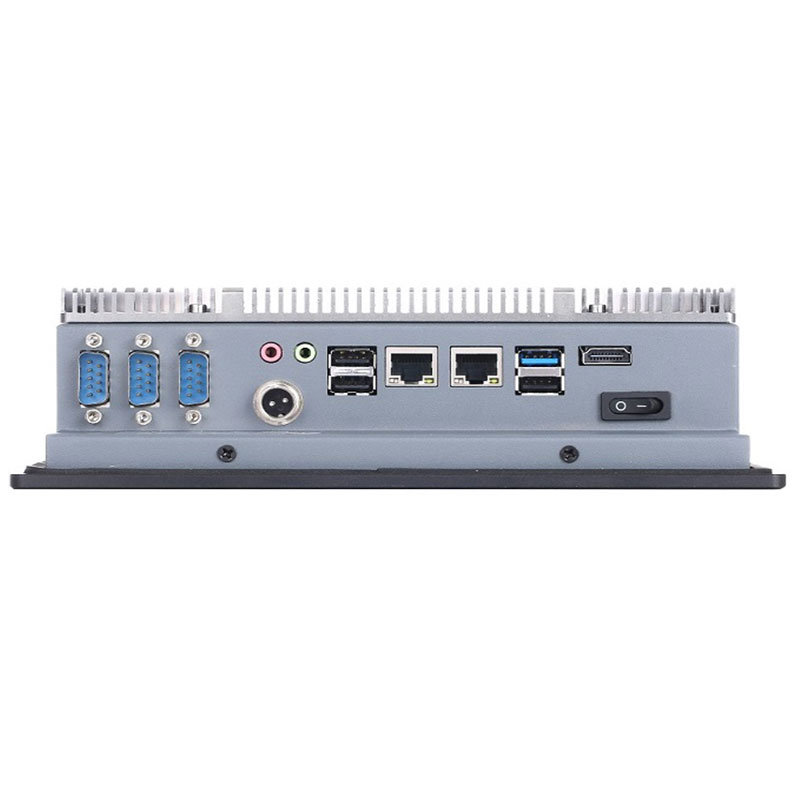

Rear Panel	1 x Power switch 1 x HDMI 1 x USB3.0 3 x USB2.0 2 x Lan 1 x Audio 3 x COM RS232 (1 is optional for RS485/RS422) 1 x DC_in
Software Support
Bios	AMI bios
System Support	Windows 10, linux ubuntu etc
General

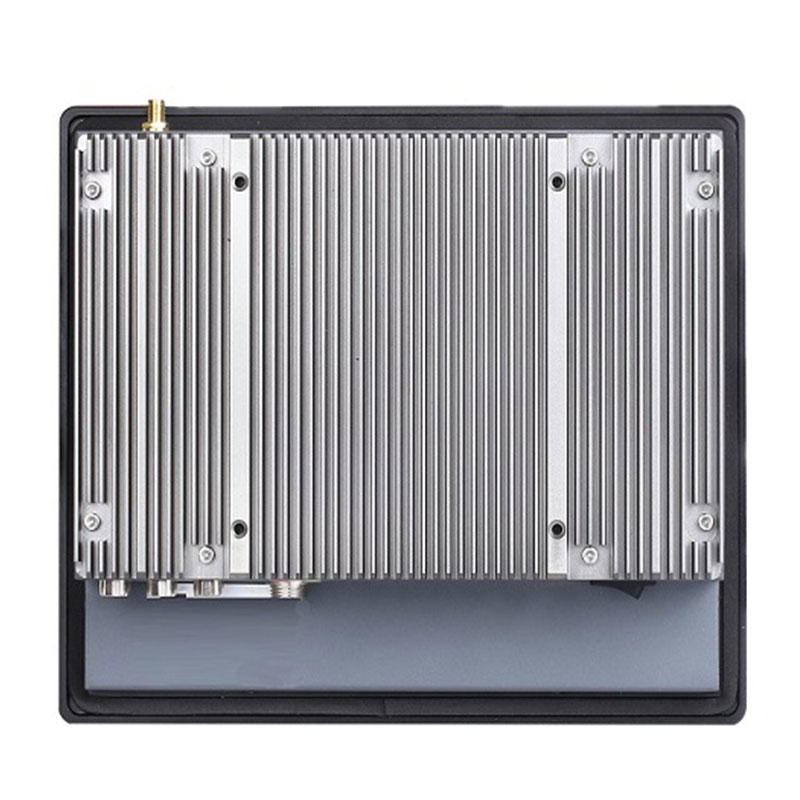

Cooling Mode	Fanless
Power Supply	DC100-240V AC/50-60Hz, support DC 12V/24V, 12V 4A for testing with aviation head and cable
Packing List	Z18 industrial touch panel pc, power supply, power cord, embedded buckles, warranty card
Environment
Operating Temperature	-10℃~60℃ surface air flow
Storage Temperature	-20℃~70℃
Working Humidity	10 ~ 95% @ 40°C (non-condensing)
Certification	CE, FCC,ROHS
