Gigabit Ethernet firewall with 10G SFP support

6 port firewall with 2x10G SFP ports

Model: Partaker S15

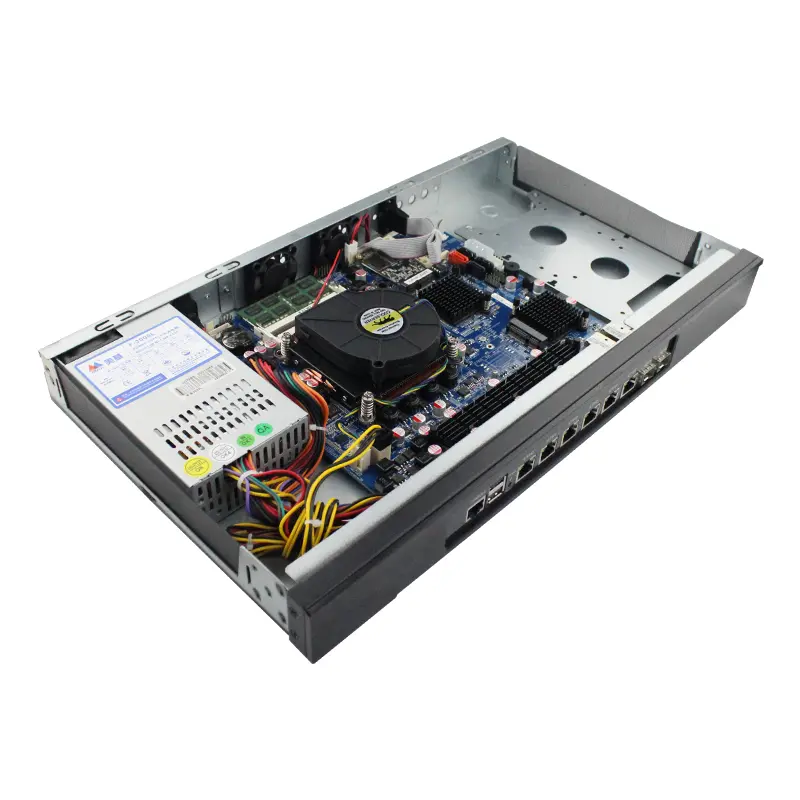

The B85/Z87 motherboard supports LGA1155 architecture, making it compatible with a range of 4th generation Intel processors.
Features two DDR3 1333/1600 MHz SODIMM memory slots, allowing a maximum capacity of 16GB RAM.
Equipped with six Intel 82583V Gigabit Ethernet ports, providing reliable and high-speed network connectivity.
It features two Intel 82599S 10 Gigabit optical ports, enabling fast and secure data transfer for demanding network environments.
The motherboard supports AC input in the range of 110-240V at 50-60Hz. It has a 200W power supply.

Share to:

Overview

The S15 19-inch 1U firewall with 6 LAN ports and 2x10G SFP is a compact and powerful networking device designed for efficient network security. It features the B85/Z87 motherboard and is equipped with Intel 4th generation CPUs, providing reliable processing power. With its versatile port configuration, including high-speed fiber connectivity, this firewall offers flexibility in network setups.

Ideal for small to medium-sized businesses, branch offices, and data centers, this 1U firewall delivers advanced threat protection, secure data transmission, and efficient network traffic management. Its compact size and rack-mountable design make it suitable for space-constrained environments. With the ability to handle diverse network security tasks, this firewall ensures reliable and scalable network operations.

In summary, the 19-inch 1U firewall with 6 LAN ports and 2x10G SFP, featuring the B85/Z87 motherboard and Intel 4th generation CPUs, is a versatile and compact network security solution. It provides robust protection and efficient performance, making it an ideal choice for various networking scenarios.

Mechanical

Material	Iron, Aluminum panel
Colour	Gray
Size	440 x255 x 45(mm)(without mounting ear)
Weight	6.5Kgs
Insallation Method	Rack Mounting/Wall Mounting/Desktop Mounting

Motherboard

CPU	B85/Z87 supports 4th Intel®celeron/Pentium Core™ i3/i5/i7 processor with LGA1155 architecture Intel Core i3 4160, i5 4460, i7 4770 etc
Network Card	6 x Intel 82583V/82574L Gigabit network interfaces, 2 x 10G Intel 82599Es optical ports
Graphic	Depend on CPUs
Memory	Support 2 x DDR3L 1600 MHz SODIMM memory slots, up to 16GB
Storage	1 x mSATA SSD, 1 x 2.5/3.5 inch SSD/HDD
Display	1 x VGA
Expand	1× Mini-PCIE slot, (Optional WIFI/Bluetooth/4G )

I/O Interfaces

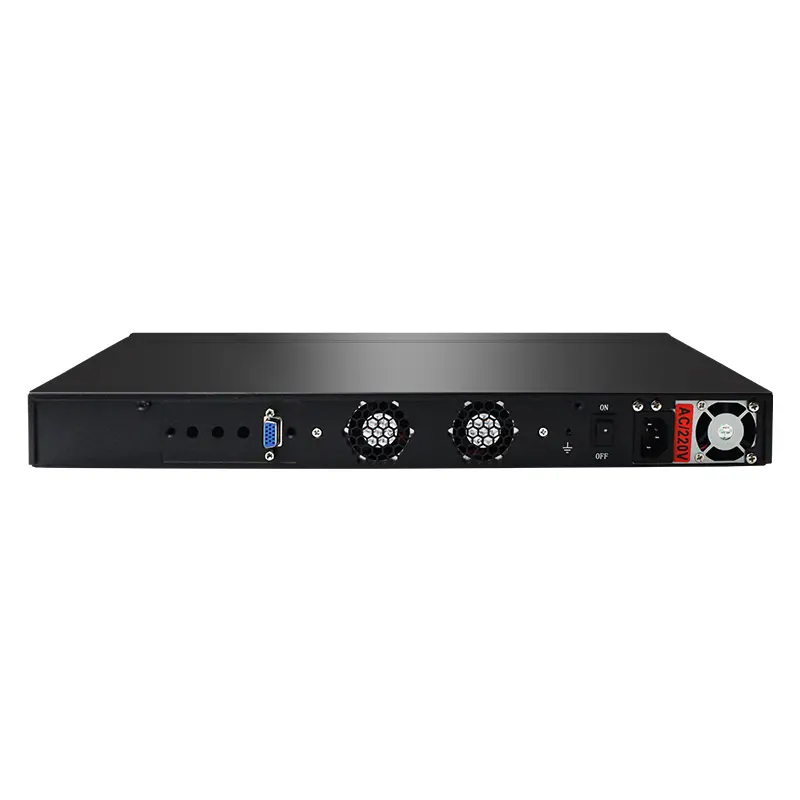

Front Panel	1 x VGA
	2 x Cooling fan
	1 x Switch
	1 x AC socket

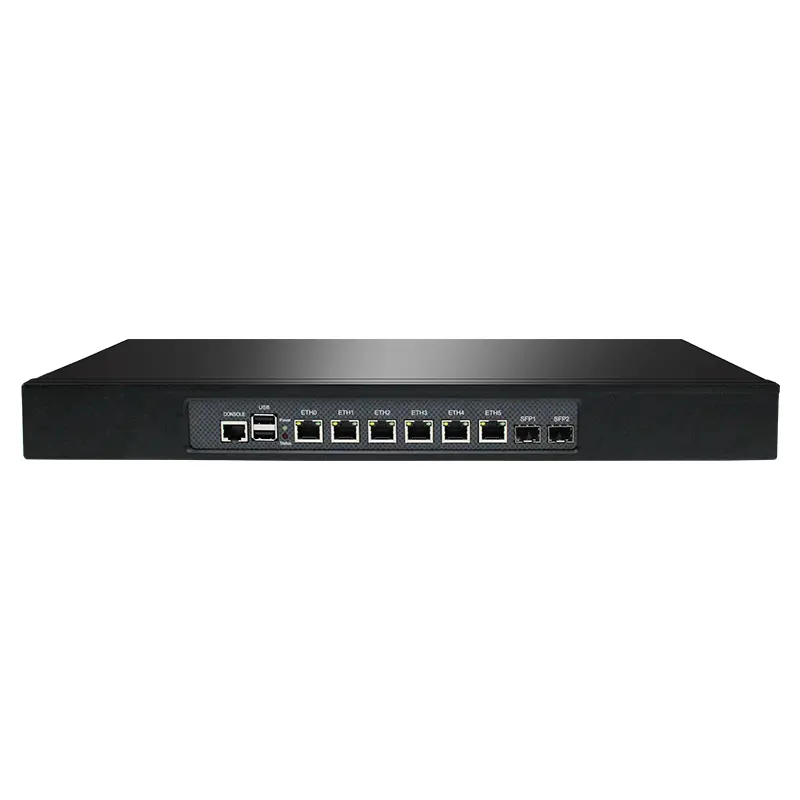

Rear Panel	1 x RJ45 serial port (supports Console function)
	2 x USB2.0
	2 x Intel 82599ES Gigabit optical ports
	6 x LAN

Software Support

System Support	Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOS	AMI EFI BIOS

General

Cooling Mode	With Fan
Power Supply	110~240V/50~60Hz AC input 200W (optional Great Wall 550W redundant power supply)
Packing List	S15 firewall, power cord, warranty card

Environment

Operating temperature	-0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature	5~90°C relative humidity, non-condensing
Certification	CE, FCC, CCC, ROHS

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	SFP	USB	Power
S15	I3 4160	Intel® HD Graphics 4400	3.60GHz	1 x VGA	2 x SO-DIMM DDR3L, Max 16GB	1 x mSATA/1 x 2.5 Inch SATA	6	2 x Intel 82599ES	2	200w 110-240v 50hz/60hz
S15	I5 4460	Intel® HD Graphics 4600	3.2~3.40GHz	1 x VGA	2 x SO-DIMM DDR3L, Max 16GB	1 x mSATA/1 x 2.5 Inch SATA	6	2 x Intel 82599ES	2	200w 110-240v 50hz/60hz
S15	I7 4770	Intel® HD Graphics 4600	3.4~3.90GHz	1 x VGA	2 x SO-DIMM DDR3L, Max 16GB	1 x mSATA/1 x 2.5 Inch SATA	6	2 x Intel 82599ES	2	200w 110-240v 50hz/60hz
