4 LAN Firewall Appliance Celeron CPU

Model: Partaker S01

Intel Celeron N2830/J1800/J1900/J4125 Processor
1 x DDR3L 1600MHz SODIMM memory slot, up to 8GB
1 mSATA SSD, 1 SATA3.0
4 x INTEL 82583v Gigabit Network Cards
External power 12V 5A DC5.5 x 2.5
1 x VGA 2 x USB3.0, 190X165X45(mm)

Share to:

Overview

Partaker S01 4 LAN soft routing with sheet metal structure, fuel injection process, support multi system. It can work on company, internet cafe, hotel, rental room, apartment etc. The host is equipped with high performance celeron J1900/J1800/N2840/J4125 processor which can better meet your needs.

Mechanical

Material	Iron
Colour	Silver (any color can be customized)

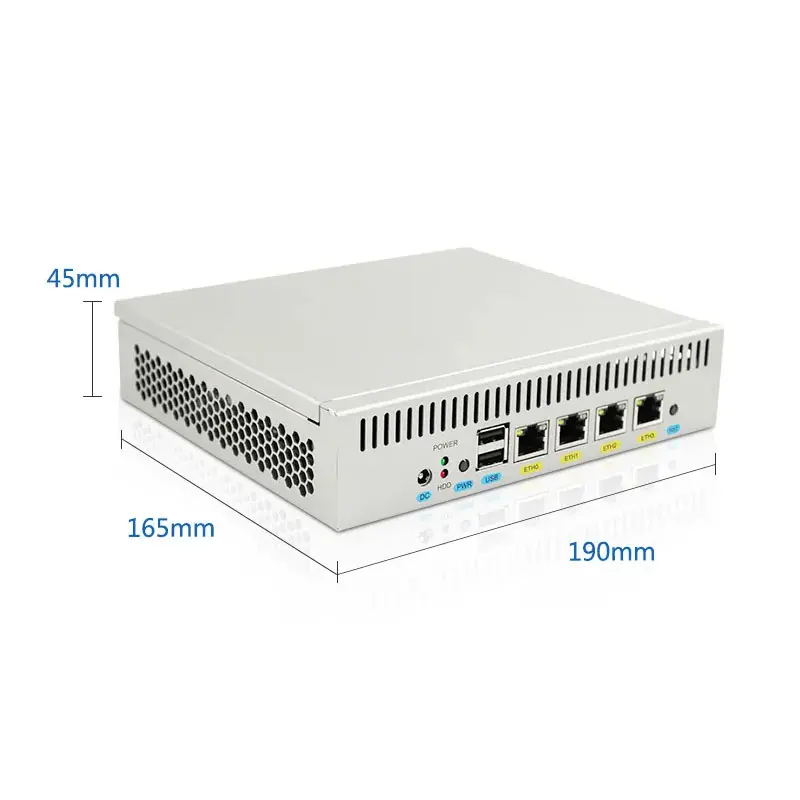

Size	190 x165 x 45(mm)
Weight	2Kgs
Insallation Method	Desktop type

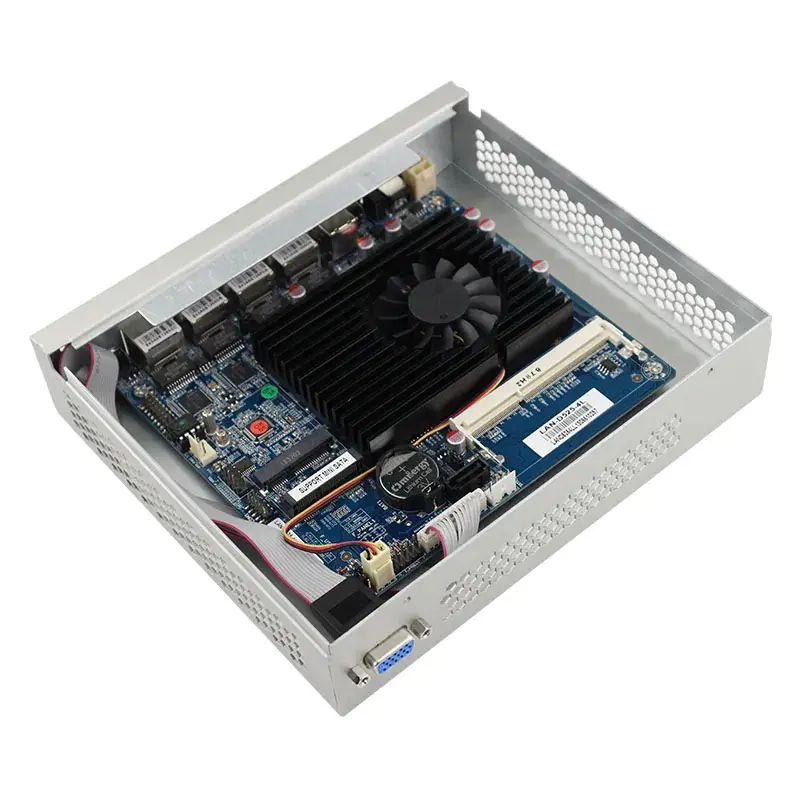

Motherboard

CPU	Intel Bay Trail Celeron Processor J1900, FCBGA1170, 4 Cores 4 Threads, 2.00 GHz Base Frequency, Burst Frequency 2.42GHz, 2MB Intel Smart Cache, TDP 10W processor. Other available processors: Intel Celeron/Pentium CPU N2830，J1800，J1900，J2900，N2940, J4125
Network Card	4 x Intel 82583V/82574L 10/100/1000M lan 4 x I225/I226 2.5G LAN(J4125)
Graphic	Integrated Intel HD Graphics
Memory	1 x DDR3L 1600MHz SODIMM memory slot, up to 8GB, (J4125 with DDR4, Max 16G)
Storage	1 x mSATA SSD, 1*SATA3.0
Display	1 x VGA
Expand	Support 1 MINI PCIE channel (can be WIFI/Bluetooth/4G)

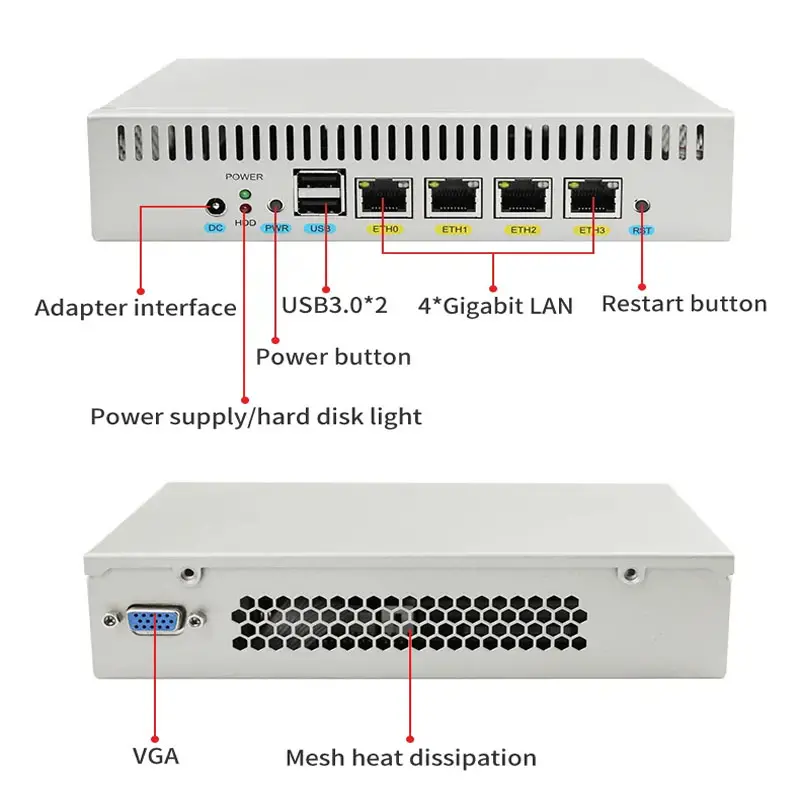

I/O Interfaces

Front Panel	1 x DC-IN 12V
	1 x Power supply/hard disk light
	1 x PWR
	2 x USB3.0
	4 x LAN
	1 x RST
Rear Panel	1 x VGA

Software Support

System Support

Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux

General

Cooling Mode	Fanless/With Fan
Power Supply	External power 12V 5A DC5.5*2.5（optional）
Packing List	S01 mini pc, power adapter, power cord, warranty card

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	USB	Power
S01	J1900	Intel® HD Graphics	2.0~2.42 GHz	1 x VGA	1 x SO-DIMM DDR3L	1 x mSATA	4	2	12V/5A
S01	J1800	Intel® HD Graphics	2.41~2.58 GHz	1 x VGA	1 x SO-DIMM DDR3L	1 x mSATA	4	2	12V/5A
S01	N2840	Intel® HD Graphics	2.16~2.58 GHz	1 x VGA	1 x SO-DIMM DDR3L	1 x mSATA	4	2	12V/5A
S01	N2600	Intel® HD Graphics	1.60 GHz	1 x VGA	1 x SO-DIMM DDR3L	1 x mSATA	4	2	12V/5A
S01	J4125	Intel® UHD Graphics 600	2.0~2.70 GHz	1 x VGA	1 x SO-DIMM DDR4	1 x mSATA	4	2	12V/5A
