4 LAN 4 SFP Mini PC
Mode: Partaker H16
- Compact High-Performance PCÂ with Intel Atom processors.
- Versatile Storage up to 64GB DDR4 & M.2 NVMe SSD.
- Enhanced Network Ports with 4 SFP+ & 4 GbE.
- Rich Front I/OÂ including 4 SFP+, 4 GbE, USB 3.0, & VGA.
- Rear I/O Expansion with GPIO, RS485, & COM RS232.
- Advanced Networking via 4 Intel 2.5GbE & 10G SFP+.
- Reliability Features like auto-power restore & Wake-on-LAN.
- Efficient 12V DC Power Supply.
- Easy Setup with included accessories.
- Ideal for Multiple Applications in data centers & offices.
Share to:
Overview
The 4 LAN 4 SFP Mini PC is a compact, high-performance computing device featuring an Intel Atom C3758/C3858/C3958 processor. It boasts two DDR4 SO-DIMM slots (up to 64GB), an M.2 NVMe SSD, and a SATA 6.0Gb/s interface for ample storage. The front panel includes 4 SFP+ and 4 Gigabit Ethernet ports, 2 USB 3.0, and a VGA port, while the rear offers additional I/O options. With 4 Intel i226 2.5GbE and 4 Intel x553 10G SFP+ ports, it ensures robust network connectivity. It also supports auto-power restore, Wake-on-LAN, PXE, and Watchdog functionality, powered by a 12V 10A DC supply and includes essential accessories for easy setup.
Mechanical
|
Processor
|
Intel Atom C3758/C3858/C3958 (Select option)
|
|||
|
BIOS
|
AMI BIOS (Legacy or UEFI)
|
|||
|
Memory slot
|
2*DDR4 SO-DIMM Memory slot, Up to 64GB 2400MHz
|
|||
|
Storage slot
|
1*M.2 NVMe (PCIe Gen3 x4) 2280; 1*SATA 6.0Gb/s (Support 2.5 inch HDD/SSD)
|
|||
|
Display Port
|
1*VGA port
|
|||
|
Front I/O interface
|

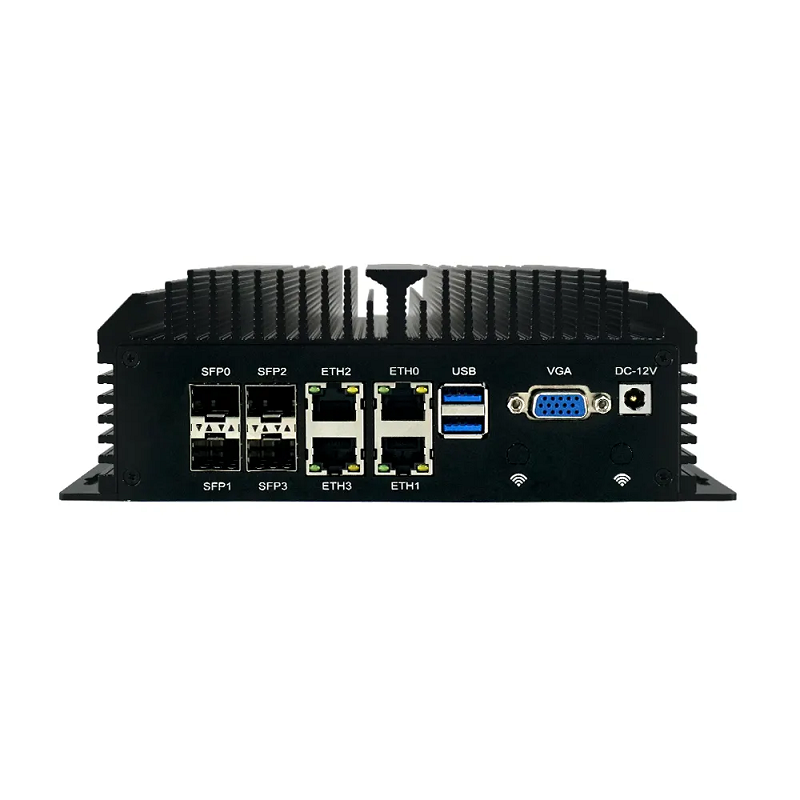

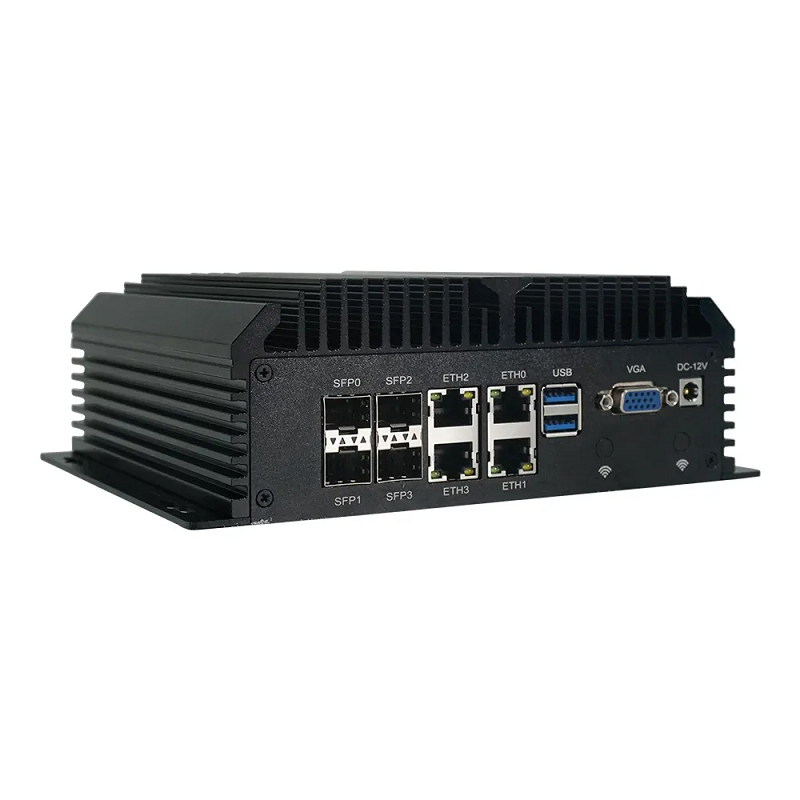

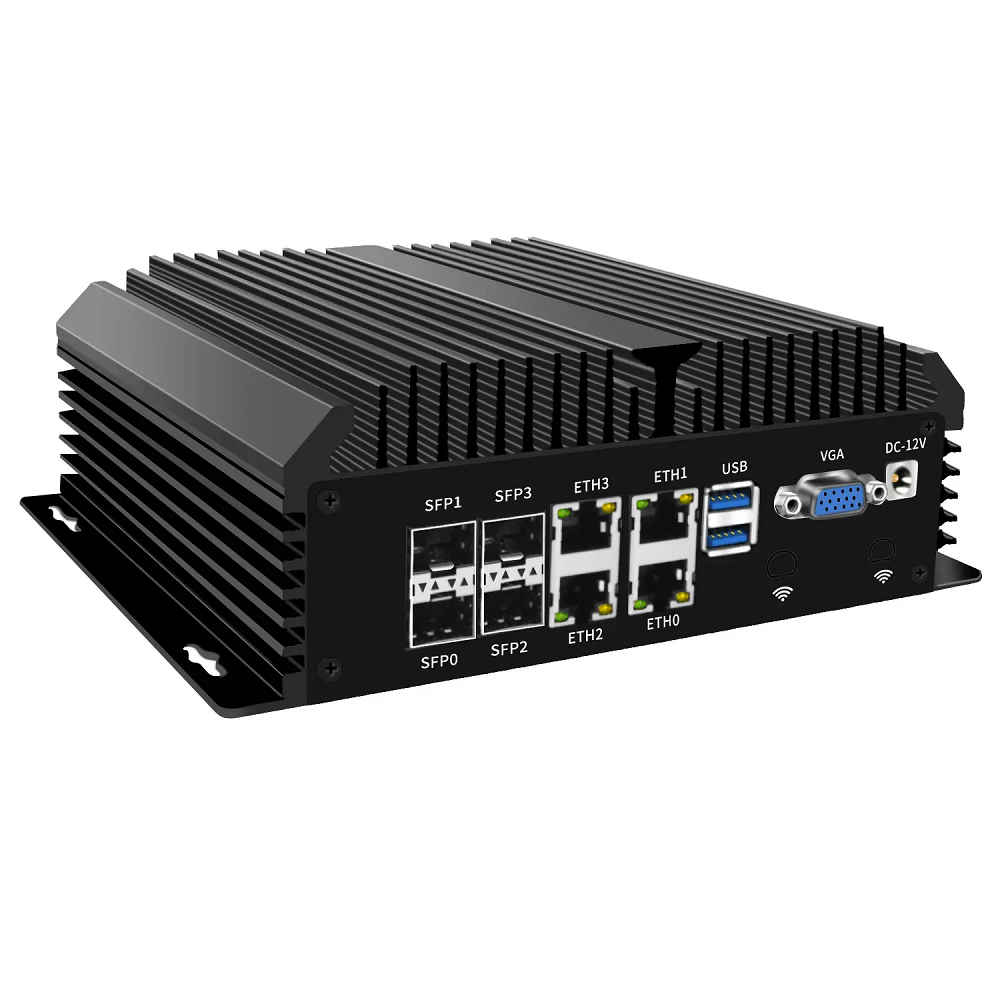

4*SFP+ ports; 4*Ethernet ports; 2*USB3.0; 1*VGA; 1*DC_IN
|
|||
|
Back I/O interface
|

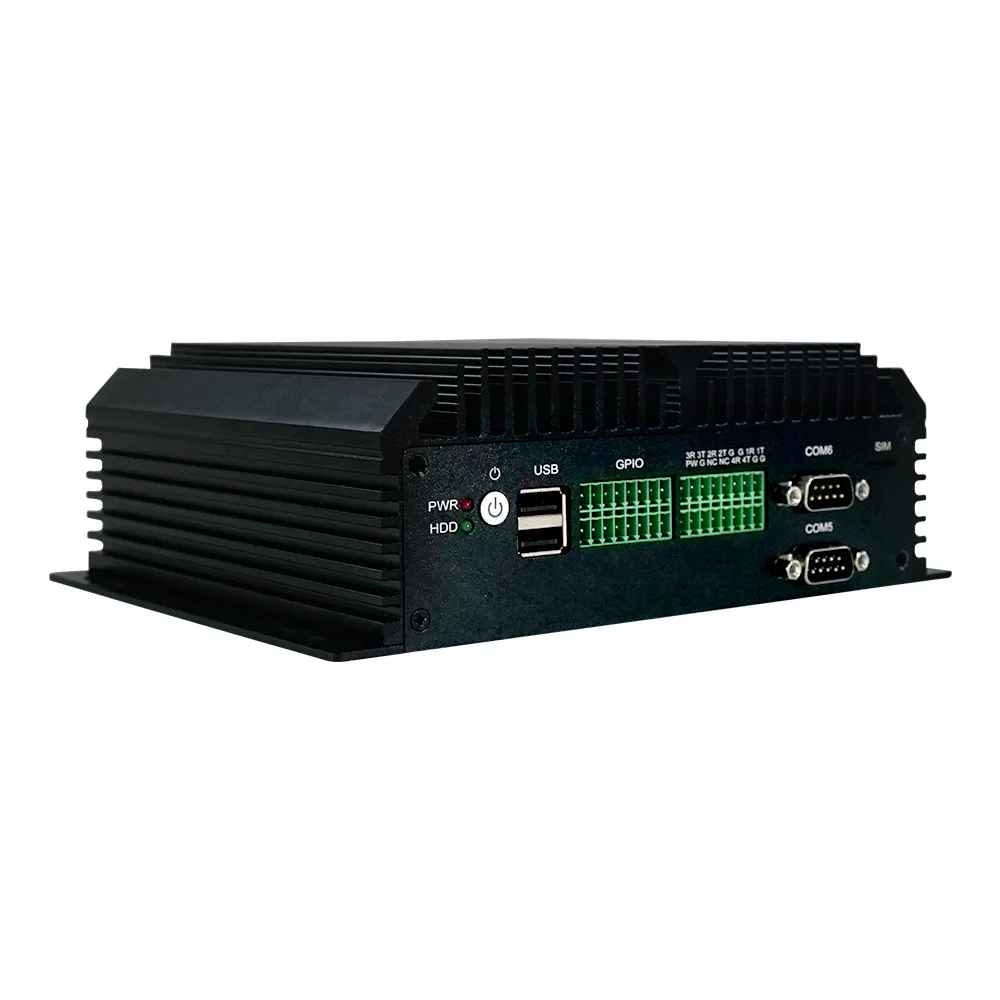

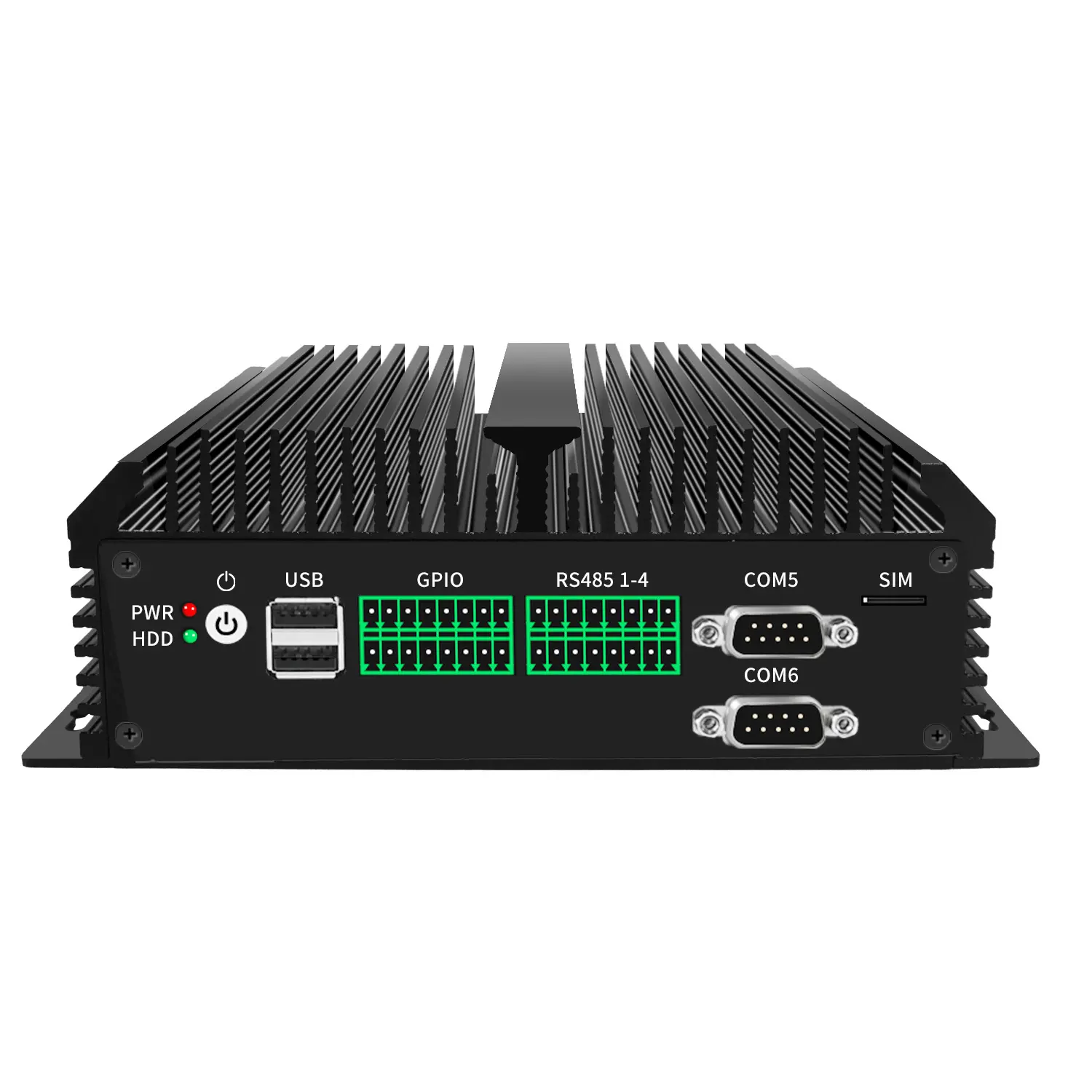

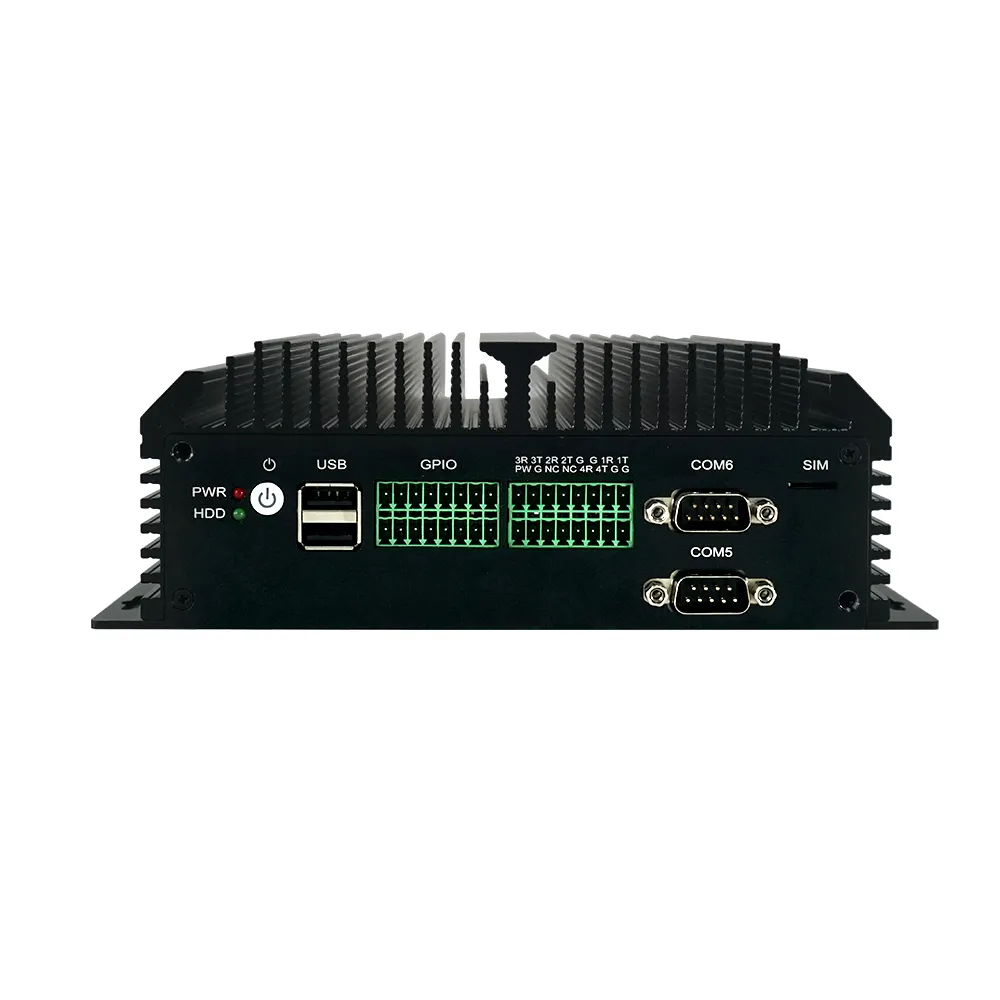

1*Power Button; 2*USB2.0; 1*GPIO; 1*RS485 Phoenix terminal; 2*COM RS232; 1*SIM card slot
|
|||
|
Ethernet port
|
4*Intel i226 2.5Gigabit Ethernet
|
|||
|
SFP+ port
|
4*Intel x553 10G SFP+
|
|||
|
Other functions
|
Start auto after power restored; Wake-up on LAN; PXE; Watchdog
|
|||
|
Power supply
|
Jack DC 5.5/2.5mm 12V 10A
|
|||
|
Included accessories
|
1*Power plug; 1*Power adapter; 1*SATA cable
|
|||
| Processors | Cores & Threads | Max Turbo Frequency | LAN | SFP | Memory | Storage |
| Intel Atom C3758 | 8 cores, 8 threads | 2.20 GHz | 4 x Intel I226 2.5G | 4 x X553 10G SFP | 2 x DDR4 260PIN SODIMM | 1 x SATA; 1 x M.2 |
