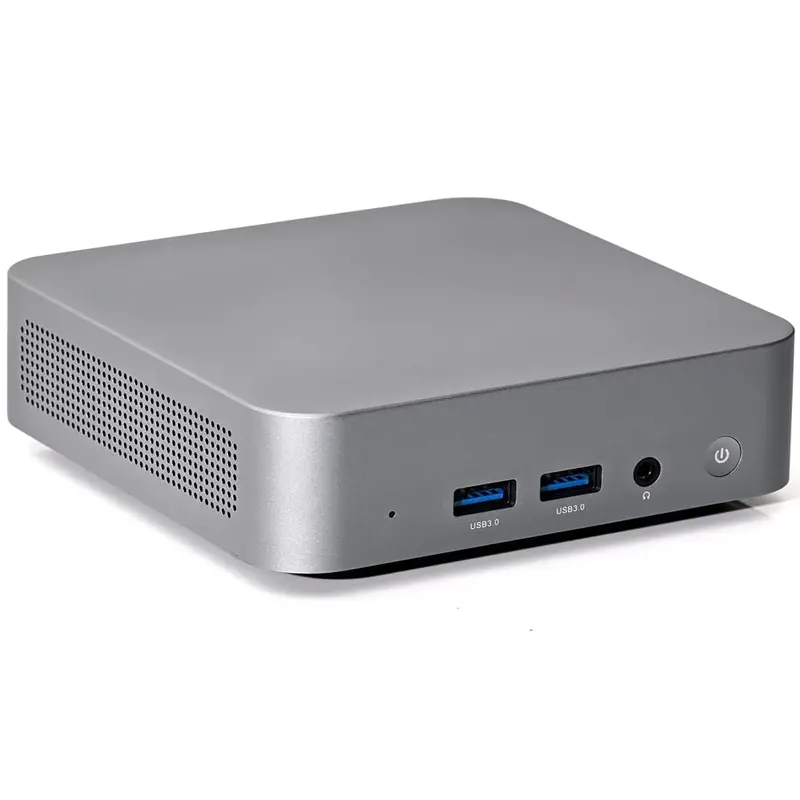

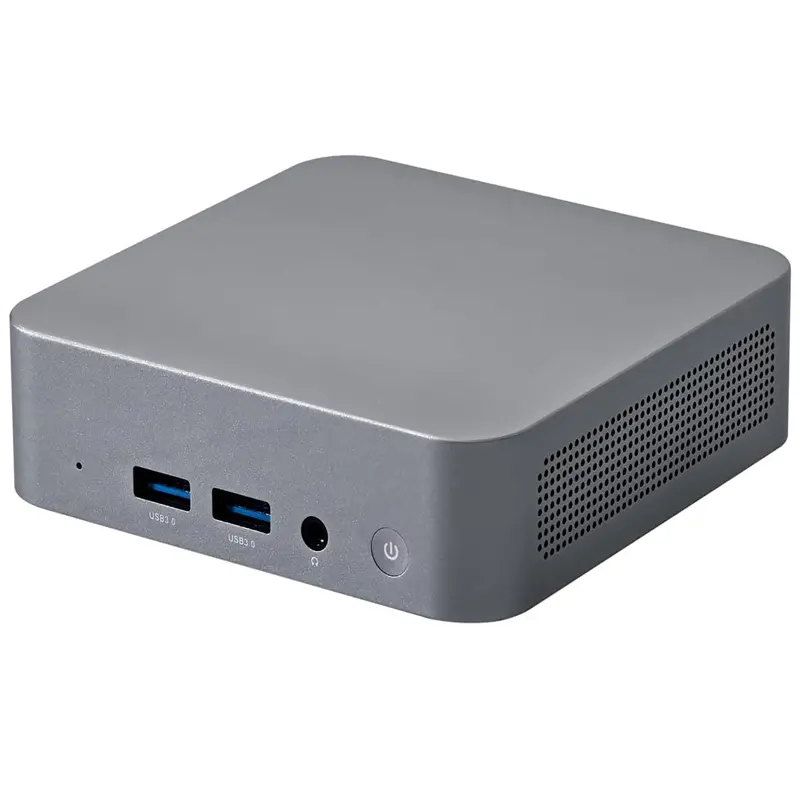

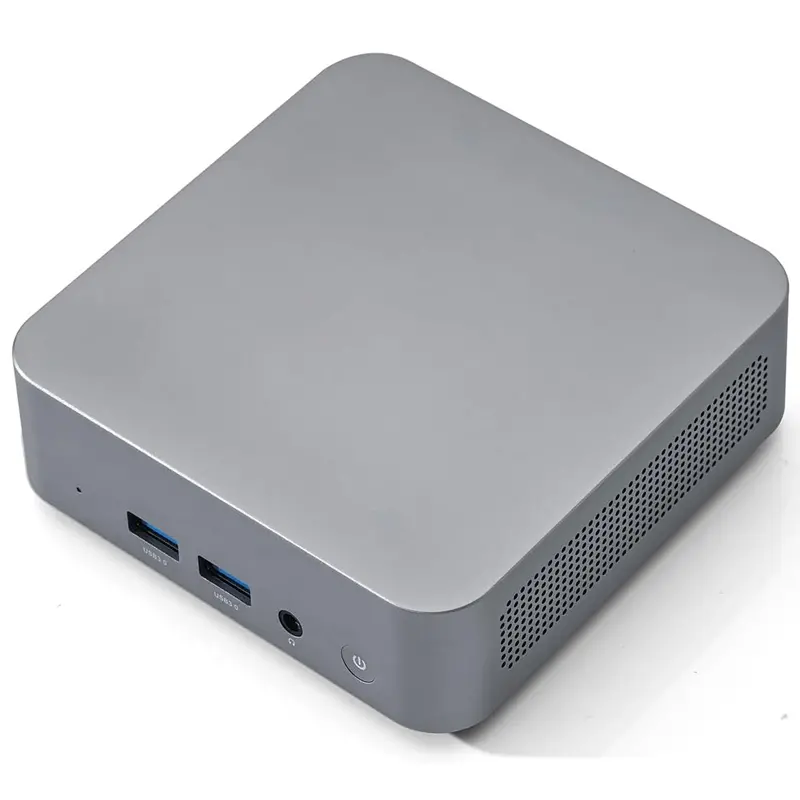

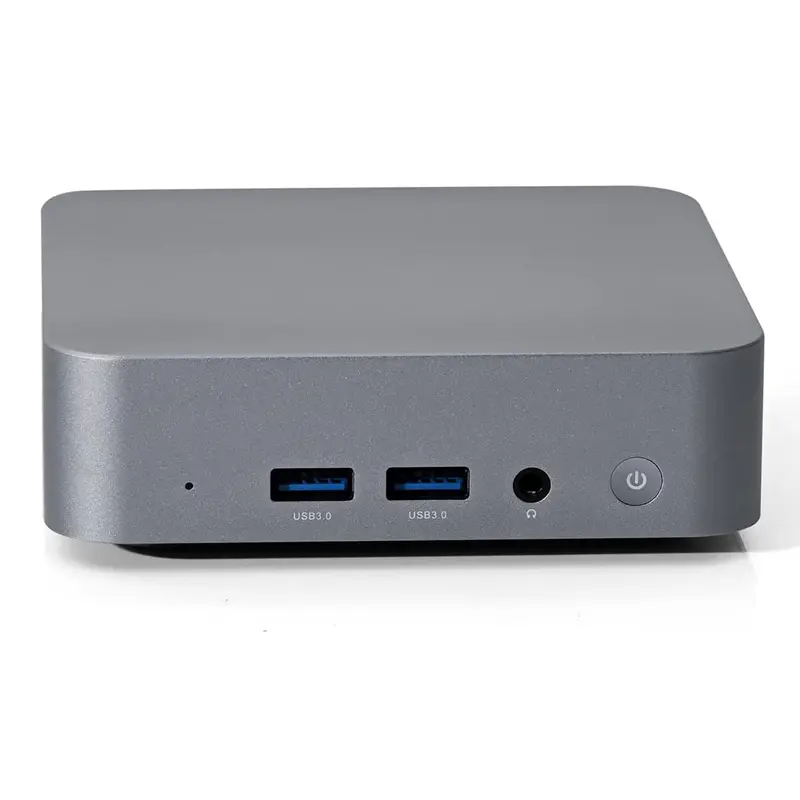

4 Display Mini PC

4 Display Mini PC

Model: Partaker B10

  • Aluminum chassis for durability and style.
  • Powerful Intel Core i7 processor.
  • Supports 4 displays for ultimate multitasking.
  • Rich I/O ports for versatile connectivity.
  • Up to 64GB DDR4 RAM.
  • Dual M.2 SSD storage options.
  • Desktop, wall-mounted, or embedded installation.
  • HDMI 2.0b & Type-C for 4K video output.
  • Smart silent cooling system.
  • Compatible with Windows 10/11 & Linux Ubuntu.

Share to:

Overview



The Partaker B10 mini PC combines powerful performance with a compact design. With an Intel Core i7-1185G7 processor and support for up to 64GB RAM, it ensures efficient multitasking. Offering versatile storage options, multiple display connectivity with HDMI and Type-C ports, and a lightweight aluminum build, it is both powerful and portable. The comprehensive I/O ports, Wi-Fi 6, and Bluetooth 5.2 provide seamless connectivity, while the efficient cooling system and additional features like diskless boot support and AC power loss restoration enhance reliability. Backed by a 3-year warranty and compatible with Windows 11 and Linux Ubuntu, the B10 is a flexible and reliable computing solution.



Mechanical

Material High-quality all aluminum
Colour Silver
Size 110 x 110 x 36mm
Weight 1.5Kgs
Insallation Method Desktop, wall-mounted, embedded



Motherboard

CPU Intel Core i7-1185G7 Processor 12M Cache, up to 4.80 GHz
Display Ports 1 x HDMI port, 1 x VGA port, supports Connections dual monitors
Network Card RTL8111 10/100/1000 LAN
Audio Card ALC269
Display Port 2 x Full Featured Type-C for charging/data/video/audio, 2 x HDMI2.0b
Memory 2 x SO-DIMM DDR4-3200, max. 64GB RAM
Storage 1 x M.2 2242 SATA SSD, 1 x M.2 2280 NVME PCIE3.0 x4 SSD
Function 1.Support diskless boot
2.Support Restore AC Power Loss
3.Support 4 x display for simultaneous display or synchronous different display, 2 x HDMI, 2 x Type-C
4.HDMI 2.0b 4K: 4096×2304@60Hz
5.Type-C 4K: 3824 x 2160



I/O Interfaces

I/O Ports 1 x SW
1 x Audio
2 x USB3.0
1 x DC_IN
2 x Full Featured Type-C for charging/data/video/audio
2 x HDMI2.0b
1 x LAN
2 x USB2.0



Software Support

Bios AMI EFI BIOS
System Support Support Windows 10/11, Linux Ubuntu etc



General

Cooling Mode Smart silent fan, place it vertically to reduce the fan speed & sound effectively
Power Supply DC100-240V AC/50-60Hz, DC 12V7A, support TypeC PD protocol power supply
Packing List Mini pc, power supply, power cord, WiFi antennas, warranty card



Environment

Operating Temperature 0°C~70°C
Storage Temperature -20°C~80°C
Relative Humidity 10%~90% non-condensing
Certification CE FCC ROHS
Model Processor Graphic Frequency Display Memory Storage LAN USB Power
B10 I7 1185G7 Intel® Iris Xe Graphics 3.00~4.80 GHz 2 x HDMI2.0b

2 x Type-C 4K

2 x DDR4 RAM 1 x M.2 2242 SATA SSD, 1 x M.2 2280 NVME PCIE3.0 x4 SSD 1 4 DC 12V
