1U Firewall Appliance 4 LAN J4125

Model: Partaker F3

Intel Celeron J4125/J1900 Processor
Single SODIMM for up to 8GB Memory\
Support 1*mSATA SSD, 1*2.5 Inch SSD/HDD
4* Intel I211/I225/82583V Gigabit LAN, support Wake-on-LAN/PXE
Support 1*VGA interface display output
Support 1* standard RS232 serial interface
Support 2*USB2.0 interface

Share to:

Overview

Partaker F3 Multi port firewall PC with Intel celeron J4125/J1900 quad core quad thread processor, with 4*Intel I211/I225 Gigabit Lan, support wake-on-lan, PXE function. X86 architecture which compatible with linux and windows, support firewall pc system such as virtual machine PVE/ikuai/Iede/openwrt/Nas etc. Intelligently allocate network traffic, effectively use network resources, and the network is smooth and not stuck. System fan, intelligent cooling design and ATX external open frame power supply, mass storage high speed combination.

Mechanical

Material	1U standard chassis, high quality galvanized steel
Colour	Asian silver black
Size	430mm250.2mm46mm
Weight	6.5Kgs
Insallation Method	1U standard rack

Motherboard

CPU	Integrated Intel® Celeron J4125 2.0GHz quad-core quad-thread processor, TDP 10W
CPU	Integrated Intel® Celeron® Processor J1900 quad-core quad-thread, TDP 10W
Chipset	SOC
Network Card	4* Intel I211 Gigabit LAN, support Wake-on-LAN/PXE function
Com	1* Standard RS232 serial interface
Memory	1* SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB
Storage	1* MSATA SSD, transfer speed up to 3Gbps 1*2.5 inch SSD/HDD
Graphic	Integrated Intel® UHD Graphics 600 Core Graphics
Expand	1* Mini-PCIE slot, support WIFI, 4G module, default is USB signal, Note: Mini-PCIE slot and LAN4 share PCIE channel, user can choose one

I/O Interfaces

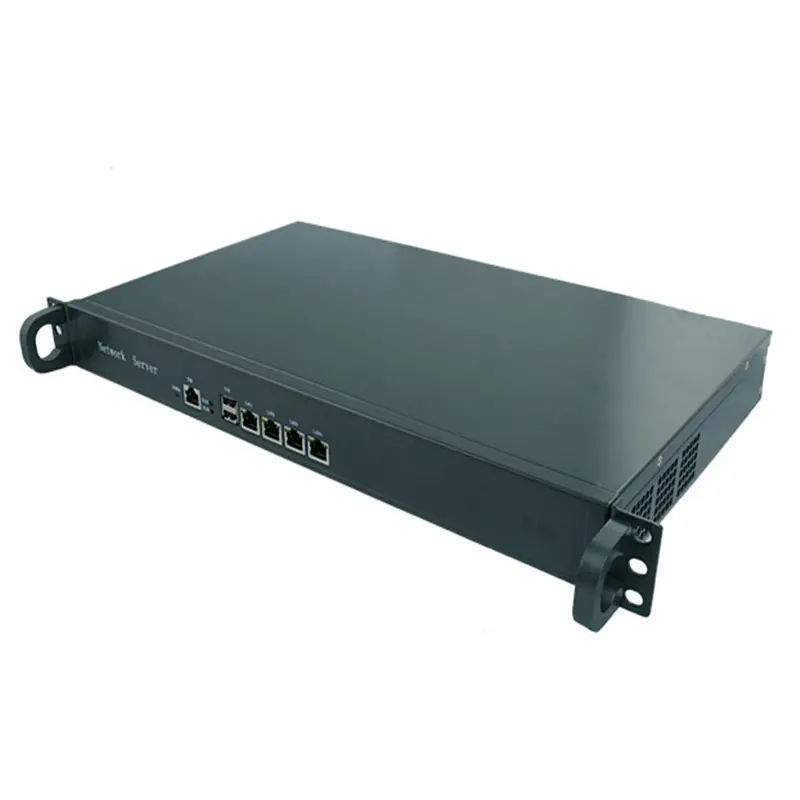

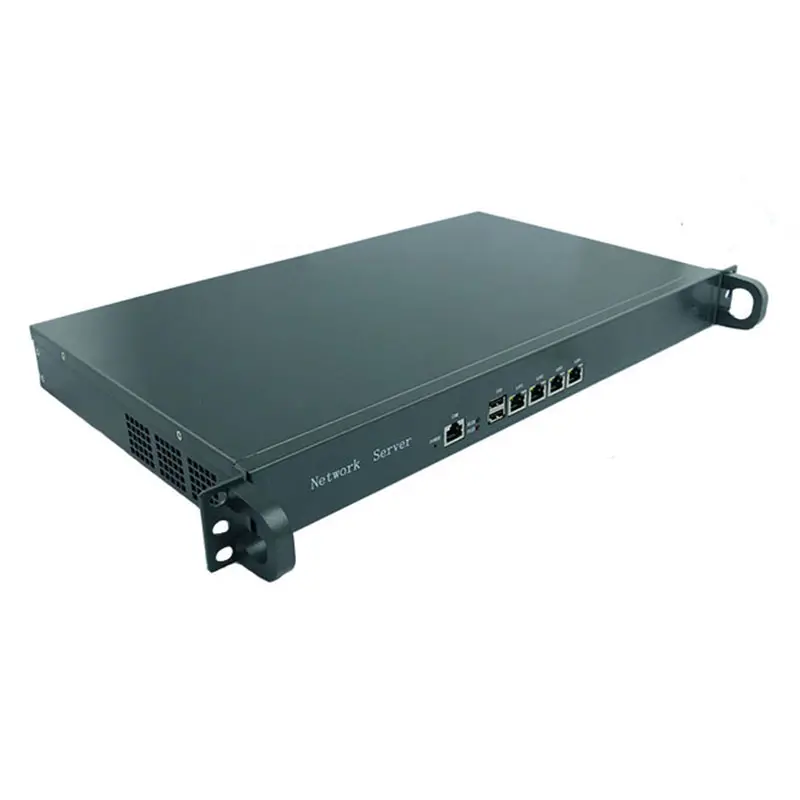

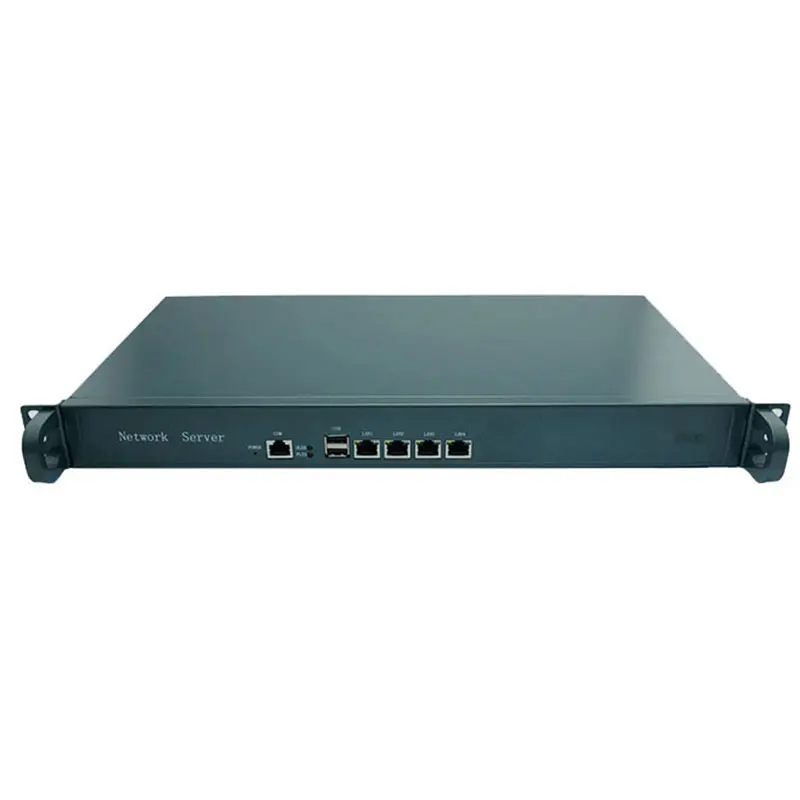

Front Panel	1*Power switch
	1* standard RS232 serial interface
	2* USB2.0 interface
	1* power indicator, 1* hard disk indicator
	4* Intel I211 Gigabit LAN, support Wake-on-LAN/PXE function

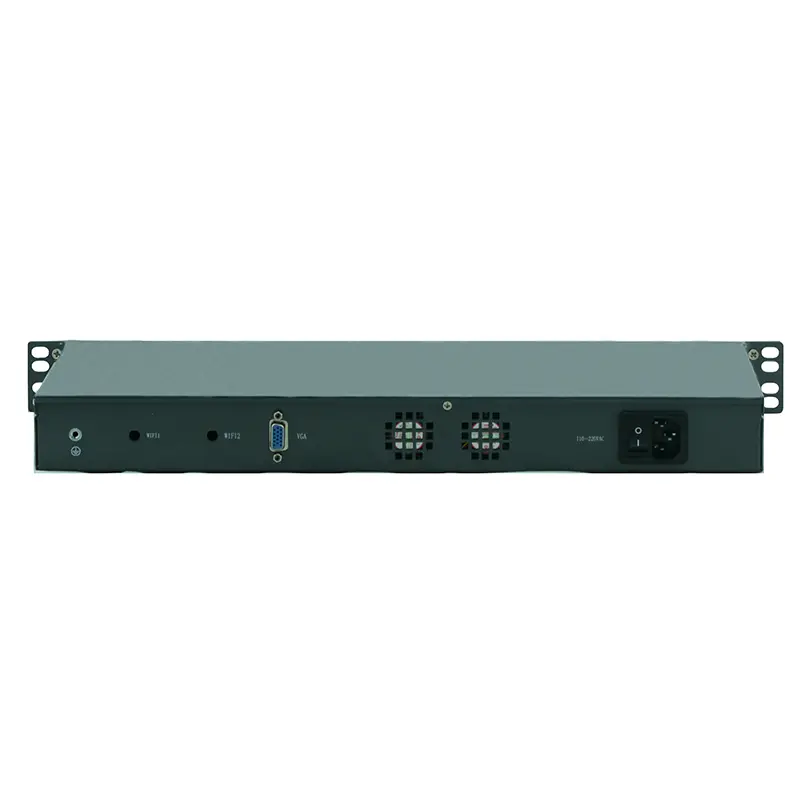

Rear Panel	1*VGA interface
	1* AC power connector
	2 x WiFi antennas

Software Support

Watch Dog	Support hardware reset function (256 levels, 0~255 seconds)
System Support	Windows 7/10, 64bit (without key) Ubuntu

General

Power Type	External open power supply
Power Supply	AC 110~220V AC TO DC, 60W
Packing List	F3 firewall appliance, power supply, power cord, warranty card

Environment

Operating Temperature	-10°C~60°C Centigrade (32°F~140°F)
Storage Temperature	-20°C~70°C Centigrade (-68°F~176°F)
Relative Humidity	5%-95% relative humidity, non-condensing
Working Vibration	0.5g rms/5-500HZ/random/operating
Certification	CE FCC ROHS

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	COM	USB	Power
F3	J1900	Intel® HD Graphics	2.0~2.42 GHz	1 x VGA	1 x SO-DIMM DDR3L	1 x 2.5 inch/1 x M-SATA	4*82583V	1	2	1U Standard Power Supply
F3	J1900	Intel® HD Graphics	2.0~2.42 GHz	1 x VGA	1 x SO-DIMM DDR3L	1 x 2.5 inch/1 x M-SATA	4*I211	1	2	1U Standard Power Supply
F3	J4125	Intel® UHD Graphics 600	2.0~2.70GHz	1 x VGA	1 x SO-DIMM DDR3L	1 x 2.5 inch/1 x M-SATA	4*I211	1	2	1U Standard Power Supply
F3	J4125	Intel® UHD Graphics 600	2.0~2.70GHz	1 x VGA	1 x SO-DIMM DDR3L	1 x 2.5 inch/1 x M-SATA4*I225	4*I225	1	2	1U Standard Power Supply
