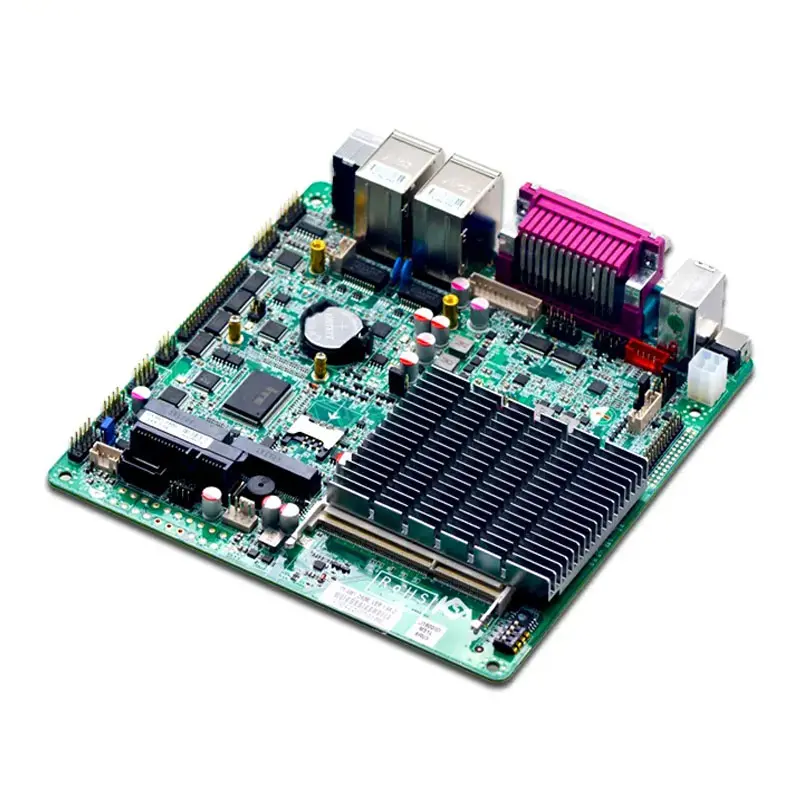

Mini ITX J1900 Motherboard

Model: ITX-M51_D926L

Intergrated Intel J1900 4 Cores 2.00GHz Processor
Based on Intel BayTrail SOC Plateform
2 x Realtek RTL8111F Gagabit Lan, Support Wake on Lan/PXE
1 x SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory,up to 8GB
1 x SSD interface 1* SATA3 2.5′ laptop HDD space and 1* SATA port
Support 4 input and output GPIO
Support hardware reset function (L256, 0~255 seconds)

Share to:

Overview

Mini ITX Motherboard Intel Celeron J1900 is a small and energy-efficient motherboard with Intel Celeron J1900 quad-core processor, DDR3 memory, SATA hard drive, dual LAN ports and fanless design. It has a size of 170*170mm, making it ideal for mini PC, industrial PC, embedded PC and other applications that require low power consumption and high performance. It supports HDMI and VGA output, USB 2.0 and USB 3.0 ports, audio jack and COM port. It also supports BIOS setting for auto power on and wake on LAN. Mini ITX Motherboard Intel Celeron J1900 is a reliable and cost-effective motherboard solution for your various computing needs.

Mechanical

Model NO.	ITX-M51_D926L VER:1.2
CPU	Intel J1900/2.00GHz quad core CPU, TDP10W
Chipset	Intel Bay trail SOC platform
Memory	1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory , max. Up to 8GB
Graphics	Intel HD Graphics
	Support 1VGA,1LVDS ( support dual channel 24BIT)
	VGA;LVDS support synchronous/asynchronous display
LAN	2* RTL8111F Gigabit LAN controller, support Wake-on-LAN/PXE
Storage	1* SSD connector
Storage	1* SATA 2.5’ laptop HDD space, 1* SATA (alternative choice when use )
Audio	ALC662 6channel HD audio controller, support MIC/Line-out /amplifier
Audio	Advise 3Ω5W speaker
Expansion Slots	1* 52pin PCIEx1 slot, support WIFI module
Expansion Slots	1* MSATA slot, support SSD,SSD transfer rate up to 3Gbps
Rear I/O	1* 12V DC_JACK input
	1* PS/2( KB&MS)
	1* COM (the 9th pin support 5V/12V charged function)
	1* VGA
	1* LPT
	4* USB2.0
	2* RJ-45
	1* Audio (Line out / MIC)
Internal I/O	1* LVDS (2*10pin),support single channel 24 BIT LCD display
	1* LVDS INVERTER(1*6pin)
	1* JVGA1 (2*12pin) , same signal with DB15
	5* COM connector (the 9th PIN of COM2 connector with charged function,COM3 supports RS422/485
	4* USB2.0 (If Mini-PCIE slot for 3G module, only support 2*USB2.0)
	1* PS/2, KB/MS connector (1*6Pin)
	1* AUDIO front panel audio connector (2*5pin)
	1* SIM card socket
	2*PWROUT (HDD power connector)
	1* FP1 front panel function buttons and indicator connector (2*5pin)
	1* ATX_12V
Fan Interface	1* CPUFAN 4pin; 1* SYSFAN 3pin
BIOS	AMI 64MB Flash ROM
Watchdog	Support hardware reset function (L256, 0~255 seconds)
Power Input	DC_12V single power supply
Operating Temp.	-10°C~60°C
Storage Temp.	-20°C~70°C
Humidity	5%-95% (relative humidity; non-condensing)
Dimension	170mm x 170mm
