Magic Computer N100 N200 N305

Mode: Partaker US3

Intel 12th Gen Alder Lake-N N100 N200 N305.
Fanless passive cooling with copper-aluminum thermal design.

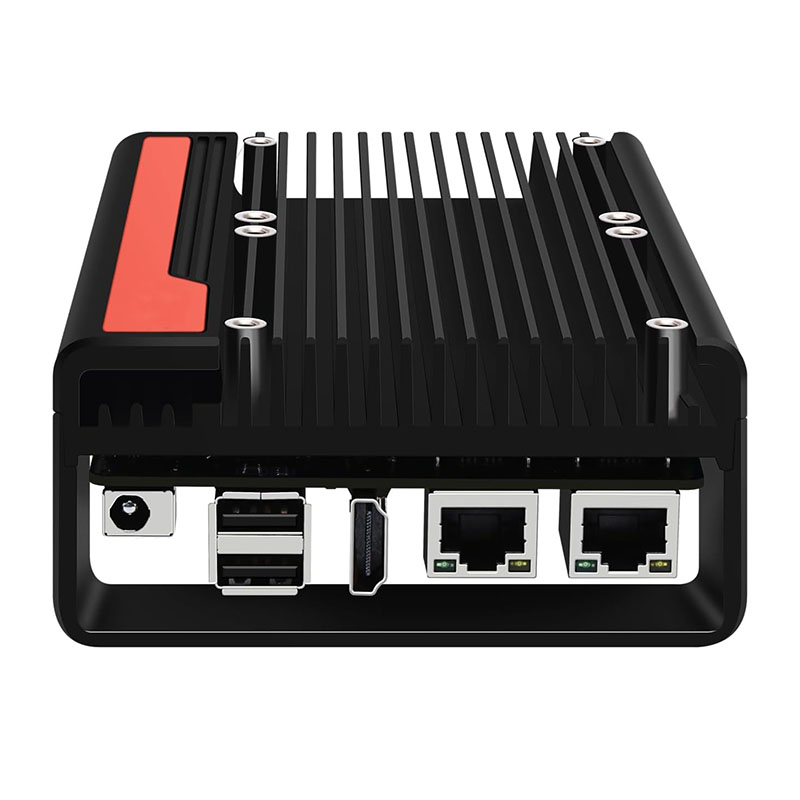

Dual HDMI, DP, and Type-C ports support 4K@60Hz across three displays.
Intel i226-V 2.5G Ethernet ports for high-speed connectivity.
M.2 NVMe (PCIe 3.0), dual SATA3.0, and TF card slot for versatile storage options.
DDR5 SO-DIMM slot (up to 5600MHz) for smooth multitasking.
Open-source 3D-printable chassis and PCIe x8 slot for custom expansions.
4x USB 2.0, COM/TPM pins, and auto-boot BIOS for flexible setups.

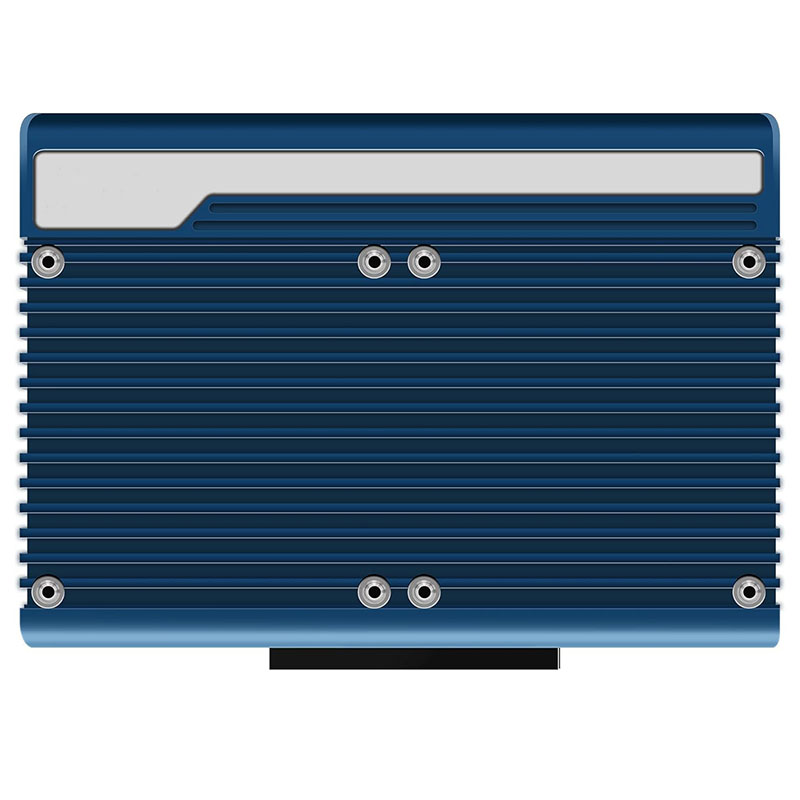

Aluminum alloy chassis in Cool Black, Tourmaline Blue, or Dark Green.
Supports -0°C to +70°C operation with 12-19V DC power input.

Share to:

Overview

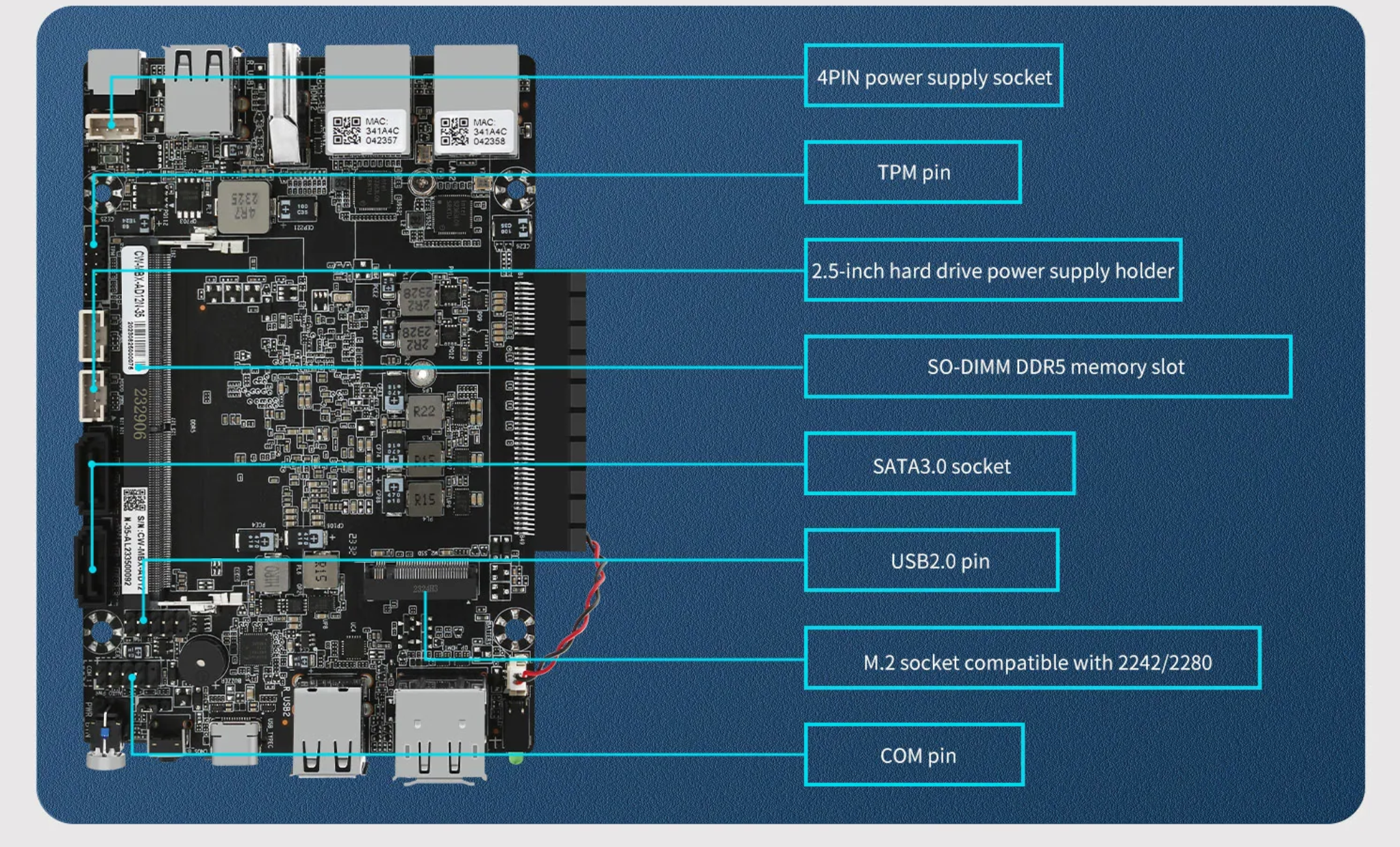

The Magic Computer is an innovative open-source DIY platform built on Intel N100 N200 N305, featuring a passive cooling design and open-source CAD drawings tailored for 3D printing enthusiasts. This versatile system supports quad-display connectivity via dual HDMI, DisplayPort, and USB Type-C interfaces, enabling synchronous or asynchronous triple-screen output, while its dual Intel i226-V 2.5G Ethernet ports ensure high-speed networking. Storage and expansion flexibility are highlighted by dual SATA3.0 ports with 4-pin power for 2.5/3.5-inch drives, a PCIe x8 slot (PCIe3.0 x4) for network/hardware upgrades, a DDR5 SO-DIMM slot (up to 5600MHz), and an M.2 NVMe slot (PCIe3.0x2) supporting 2242/2280 SSDs. Additional features include a TF card slot for storage/boot functions, 4-pin and 3-pin fan headers for thermal management, and a compact, customizable chassis ideal for home labs, media centers, or lightweight server applications.

Mechanical

Category	Specification
Product Name	Magic Computer
Platform	Intel 12th Gen Alder Lake-N (N95/N97/N100/N200/i3-N305)
Cooling	Passive cooling (fanless), aluminum alloy chassis with copper block thermal design

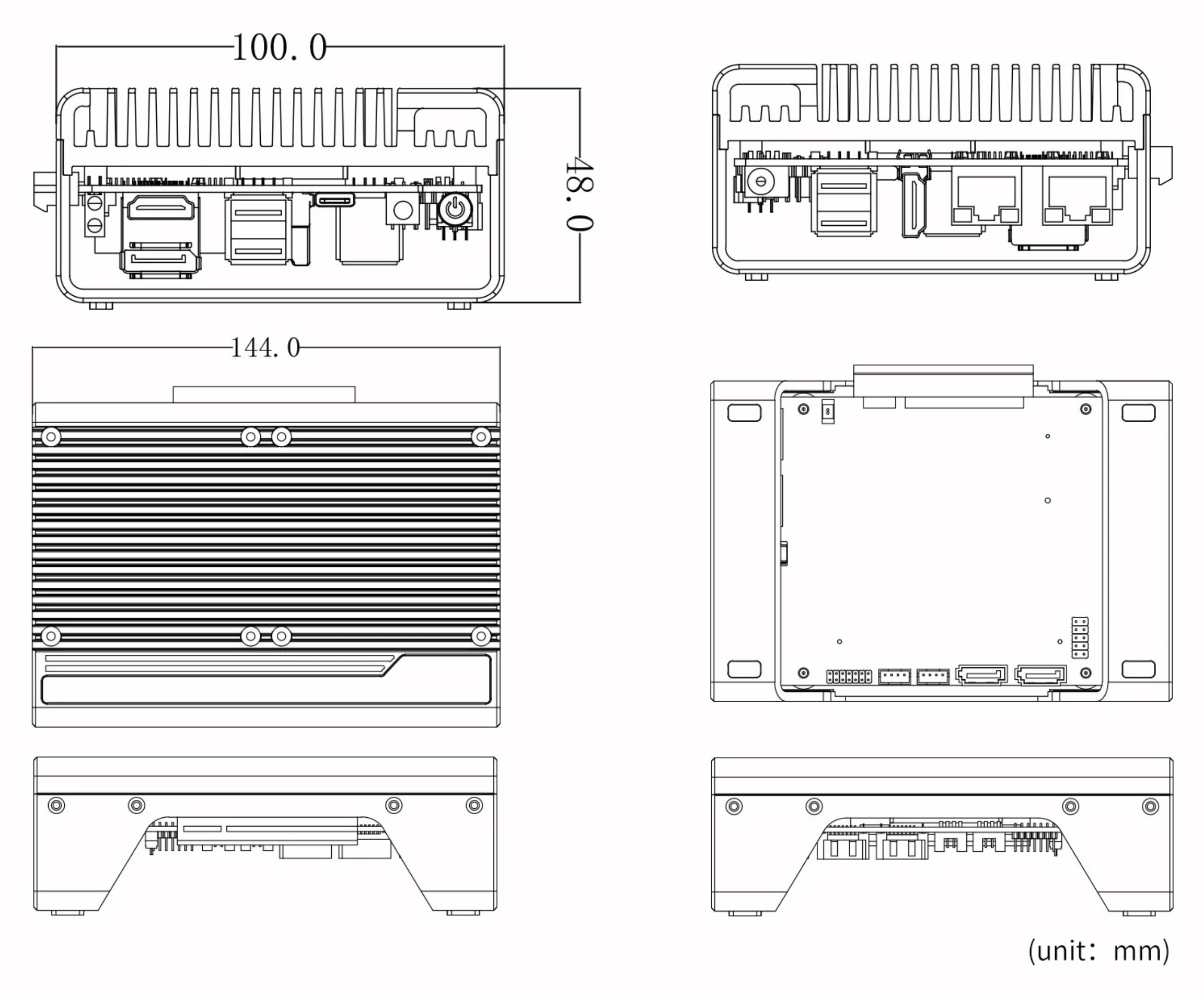

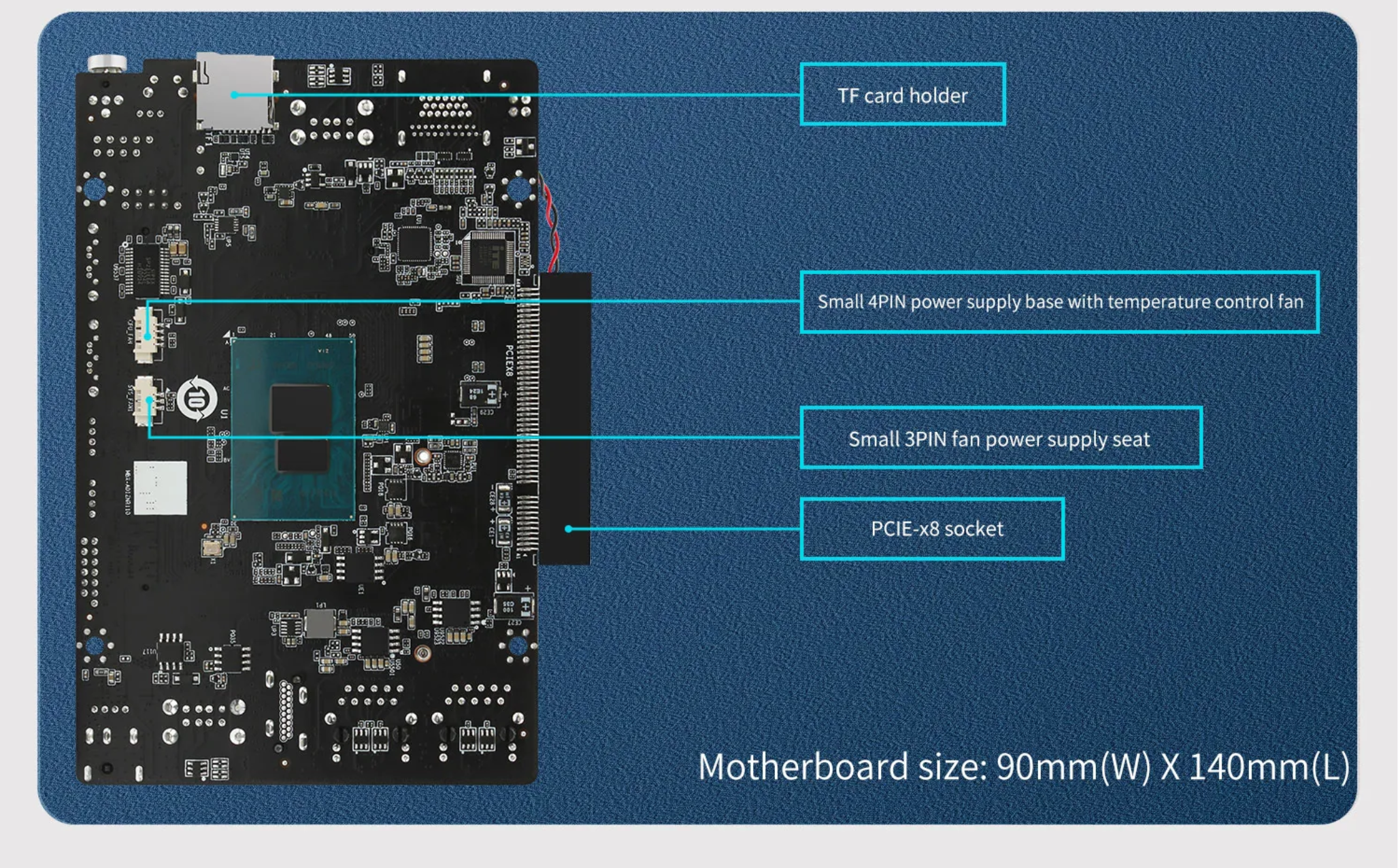

Dimensions	144mm (L) × 100mm (W) × 48mm (H) / Motherboard: 90mm (W) × 140mm (L)
Processor Options	Intel® N95 (16EU) / N97 (24EU) / N100 (24EU) / N200 (32EU) / i3-N305 (32EU)
Memory	1× SO-DIMM DDR5 slot (4800/5200/5600MHz)
Storage	1× M.2 NVMe (PCIe 3.0 x1, 2242/2280) / 2× SATA3.0 (6Gbps) / 1× TF card slot
Display	2× HDMI 1.4 / 1× DP 1.4 / 1× Type-C / Supports 4K@60Hz & triple-screen output
Network	2× Intel i226-V 2.5G RJ45 ports

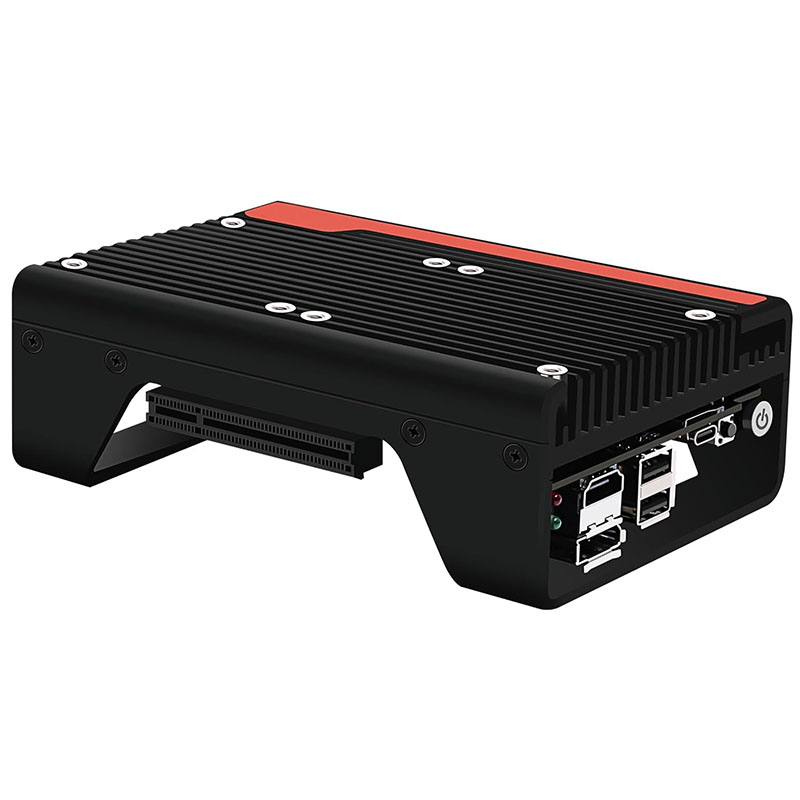

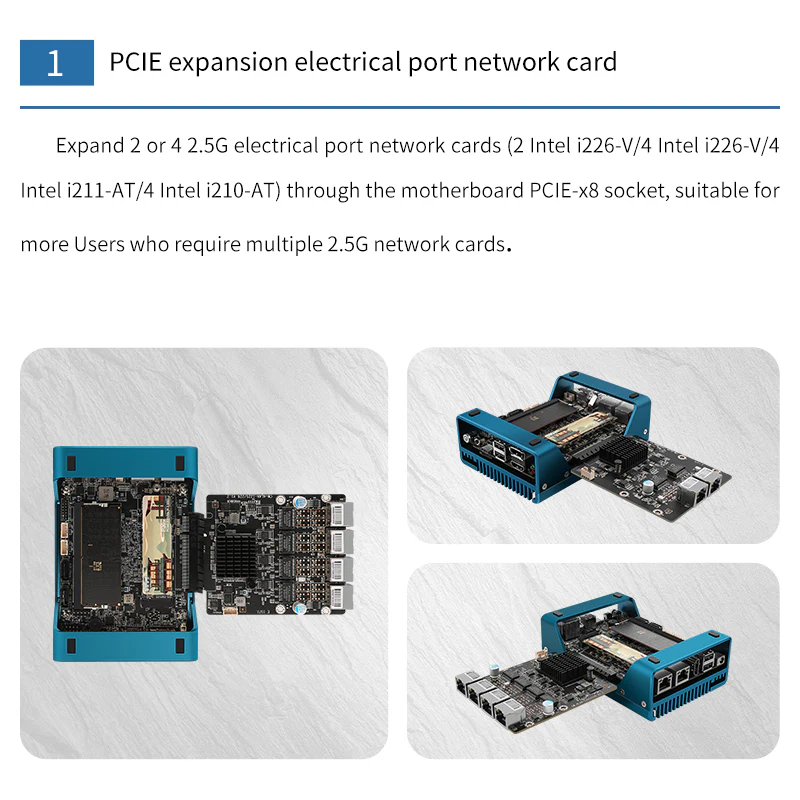

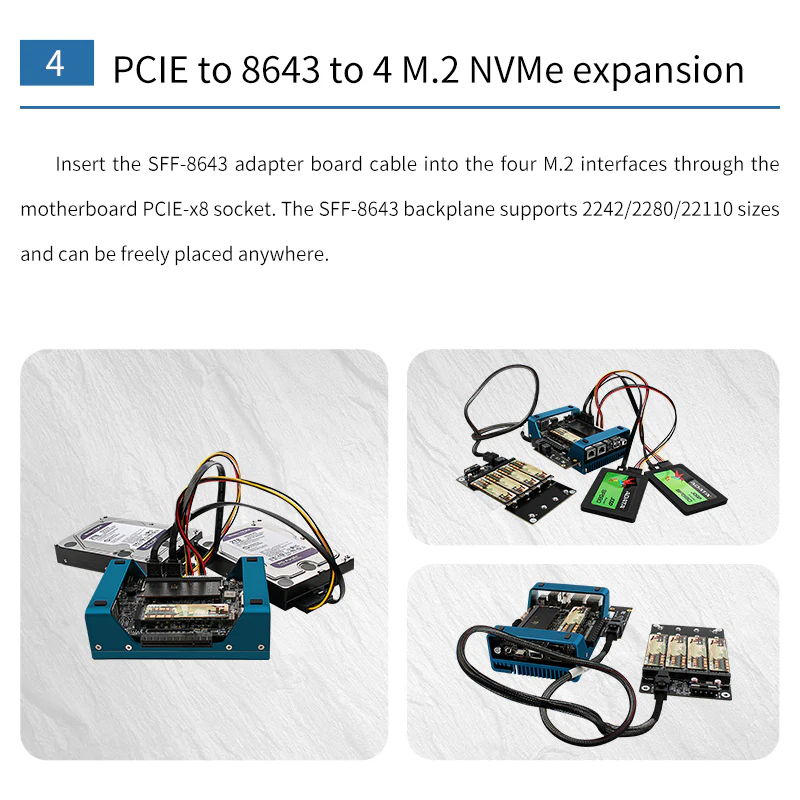

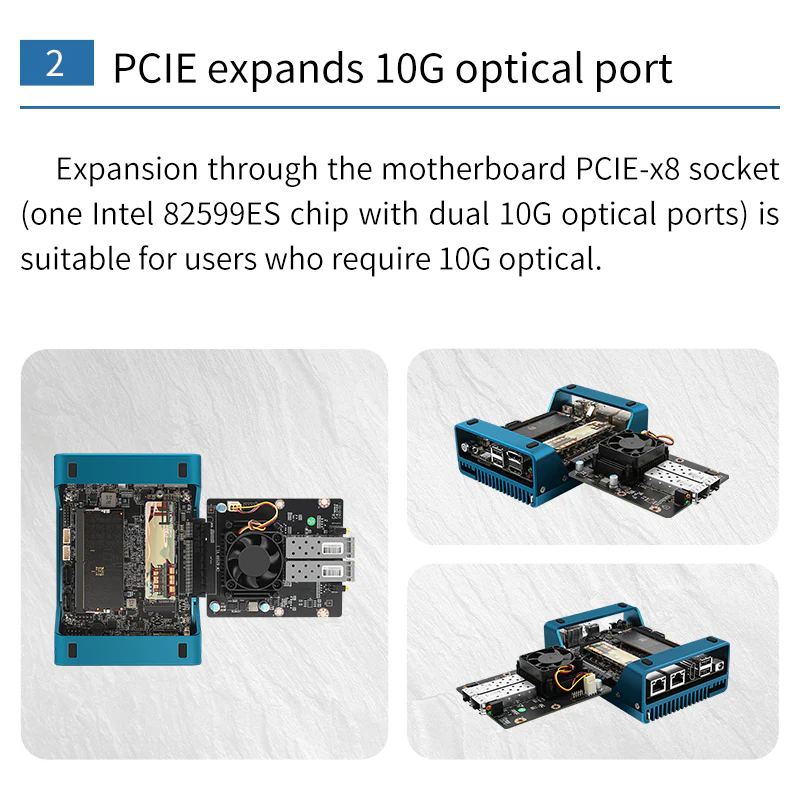

Expansion Slots	1× PCIe x8 slot (PCIe 3.0 x4 signal for NVMe/network cards)
USB Ports	4× USB 2.0 / 1× USB 2.0 pin header
Power	DC 12V-19V (5.5×2.5mm jack) / Basic consumption: 6-15W
Fan Support	1× 4-pin (temp-controlled) / 1× 3-pin fan headers
BIOS	AMI BIOS (Auto-boot, GPIO, watchdog, PXE)
Additional Features	1× COM pin / 1× TPM pin / BIOS reset button
Color Options	Cool Black / Tourmaline Blue / Dark Green
Operating Temp	-0°C to +70°C / Humidity: 5%–85%
Installation	Desktop placement

Processors	Cores & Threads	Cache	Max Turbo Frequency	TDP	Graphics
Intel N100	4 cores, 4 threads	6M	3.40 GHz	6W	Intel UHD Graphics 750MHz 24EUS
Intel N200	4 cores, 4 threads	6M	3.70 GHz	6W	Intel UHD Graphics 750MHz 32EUS
Intel Core i3-N305	8 cores, 8 threads	6M	3.80 GHz	15W	Intel UHD Graphics 1250MHz 32EUS
