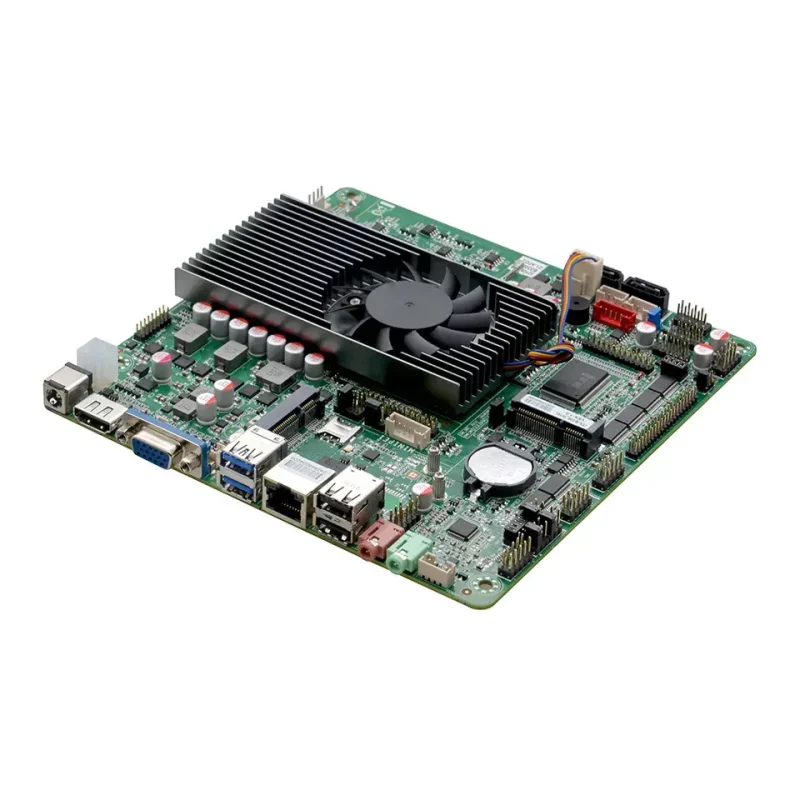

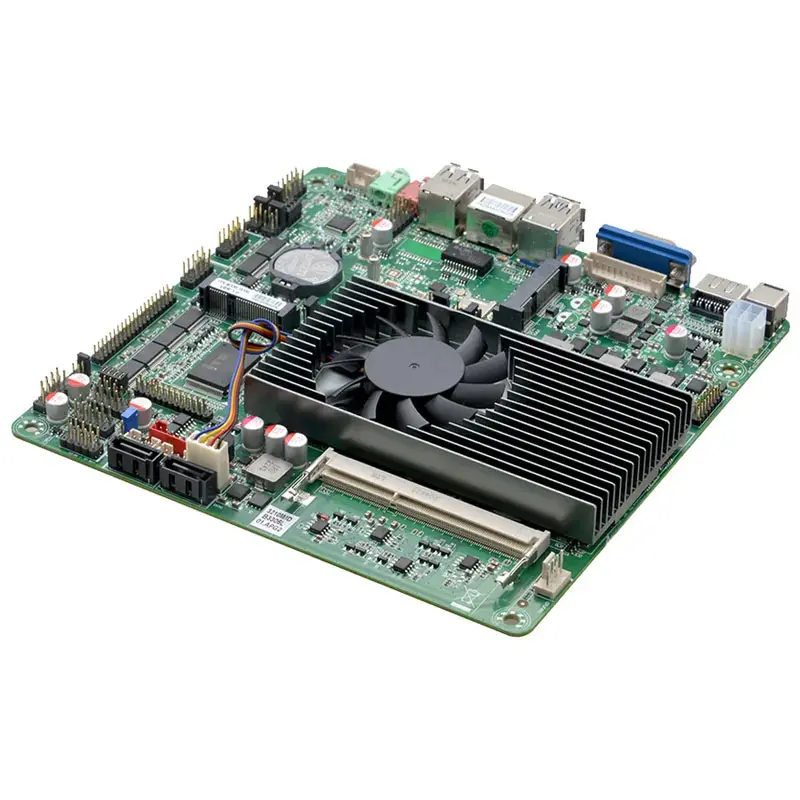

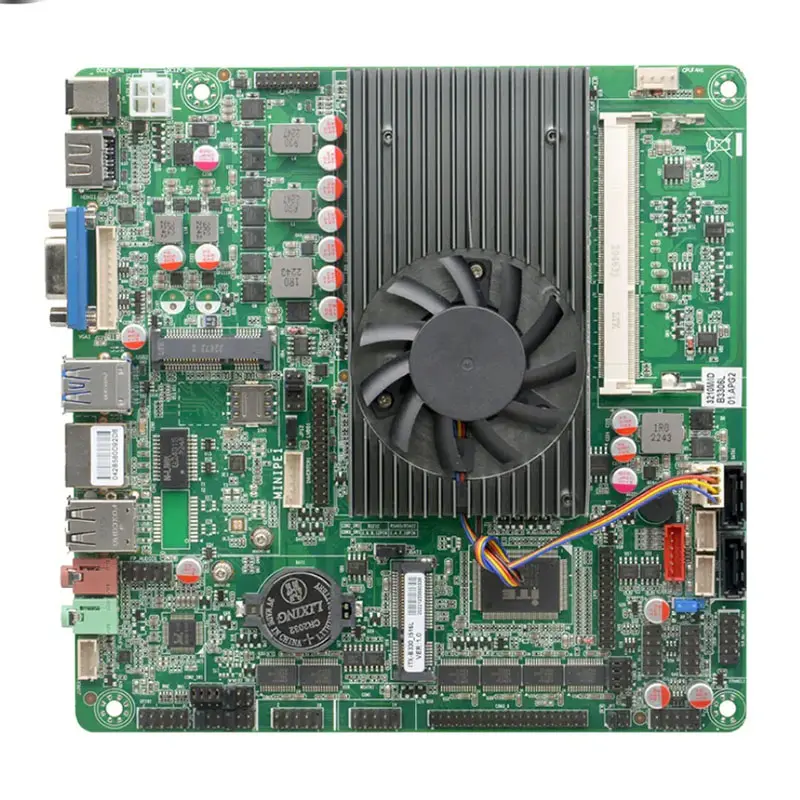

Intel HM76 Motherboard

Model: ITX-B330_I516L

Intel Core I5 3317U/3210M 1.7/2.5GHz quad core TDP 18W
Intel® HM76 high-speed chipset
1 x DDR3 DIMM slot,support 1600/1333MHz memory, max. up to 8GB
1 x SATA3.0, 1 x MSATA, 1 x M.2
Ultra thin all in one motherboard with lower power consumption
VGA and HDMI output/LVDS Synchronous, asynchronous display

Share to:

Overview

The ITX-B330_I516L industrial motherboard delivers professional-grade performance with the Intel HM76 chipset platform. As an experienced industrial motherboard manufacturer, we’ve engineered this board for reliability and versatility:

Advanced Architecture:

Intel 3rd Gen Core processors (i5-3317U/3210M)
Intel HM76 high-speed chipset
Low power consumption (18W TDP)
Industrial-grade components

Professional Display Support:

Intel HD Graphics 4000
VGA + HDMI dual output
LVDS interface (24-bit dual channel)
Multiple display configurations

Industrial Connectivity:

6 COM ports (RS232/422/485)
10 USB ports (2 x USB 3.0)
Gigabit LAN with Wake-on-LAN
GPIO support for industrial control

Expansion Capabilities:

DDR3 memory up to 8GB
SATA3.0 + mSATA storage options
Mini PCIe slot for WiFi/4G modules
Hardware watchdog timer

Perfect for industrial applications including:

Digital signage systems
Medical equipment
Kiosk solutions
POS terminals
Gaming machines
Industrial automation

Custom BIOS and hardware configurations are available for OEM/ODM requirements.

Mechanical

Product model	ITX-B330_I516L VER:1.0(3317U/3210M)
processor	Integrated Intel®Core I5-3317U/3210M 1.7/2.5GHz dual-core quad-thread processor,TDP 18W
	Compatible with Intel® Sandy /Ivy Bridge Celeron/Pentium/I3/I5/I7 BGA1023 low power processors
chipset	Intel® HM76 high-speed chipset
Internal memory	1*SODDR3 memory slot, supporting single-channel DDR3 1600/1333 memory, supporting a maximum of 8GB
display	Integrated Intel® HD Graphics4000 core graphics card, support single display, dual display mode, extended mode
display	1VGA, 2HD OUTPUT, 1* LVDS interface, support dual channel 24bit, and EDP shared pin
network	1* RTL8111H Gigabit NIC, supports network wake up and PXE functions.
deposit	2* SATA2.0 hard disk interface, transmission rate up to 3Gbps
	1*MSATA slot, support SSD SSD,SSD transmission speed up to 6Gbps
Tone frequency	Onboard ALC262 6-channel hi-fi audio controller with MIC/Line-out support. Power amplifier
Tone frequency	The power amplifier is recommended to use a 4Ω3W speaker
expansion	1* Mini-PCIE slot, supporting WIFI, 3G/4G modules

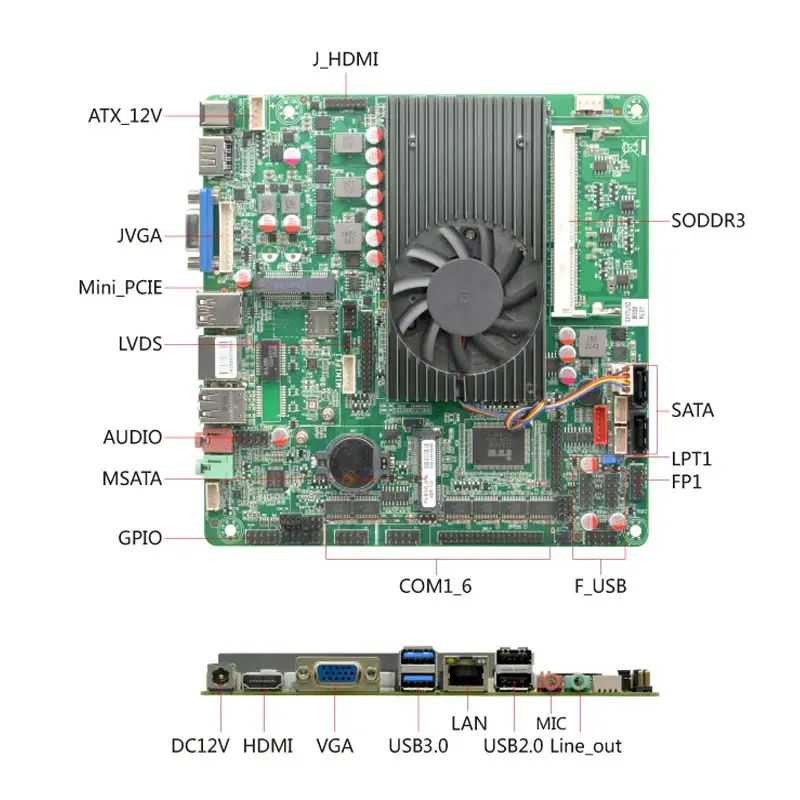

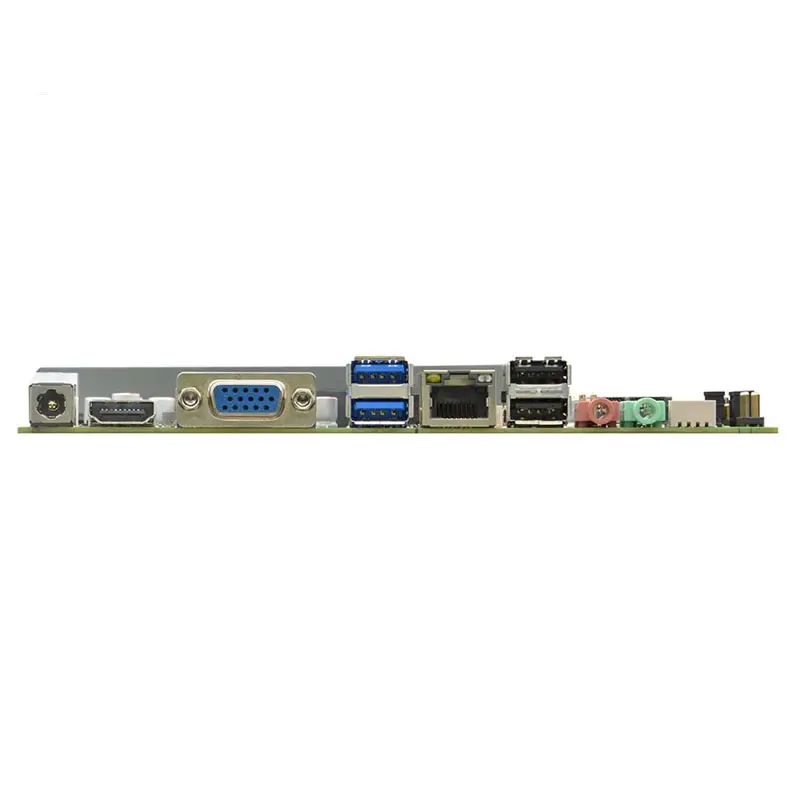

I/O ports on the backplane	2 x USB3.0,2 x USB2.0
	1* HD OUTPUT port
	1 x VGA port
	2* RJ-45 Gigabit network interface
	1* Line out (green)
	1* Mic (red)
	1 x 12V DC_JACK input
Built-in I/O interface	1* LVDS interface (2*15pin), support dual channel 24bit (dual 8)
	1* LVDS backlight Interface (1*6pin)
	1* J_HD OUTPUT interface (2*8Pin)
	1* JVGA1 interface (1*12pin), same signal as DB15
	6* RS232 serial port (COM2/3 supports RS422/485, COM1/COM2 9pin supports live function)
	1* LPT print port (2*13pin)
	6* USB 2.0 interface (2*5pin),
	1* PS/2 Mouse and keyboard interface (1*6Pin)
	1* Front panel function buttons and indicator ports (2*5pin)
	1* Front panel audio interface (2*5pin)
	1* Power amplifier interface (1*4pin)
	1* SIM card seat
	2* hard disk power supply interface (1*4pin)
	1* 4pin DC power interface, support 12V power input and output
Fan interface	14pin CPU intelligent fan interface,14pin system fan interface
GPIO	Supports four input/output GPIO
BIOS	32Mb Flash ROM
Guard dog	Support hardware reset function (256 level, 0~255 seconds)
Operating system	Window 7/Windows 10/Linux
Power supply type	Adopts DC 12V power supply
Operating temperature	-10℃ to 60℃
Storage temperature	-20℃ to 70℃
Working humidity	5%-95% relative humidity, no condensation

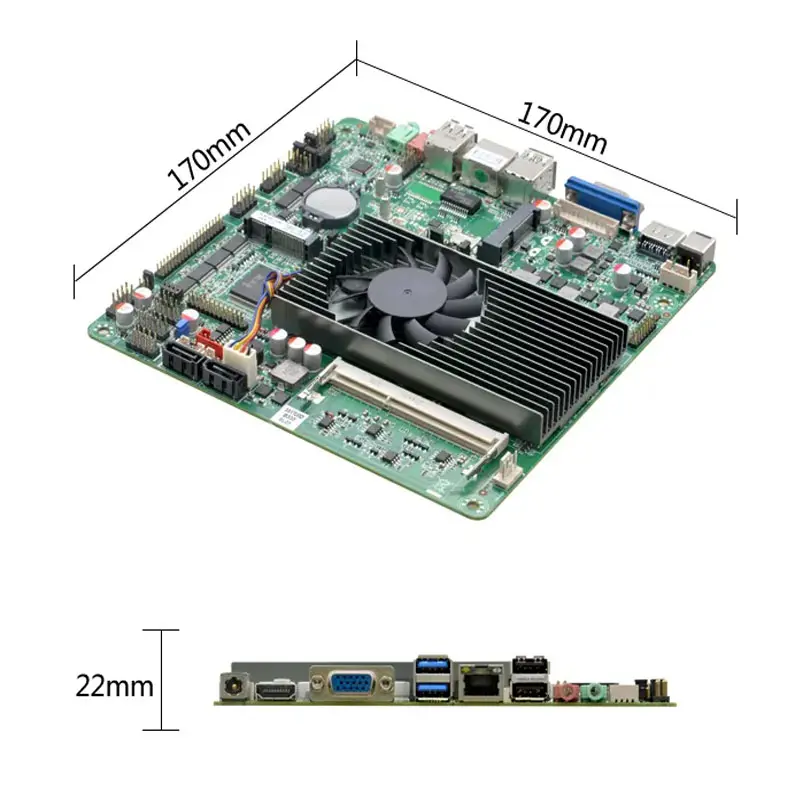

dimension	170mm * 170mm * 22mm
