Partaker Firewall Appliance Fanless Mini PC Intel Core i5

Firewall Appliance 6 LAN 2.5G LAN

Model: Partaker I29

Intel Core i5 8260U 8265U i3 8140U 3145U Celeron 5205U
6 x Intel I225 2.5G Network Controler
1 x DDR4 slot Up to 32GB Ram
mSata SSD, 2.5 inch SSD/HDD
Fanless, Watchdog, AWAL, RTC, WOL

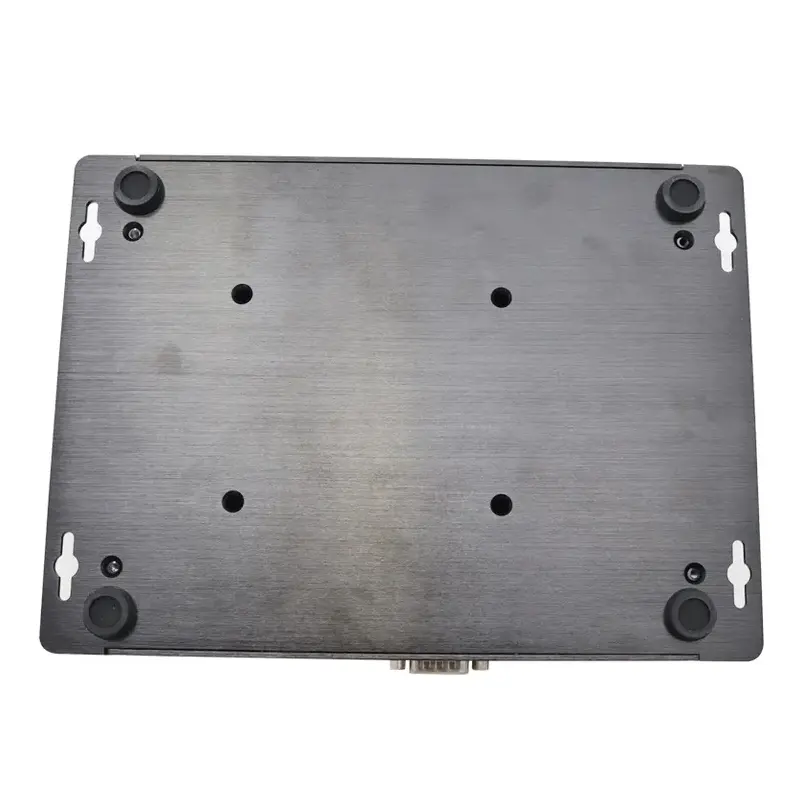

Aluminum alloy, 4 mounting holes on case

Share to:

Overview

Partaker I29 firewall router with 10th gen celeron 5205U, intel core i3 8140U i5 8260U processor. Fanless design with good heat dissipation function, samll size and easy to install. Various applications for security monitoring, VPN, Network Server, Network Security, Firewall, Router etc.

Mechanical

Material	Aluminum alloy
Colour	Black

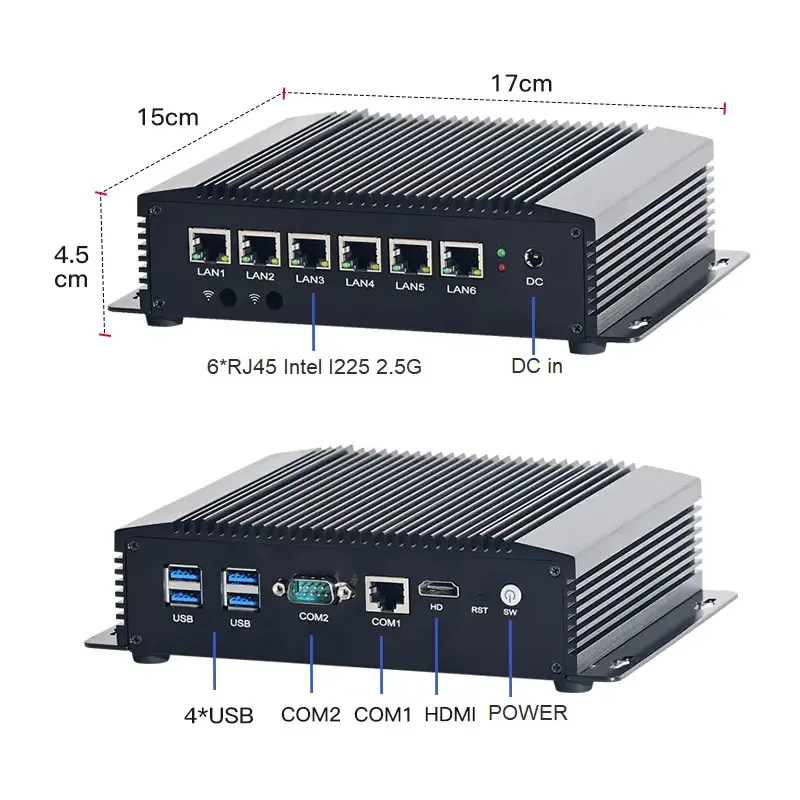

Size	170 x 150 x 45mm
Weight	2Kgs
Insallation Method	With mounting ears
Insallation Method	Wall-mounted, embedded, desktop

Motherboard

CPU	Intel® Core™ i5-8265U Processor (6M Cache, up to 3.90 GHz)
	Intel Core i3-8140U Processor (4M Cache, up to 3.90 GHz)
	Intel Celeron Processor 5205U (2M Cache, 1.90 GHz)
Chipset	Intel SOC
Network Card	6 x Intel I225 226 LAN
Intel® AES New Instructions	Yes

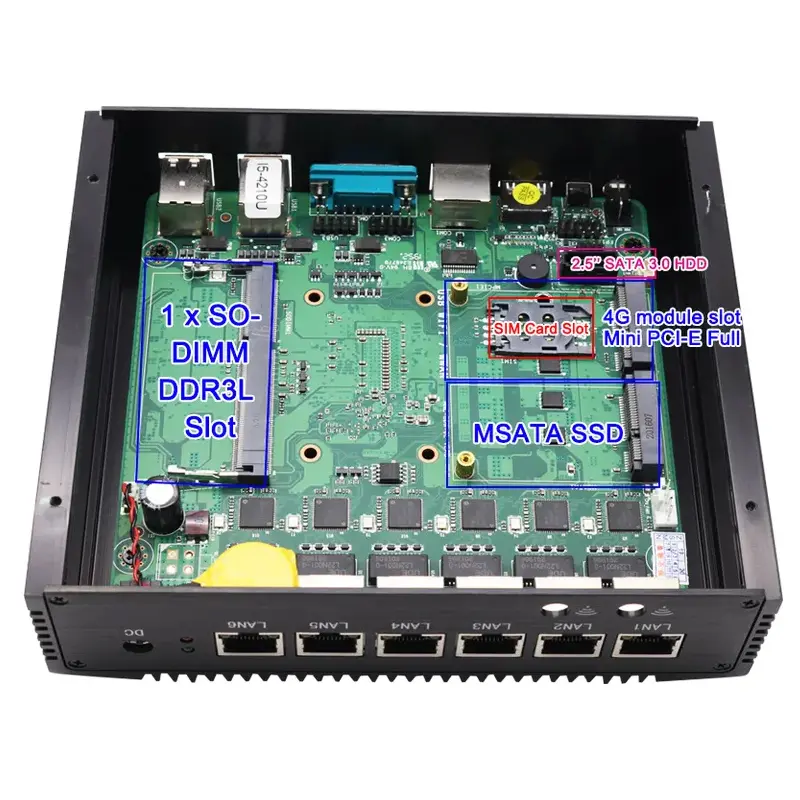

Memory	1 x SO-DIMM DDR4, up to 32GB RAM
Storage	1 x 2.5 inch hard disk bay/1 x mSATA
Expand	1 x Mini PCIE WiFi slot, 1 x SIM Slot

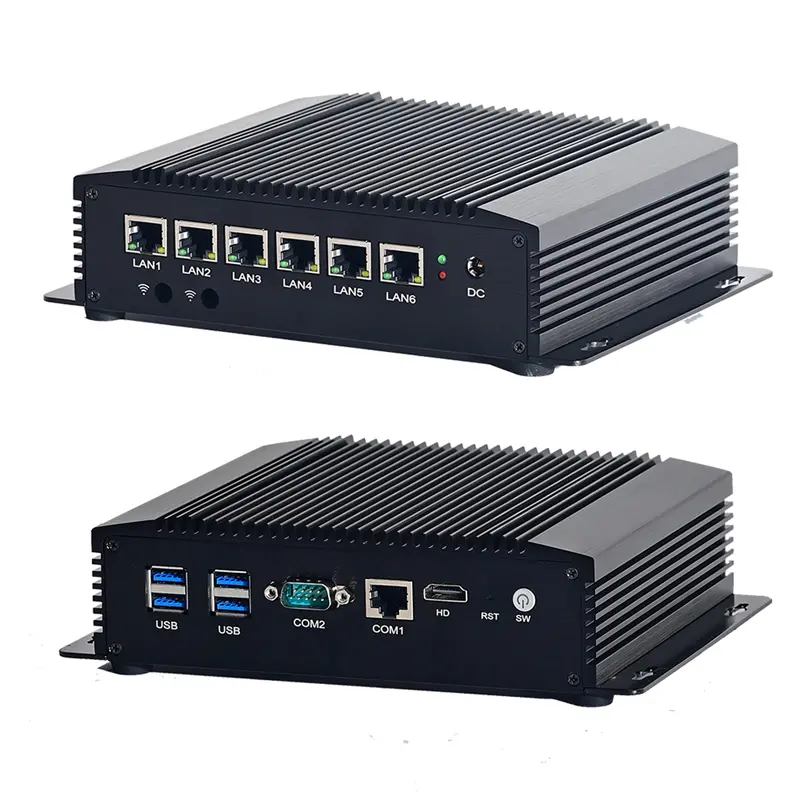

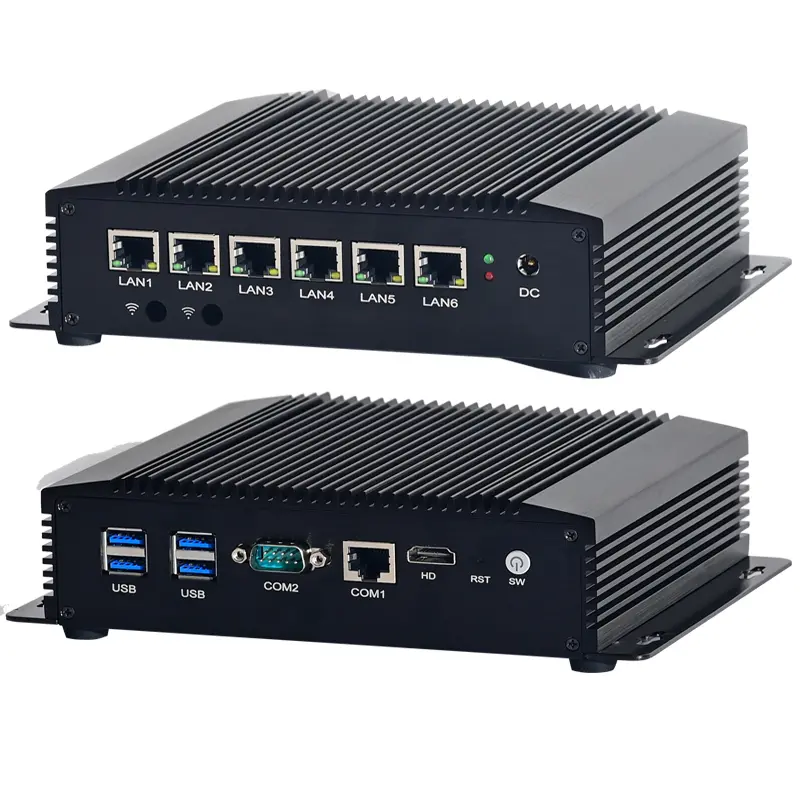

I/O Interfaces

Front Panel	1 x Power button
	1 x RST
	1 x HDMI
	1 x COM
	4 x USB3.0
	1 x Console RJ45 RS232
Rear Panel	1 x DC_in
Rear Panel	6 x LAN

Software Support

Bios	AMI bios
System Support	Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility	Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions

General

Cooling Mode	Fanless
Power Supply	DC100-240V AC/50-60Hz, DC 12V 5A
Packing List	I29 firewall appliance, power supply, power cord, warranty card

Environment

Operating Temperature	0°C~70°C Centigrade (32°F~140°F)
Storage Temperature	-20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity	10%~90% (non-condensing)
Certification	CE FCC ROHS

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	USB	Power
I29	I5 8260U	Intel® UHD Graphics	1.6~3.9 GHz	HDMI	1 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA	6	4	12V5A
I29	I3 8140U	Intel® UHD Graphics 620	2.1~3.9 GHz	HDMI	1 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA	6	4	12V5A
I29	5205U	Intel® UHD Graphics	1.90 GHz	HDMI	1 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA	6	4	12V5A
