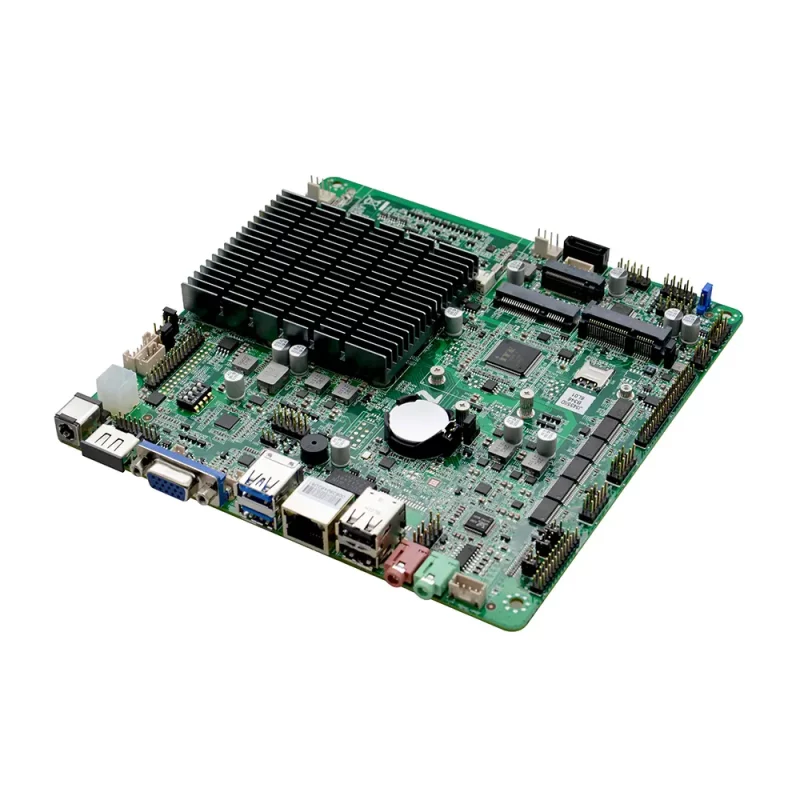

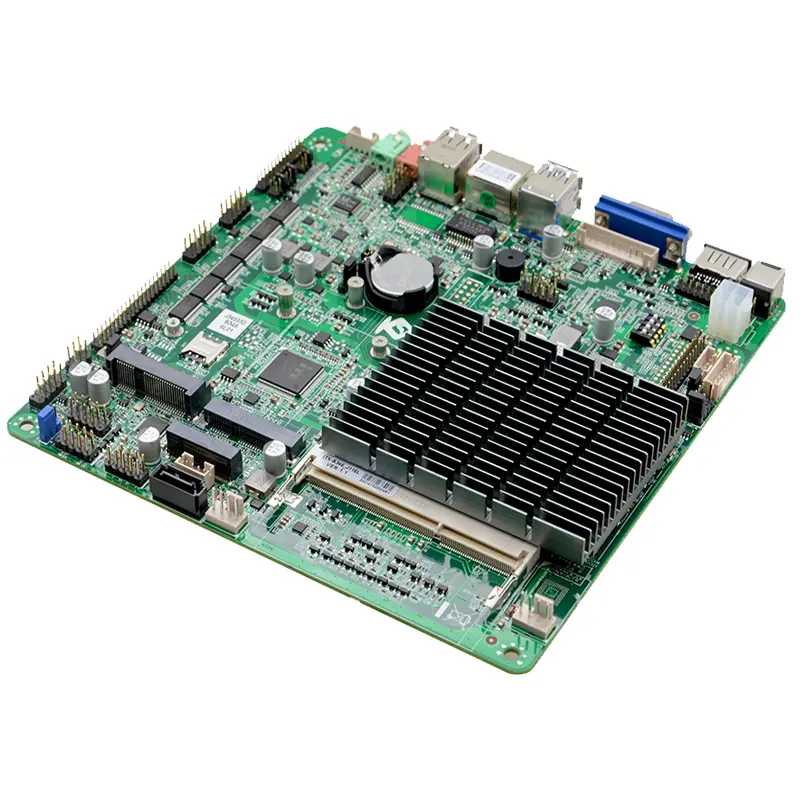

Fanless ITX motherboard

Model: ITX-B347_J112L

J3455 1.5GHz quad-core processor
1* 7pin SATA3.0,1* MSATA slot,1* M.2 slot
1* DDR3L SODIMM,up to 8GB
1* RTL8111H Gigabit Ethernet
1*VGA, 1*HD OUTPUT,1*LVDS
2*USB3.0, 6*USB2.0, 2* RS232 COM Port

Share to:

Overview

The Intel Celeron J3455 fanless mainboard is a silent and efficient mainboard that supports DC 12V input and has a 8111H LAN port. It is based on the Intel Celeron J3455 processor that offers high performance and low power consumption. This mainboard is ideal for applications that require a fanless and reliable computing solution.

Mechanical

Product number	ITX-B347_J112L VER:1.2(J3455)
processor	Integrated Intel® Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W Compatible with Intel® Apollo Lake Celeron/Pentium low-power processor
chipset	SOC
RAM	1* DDR3L SODIMM, support single channel 1600/1866MHz 1.35V memory, maximum support 8GB
show	Integrated Intel HD Graphics 500 core graphics card
	1VGA, 1HD OUTPU1, 1LVDS interface (support dual channel 24Bit) or 1EDP interface
	Support VGA, HD OUTPU1, LVDS synchronous/asynchronous display
The internet	1* RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function
Store	1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
	1* MSATA slot, support SSD transfer speed up to 6Gbps,
	1* M.2 slot, support M.2 2280 NVME PCIE x1 standard SSD
Audio	Integrated ALC892 7.1+2-channel high-fidelity audio controller, support MIC, Line_out, power amplifier
Audio	It is recommended to use 2Ω5W speakers for the power amplifier
Expand	1* Mini-PCIE slot supports WIFI/3G module
Backplane I/O interface	2* USB3.0 interface, 2*USB2.0 interface
	1* HD OUTPU11.4 interface
	1* VGA DB15 interface
	1* RJ-45 Gigabit network interface
	1* Line out (green)
	1* Mic (red)
	1* 12V DC power input interface
Built-in I/O interface	1* LVDS interface 2*15pin, support dual channel 24Bit LCD display
	1* screen backlight power supply interface (1*6pin)
	1* Screen brightness adjustment interface 1*4pin
	1* HD OUTPU1 interface 2*8Pin, the same signal as the HD OUTPU1 interface on the back panel
	1* JVGA interface 1*12pin, the same signal as DB15
	2* RS232 serial port, COM2 can support RS485/422, COM1 supports the 9th pin charged function
	1* LPT interface 2*13pin
	1* PS/2 keyboard and mouse interface 1*6pin
	6* USB2.0 interface, 2*5pin
	1* Front panel audio interface 2*5pin
	1* SIM card holder
	1* Hard disk power supply interface, 1*4pin
	1* Front panel function button and indicator port 2*5pin
	2* 2pin ATX power interface, can be used as +12V input and output
	1* power amplifier interface 1*4pin
Fan interface	Fanless cooling, reserved 1* 4pin CPU smart fan interface, 1*4pin system fan interface
GPIO	Support 4 input and output GPIO
BIOS	64Mb Flash ROM
Watchdog	Support hardware reset function (256 levels, 0~255 seconds)
Power supply type	DC 12V single power input
Operating temperature	-10℃~60℃
Storage temperature	-20℃~70℃
Working humidity	5%-95% relative humidity, non-condensing
size	170mm x 170mm
