Fanless Industrial PC Intel 4205U I7 I5

Model: Partaker PA-3046

All aluminum structure, Fanless design
Onboard Intel Whiskey Lake U series processors
Support 9～36V wide voltage; TPM2.0 Module
Support 4 x COMs，2 x COM（RS232/485 Optional)
Support 4 x Intel 1000M lans
Support Din Rail Mount, Desktop, VESA, Wall Mount etc

Share to:

Overview

With a surprising amount of CPU, GPU, Partaker PA-3046 is a well designed mini PC that offers high performance for automation, medical, video monitor, production, digital signage, logistics, E-self service locker, ATM. Intel Processor, Fanless Design Low Noise, Support 1080P, 4 x COM, Support WiFi, Industrial Grade Dustproof and running for 7 x 24 hours.

Mechanical

Material	Aluminum alloy
Colour	Titanium gray（Color can be customized）

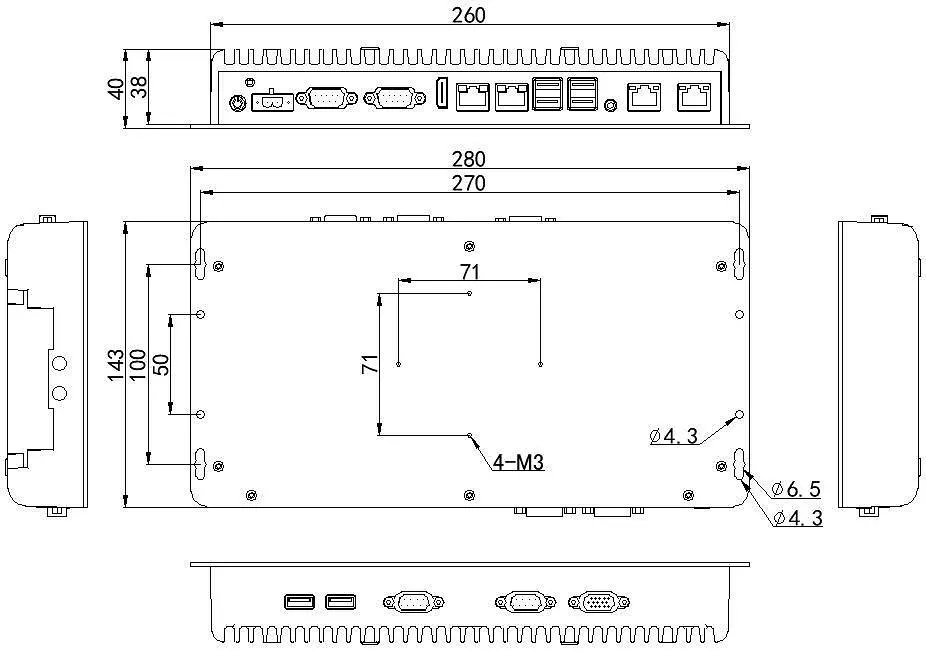

Size	280 x 143 x 40mm
Weight	2.5Kgs
Insallation Method	Desktop type

Motherboard

CPU	Intel Celeron 4205U (Dual core dual threads, 1.8Ghz, 2MB Cache) Intel Core i5-8265U (Quad core eight threads, 1.6Ghz, Max turbo 3.9Ghz, 6MB Cache） Intel Core i7-8565U (Quad core eight threads, 1.8Ghz, Max turbo 4.6Ghz, 8MB Cache）
CPU Architecture	Skylake-U
Network Card	4 x Intel i211-AT 1000M Lan
Graphic	Intel UHD Graphics
Memory	Support 1 x DDR4 2133/2400 SODIMM Memory slot, Max. Support 32GB
Storage	1 x M.2 2280 slot, 1 x 2.5 Inch HDD, Support RAID 0/1
Expand	Support 1 x M.2 M-Key 2280 slot（Support SATA Protocol） Support 1 x MINI PCIE Slot (WIFI/3G/4G Optional; choose one from three), embedded SIM Slot Expansion Ports: GPIO(8 Input 8 Output), 2 x COM, 1 x USB2.0 (Standard version does not include these ports）

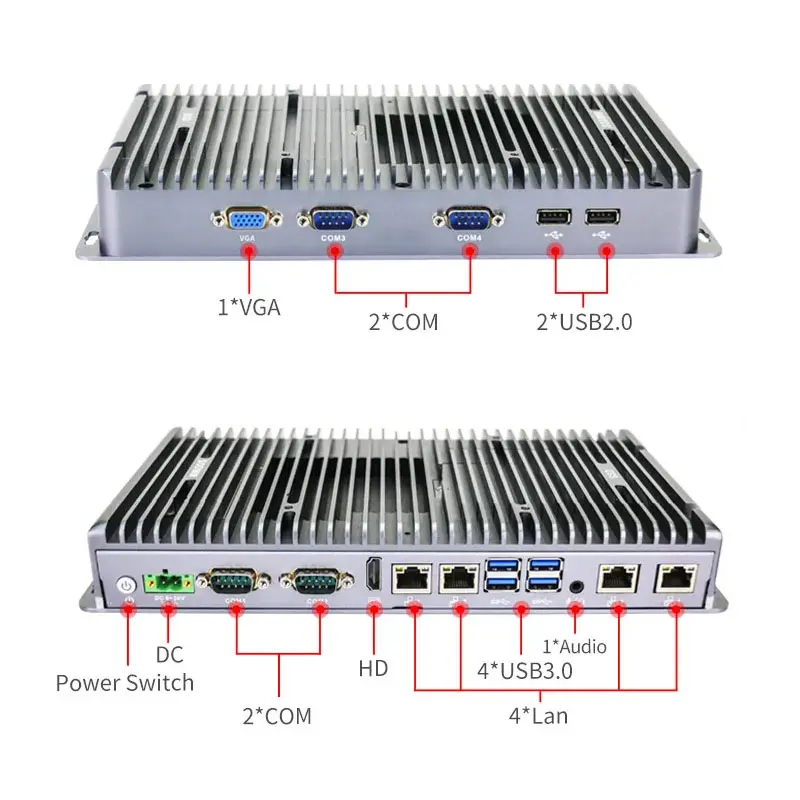

I/O Interfaces

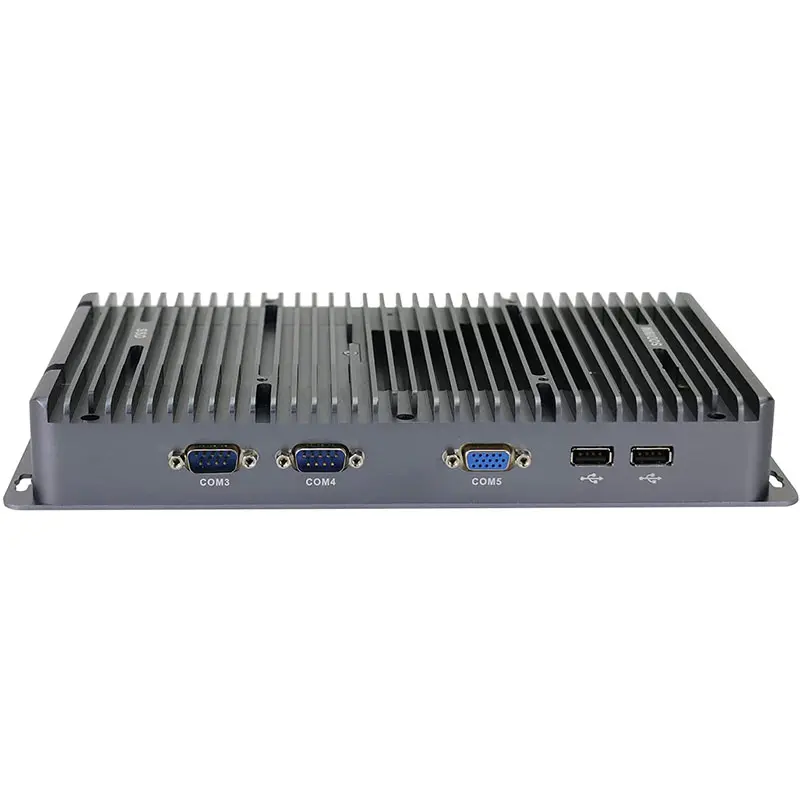

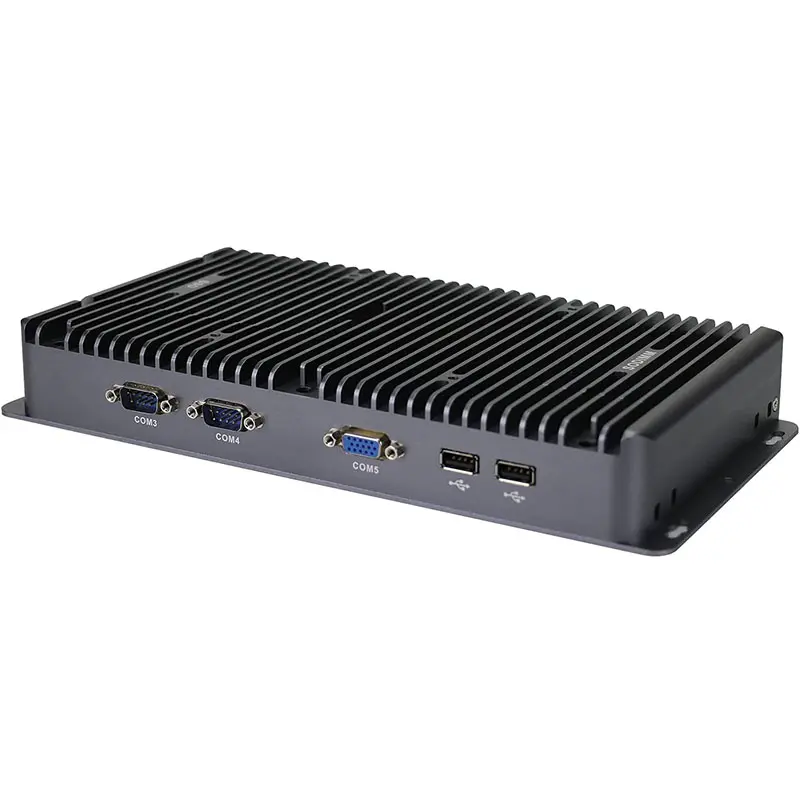

Front Panel	1 x USB2.0
	2 x COM
	1 x VGA

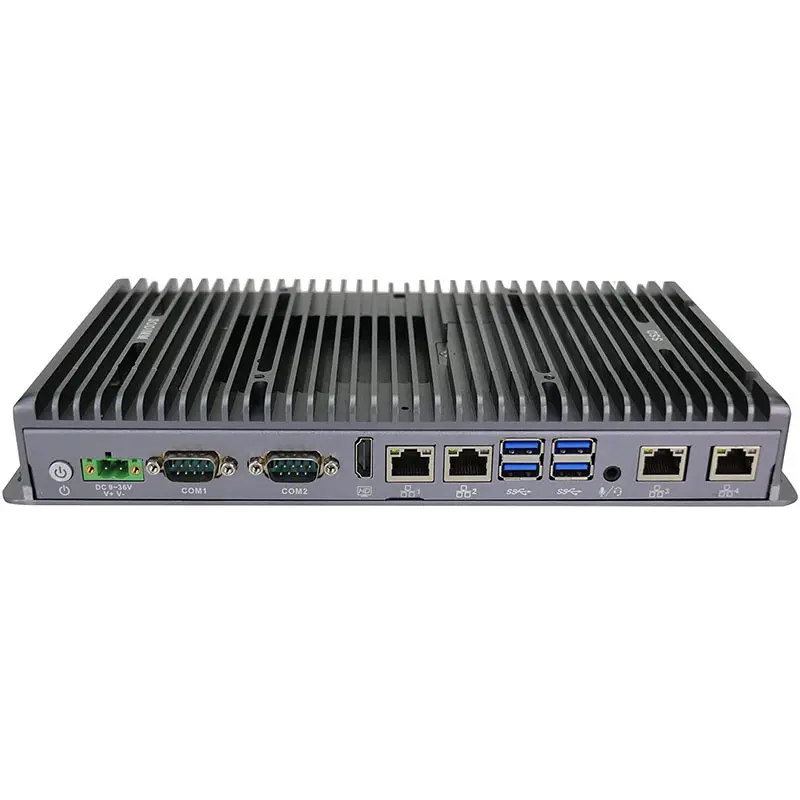

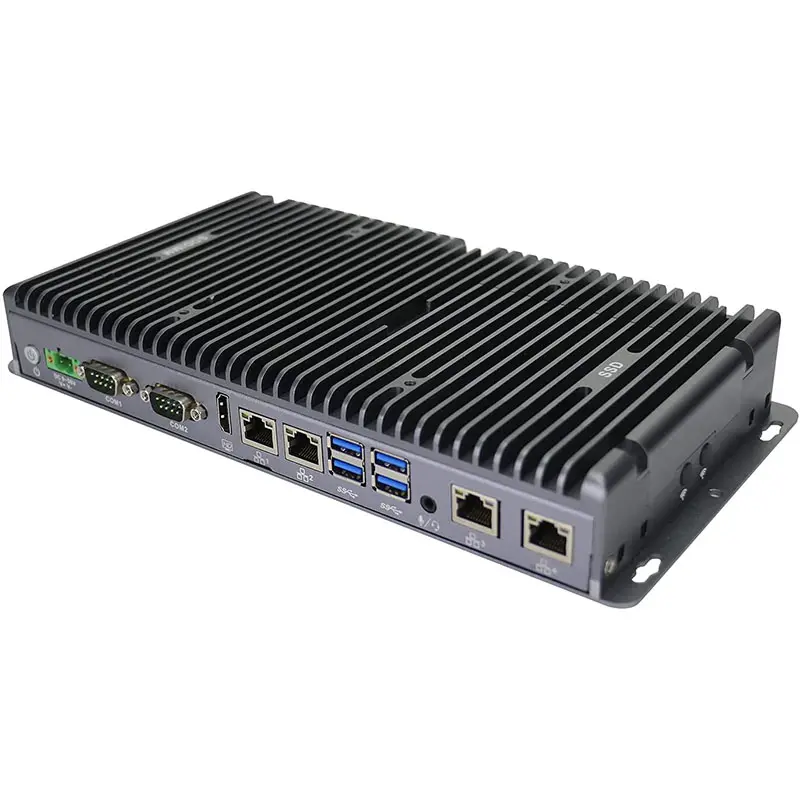

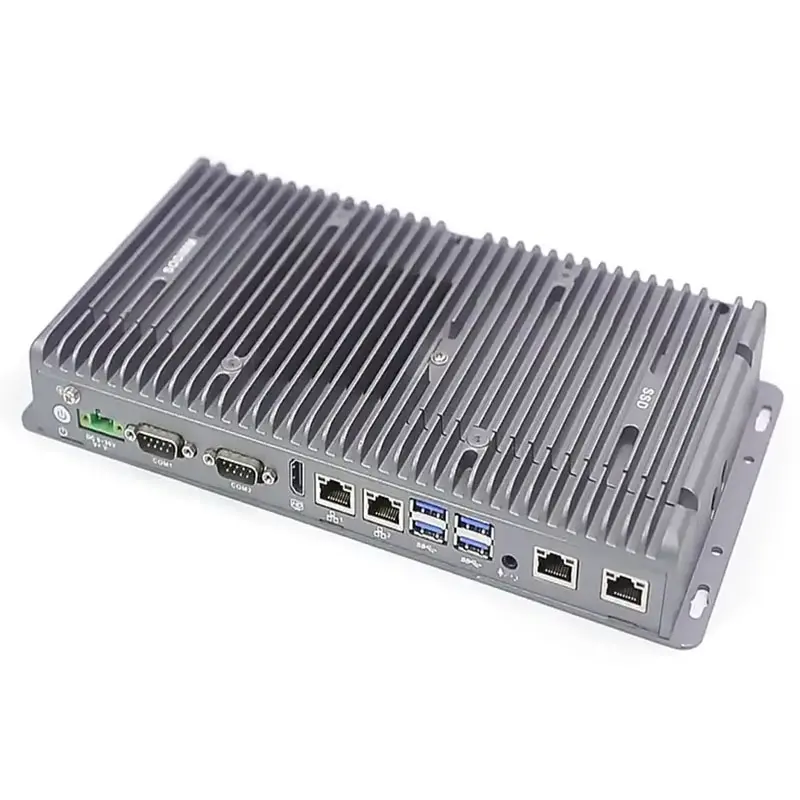

Rear Panel	4 x Intel 1000M LAN
	4 x USB3.0
	1 x HDMI
	1 x Audio (Support Mic and Speaker at the same time)
	2 x COM (COM1, COM2 RS232/RS422/RS485 Optional）
	1 x 2Pin power supply phoenix connector
	1 x Power Switch

Software Support

Bios	AMI EFI BIOS
System Support	Windows & Linux

General

Cooling Mode	Fanless
Power Supply	Support DC 9～36V，support positive and negative reverse protection

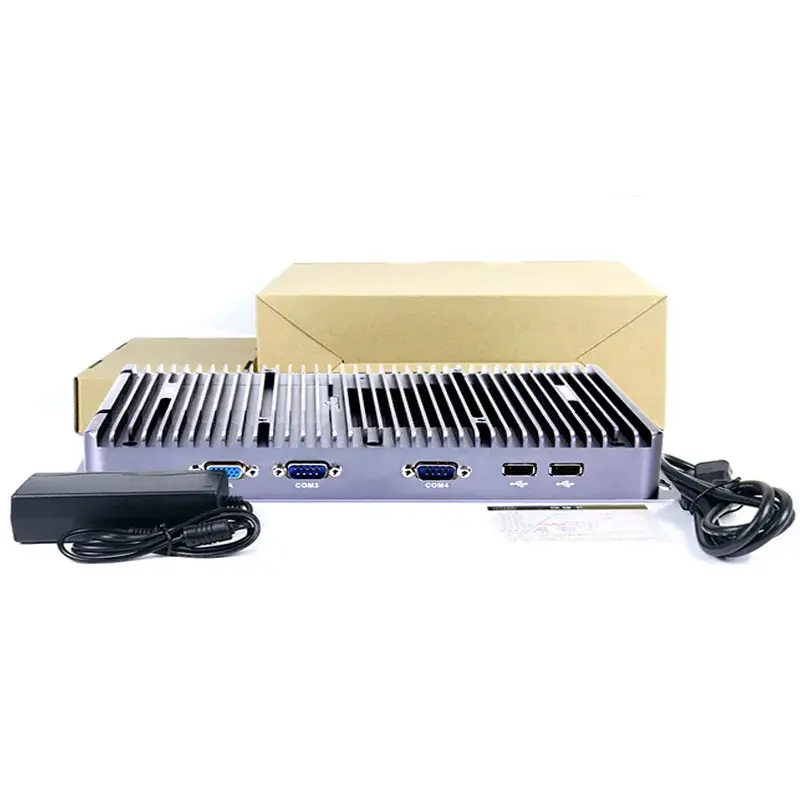

Packing List	PA-3046 mini pc, power supply, power cord, warranty card

Environment

Working Temperature	0℃ ～ +50℃ ( HDD)，-20℃ ～ +60℃ ( SSD)，Surface air flow
Working Humidity	0% – 95% relative humidity, Non-condensing
Other Function	TPM2.0 modem, Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog（0～255 level）
Certification	CE FCC ROHS

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	COM	USB	Power
PA-3046	4205U	Intel® UHD Graphics	1.8GHz	VGA/HDMI	1 x SO-DIMM DDR4	1 x M.2 2280/1 x 2.5 inch SSD/HDD	4	4	6	12V/5A
PA-3046	I5 8265U	Intel® UHD Graphics	1.6~3.9GHz	VGA/HDMI	1 x SO-DIMM DDR4	1 x M.2 2280/1 x 2.5 inch SSD/HDD	4	4	6	12V/5A
PA-3046	I7 8565U	Intel® UHD Graphics	1.8~4.6GHz	VGA/HDMI	1 x SO-DIMM DDR4	1 x M.2 2280/1 x 2.5 inch SSD/HDD	4	4	6	12V/5A
