Fanless Industrial Mini PC I7 I5 I3

Model: Partaker I11

Mini body with fanless
6 x RS232 COM
2 x Gagibit Ethernet
7 x 24 Operation
HDMI+VGA display
Support 4G Module
Support DDR4 Memory

Share to:

Overview

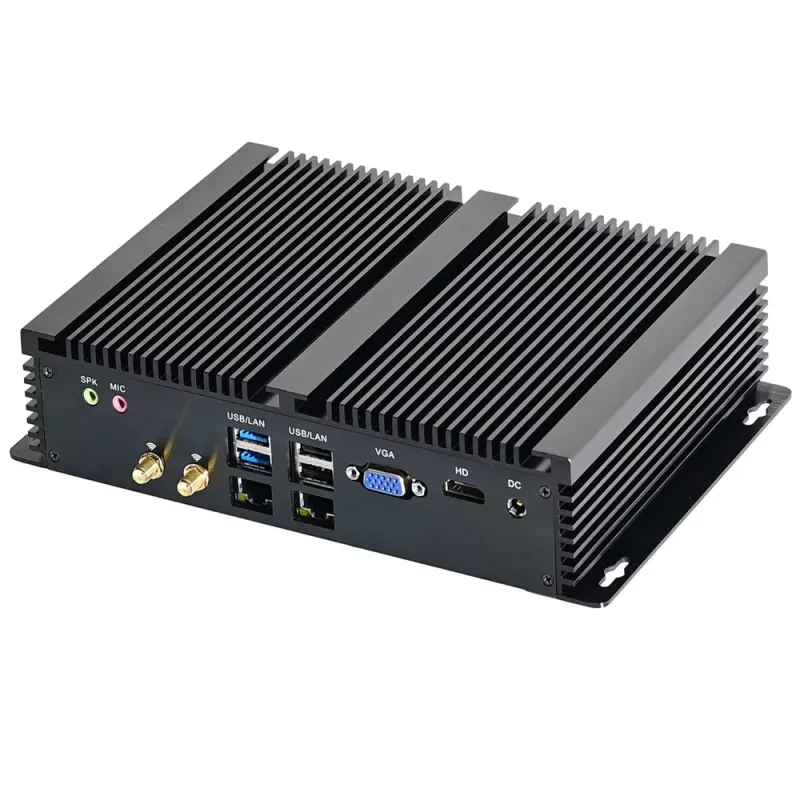

Partaker I11 Industrial Mini Computer with 2 LAN 6 COM, support VGA+HDMI dual display, completely sealed and dustproof, work as long as 24 hours. The body is manufactured by high strength aluminum alloy cold rolling process with good anti-interference, abrasion resistance, pressure resistance and high and low temperature resistance (-10C to 60C). Can operate stably in all kinds of harsh enviroment.

Mechanical

Material	Aluminum alloy
Colour	Black

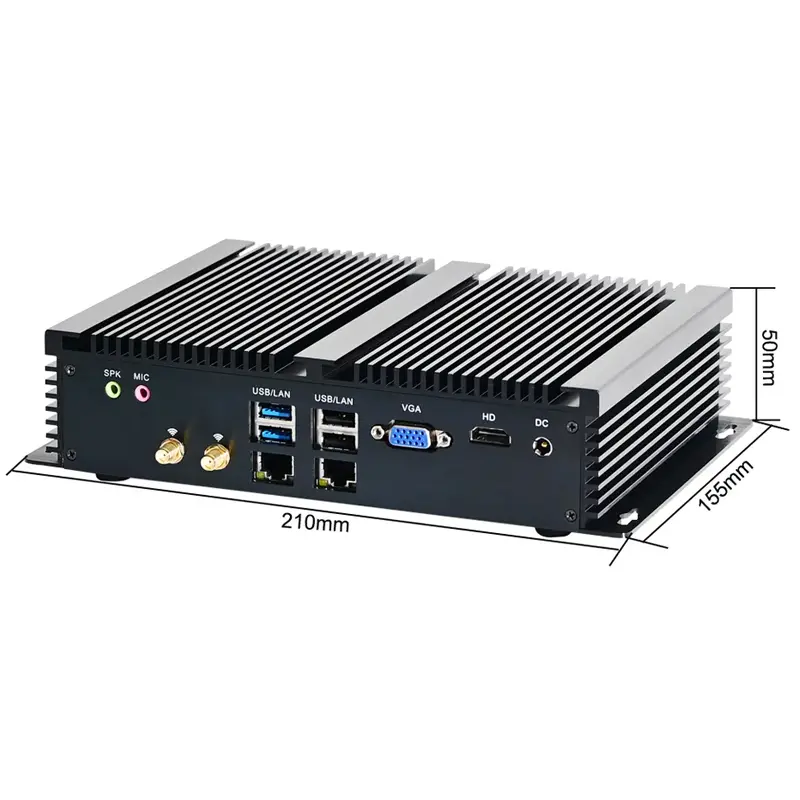

Size	210 x 155 x 50mm
Weight	2.5Kgs

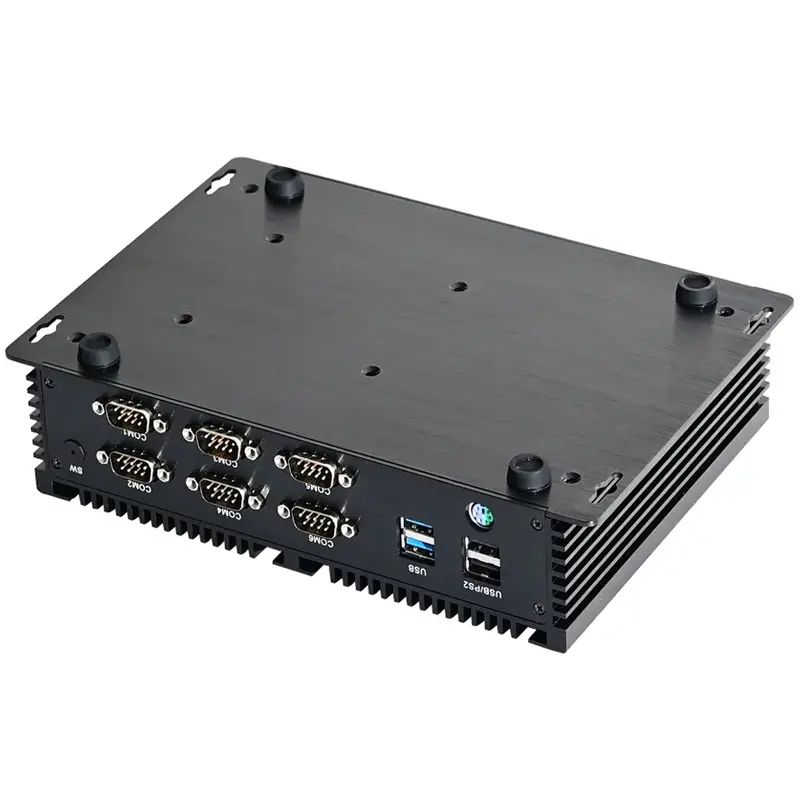

Insallation Method	With mounting ears
Insallation Method	Wall-mounted, embedded, desktop

Motherboard

CPU	Intel® Core™ i3-6006U/6157U Processor (3M Cache, 2.00 GHz)
	Intel® Core™ i3-7167U Processor (3M Cache, 2.80 GHz)
	Intel® Core™ i5-7200U/7267U Processor (3M Cache, up to 3.10 GHz)
	Intel® Core™ i5-8250U/8260U Processor (6M Cache, up to 3.40 GHz)
	Intel® Core™ i7-8550U/8565U Processor (8M Cache, up to 4.00 GHz)
	Intel® Core™ i7-7510U Processor (4M Cache, up to 3.70 GHz)
	Intel® Core™ i7-7560U Processor (4M Cache, up to 3.80 GHz)
Chipset	SOC
Network Card	2 x Intel I211 10/100/1000 gigabit ethernet nics
WiFi and Bluetooth	With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory	1 x SO-DIMM DDR4, up to 32GB RAM

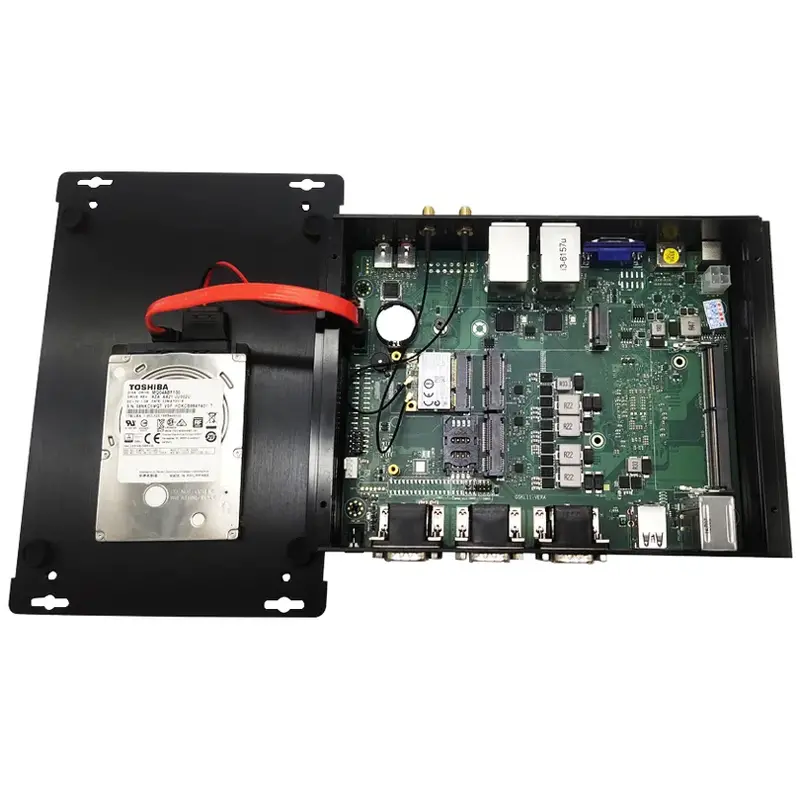

Storage	1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME)
Expand	2 x Mini PCIE slot (WiFi/4G), with sim slot onboard

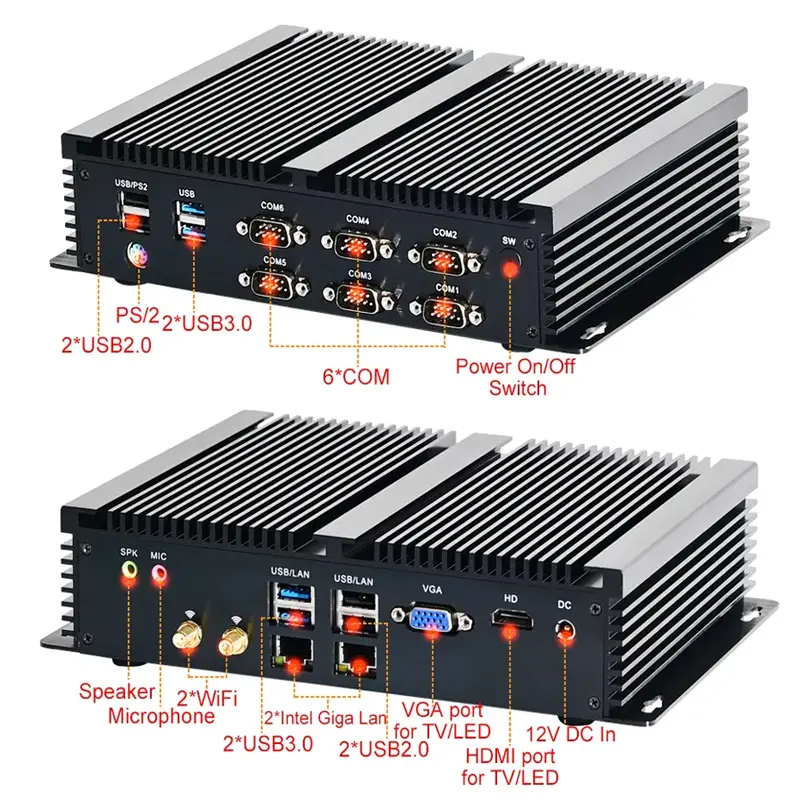

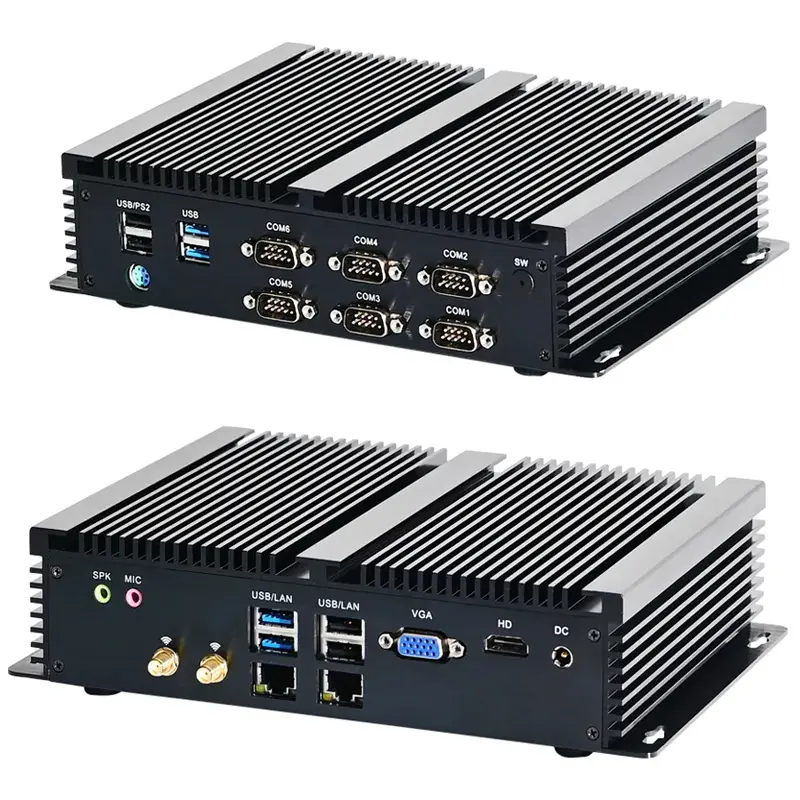

I/O Interfaces

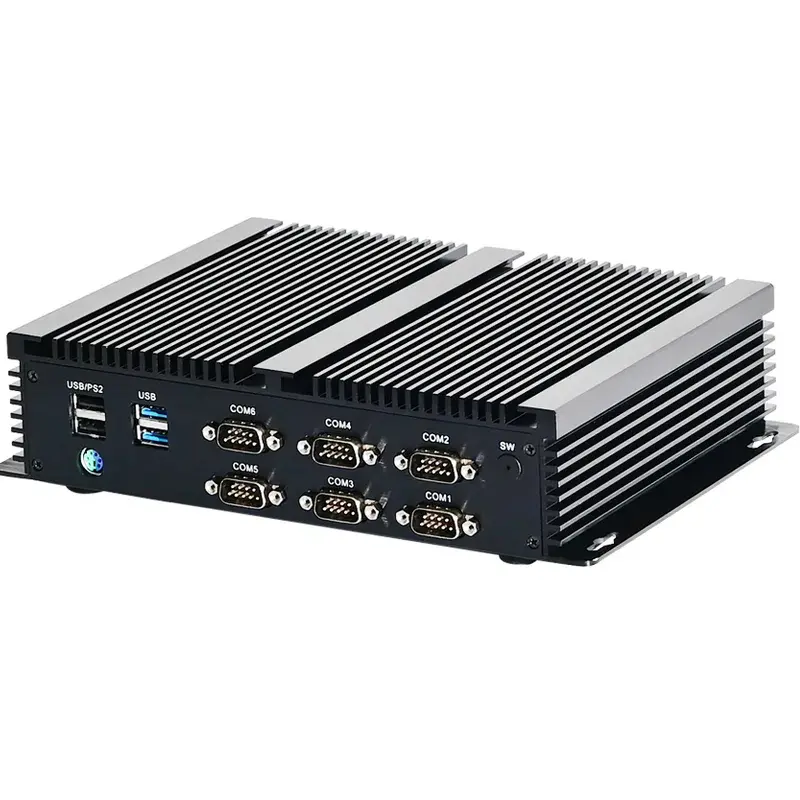

Front Panel	1 x Power button
	6 x COM (COM1 COM2 for RS232 RS422 RS485)
	2 x USB3.0
	2 x USB2.0
	1 x PS/2

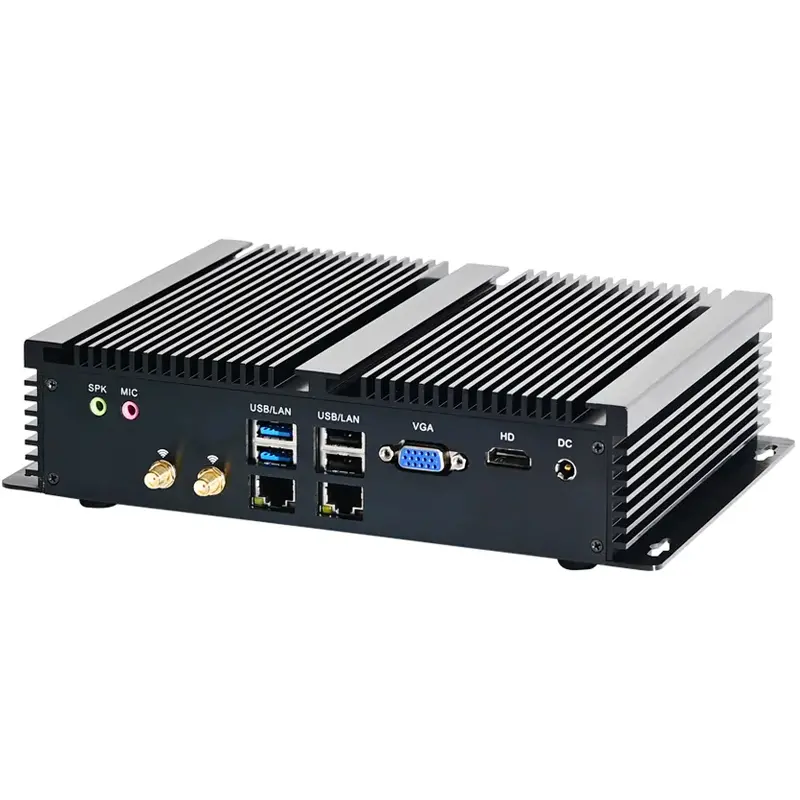

Rear Panel	1 x DC_in
	1 x VGA
	1 x HDMI
	2 x USB3.0
	2 x USB2.0
	2 x Lan
	1 x Audio
	2 x WiFi antennas

Software Support

Bios	AMI bios
System Support	Windows 10, linux ubuntu etc

General
Cooling Mode	Fanless
Power Supply	DC100-240V AC/50-60Hz, DC 12V/3A-5A/ 19V/5A
Packing List	Partaker I11 industrial pc, power supply, power cord, wifi antennas, warranty card

Environment

Operating Temperature	0°C~70°C Centigrade (32°F~140°F)
Storage Temperature	-20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity	10%~90% (non-condensing)
Certification	CE FCC ROHS

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	COM	USB	Power
I11	I3 6157U	Intel® HD Graphics 520	2.00 GHz	VGA/HDMI	1 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME)	2	6	8	12V/3A
I11	I3 7167U	Intel® HD Graphics 620	2.30 GHz	VGA/HDMI	1 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME)	2	6	8	12V/3A
I11	I5 7267U	Intel® HD Graphics 620	2.50~3.10 GHz	VGA/HDMI	1 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME)	2	6	8	12V/5A
I11	I5 8250U	Intel® UHD Graphics 620	1.60~3.40 GHz	VGA/HDMI	1 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME)	2	6	8	12V/5A
I11	I7 8550U	Intel® UHD Graphics 620	1.80~4.00 GHz	VGA/HDMI	1 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME)	2	6	8	12V/5A
I11	I7 10510U	Intel® UHD Graphics	1.80~4.90 GHz	VGA/HDMI	1 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME)	2	6	8	12V/5A
I11	I7 7560U	Intel® Iris® Plus Graphics 640	2.4~3.80 GHz	VGA/HDMI	1 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME)	2	6	8	12V/5A
