Embedded Fanless PC

Model: Partaker P02

Premium all-aluminum, sleek black design.
Compact & lightweight for portability.
Versatile installation: desktop, wall, or embedded.
Powerful CPU options for diverse needs.
Dual display support with HDMI & VGA.
Gigabit network ports for fast internet.
DDR3/DDR4 memory for smooth multitasking.
Ample storage with mSATA & 2.5″ SSD/HDD.
Rich I/O ports for seamless connectivity.
Full software support, including Windows & Linux.

Share to:

Overview

Experience peak performance with our Fanless Mini PC featuring an Intel Celeron processor for high efficiency and low power consumption. Connectivity is a breeze with 6 USB ports, 2 COM ports, and RS232/485 support. This lightweight design supports VESA wall mounting, ensuring adaptability in any environment. Choose from processors like the Intel Celeron J4125 or N4000, and enjoy versatile expansion options with DDR4 memory, M.2 NVMe, MiniSATA, and SATA slots. Connectivity is further enhanced with dual Realtek 8111 Gigabit Ethernet ports and dual video outputs (VGA and HDMI). Ideal for silent operation, this Mini PC is your go-to solution for compact computing.

Mechanical

Material	High-quality all aluminum
Colour	Black

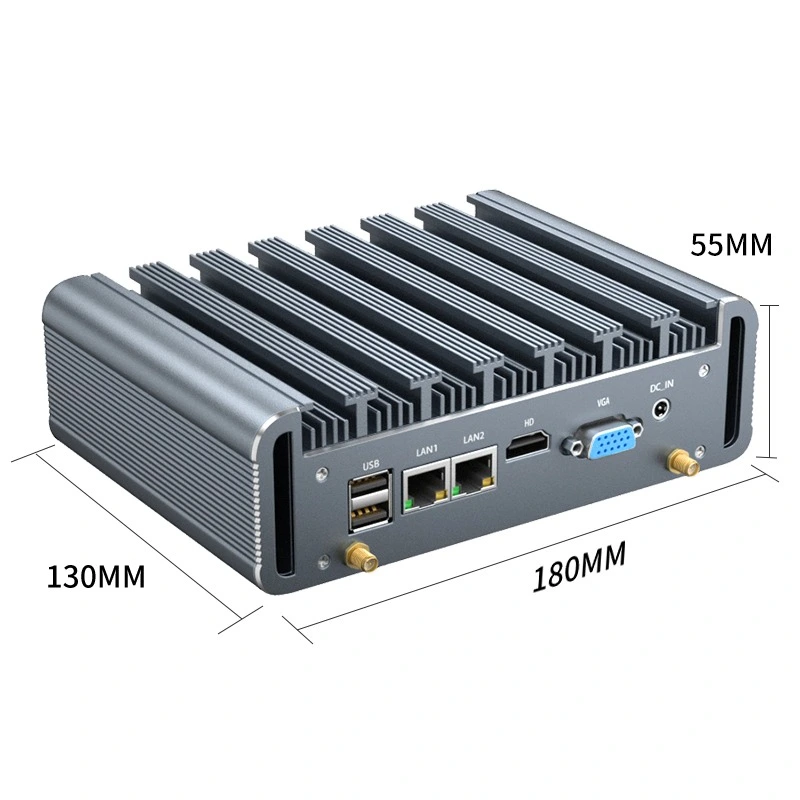

Size	178 * 126 * 56 mm
Weight	2.5Kgs
Insallation Method	Desktop, wall-mounted, embedded

Motherboard

CPU	Intel N2840/J1900/N4000/J4125/3215U/I3 4005U/I3 5005U/I5 4200U/I5 5200U Processor
Display Ports	1 x HDMI port, 1 x VGA port, supports Connections dual monitors
Network Card	2 x RTL8111/8111F Gigabit network port
Memory	1 x DDR3/DDR4(J4125/N4000 with DDR4)
Storage	1 x mSATA SSD, 1 x 2.5 inch SSD/HDD

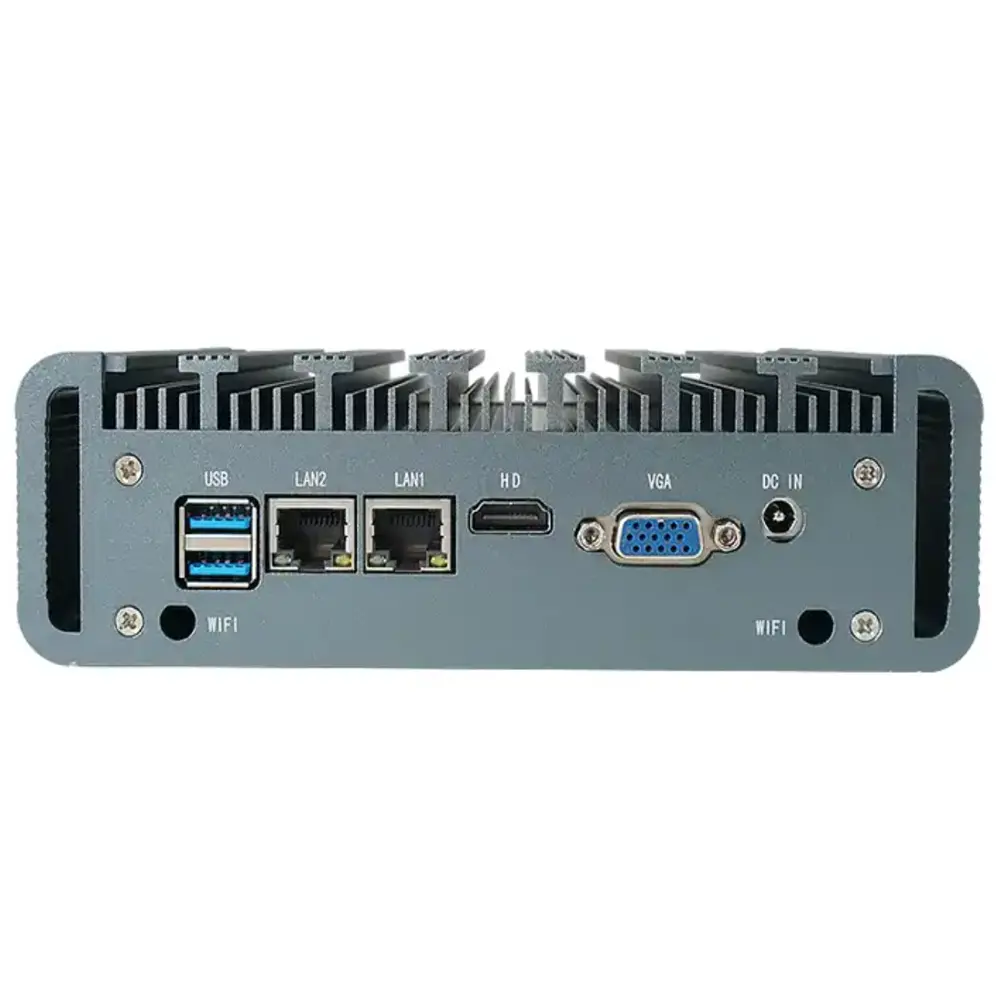

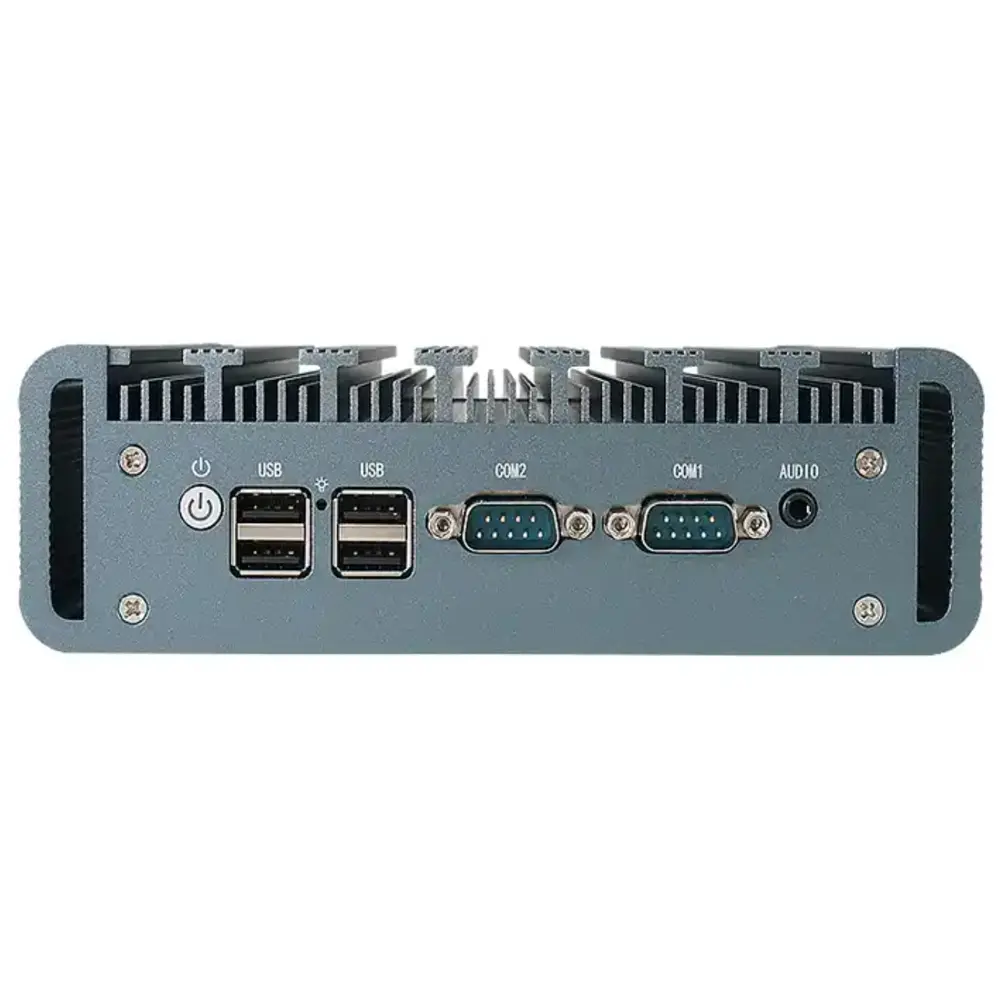

I/O Interfaces

I/O Ports	1 x Power Switch
	2 x USB2.0
	2 x USB2.0
	2 x COM
	1 x Audio
	2 x LAN
	1 x HDMI
	1 x VGA
	1 x DC IN
	2 x USB3.0
	2 x WiFi Holes

Software Support

Bios	AMI EFI BIOS
System Support	Support Windows, Linux, Ubuntu, OpenWrt, ROS etc

General

Cooling Mode	Fanless
Power Supply	External power 12V 4A DC 5.5*2.5 interface
Packing List	Mini pc, power supply, power cord, vesa mount, WiFi antennas, warranty card

Environment

Operating Temperature	-10°C~60°C
Storage Temperature	-20°C~80°C
Relative Humidity	10%~90% non-condensing
Certification	CE FCC ROHS

Model	Processor	Graphic	Frequency	Display	Memory	Storage	LAN	COM	USB	Power
P02	N2840	Intel® HD Graphics	2.16~2.58 GHz	HDMI/VGA	1 x DDR3, Max 8G	1 x mSATA, 1 x 2.5 inch SSD/HDD	2	2	6	DC 12V
P02	J1900	Intel® HD Graphics	2.0~2.42 GHz	HDMI/VGA	1 x DDR3, Max 8G	1 x mSATA, 1 x 2.5 inch SSD/HDD	2	2	6	DC 12V
P02	N4000	Intel® UHD Graphics 600	1.1~2.60 GHz	HDMI/VGA	1 x DDR4, Max 8G	1 x mSATA, 1 x 2.5 inch SSD/HDD	2	2	6	DC 12V
P02	3215U	Intel® HD Graphics	1.70 GHz	HDMI/VGA	1 x DDR3, Max 8G	1 x mSATA, 1 x 2.5 inch SSD/HDD	2	2	6	DC 12V
P02	I3 4005U I3 5005U	Intel® HD Graphics	1.70 GHz	HDMI/VGA	1 x DDR3, Max 8G	1 x mSATA, 1 x 2.5 inch SSD/HDD	2	2	6	DC 12V
P02	J4125	Intel® UHD Graphics 600	2.0~2.70GHz	HDMI/VGA	1 x DDR4, Max 8G	1 x mSATA, 1 x M.2 nvme 2280, 1 x 2.5 inch SSD/HDD	2	2	6	DC 12V
P02	I5 4200U	Intel® HD Graphics 4400	1.60~2.60 GHz	HDMI/VGA	1 x DDR3, Max 8G	1 x mSATA, 1 x 2.5 inch SSD/HDD	2	2	6	DC 12V
P02	I5 5200U	Intel® HD Graphics 5500	2.20~2.70 GHz	HDMI/VGA	1 x DDR3, Max 8G	1 x mSATA, 1 x 2.5 inch SSD/HDD	2	2	6	DC 12V
