Dual Nic Mini Pc

Model: Partaker P01

Intel N2840 J1900 N4000 J4125 3215U I3 4005U 5005U
Aluminum alloy structure, fanless design
Supports 1 x DDR3/DDR4 memory, up to 8G
1 x mSATA slot (supports 2.5-inch hard drive)
Dual network port, Dual serial port, support power on
Support 7*24 Hours operation, lower power consumption

Share to:

Overview

The Partaker P01 Fanless Mini PC exemplifies industrial-grade computing excellence, engineered for demanding business and network applications. As a professional mini PC manufacturer, we’ve developed this dual NIC solution with comprehensive features:

Industrial-Grade Construction:

All-aluminum alloy chassis for superior durability
Completely fanless design for silent operation
Compact 136 x 127 x 40mm footprint
Industrial-grade components for 24/7 reliability

Versatile Processing Options:

Multiple CPU choices:
– Intel N2840/J1900 for basic operations
– N4000/J4125 for enhanced performance
– i3 Series (4005U/5005U) for demanding tasks

Supports DDR3/DDR4 memory up to 8GB

Professional Connectivity:

Dual Gigabit LAN ports for network redundancy
Dual COM ports for industrial equipment
Dual display support (HDMI + VGA)
Multiple USB 3.0/2.0 ports

Flexible Integration:

Wide OS compatibility (Windows/Linux/Ubuntu/OpenWrt)
Multiple mounting options (Desktop/Wall/Embedded)
Extended temperature range (-10°C~60°C)
Low power consumption for cost efficiency

Custom solutions and OEM/ODM services are available for specific industrial requirements.

Mechanical

Material	High-quality all aluminum
Colour	Black
Size	136 * 127 * 40 mm
Weight	1.5Kgs

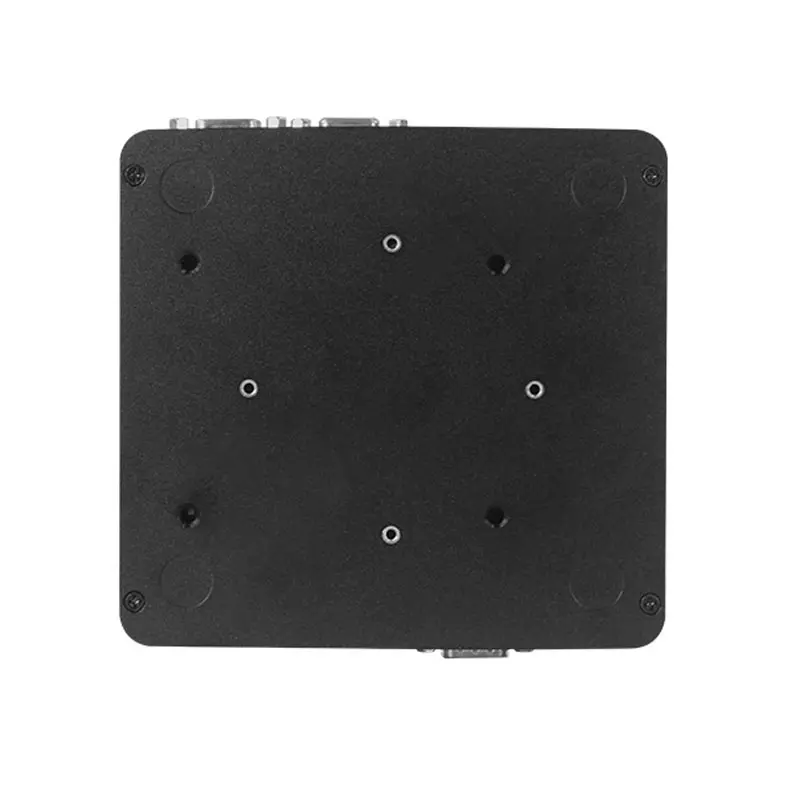

Insallation Method	Desktop, wall-mounted, embedded

Motherboard

CPU	Intel N2840/J1900/N4000/J4125/3215U/I3 4005U/I3 5005U Processor
Display Ports	1 x HDMI port, 1 x VGA port, supports Connections dual monitors
Network Card	2 x RTL8111/8111F Gigabit network port
Memory	1 x DDR3/DDR4(J4125/N4000 with DDR4)
Storage	1 x mSATA SSD, 1 x 2.5 inch SSD/HDD

I/O Interfaces

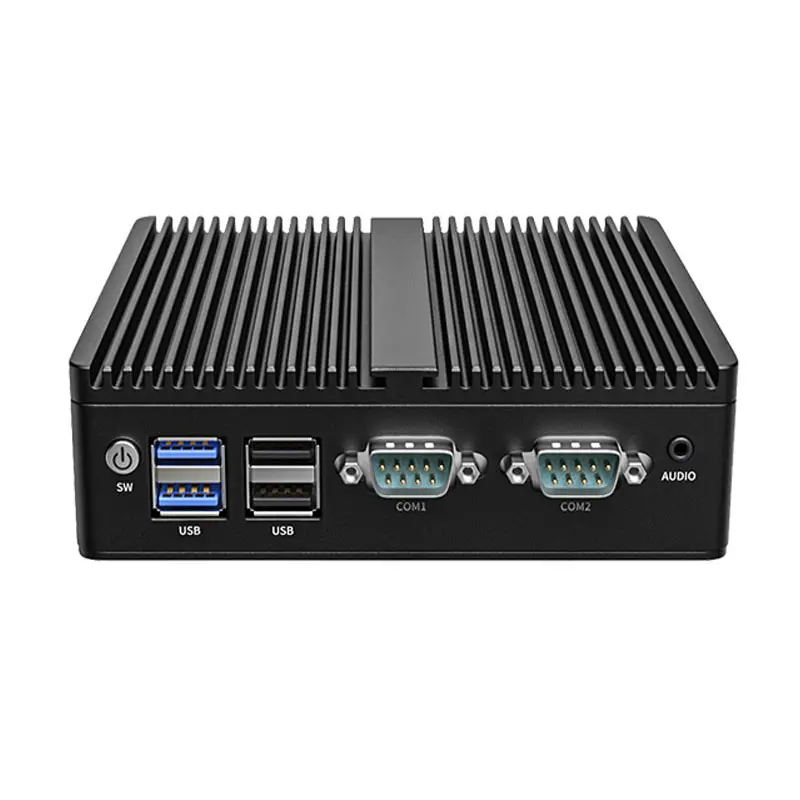

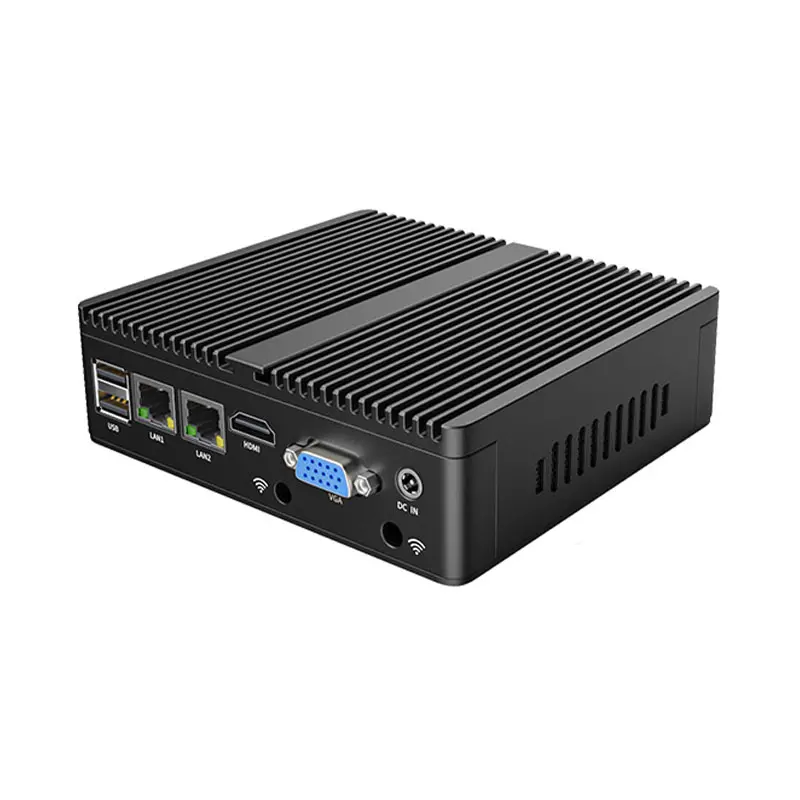

I/O Ports	1 x Power Switch
	2 x USB3.0
	2 x USB2.0
	2 x COM
	1 x Audio
	2 x LAN
	1 x HDMI
	1 x VGA
	1 x DC IN
	2 x WiFi Holes

Software Support

Bios	AMI EFI BIOS
System Support	Support Windows, Linux, Ubuntu, OpenWrt, ROS etc

General

Cooling Mode	Fanless
Power Supply	External power 12V 4A DC 5.5*2.5 interface
Packing List	Mini pc, power supply, power cord, vesa mount, WiFi antennas, warranty card

Environment

Operating Temperature	-10°C~60°C
Storage Temperature	-20°C~80°C
Relative Humidity	10%~90% non-condensing
Certification	CE FCC ROHS

Model	Processor	Graphic	Frequency	Display	Memory	Storage	LAN	COM	USB	Power
P01	N2840	Intel® HD Graphics	2.16~2.58 GHz	HDMI/VGA	1 x DDR3, Max 8G	1 x mSATA, 1 x 2.5 inch SSD/HDD	2	2	4	DC 12V
P01	J1900	Intel® HD Graphics	2.0~2.42 GHz	HDMI/VGA	1 x DDR3, Max 8G	1 x mSATA, 1 x 2.5 inch SSD/HDD	2	2	4	DC 12V
P01	N4000	Intel® UHD Graphics 600	1.1~2.60 GHz	HDMI/VGA	1 x DDR4, Max 8G	1 x mSATA, 1 x 2.5 inch SSD/HDD	2	2	4	DC 12V
P01	3215U	Intel® HD Graphics	1.70 GHz	HDMI/VGA	1 x DDR3, Max 8G	1 x mSATA, 1 x 2.5 inch SSD/HDD	2	2	4	DC 12V
P01	I3 4005U I3 5005U	Intel® HD Graphics	1.70 GHz	HDMI/VGA	1 x DDR3, Max 8G	1 x mSATA, 1 x 2.5 inch SSD/HDD	2	2	4	DC 12V
P01	J4125	Intel® UHD Graphics 600	2.0~2.70GHz	HDMI/VGA	1 x DDR4, Max 8G	1 x mSATA, 1 x M.2 nvme 2280, 1 x 2.5 inch SSD/HDD	2	2	4	DC 12V
