4 Lan Firewall Mini PC
Model: Partaker H1
- Choose from Intel Celeron J4125, J5040, N5105, J6412, N100 processors to meet varying performance requirements.
- Equipped with Intel 2.5G LAN for faster and more stable network connectivity.
- Two SO-DIMM DDR4 slots allow for versatile memory configurations, catering to multitasking needs.
- Built-in M.2 NVME SSD slot provides a fast and efficient storage solution.
- Offers DP and HDMI as display ports, accommodating various display device connections.
- Supports VESA mounting, wall mounting, and desktop installation, offering flexibility for different installation scenarios.
Share to:
Overview
Our Firewall Mini PC H1 offers a diverse range of computing solutions, featuring Intel processors such as the Celeron J4125, N5105, J6413, and N100. With Intel 2.5G LAN for high-speed networking, two SO-DIMM DDR4 slots for flexible memory configuration, and an M.2 NVME SSD slot for rapid storage, these mini PCs provide versatile performance. The inclusion of DP and HDMI display ports caters to various display preferences, while the VESA, wall mount, and desktop installation options ensure adaptability to different setups. Compact yet powerful, our Firewall Mini PC series is designed to meet the demands of a dynamic computing landscape.
Mechanical
| Material | Aluminum alloy structure |
| Colour | Blue+Gray (color can be customized) |

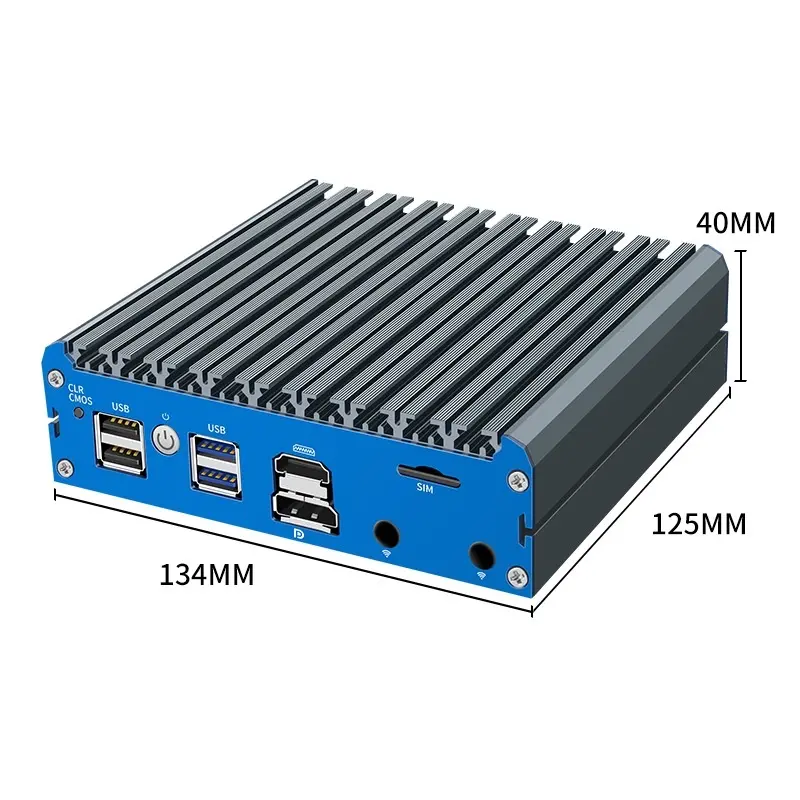

| Size | 134 x 125 x 40 mm |
| Weight | 1.0 kg |
| Insallation Method | Desktop |
| Wall Mount | |
| Vesa |
Motherboard
| CPU | Intel Celeron J4125 4 Cores 4 Threads Intel Pentium Silver J5040 4 Cores 4 Threads Intel Pentium Silver N5000 4 Cores 4 Threads Intel Celeron J6412 4 Cores 4 Threads Intel Processor N100 4 Cores 4 Threads |
| Display Ports | 1 x DP; 1 x HDMI |
| Network Card | 4 x I226V (Default) |
| Memory | 2 x DDR4 2133/2400MHz SO-DIMM (Single up to 8GB), N100 with DDR5 RAM |
| Storage | 1 x M.2 2280 SSD; 1 x 2.5-inch HDD/SSD |
| Chipset | Depend on CPU |
| Other function | Power on, scheduled boot, wake on LAN, PXE boot, watchdog |
| Expansion Slot | 1 x Mini PCIE Channel for WIFI/Bluetooth/4G |
| Application | Firewall, VPN, network server, network security, router and other fields. |
I/O Interfaces

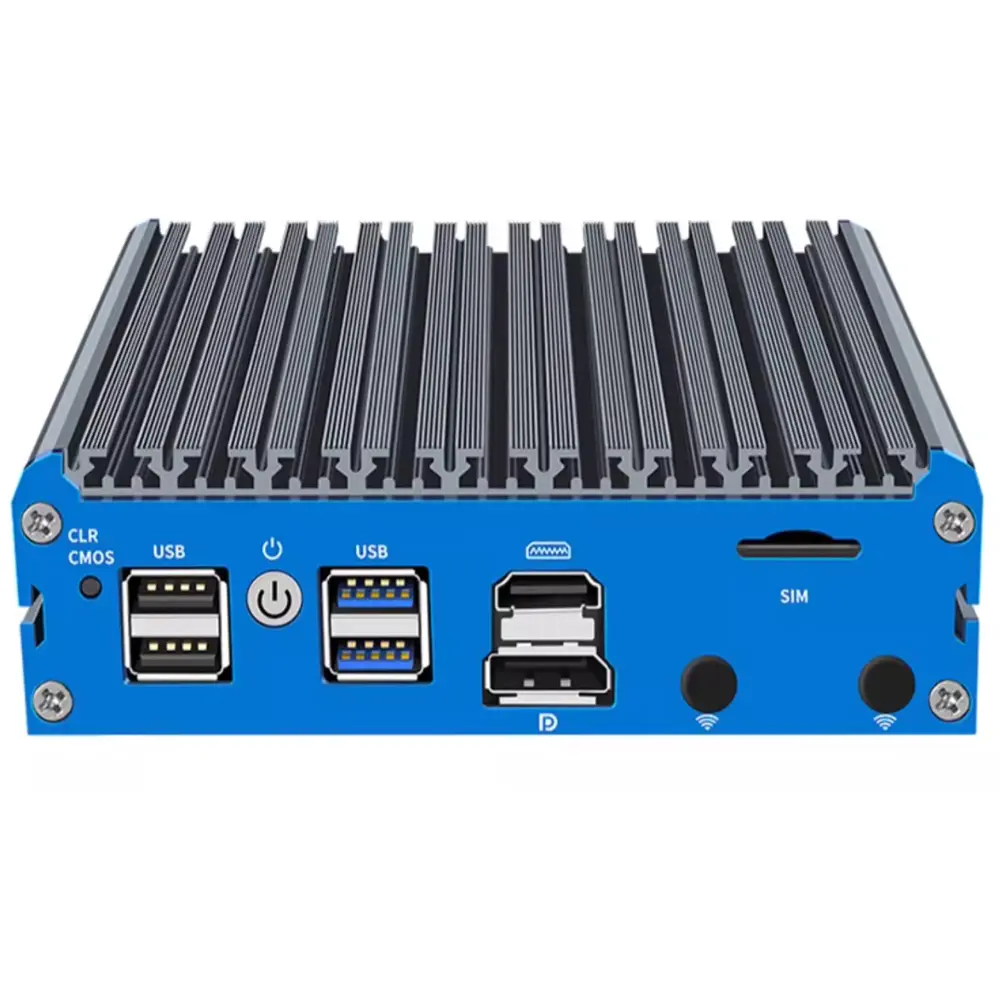

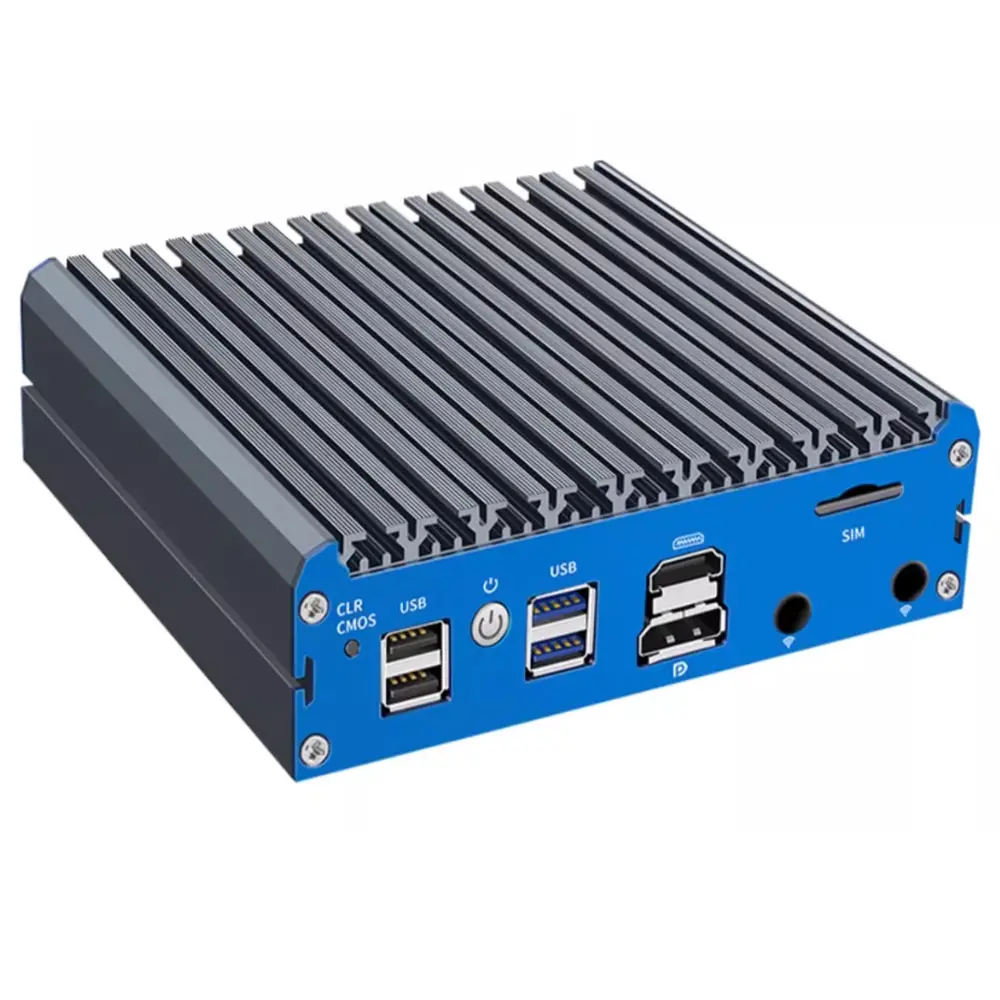

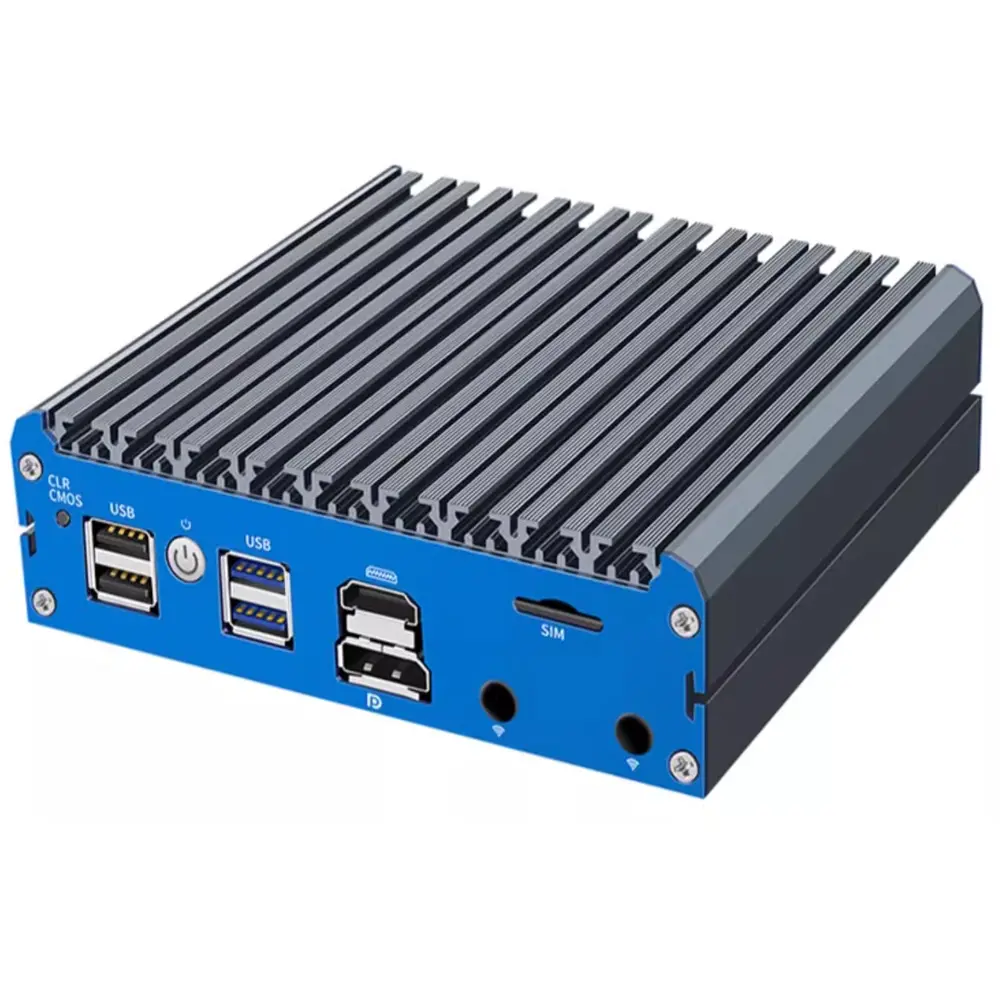

| Front Panel | 1 x CLR CMOS Reset button |
| 2 x USB2.0 | |
| 1 x Power Button | |
| 2 x USB3.0 | |
| 1 x DP | |
| 1 x HDMI | |
| 1 x SIM Slot | |
| 2 x WiFi Holes | |

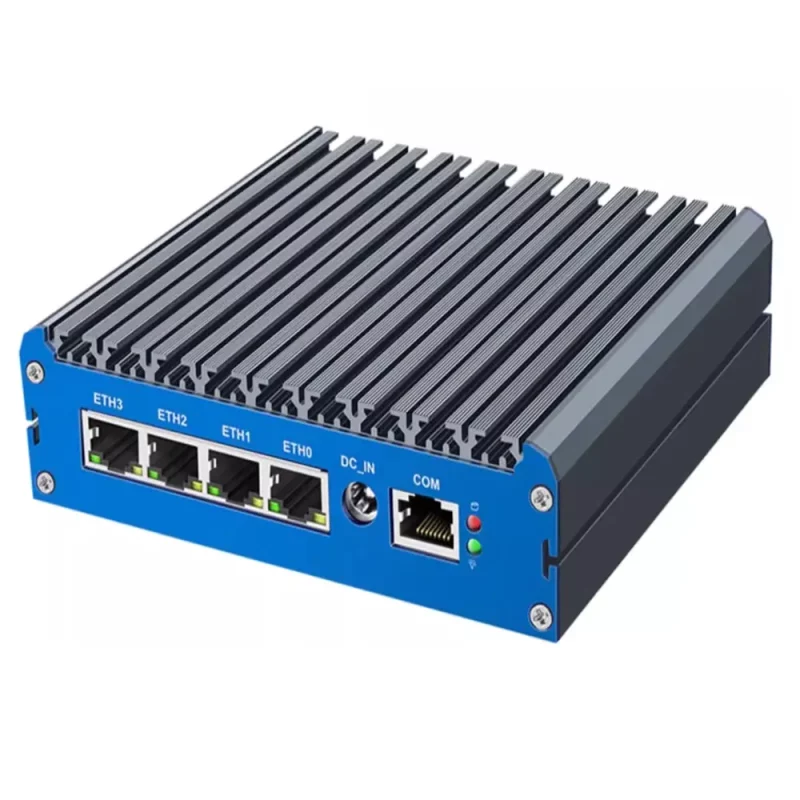

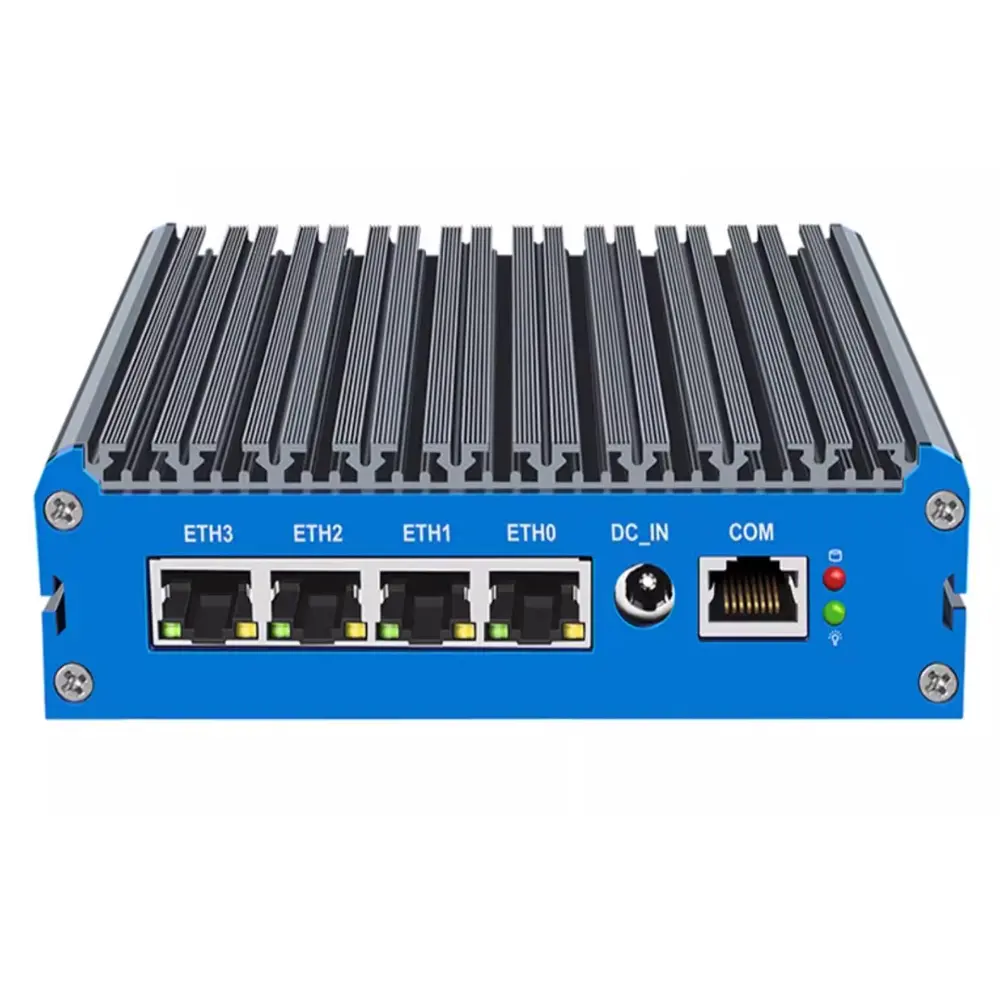

| Rear Panel | 4 x LAN |
| 1 x DC In | |
| 1 x Console | |
| 1 x Power hard disk indicator light |
Software Support
| Bios | AMI UEFI BIOS |
| System Support | Windows/Linux/Centos/Ubuntu/pfSense/OPNsense |
General
| Cooling Mode | Fanless |
| Power Supply | DC 12V |
| Packing List | Firewall appliance, power supply, power cord, vesa mount, warranty card |
Environment
| Work Temperature | 0°C ~ +40°C Commercial HDD, -20°C ~ -60°C Industrial SSD, surface air flow |
| Work Humidity | 0%~95% non-condensing |
| Certification | CE FCC ROHS |
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| H1 | J4125 | Intel® UHD Graphics 600 | 2.0~2.70GHz | HDMI/DP | 2 x SO-DIMM DDR4 | 1 x M.2 2280/1 x 2.5 Inch HDD/SSD | 4 | 4 | DC 12V |
| H1 | J5040 | Intel® UHD Graphics 605 | 2.0~3.20GHz | HDMI/DP | 2 x SO-DIMM DDR4 | 1 x M.2 2280/1 x 2.5 Inch HDD/SSD | 4 | 4 | DC 12V |
| H1 | N5100 | Intel® UHD Graphics | 1.1~2.80GHz | HDMI/DP | 2 x SO-DIMM DDR4 | 1 x M.2 2280/1 x 2.5 Inch HDD/SSD | 4 | 4 | DC 12V |
| H1 | J6412 | Intel® UHD Graphics | 2.0~2.60GHz | HDMI/DP | 2 x SO-DIMM DDR4 | 1 x M.2 2280/1 x 2.5 Inch HDD/SSD | 4 | 4 | DC 12V |
| H1 | N100 | Intel® UHD Graphics | 3.40GHz | HDMI/DP | 2 x SO-DIMM DDR5 | 1 x M.2 2280/1 x 2.5 Inch HDD/SSD | 4 | 4 | DC 12V |
