4 Lan Firewall Appliance J4125
Mode: Partaker C5
- Silent, dustproof, vibration-free operation
- Intel Celeron J4125 Quad-Core
- 4× Intel i211-AT Gigabit LAN
- Triple Expansion Slots
- HDMI+DP for monitoring/configuration
- Desktop, DIN rail, VESA, or wall-mounted
- 12V DC input, CE/CCC/ROHS compliant
- Operates at -20°C~+60°C with industrial SSDs
- Watchdog, PXE boot, timed/WoL power management
- 144×126.5x42mm, 0.7kg for space-constrained setups
Share to:
Overview
The pfSense 4 LAN Firewall Appliance delivers robust network security in a compact, fanless design with a pure aluminum chassis, ensuring silent operation, zero vibrations, and dust resistance. Powered by an Intel Celeron J4125 Quad-Core processor and expandable up to 8GB DDR4 RAM, it supports 4× Intel i211-AT Gigabit LAN ports for high-throughput firewall routing. Flexible storage options include dual M.2 slots and a Mini PCIe slot, while versatile mounting (desktop, DIN rail, VESA, wall) adapts to diverse environments. Ideal for SMBs and edge networks, it balances enterprise-grade performance with energy-efficient reliability.
Mechanical
| Model | Partaker C5 Firewall Mini PC |
| Processor | Intel Celeron J4125（Quad core quad threading，4MB cache，2.0GHz，Max turbo 2.7GHz） |
| CPU Architecture | Gemini Lake Refresh |
| Chipset | Intel UHD Graphics 600 |
| Memory | Support 1*DDR4 MAX 8GB RAM Slot |
| BIOS | AMI UEFI BIOS |
| Display Port | 1*HD，1*DP |
| Storage | 1*M.2 2280SSlot，1*2.5’’ HDD |
| Expansion | 1*M.2 2280 M-key Slot（Support SATA Protocol） |
| 1*M.2 2230 E-key Slot（Only support USB BT） | |
| 1*Mini PCIE Slot（4G Optional，External SIM slot：only support USB Wifi/BT） | |

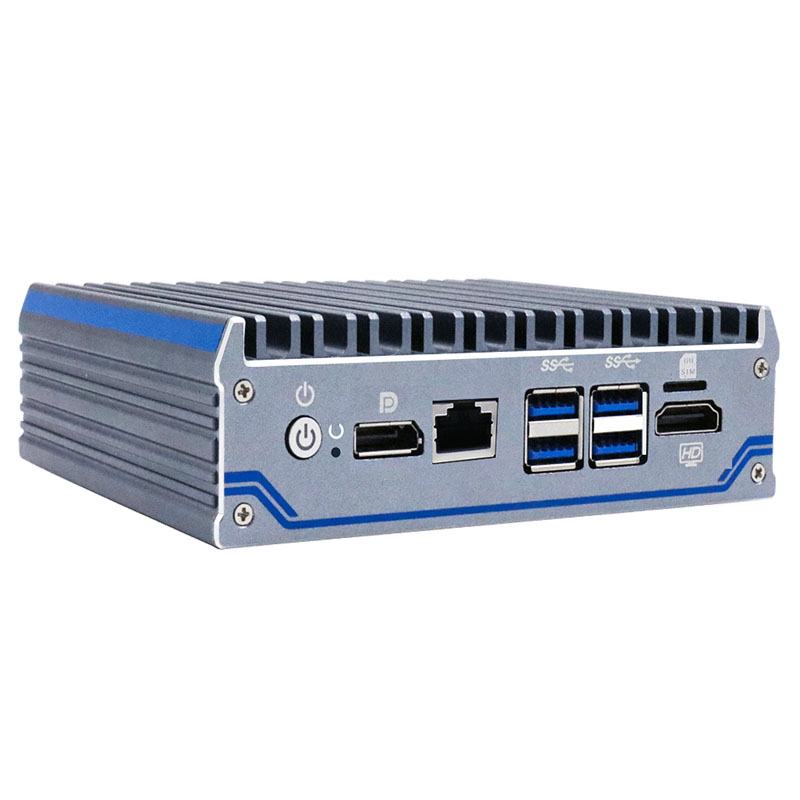

| Front I/O | 1*Power Switch，1*HD，1*DP，4*USB3.0，1*SIM Slot , 1*RJ45 COM（Support console），1*Reset |

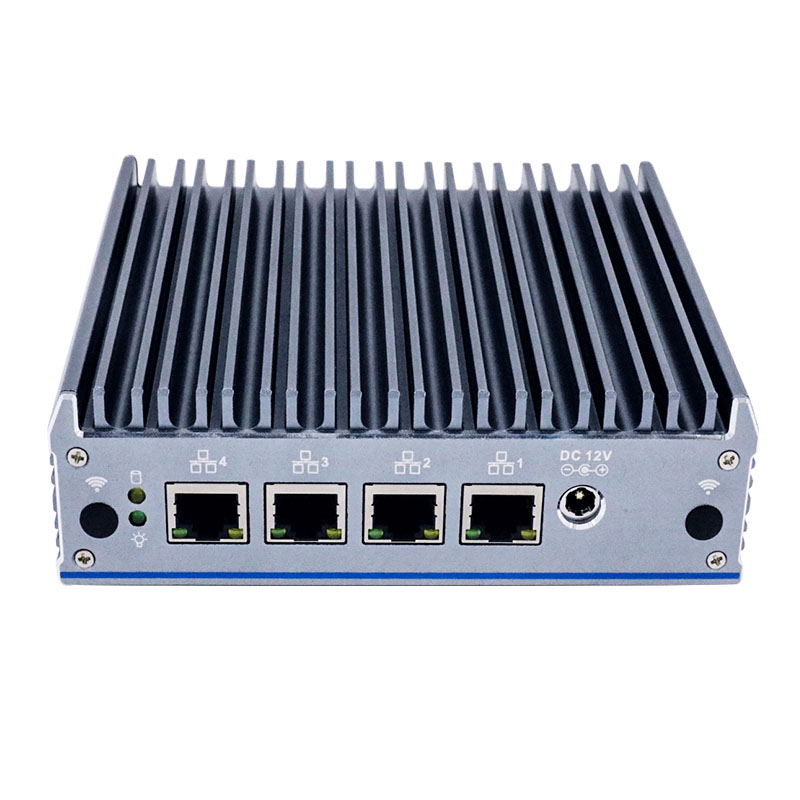

| Rear I/O | 1*DC，4*1000M LAN |
| Network | 4*Intel i211-AT 10/100/1000M Ethernet LAN |
| Input Voltage | DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level） |
| Application | Firewall, VPN, Network Server, Network Security, Router and etc |
| Structure Parameter | |
| Color | Titanium gray |
| Material | High-quality all aluminum，surface anodic oxidation |

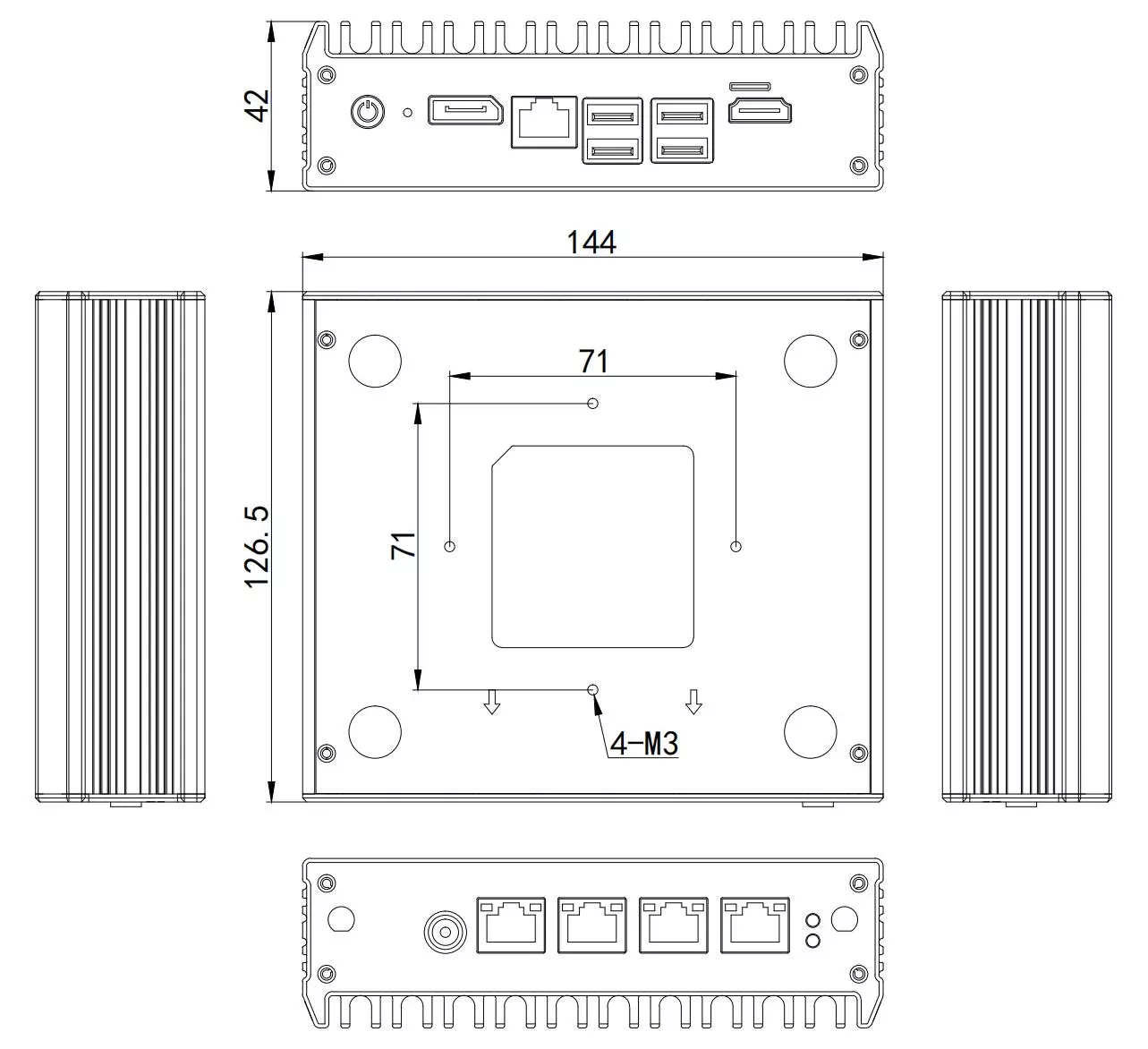

| Dimension | 144 * 126.5 * 42 mm |
| Weight | 0.7 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |

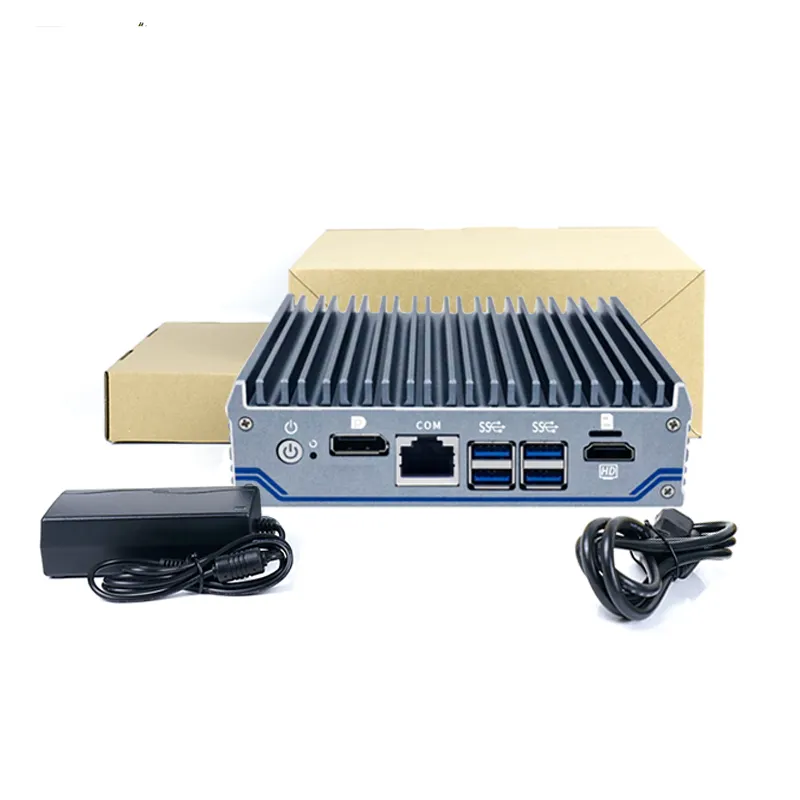

| Accessories List | ||
| Name | Quantity | Specification |
| Power Adapter | 1 | 12V 5A |
| Power Cord | 1 | Any Plug Optional (China, US, EU, UK etc.) |
| VESA Bracket | 1 | Standard |
| Order Information | |||
| Configuration 1 | C5 | Intel Celeron J4125 | Standard Port |
