15.6 Inch IP65 Panel PC
Model: Partaker A23

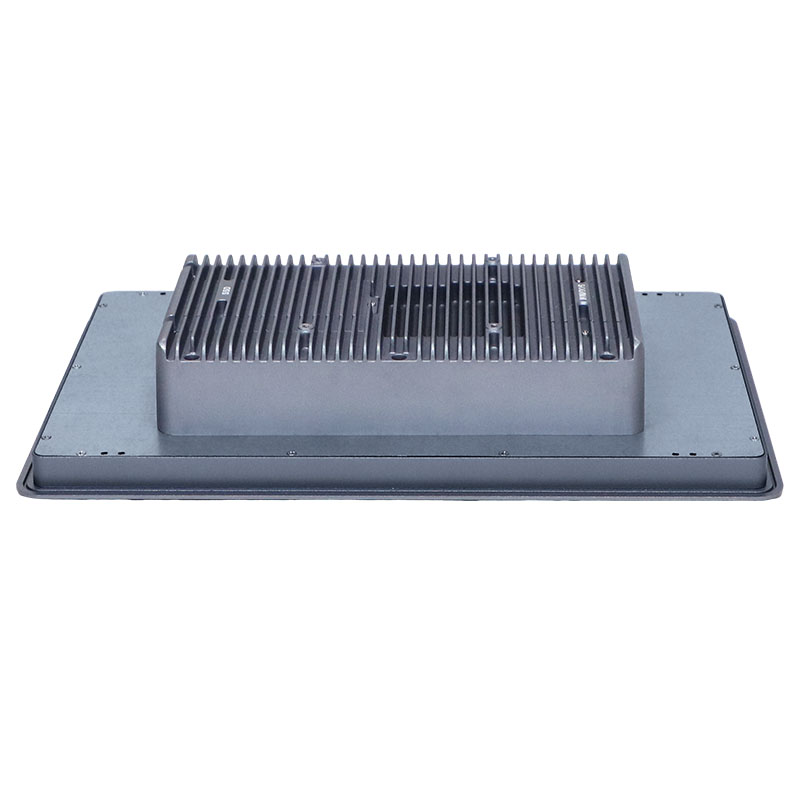

- Rugged aluminum alloy chassis with silent fanless cooling.
- Powered by onboard Intel Celeron or Core series processors.
- TPM 2.0 security module enables Windows 11 OS support.
- Wide-range 9~36V DC input for industrial power environments.
- Dual independent RS232/422/485 serial ports (expandable to 6).
- Dual Intel LAN ports (expandable to 4; 3 ports on J6412 model).

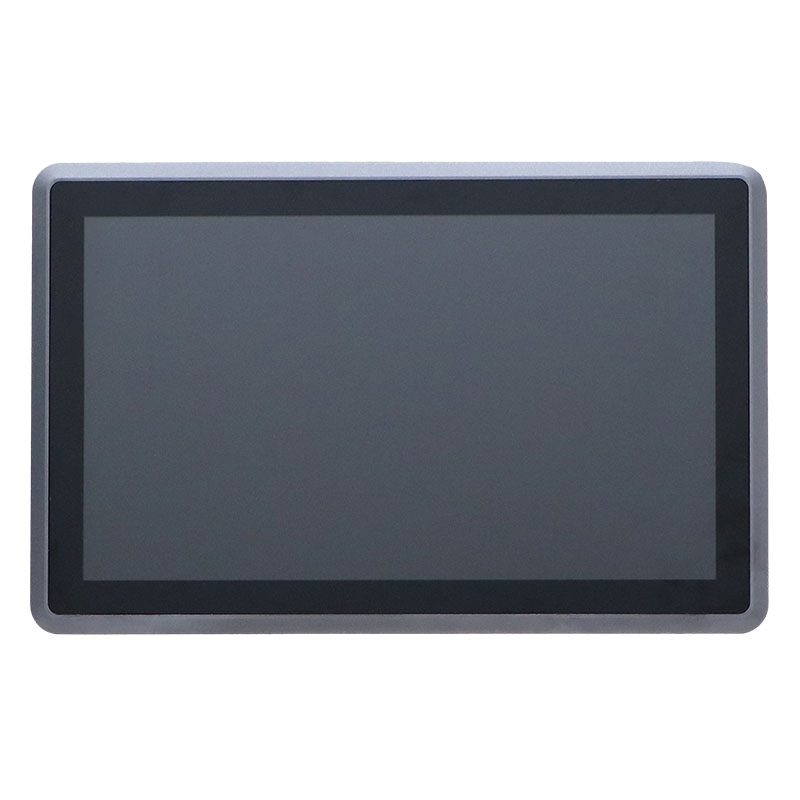

- IP65-rated fully flat front panel for dust/water resistance.
- Compatible with Windows 10, Windows 11, and Linux operating systems.
Share to:
Overview
Crafted for demanding environments, our 15.6-inch Fanless Touch Panel PC combines a robust aluminum alloy chassis and IP65-rated front panel with advanced Intel processing. Featuring wide 9-36V DC input, TPM 2.0 for Windows 11 support, and flexible connectivity options including expandable serial and LAN ports, it delivers reliable performance in industrial automation, kiosk, and outdoor applications.
Mechanical
| Specification | |
| Model | Partaker A23 |
| Chassis color | Gray (can be customized) |
| Chassis | Aluminum alloy |
| Processor | Onboard Intel Celeron J6412 (Quad core quad threads, 2.0GHz, Max turbo 2.6GHz) |
| Onboard Intel Core i3-10110U (Dual core quad threads, 2.1G, Max. Turbo 4.1G, 4MB Cache) | |
| Onboard Intel Core i5-8260U (Quad core eight threads,1.6Ghz, Max turbo 3.9Ghz, 6MB Cache) | |
| Onboard Intel Core i5-10310U (Quad core eight threads, 1.7GHz, Max. Turbo 4.4G, 6MB Cache) | |
| Onboard Intel Core i7-10810U (six core twelve threads,1.1Ghz, Max turbo 4.9Ghz, 12MB Cache) | |
| RAM | Support 1*DDR4 2400/2666/3200 SODIMM memory slot, Max. 32GB |
| BIOS | AMI EFI BIOS |
| Display chip | Integrated Intel UHD Graphics |
| Display port | 1*HDMI,1*LVDS(Support synchronous and asynchronous dual display) |
| Storage | Onboard 1*M.2 2280 slot(SATA signal), 1*2.5inch SSD slot |
| Expansion slot | Support 1*Mini PCIE slot(support WIFI/BT/3G/4G,with SIM card slot) |

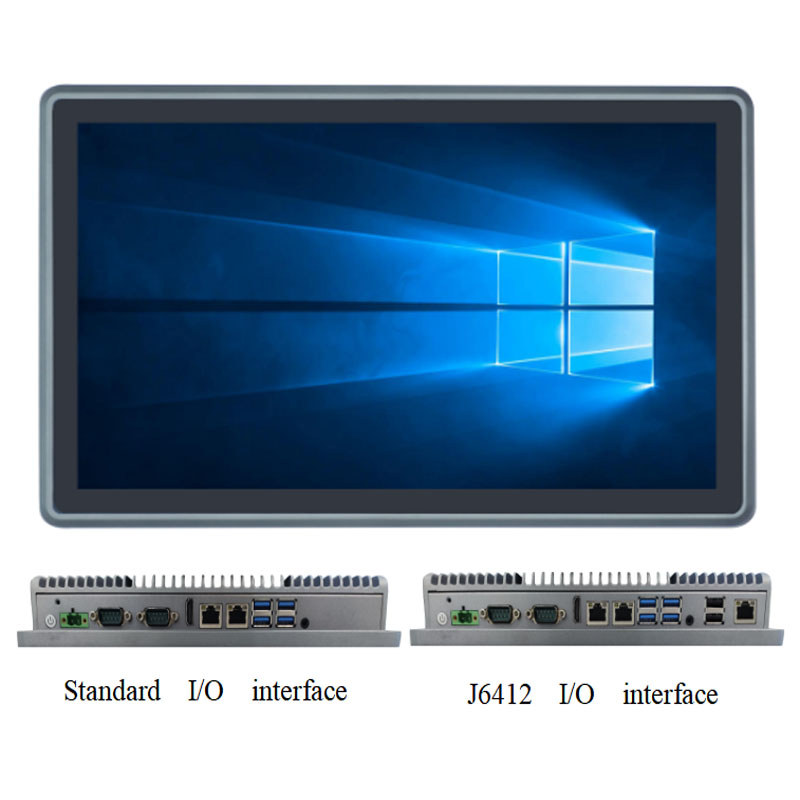

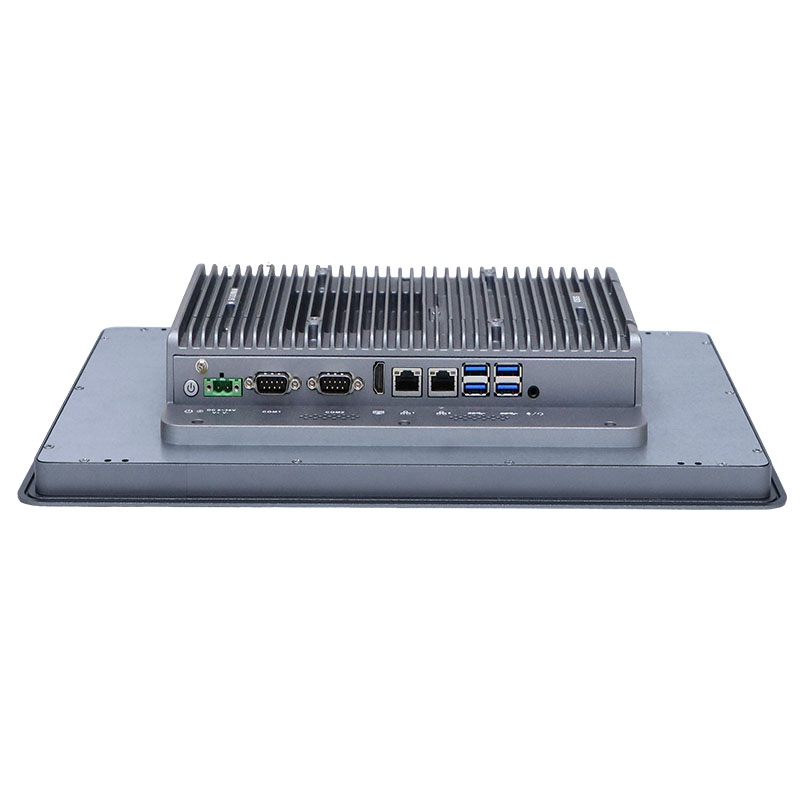

| I/O | 1*HDMI, 2*COM (COM1,2 RS232/422/485 Optional, 6*COM Optional), 1*Power Switch, 4*USB3.0, (J6412 with 4xUSB3.0+ 2xUSB2.0), 1*2Pin power supply phoenix connector, 1*Speaker&Mic |
| 2*Intel 1000M LAN (4*LAN Optional), (J6412 with 2*Intel 1000M LAN+1*Intel 2.5G LAN) | |
| Other Function | TPM2.0 security encryption, Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0～255 level) (Standard version doesn’t set these functions) |
| Expansion options | (Standard shipments do not include this interface): GPIO(8 in & 8 out), 2*Lan ports, 4*COM, 2*USB2.0 |
| LCD | Screen size: 15.6inch TFT-LCD, screen brightness: 400 cd/m2 |
| Screen scale: 16：9, resolution: 1920 * 1080 | |
| Touch screen | Industrial grade resistance(Capacitive optional) touch screen, Life Time: more than 50000 Thousand Times |
| Speaker | 2*8Ω 2V Speaker |
| Input voltage | DC 9～36V wide-voltage, Support positive and negative electrode protection |
| Working temp | -10℃ ～ +60℃(SSD), Surface air flow |
| Working humidity | 5% ～ 95% Non-condensing state |

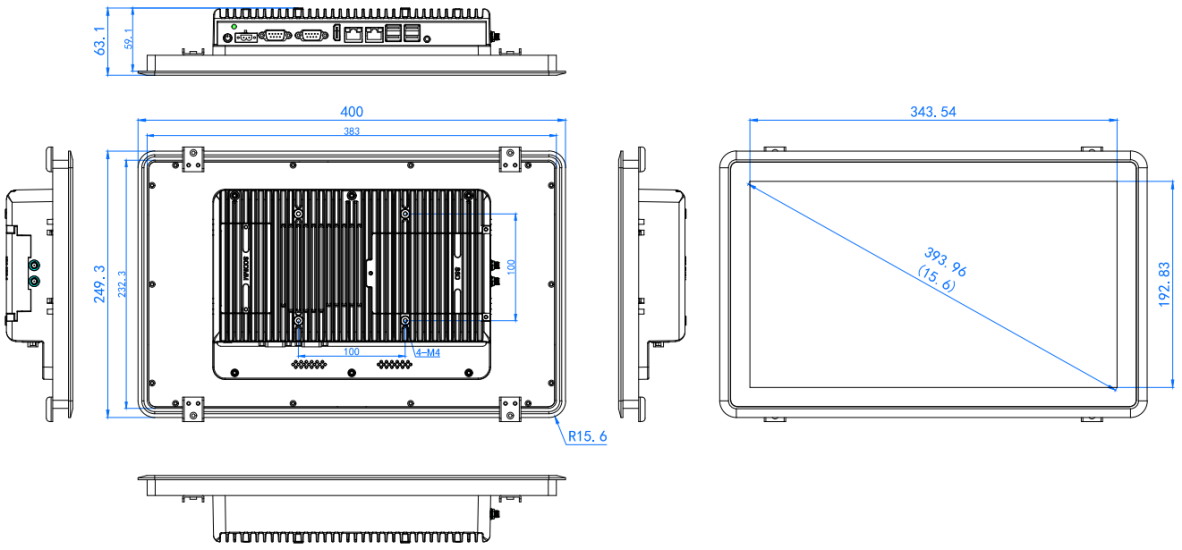

| Dimension | 400 * 249.3 * 63.1 mm |
| Embedded | 385 * 234.3 mm |
| Weight | 4 kg |
| Application | Industrial automation, medical, logistics, transportation, warehousing, machine vision and other fields |
| Order Information | |||
| Config 1 | Intel Celeron J6412 | LAN*3/USB*6/COM*2/HDMI*1/ DC-IN*1/Audio*1 | 1*DDR4/32G Max/1*M.2 SATA/1*2.5’’ HDD/1*mini_PCIE wifi/4G |
| Config 2 | Intel Core i3-10110U | LAN*2/USB*4/COM*2/HDMI*1/ DC-IN*1/Audio*1 | 1*DDR4/32G Max/1*M.2 SATA/1*2.5’’ HDD/1*mini_PCIE wifi/4G |
| Config 3 | Intel Core i5-8260U | LAN*2/USB*4/COM*2/HDMI*1/ DC-IN*1/Audio*1 | 1*DDR4/32G Max/1*M.2 SATA/1*2.5’’ HDD/1*mini_PCIE wifi/4G |
| Config 4 | Intel Core i5-10310U | LAN*2/USB*4/COM*2/HDMI*1/ DC-IN*1/Audio*1 | 1*DDR4/32G Max/1*M.2 SATA/1*2.5’’ HDD/1*mini_PCIE wifi/4G |
| Config 5 | Intel Core i7-10810U | LAN*2/USB*4/COM*2/HDMI*1/ DC-IN*1/Audio*1 | 1*DDR4/32G Max/1*M.2 SATA/1*2.5’’ HDD/1*mini_PCIE wifi/4G |
| Note: There is a conflict between extended and standard function. Please consult technical personnel for extended function. | |||
| Accessories List | ||
| Name | Quantity | Specification |
| Power Adapter | 1 | 12V5A / 12V7A(i7-10810U) |
| Power Cord | 1 | Any Plug Optional (China, US, EU, UK etc.) |
| Embedded Mounting Clip | 4 | For Standard Embedded Installation |
